Toyota YARIS 角窗 — Figure 6103

Toyota YARIS EPC diagram 6103, 角窗, with 1 images and 8 PNC and OE references.

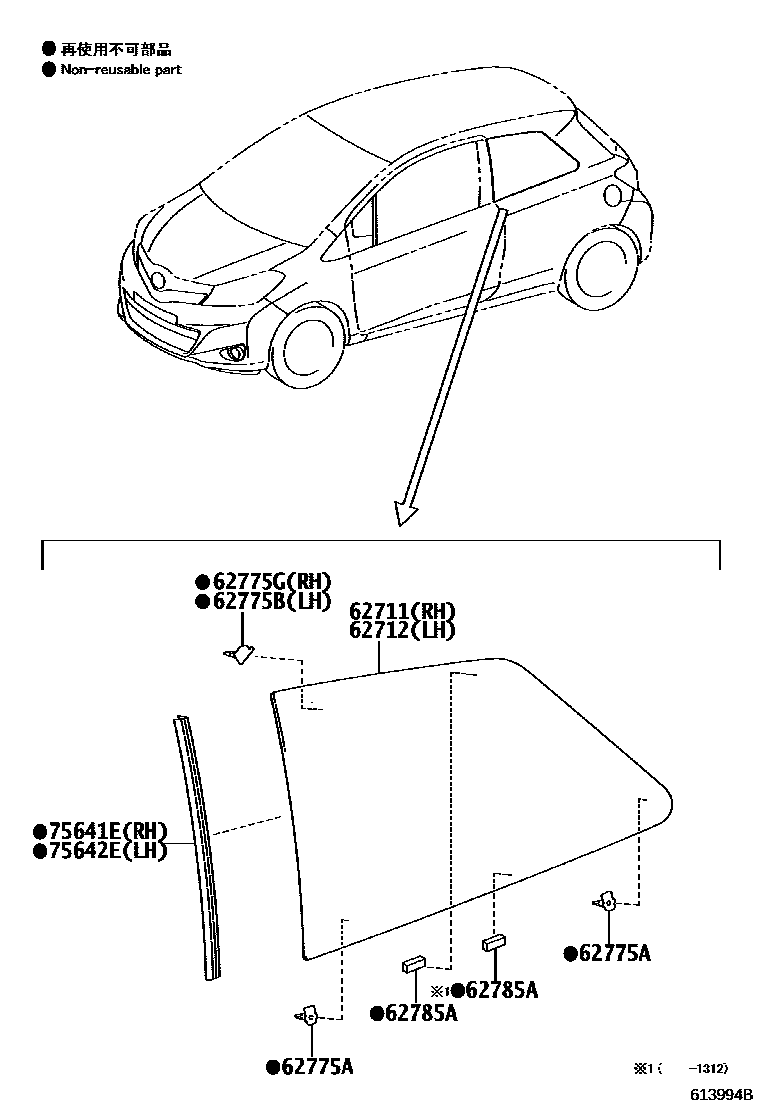

Toyota YARIS 角窗 EPC diagram — 613994B
角窗 — 613994B (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-0D040 · 62711-0D050
62712Left corner window glass62712-0D040 · 62712-0D050
62775ACorner window clip62775-0D030
62775BLeft corner window clip62775-0D020
62775GRight corner window clip62775-0D010
62785ACorner window glass spacer62785-16030
75641ERight corner window protective strip75641-0D020
75642ELeft corner window protective strip75641-0D020
