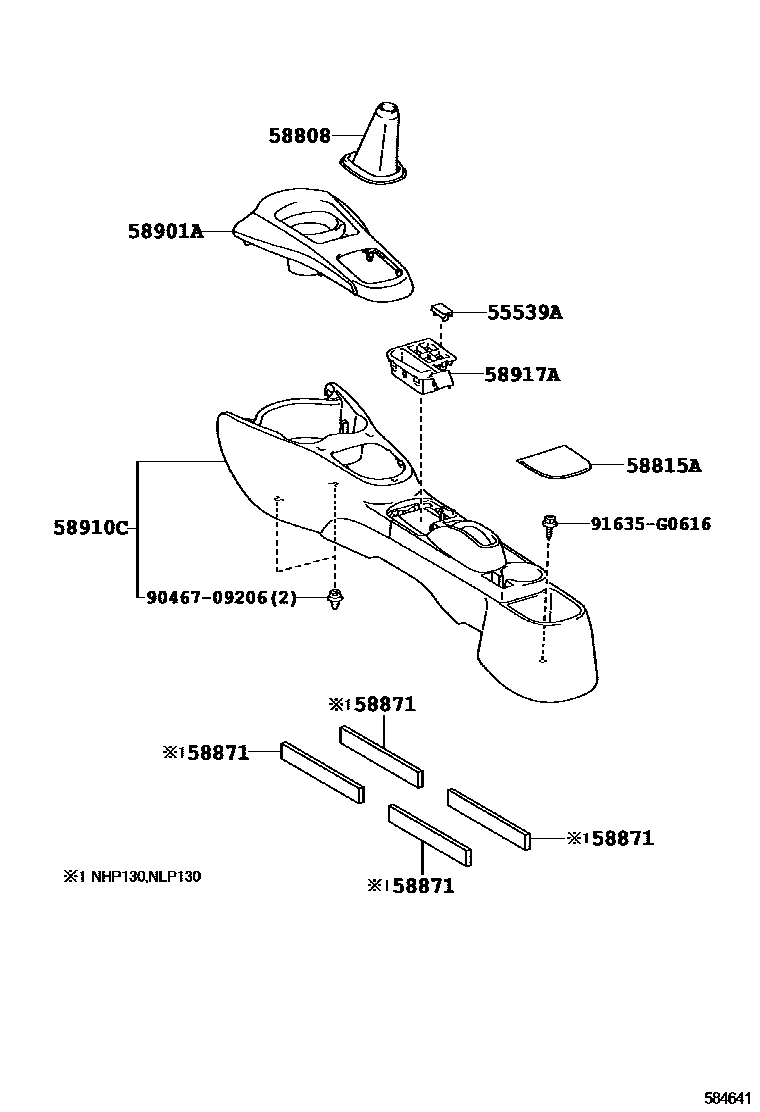

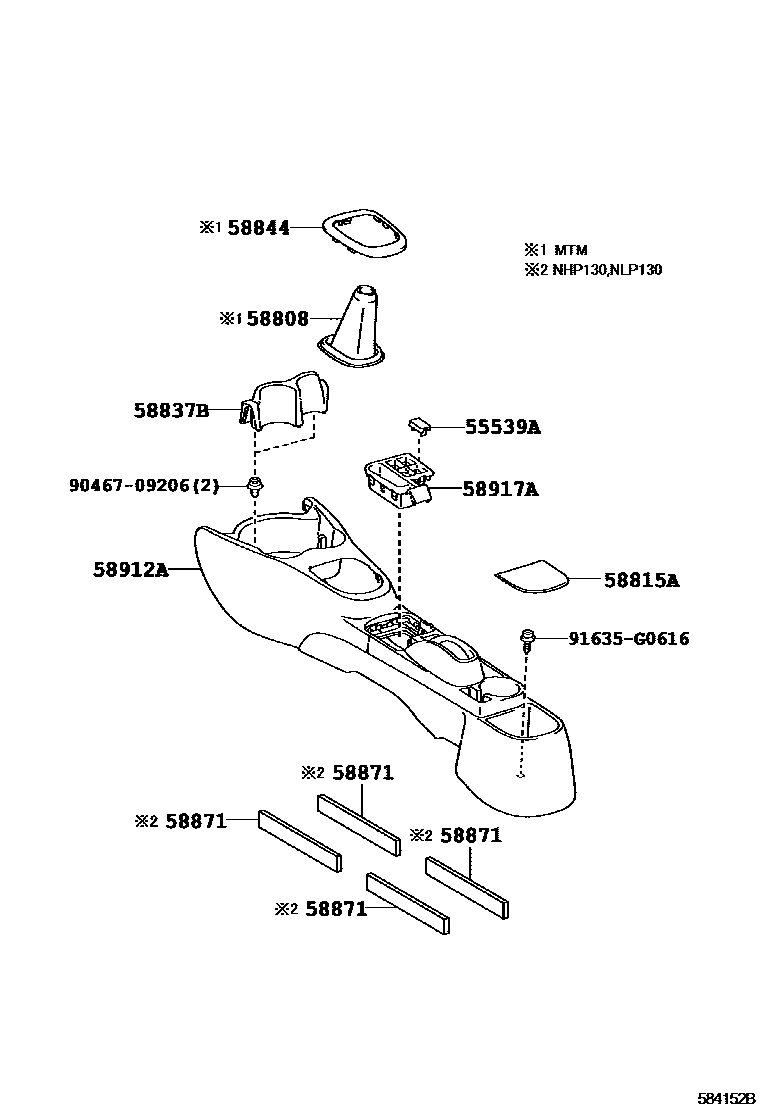

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58808 | Shift hole cover sub-assembly | 58808-0D220 · 58808-0D230 |
| 58815A | Armrest box felt pad | 58815-0D170 |
| 58844 | armrest box frame | 58844-0D070 |
| 58871 | Armrest box cushion | 58871-0D060 |
| 58901A | Rear armrest box sub-assembly | 58901-0D060 · 58901-0D070 |
| 58910C | Rear armrest box assembly | 58910-0D170 |
