Toyota YARIS 地板隔热垫 — Figure 5802

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 3 images and 4 PNC and OE references.

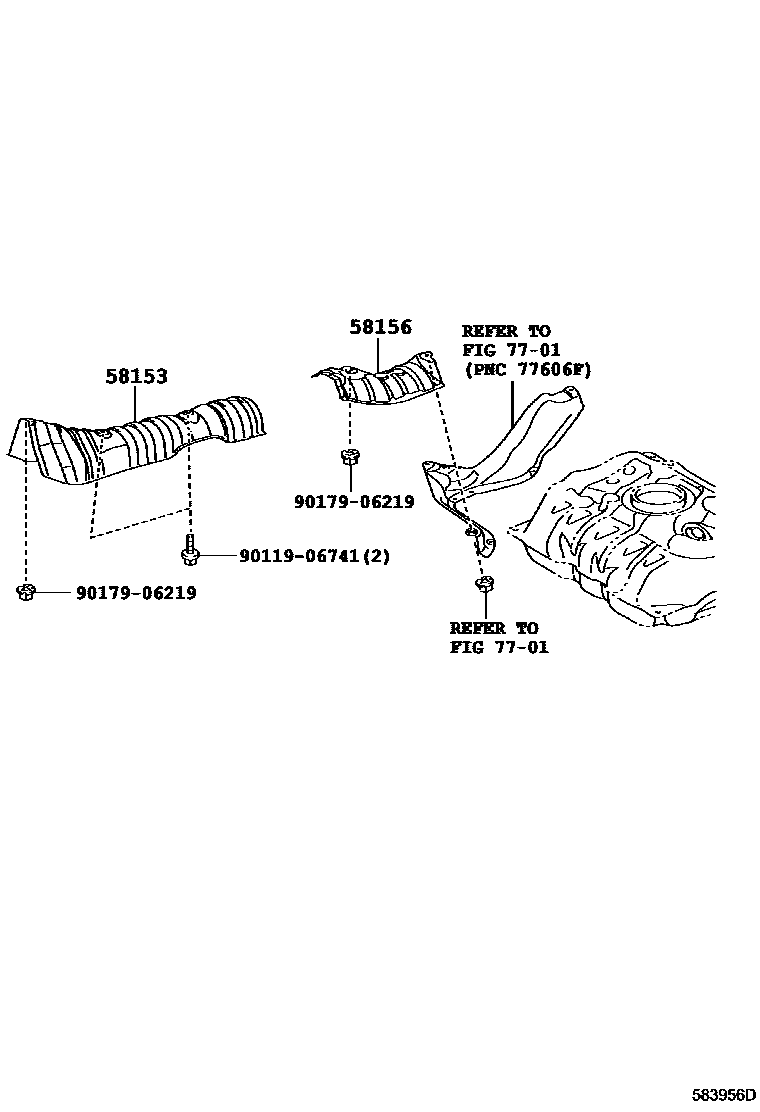

Toyota YARIS 地板隔热垫 EPC diagram — 583956D
地板隔热垫 — 583956D (201107 – 999999)

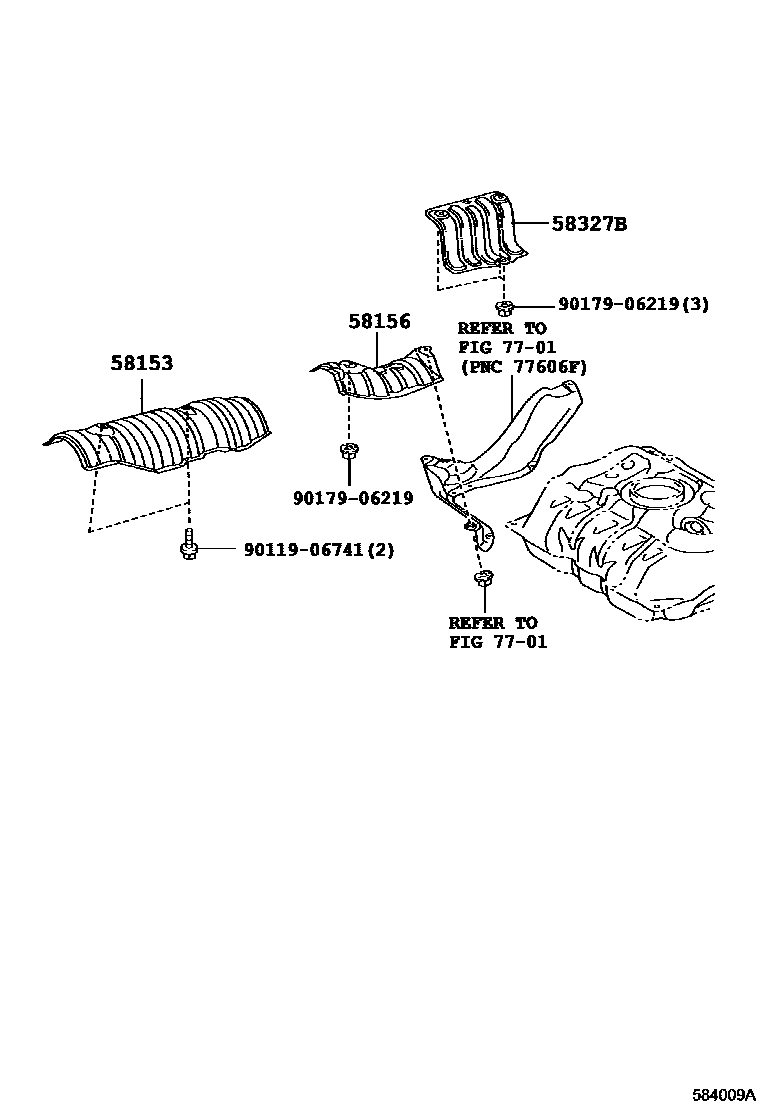

Toyota YARIS 地板隔热垫 EPC diagram — 584009A
地板隔热垫 — 584009A (201107 – 999999)

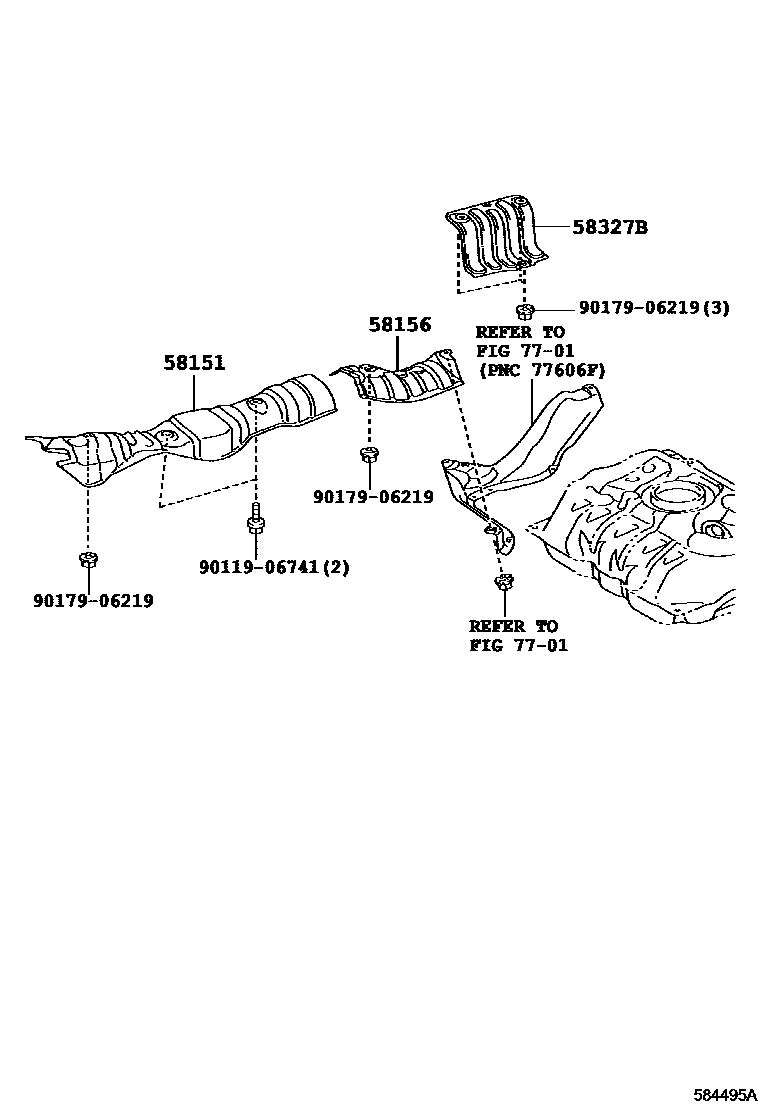

Toyota YARIS 地板隔热垫 EPC diagram — 584495A
地板隔热垫 — 584495A (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
58151Front floor insulation mat No. 158151-0D100
58153Front floor insulation mat No. 258153-0D040 · 58153-0D050
58156Front floor insulation mat No. 458156-0D010
58327BMain muffler heat insulation pad58327-0D050
