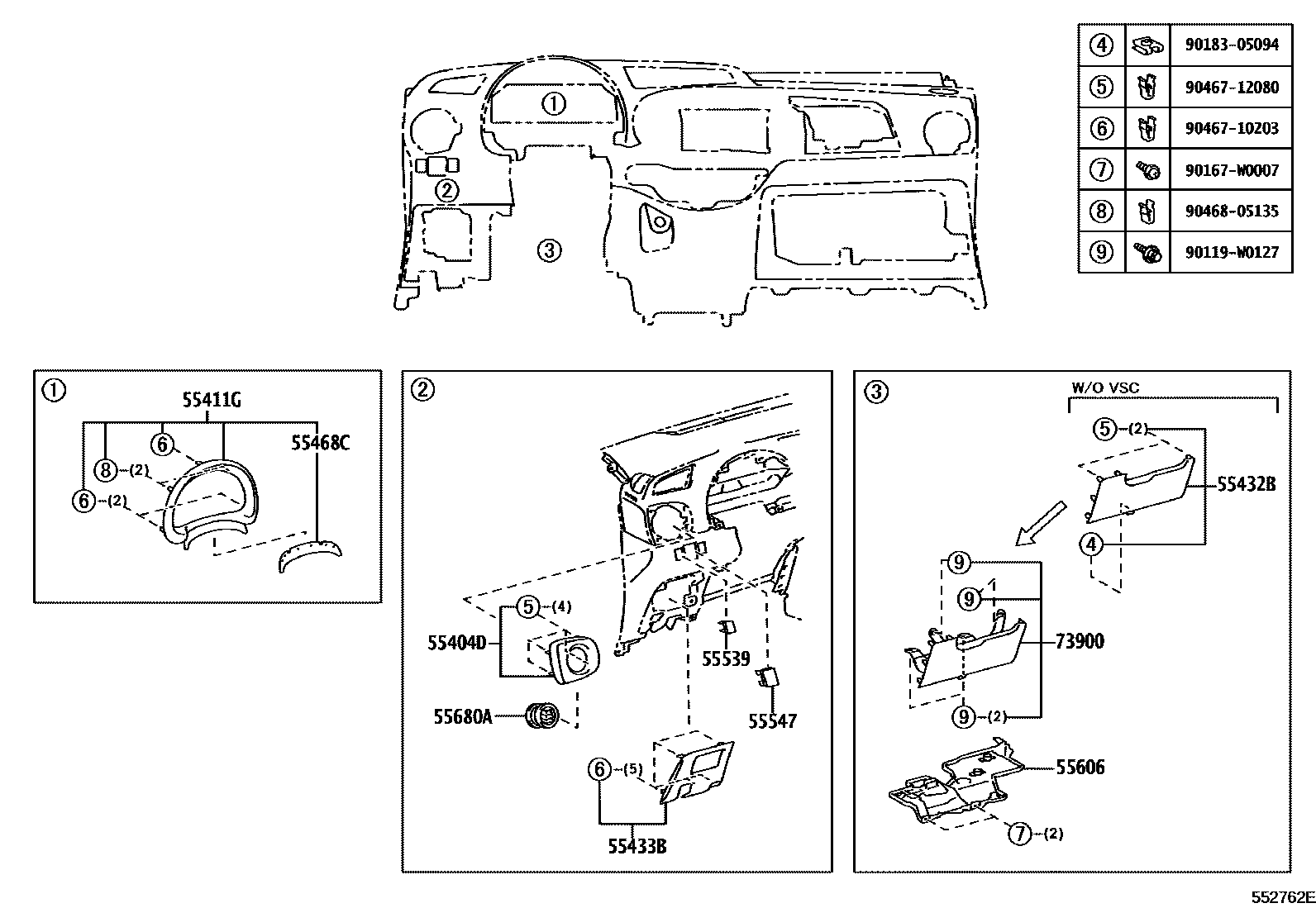

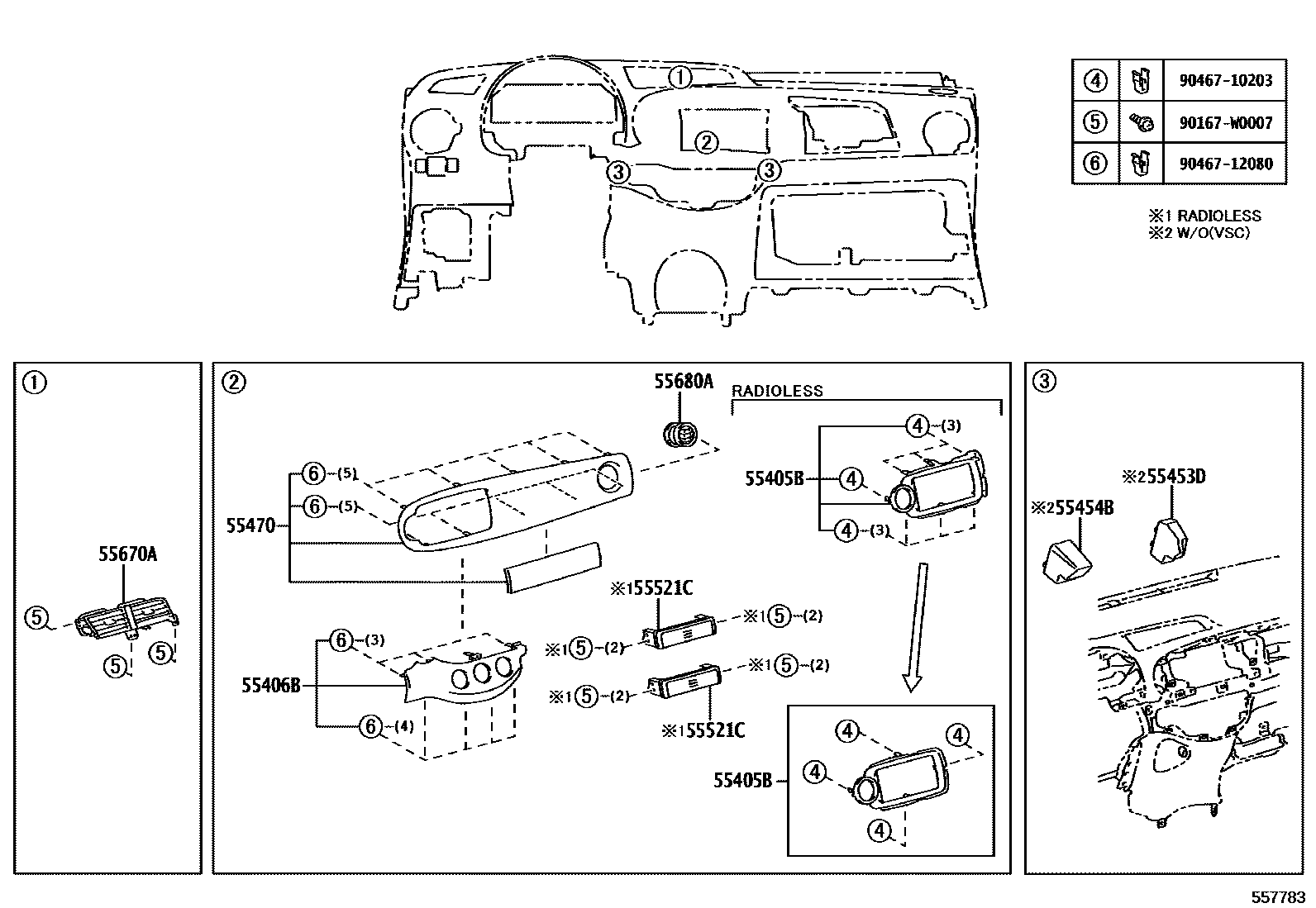

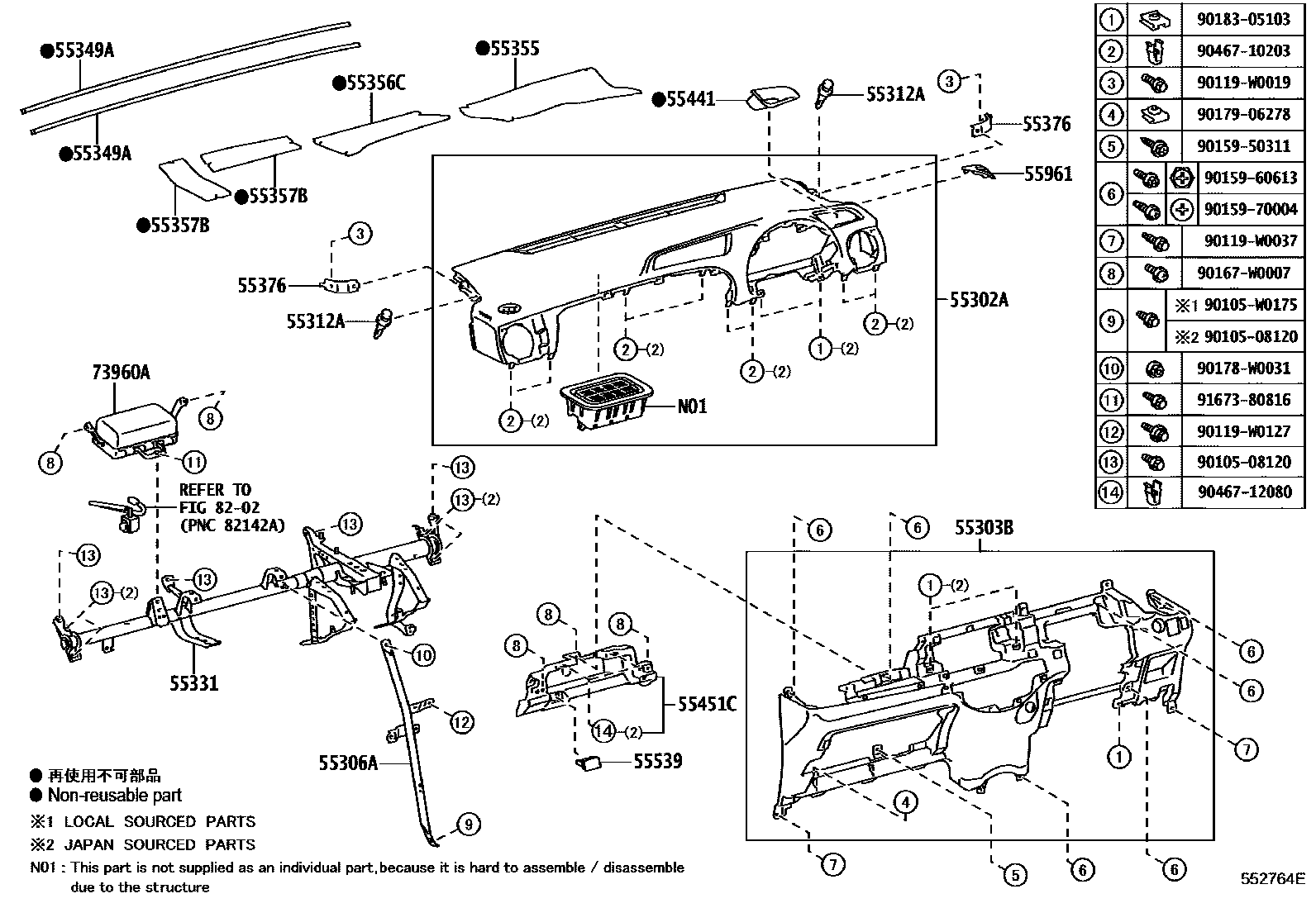

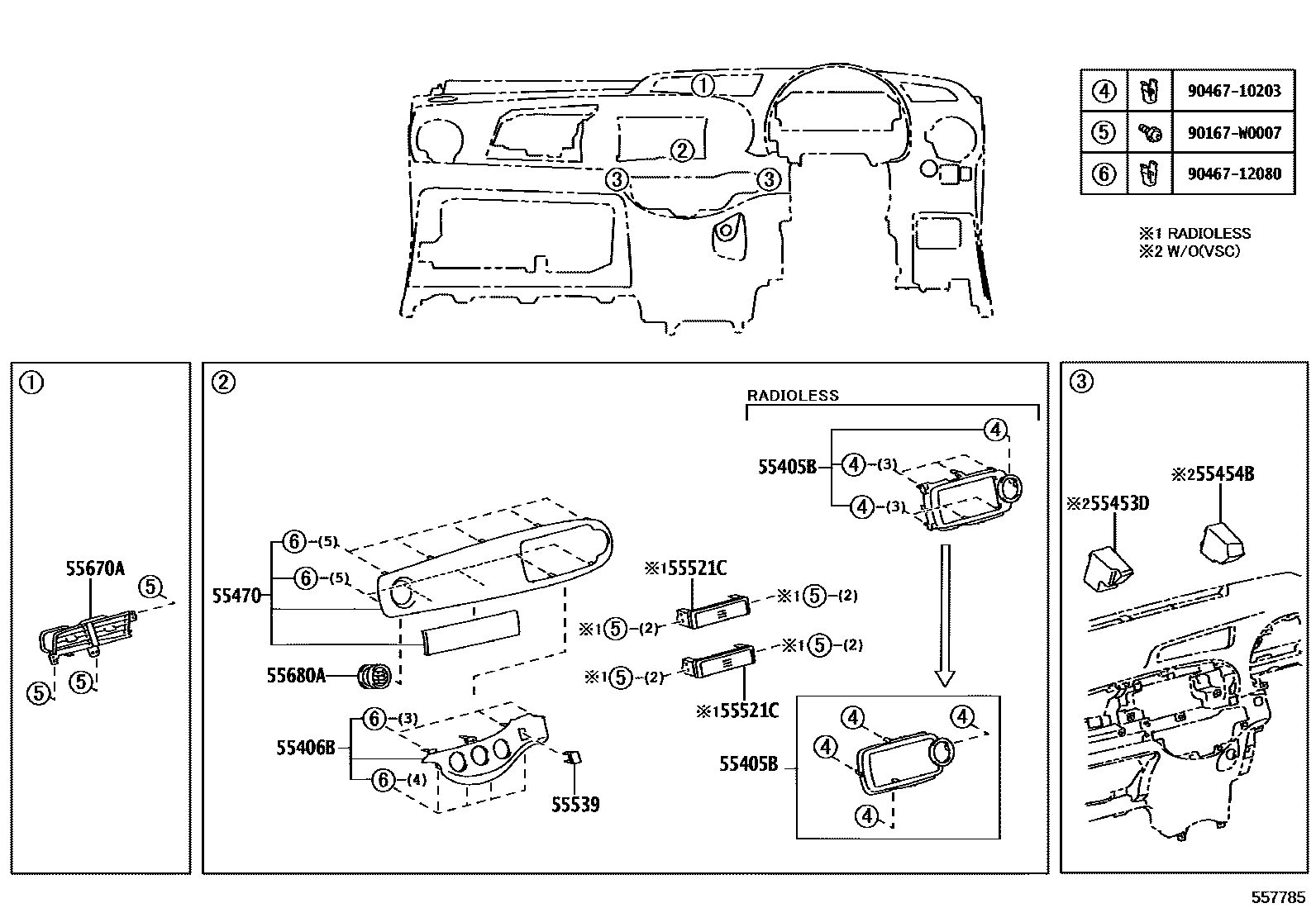

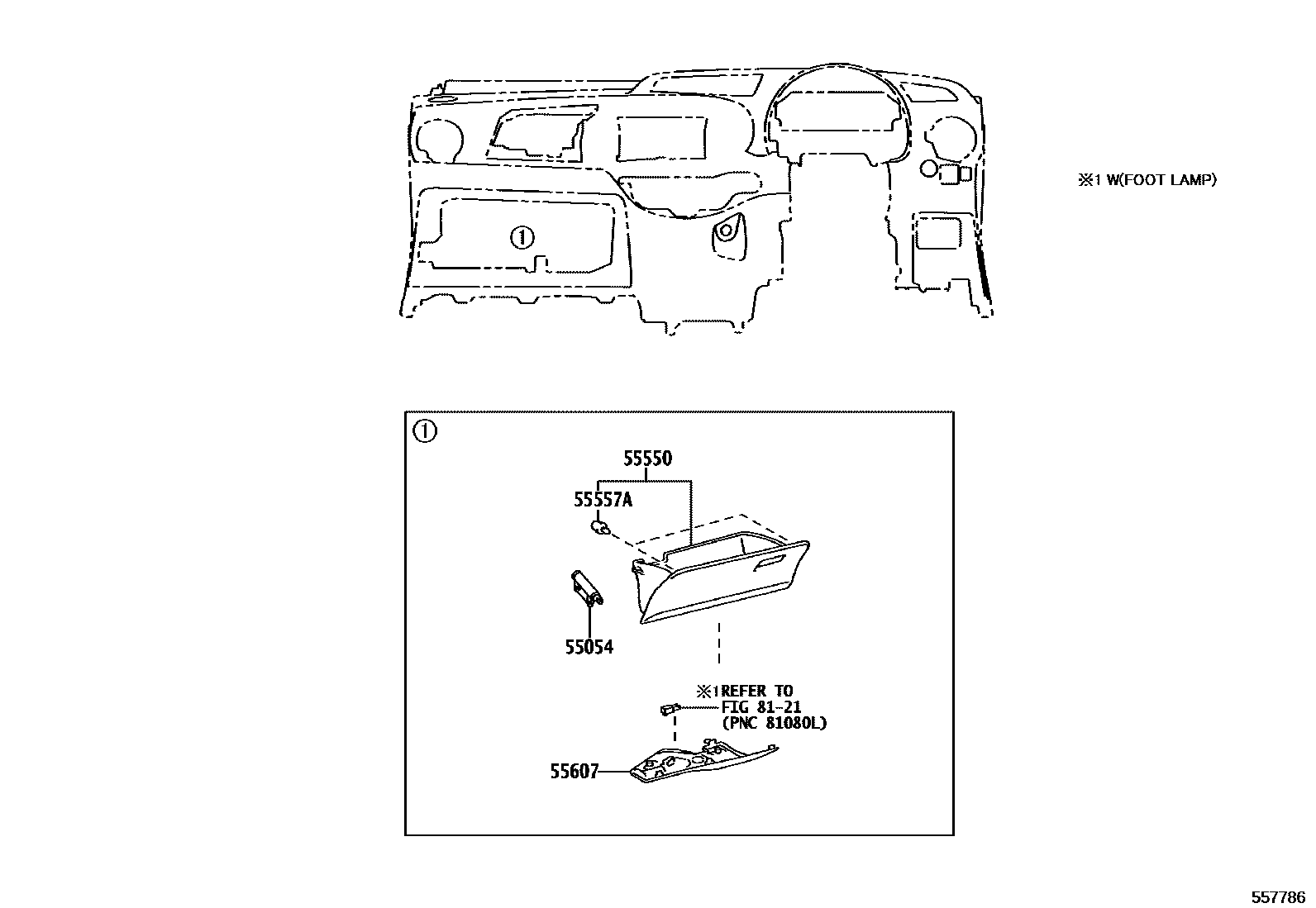

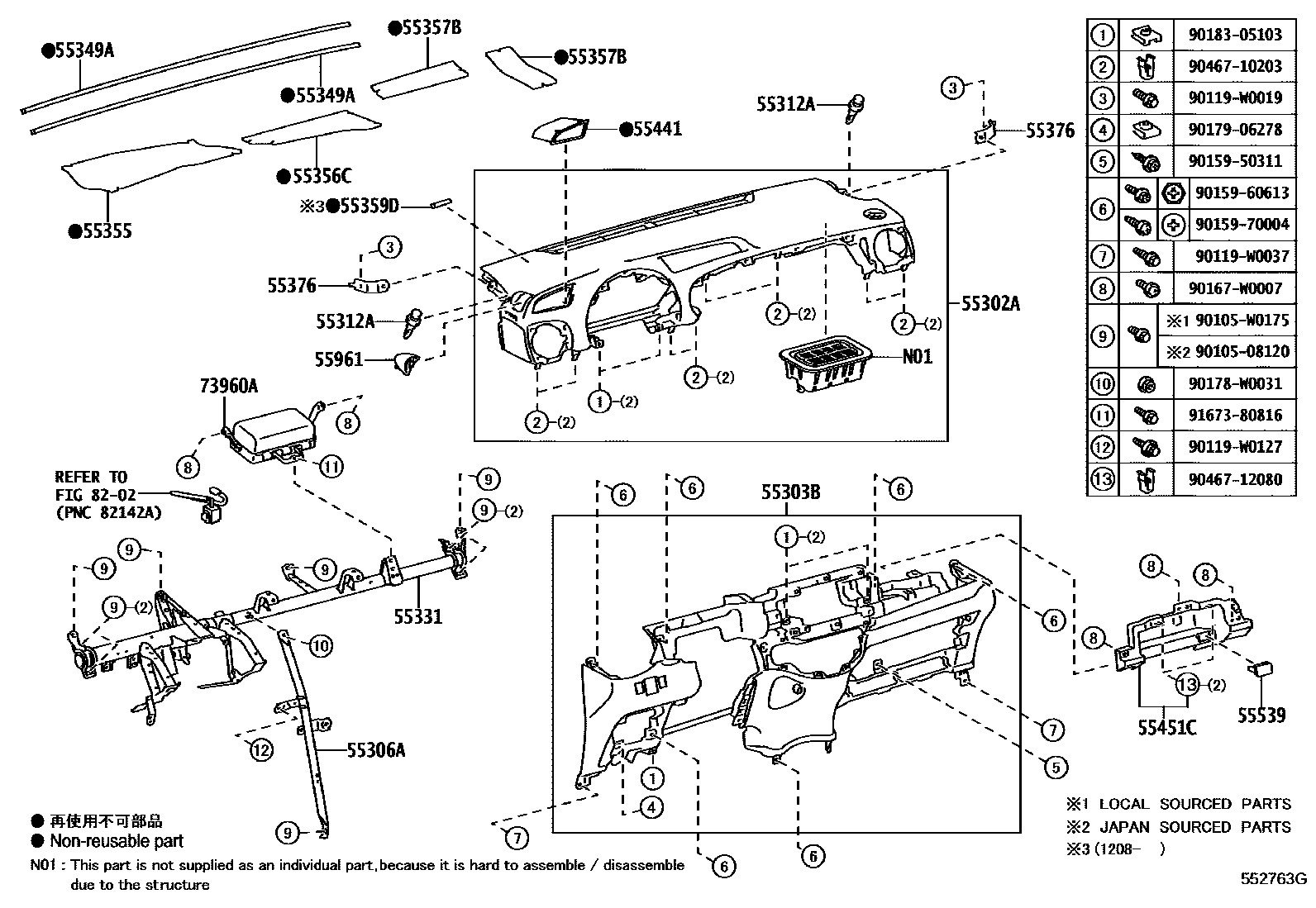

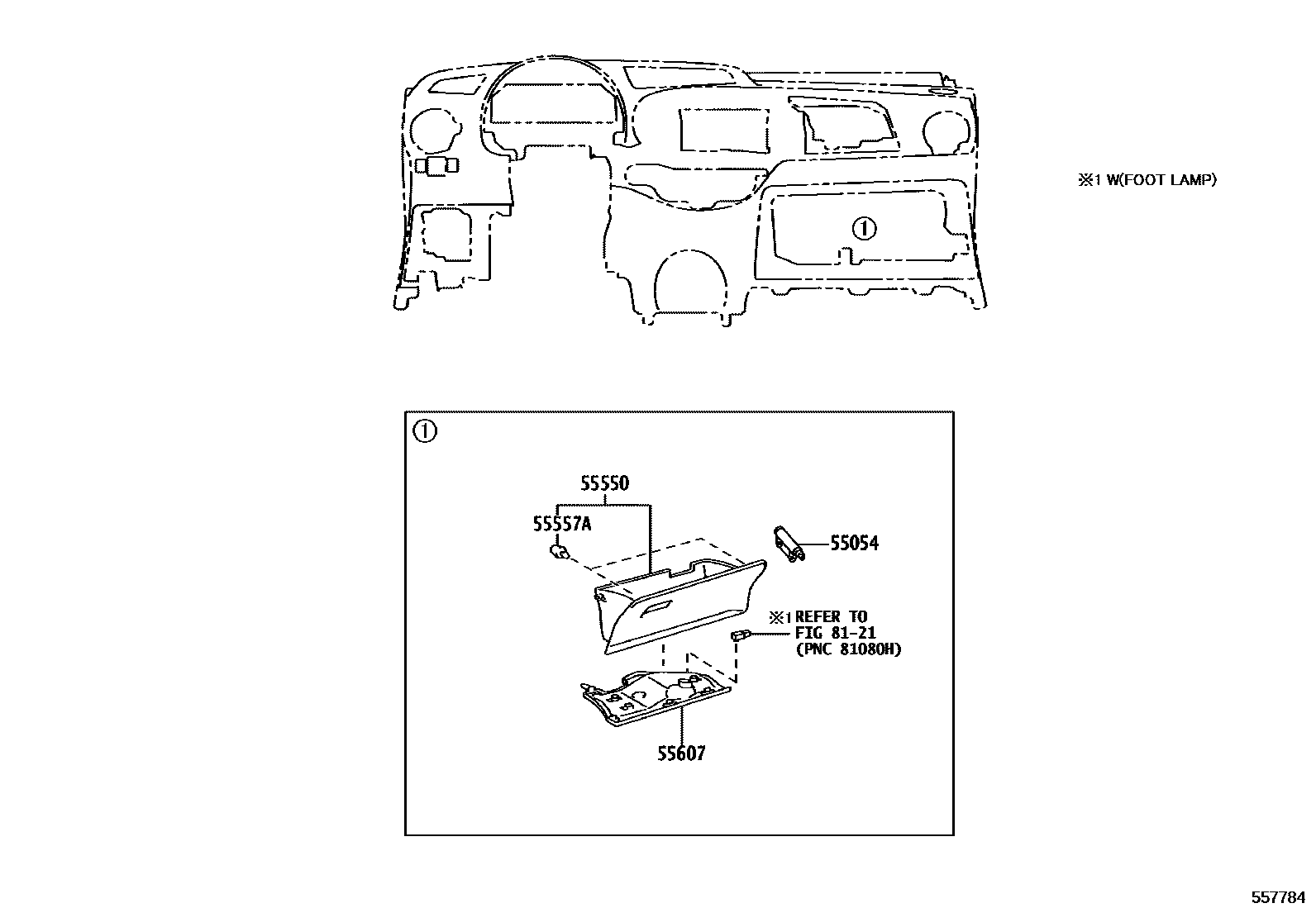

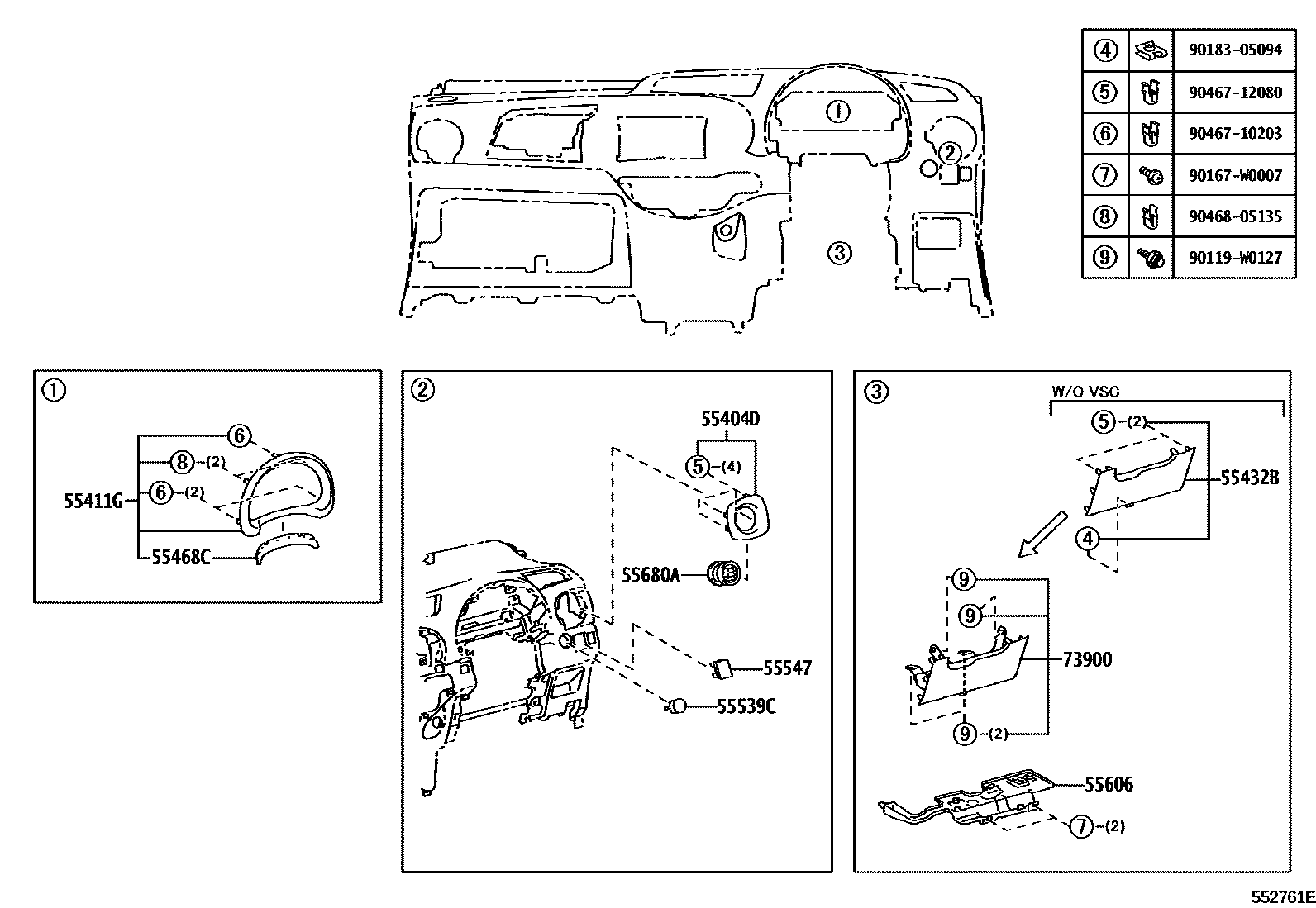

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D170 · 55306-0D180 · 55306-0D190 · 55306-0D200 |
| 55312A | Dashboard clip | 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-0D290 · 55330-0D400 · 55330-0D410 · 55330-0D420 · 55330-0D430 · 55330-0D440 |
| 55349A | Dashboard cushion | 55355-0D031 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D120 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D120 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D150 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-0D150 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-0D030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-0D420 · 86451-0D010 · 86451-0D020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52120 · 55453-52130 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52110 · 55454-52120 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D060 · 55468-0D070 |
| 55470 | Instrument cluster decorative panel decorative parts assembly | 55470-0D050 · 55470-0D060 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D050 · 55606-0D060 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D050 · 55607-0D060 |
| 55670A | Instrument panel central air register assembly | 55670-0D200 · 55670-0D210 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-0D110 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D110 · 73960-0D111 |
