Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

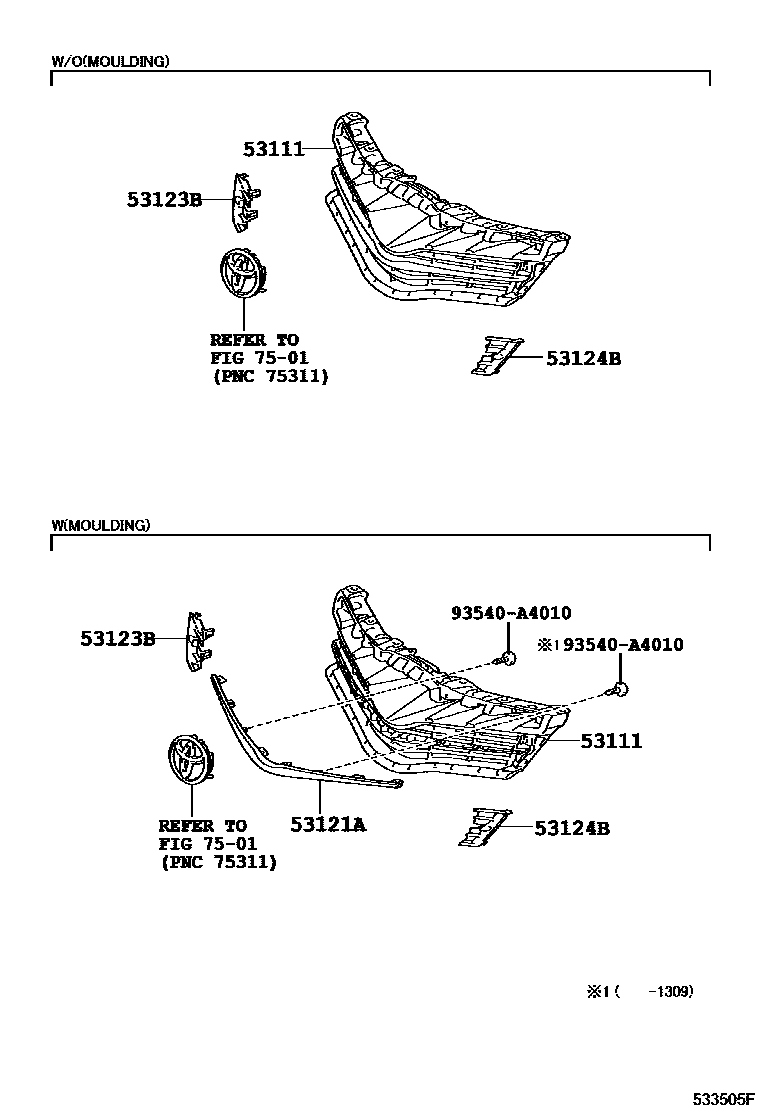

Toyota YARIS radiator grille EPC diagram — 533505F
radiator grille — 533505F (201107 – 999999)

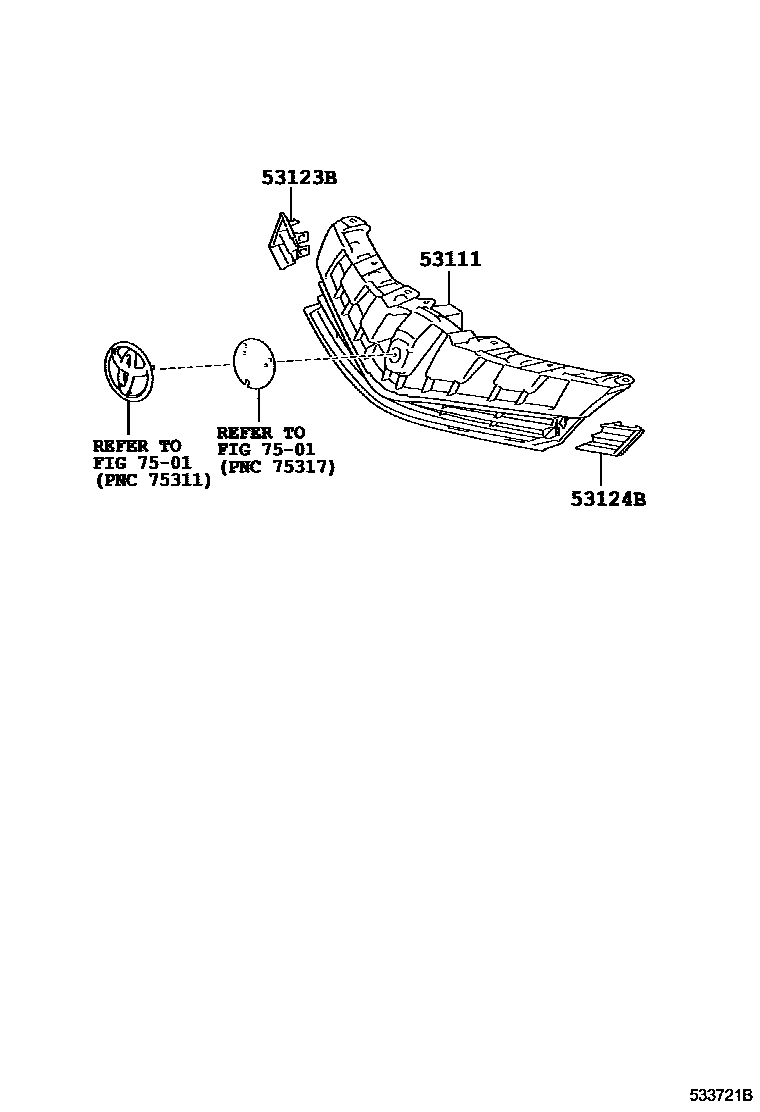

Toyota YARIS radiator grille EPC diagram — 533721B
radiator grille — 533721B (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-0D350 · 53111-0D370 · 53111-0D400
53121ARadiator grille protection strip53121-0D060 · 53121-52160 · 53121-52170
53123BProtective strip on the right side of the radiator grille53123-0D020 · 53123-0D030
53124BRadiator grille left protective strip53124-0D020 · 53124-0D030
