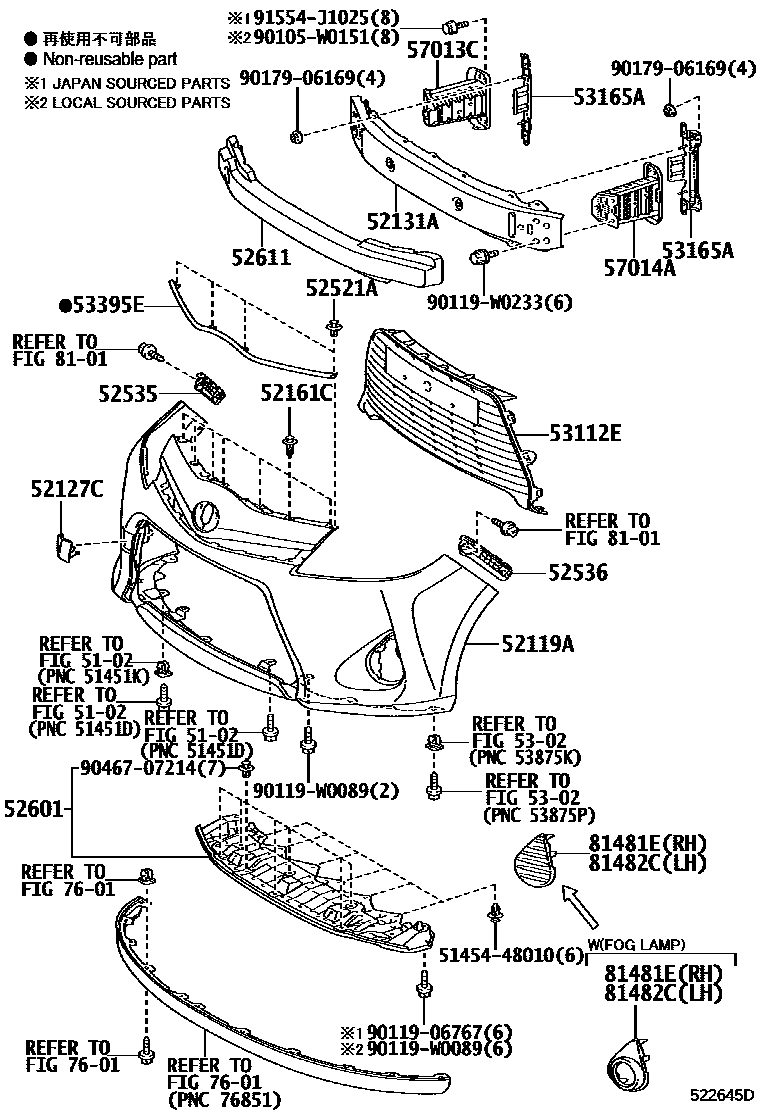

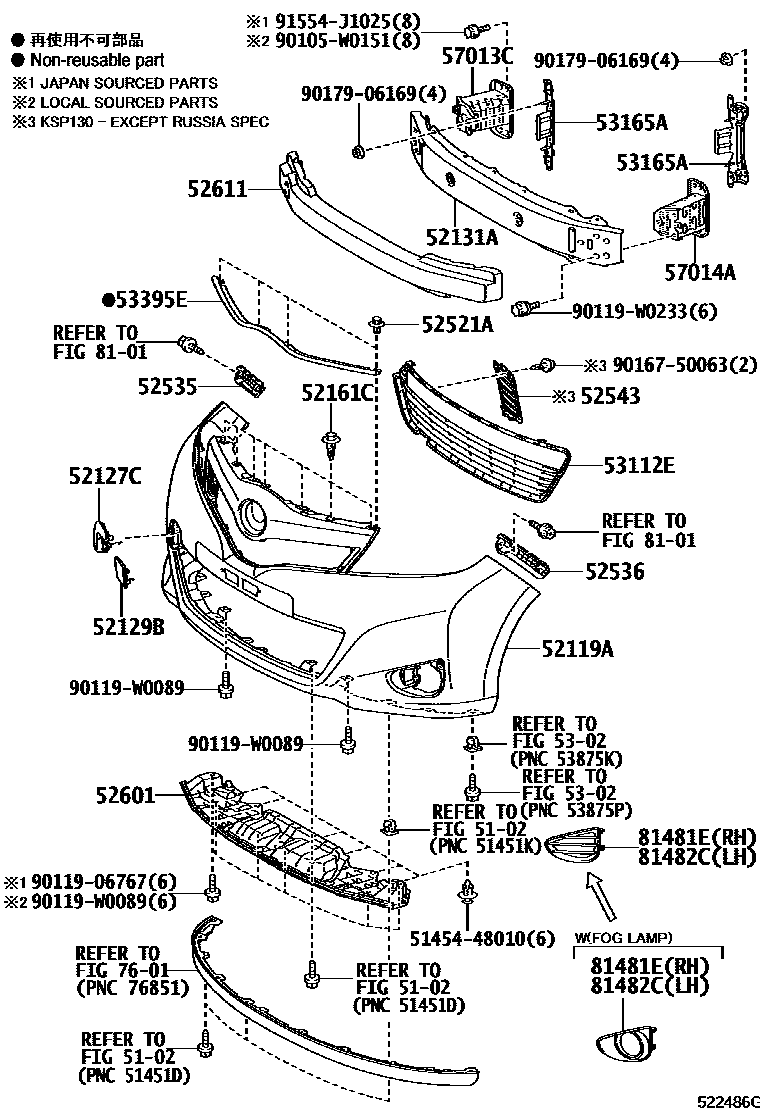

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52119A | front bumper cover | 52119-0U904 · 52119-0U905 |
| 52127C | Front bumper hole cover | 52127-0D916 · 52127-0D917 |
| 52129B | Front bumper lower cover | 52129-0D050 |
| 52131A | Front bumper reinforcement | 52131-0D050 |
| 52161C | front bumper insert | 52161-02030 |
| 52535 | Front bumper right side fixing bracket | 52535-0D090 |
| 52536 | Front bumper left fixed bracket | 52536-0D090 |
| 52543 | Front bumper right seal | 52543-0D010 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0D010 · 52601-0D020 |
| 52611 | front bumper energy absorber | 52611-0D020 |
| 53112E | No. 1 radiator lower grille | 53112-0D210 · 53112-0D250 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-0D050 · 53164-0D060 · 53164-52060 |
| 53395E | Engine cover to front end plate seal | 53395-0D010 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0D010 · 57013-0D011 · 57013-0D040 · 57013-0D041 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0D010 · 57014-0D030 |
| 81481E | Right fog light cover | 52030-0D020 · 52030-0D030 · 52030-52010 · 81481-0D130 · 81481-0D140 · 81481-0D190 |
| 81482C | Left fog light cover | 52040-0D020 · 52040-0D030 · 52040-52010 · 81482-0D140 · 81482-0D150 · 81482-0D200 |
