Toyota YARIS 制动配管和卡箍 — Figure 4708

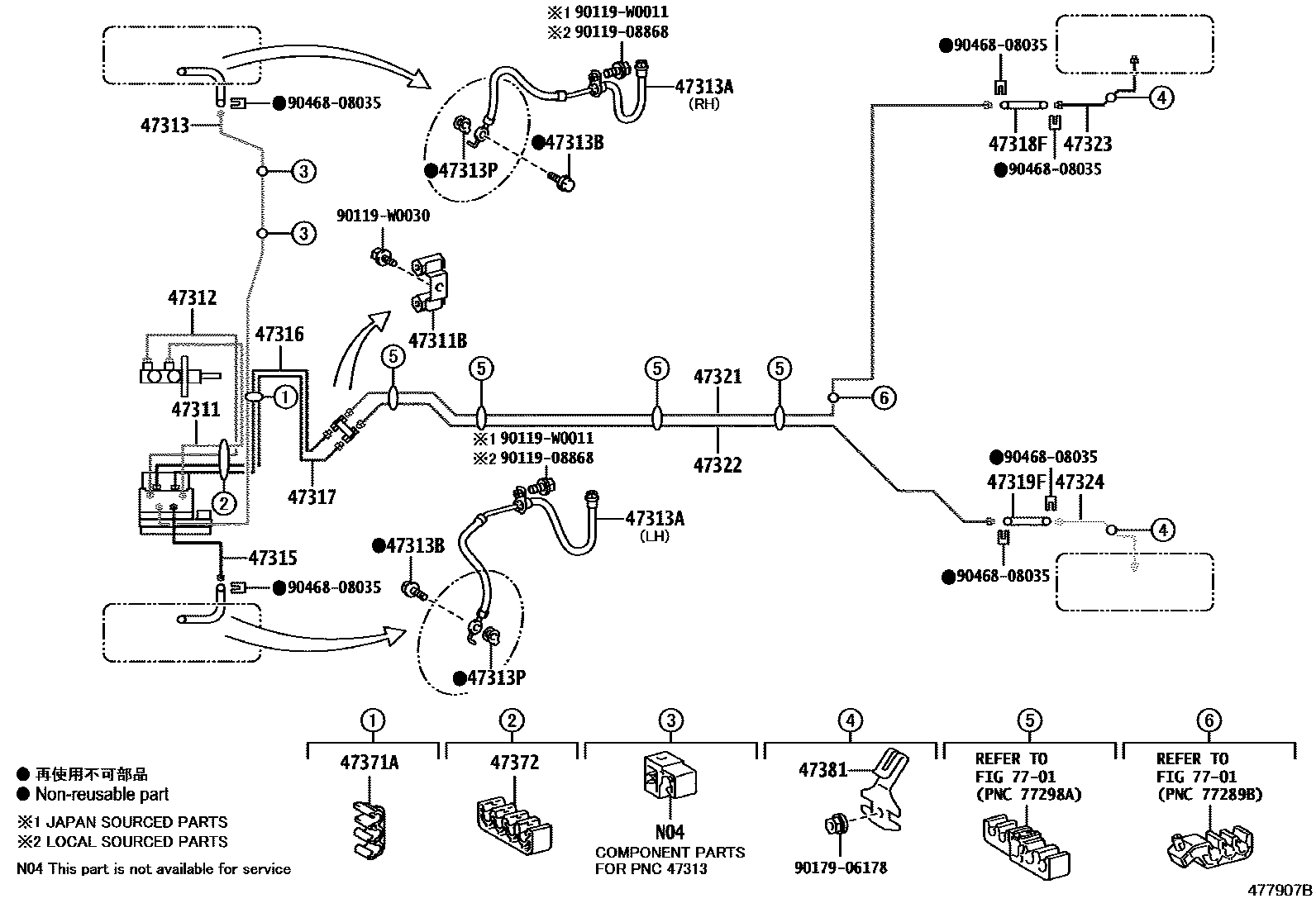

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 9 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

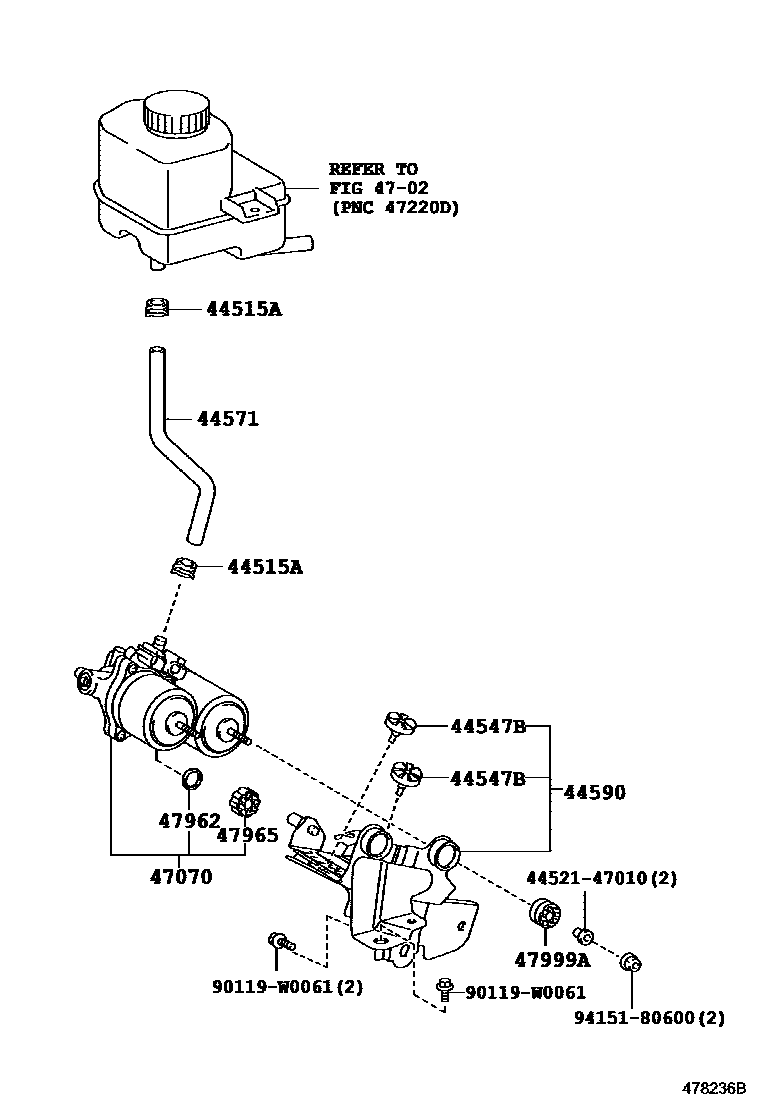

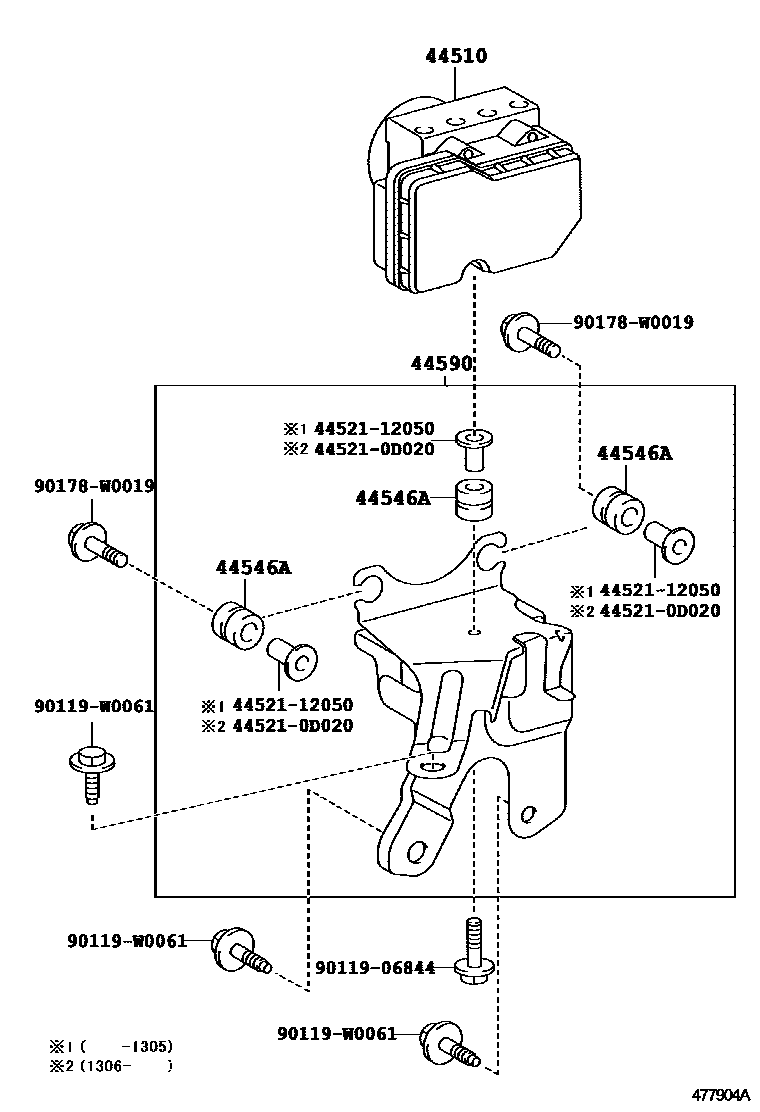

| 44510 | brake actuator assembly | 44050-0D130 · 44050-0D131 · 44050-0D140 · 44050-0D141 · 44050-0D150 · 44050-0D151 · 44050-0D160 · 44050-0D161 · 44050-0D170 · 44050-0D171 · 44050-0D180 · 44050-0D181 · 44050-0D190 · 44050-0D191 · 44050-0D210 · 44050-0D211 · 44050-0D220 · 44050-0D221 |
| 44515A | Clamp (for brake actuator hose) | 96137-41501 · 96137-51501 |
| 44546A | Brake actuator bolt cushion | 44546-52020 |
| 44547B | brake actuator bracket cushion | 47131-47070 |

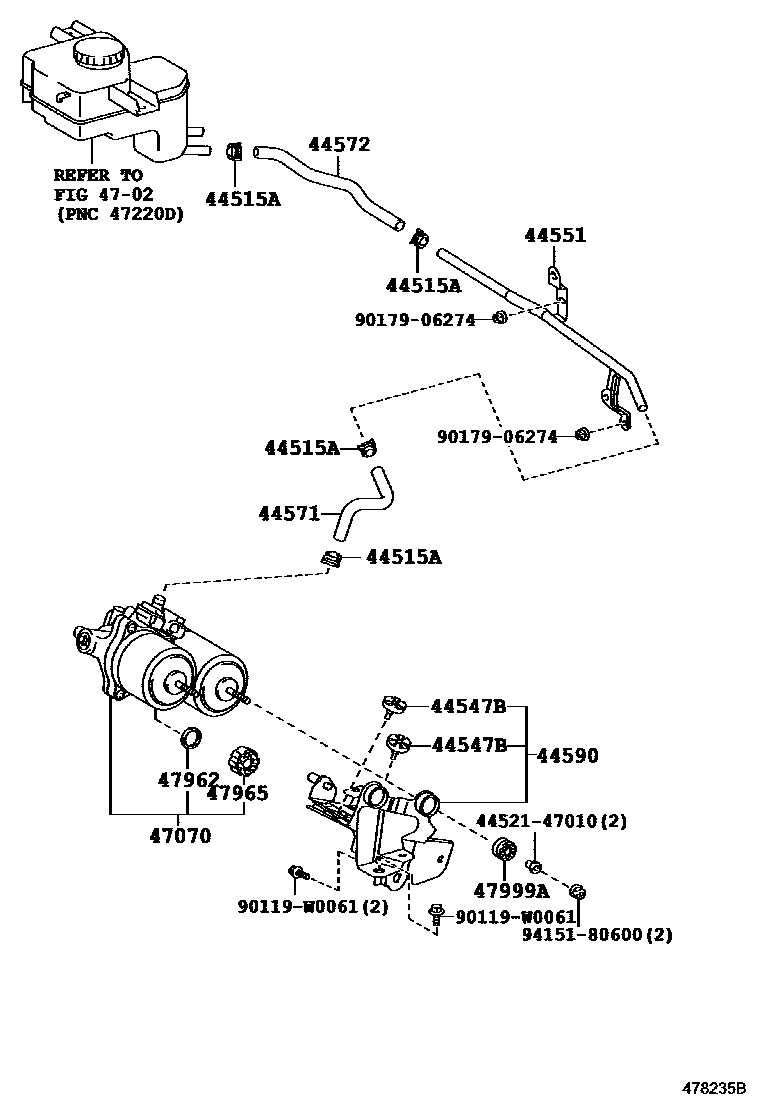

| 44551 | No. 1 brake actuator pipe | 44551-52010 |
| 44571 | brake actuator hose | 44571-52010 · 44571-52030 |
| 44572 | No. 2 brake actuator hose | 44572-52010 |
| 44590 | Brake actuator bracket assembly | 44590-0D110 · 44590-0D120 · 44590-0D130 · 44590-0D140 · 44590-0D150 |
| 47070 | Brake booster pump assembly | 47070-12020 |

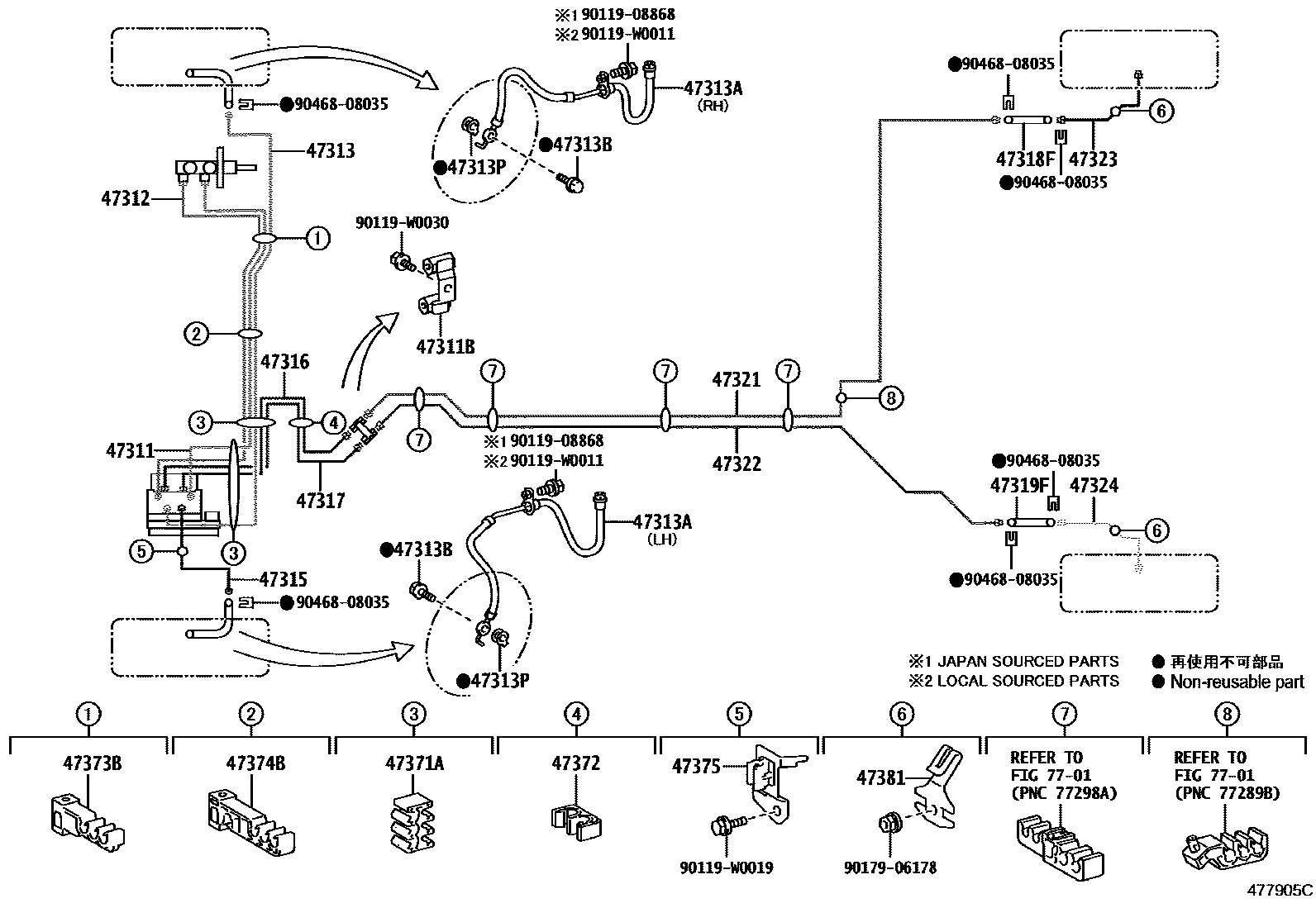

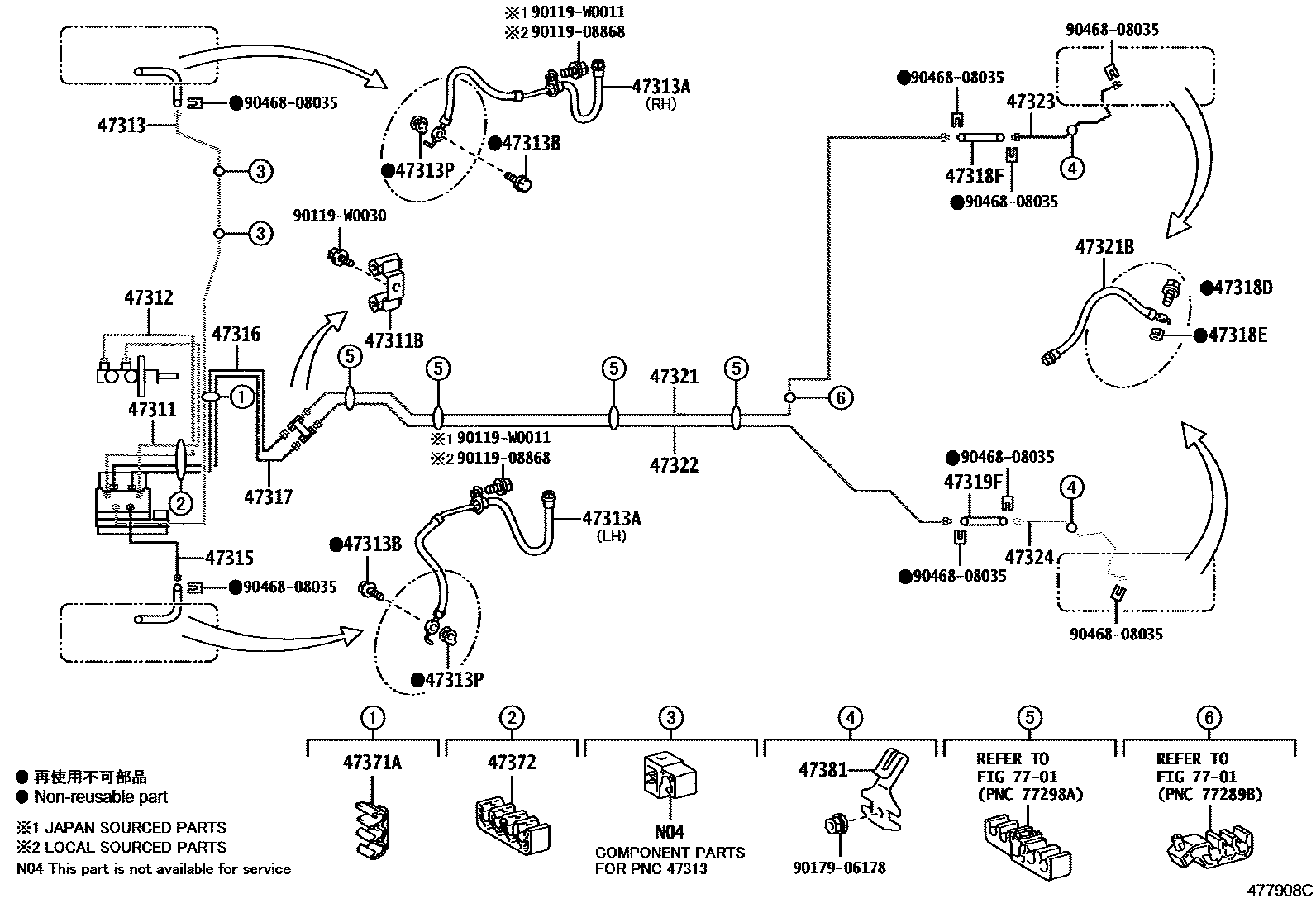

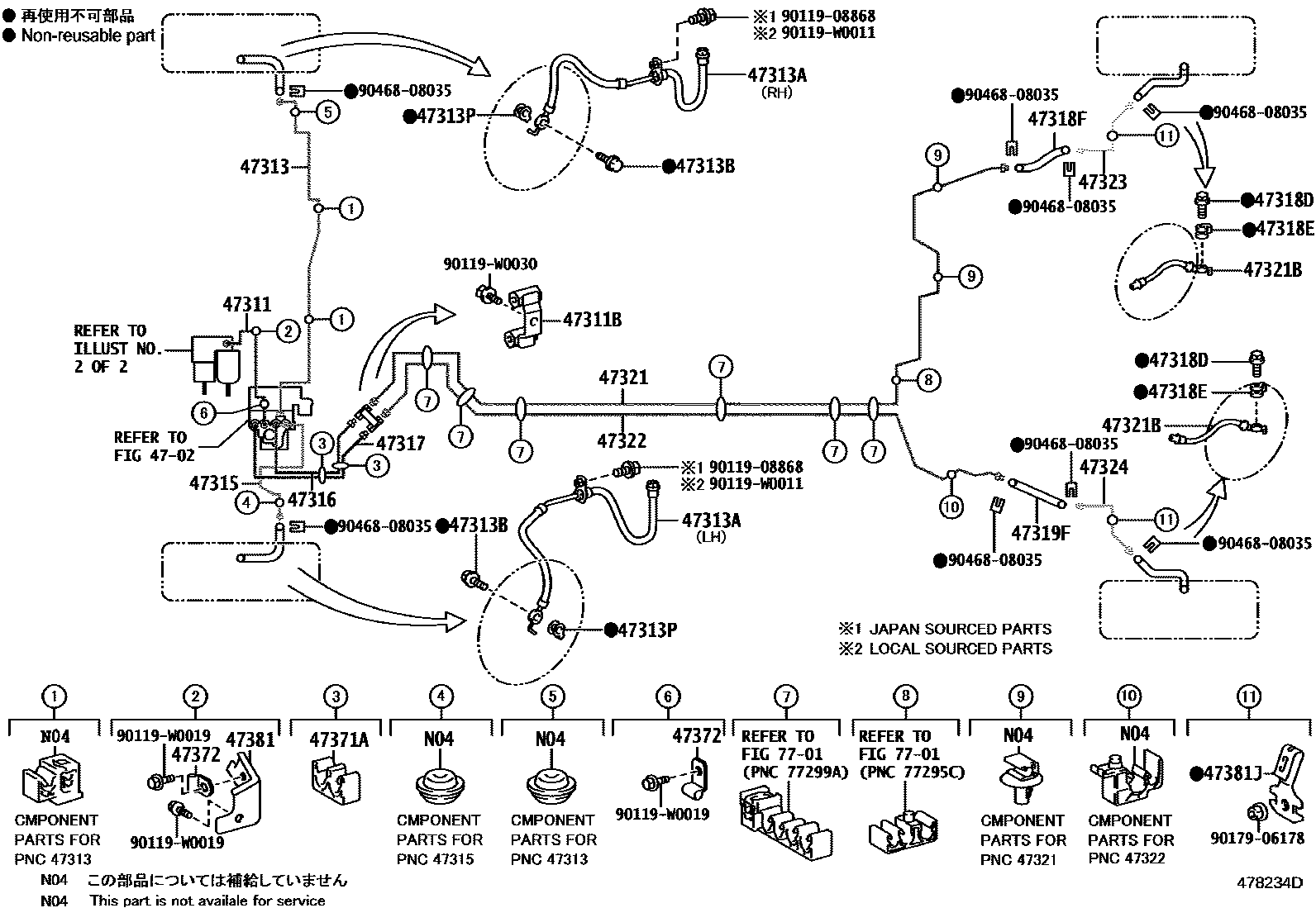

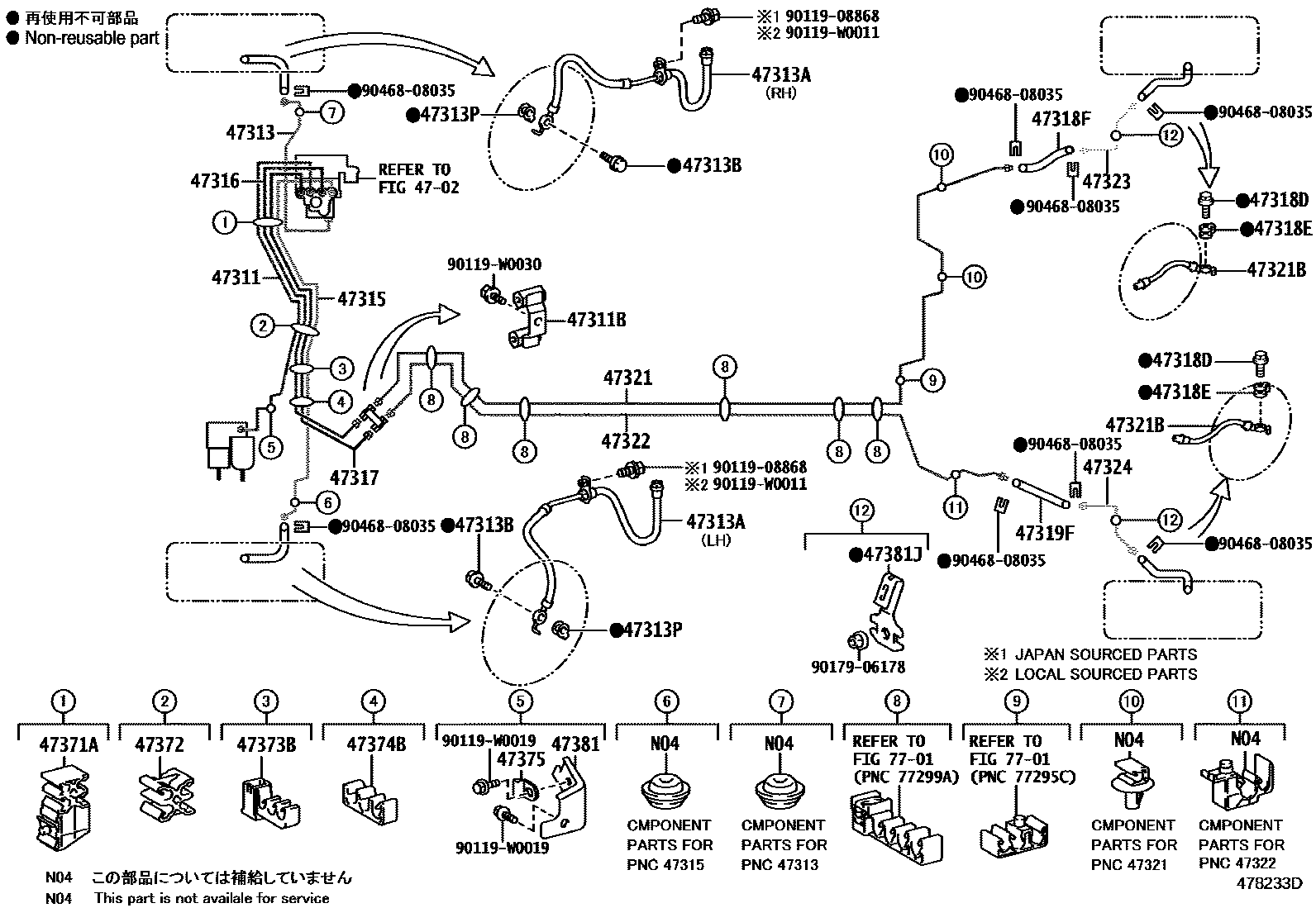

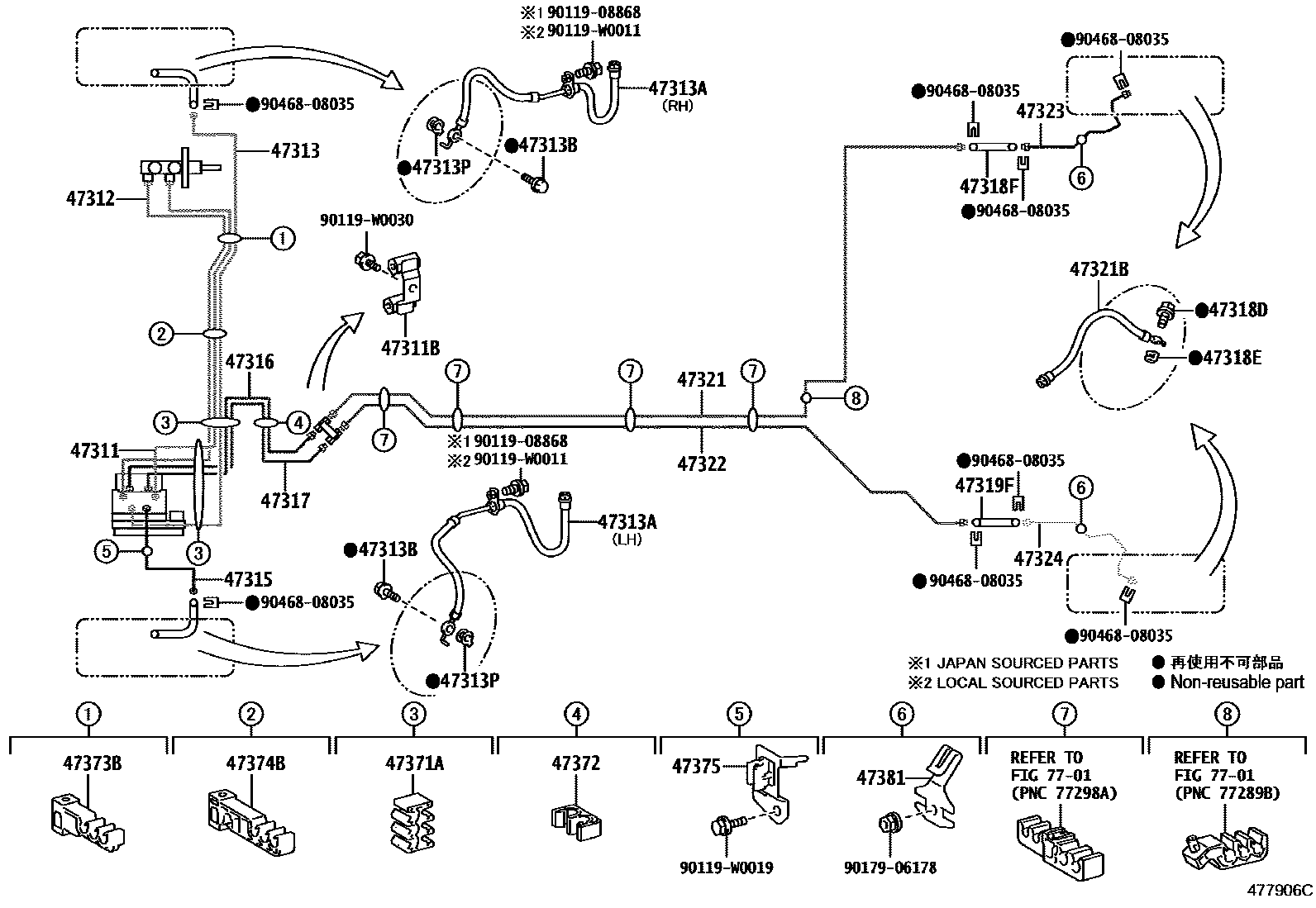

| 47311 | No. 1 front brake pipe | 47311-0D290 · 47311-0D310 · 47311-0D460 · 47311-0D470 · 47311-0D480 · 47311-0D490 · 47311-0D500 · 47311-0D510 · 47311-0D520 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0D260 · 47312-0D400 · 47312-0D410 · 47312-0D420 · 47312-0D430 · 47312-0D440 · 47312-0D450 |
| 47313 | No. 3 front brake pipe | 47313-0D170 · 47313-0D330 · 47313-0D350 · 47313-0D360 · 47313-0D370 · 47313-0D390 · 47313-0D400 · 47313-0D410 · 47313-0D420 · 47313-0D430 · 47313-0D440 |
| 47313A | No. 1 front flexible hose | 90947-W2029 · 90947-W2030 · 90947-W2034 · 90947-W2035 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-0D230 · 47315-0D370 · 47315-0D380 · 47315-0D390 · 47315-0D400 · 47315-0D410 · 47315-0D420 · 47315-0D430 |
| 47316 | No. 6 front brake pipe | 47316-0D180 · 47316-0D280 · 47316-0D290 · 47316-0D300 · 47316-0D310 · 47316-0D320 · 47316-0D330 · 47316-0D340 |
| 47317 | No. 7 front brake pipe | 47317-0D180 · 47317-0D280 · 47317-0D290 · 47317-0D300 · 47317-0D310 · 47317-0D320 · 47317-0D330 · 47317-0D340 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2031 · 90947-W2036 |
| 47319F | Left rear flexible hose | 90947-W2032 · 90947-W2037 |
| 47321 | No. 1 rear brake pipe | 47321-0D300 · 47321-0D310 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-W2033 · 90947-W2038 |
| 47322 | No. 2 rear brake pipe | 47322-0D300 · 47322-0D310 |
| 47323 | No. 3 rear brake pipe | 47323-0D190 · 47323-0D200 |
| 47324 | No. 4 rear brake pipe | 47324-0D190 · 47324-0D200 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 · 90464-00898 · 90464-00904 · 90949-01969 · 90949-01D64 |
| 47372 | No. 2 brake pipe clamp | 90461-10851 · 90464-00876 · 90464-00923 · 90464-W0001 · 90949-01972 |
| 47373B | No. 3 brake pipe clamp | 90949-01D02 · 90949-01D08 · 90949-01D84 |
| 47374B | No. 4 brake pipe clamp | 90464-00857 · 90949-01D83 · 90949-01D85 |
| 47375 | No. 5 brake pipe clamp | 47371-0D020 · 90461-10851 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 · 47381-52030 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-52020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-24010 |
