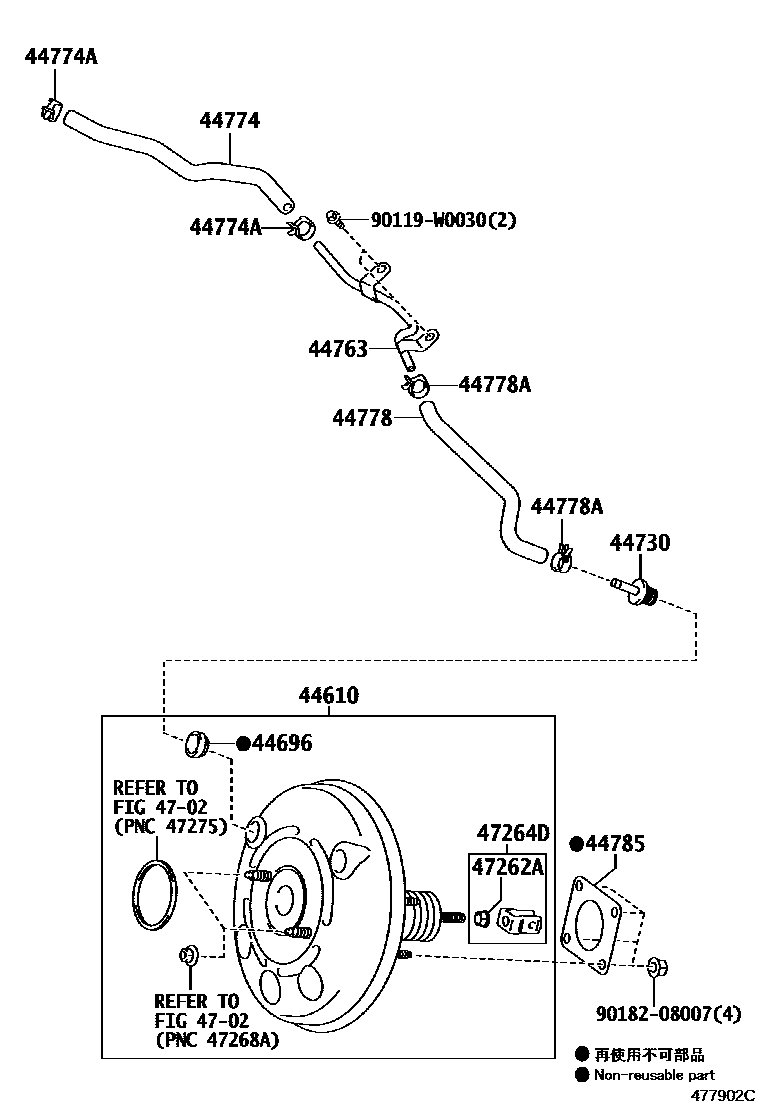

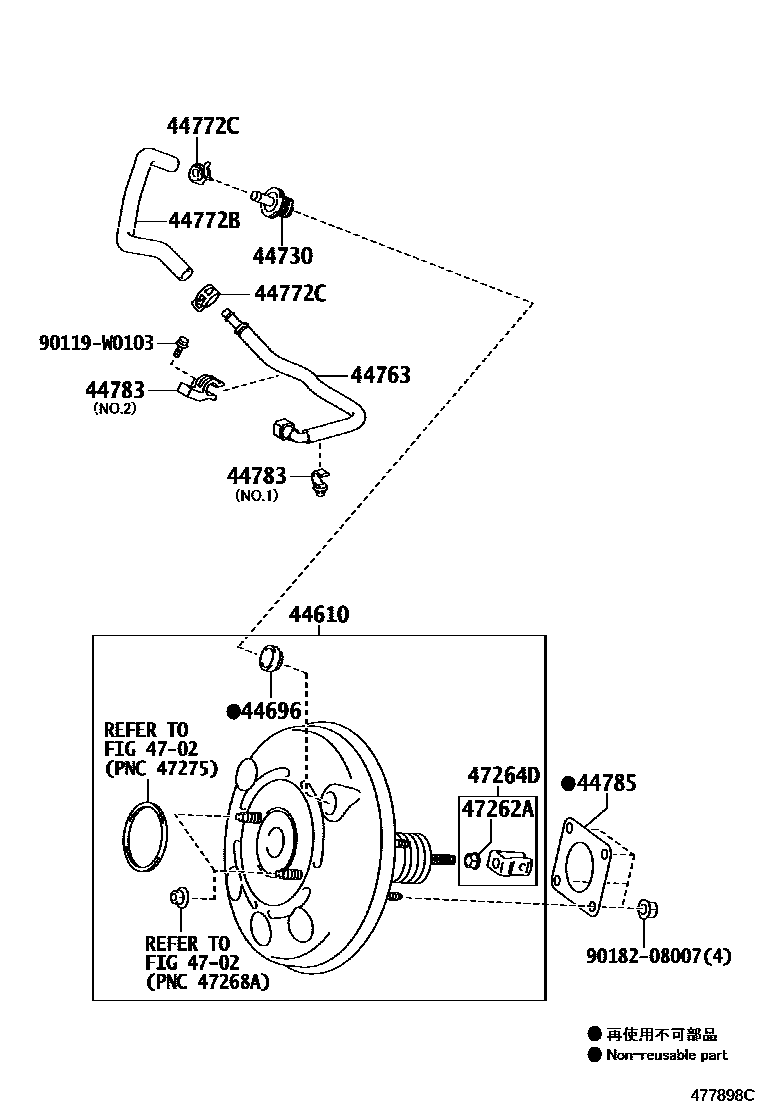

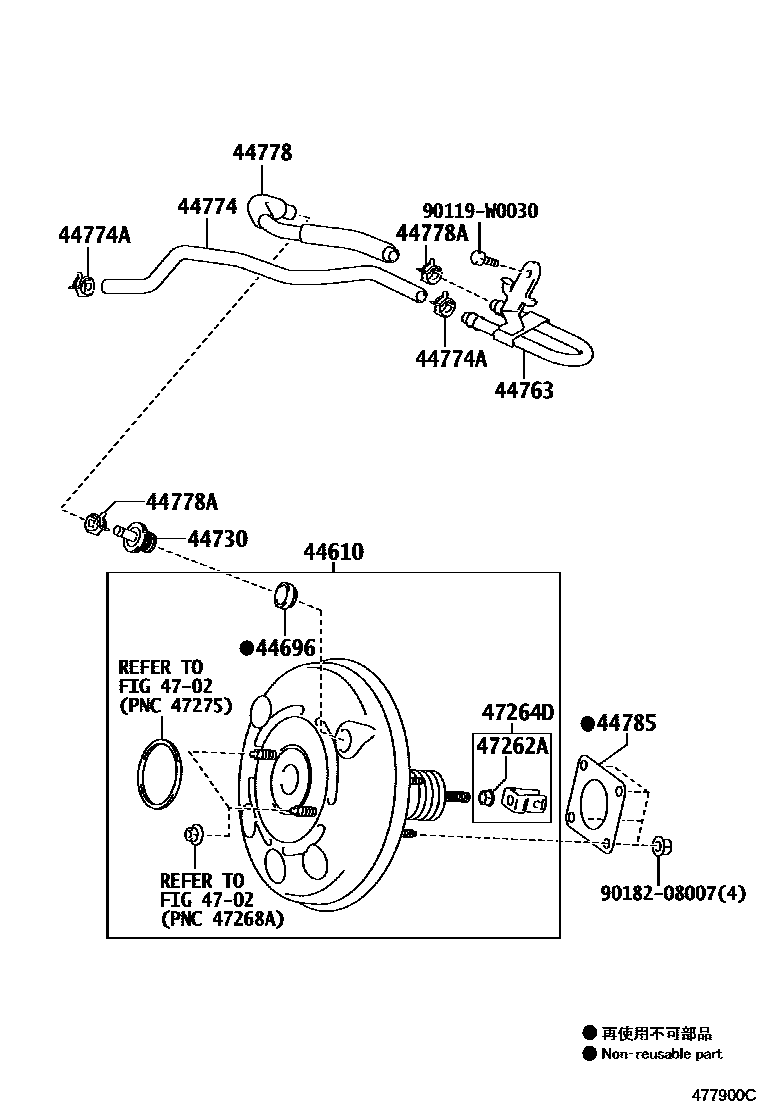

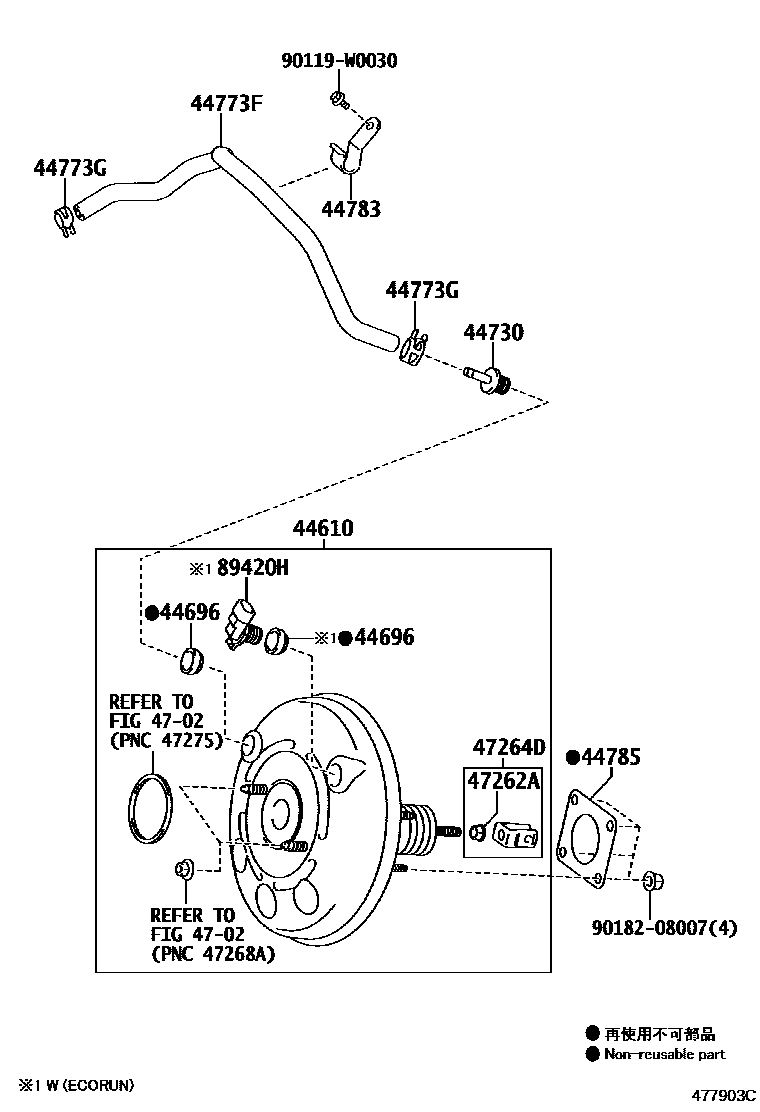

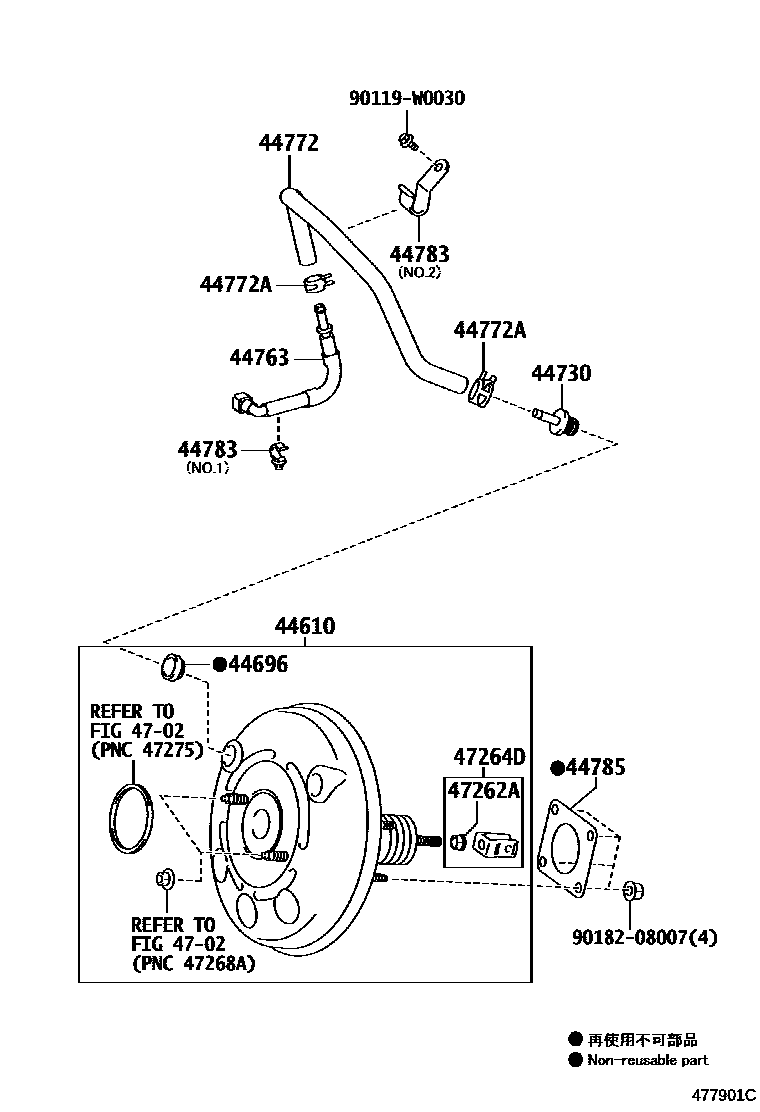

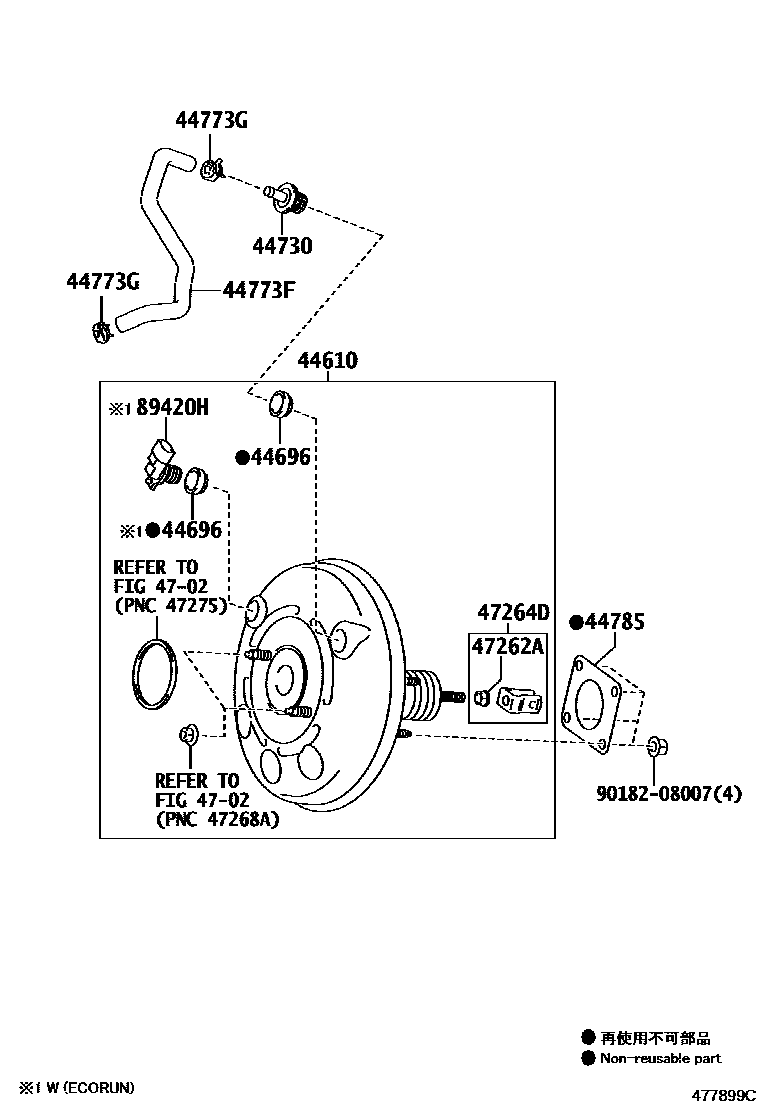

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09830 · 44610-09840 · 44610-09850 · 44610-09860 · 44610-09870 · 44610-09880 |
| 44696 | One-way valve seal | 44692-0D020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-0D010 |
| 44763 | booster vacuum tube | 44763-0D060 · 44763-0D090 · 44763-52140 · 44763-52150 |
| 44772 | Hoses (check valve to connector tube) | 44772-52190 |
| 44772A | Clip (for check valve to connector tube) | 90466-W0008 |
| 44772B | Hoses (check valve to brake booster) | 44772-0D010 |
| 44772C | Clip (for check valve to brake booster hose) | 90466-W0008 |
| 44773F | Hoses (connector to check valve) | 44773-52230 · 44773-52260 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-W0008 |
| 44774 | Hoses (joints to connector tubes) | 44774-52030 · 44774-52140 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 |
| 44778 | Hoses (connector to check valve) | 44778-52120 · 44778-52150 |
| 44778A | Clip (for connector to check valve hose) | 90466-W0008 |
| 44783 | Vacuum hose clamp | 44783-52070 · 44783-70010 · 44783-70020 |
| 44785 | brake booster pad | 44785-16020 |
| 47262A | Master cylinder push rod U-shaped clamp lock nut | 47262-05010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47262-09010 · 47264-09010 |
| 89420H | Vacuum sensor assembly | 89421-0D010 |
