Toyota YARIS 制动总泵 — Figure 4702

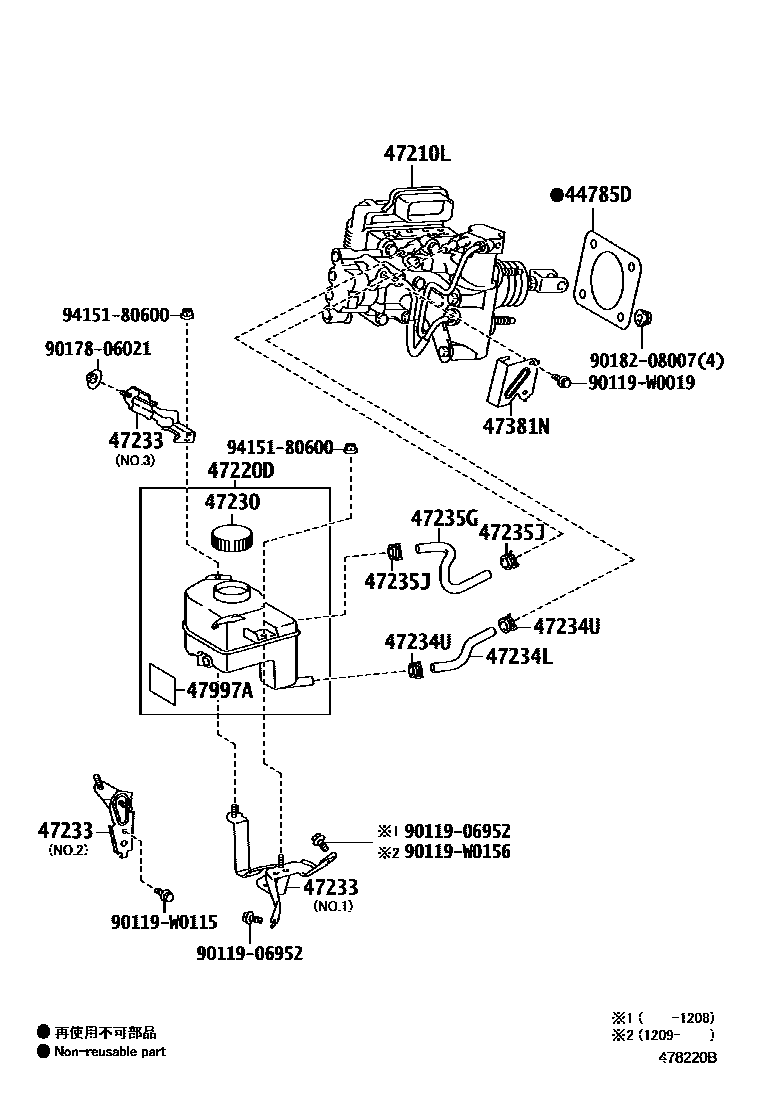

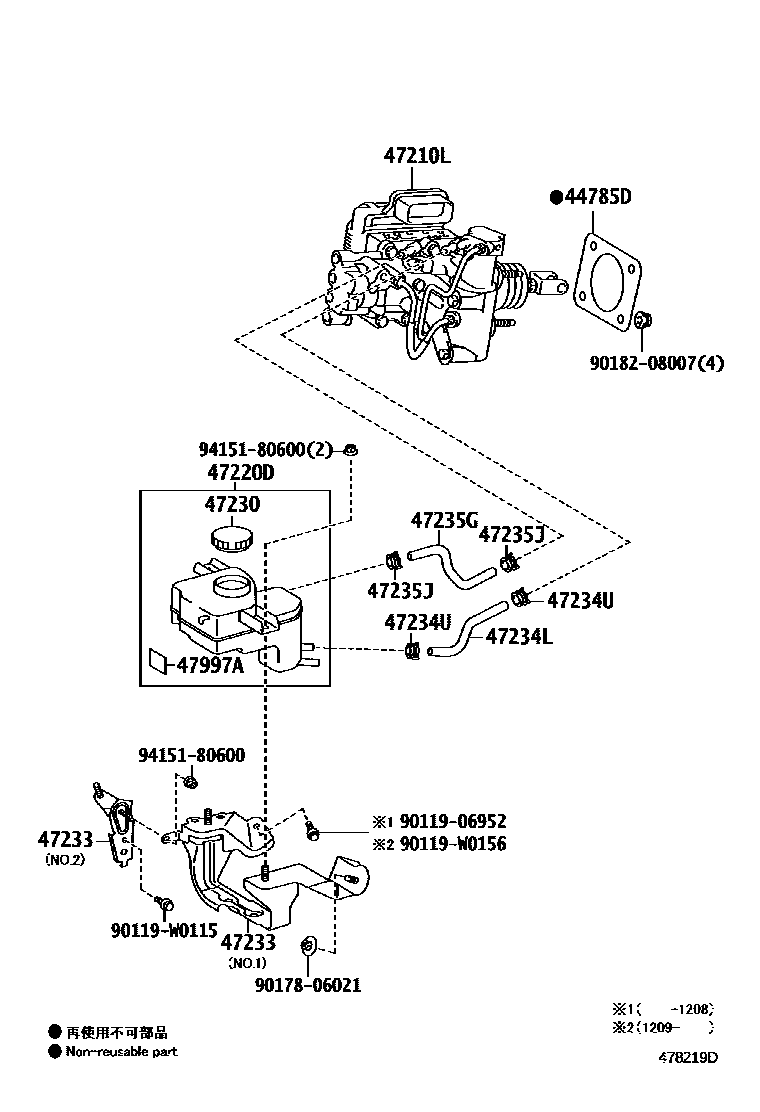

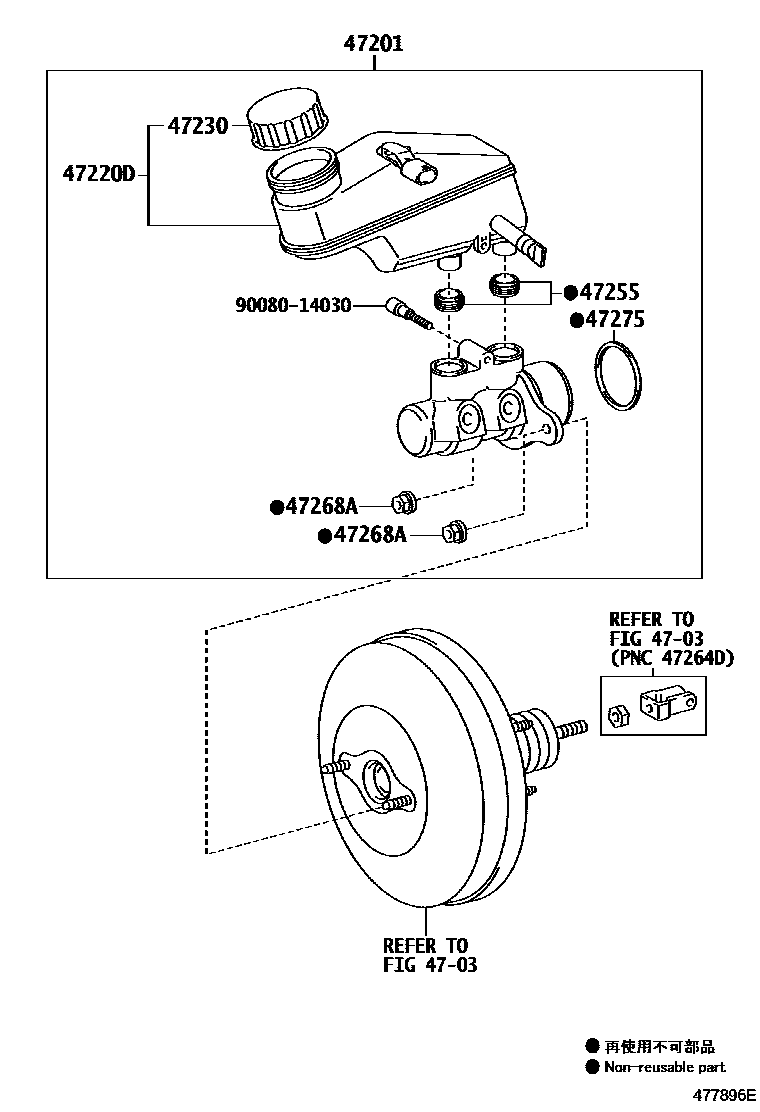

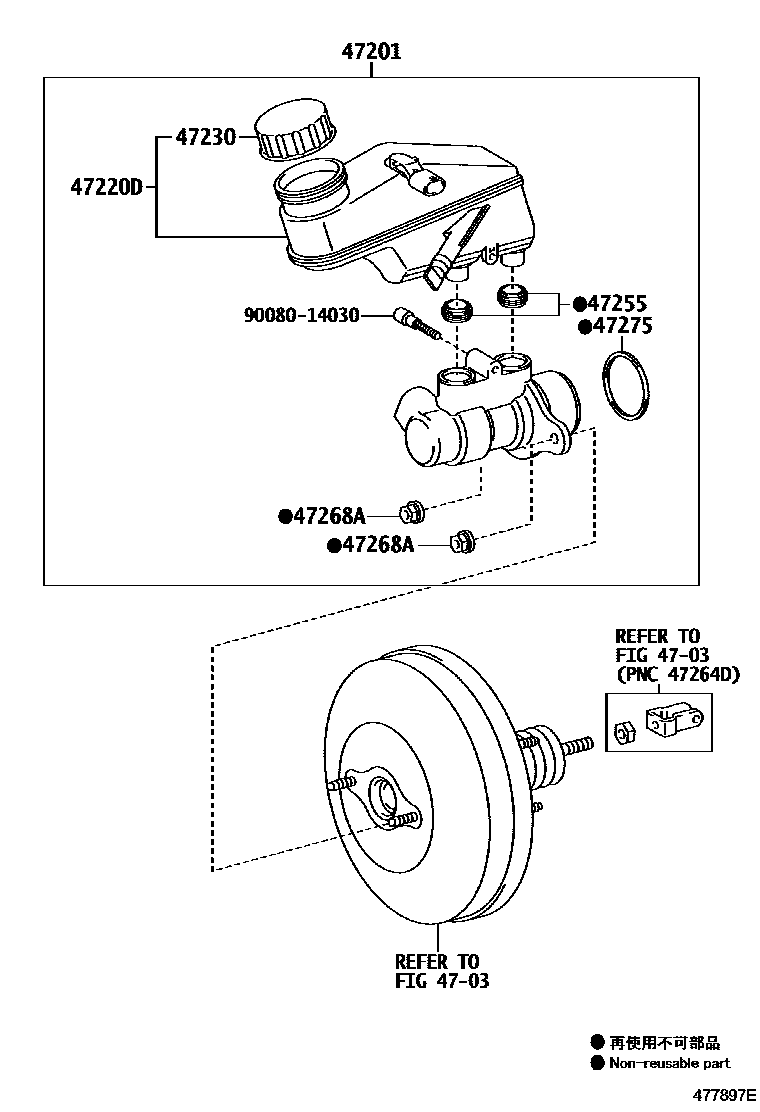

Toyota YARIS EPC diagram 4702, 制动总泵, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-16020 |
| 47201 | Brake master cylinder sub-assembly | 47201-09630 · 47201-09640 · 47201-09650 · 47201-09660 |
| 47210L | Brake booster assembly with master cylinder | 47050-52070 · 47050-52080 · 47050-52090 · 47050-52100 · 47050-52140 · 47050-52150 · 47050-52160 · 47050-52170 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0D080 · 47220-0D170 · 47220-0D180 · 47220-52310 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D060 · 47230-0D180 · 47230-58010 |
| 47233 | Reservoir tank bracket | 47233-0D010 · 47233-0D020 · 47233-0D031 · 47233-0D041 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-52050 · 47234-52070 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-51501 |
| 47235G | Reservoir tank No. 2 hose | 47235-52050 · 47235-52070 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-51501 |
| 47255 | Master pump reservoir seal | 47255-09030 |
| 47268A | brake master cylinder nut | 47268-05010 |
| 47275 | brake master cylinder gasket | 47275-0D020 |
| 47381N | Pipe clamp bracket | 47381-0D020 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
