Toyota YARIS Brake Pedal & Bracket — Figure 4701

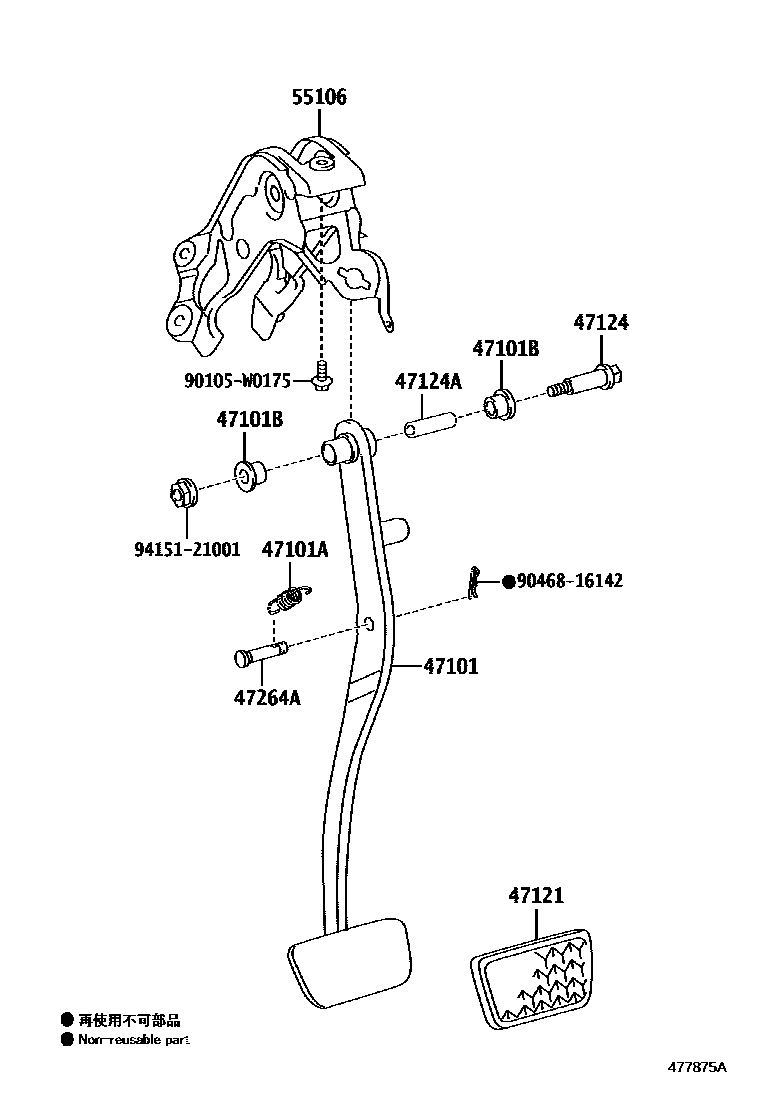

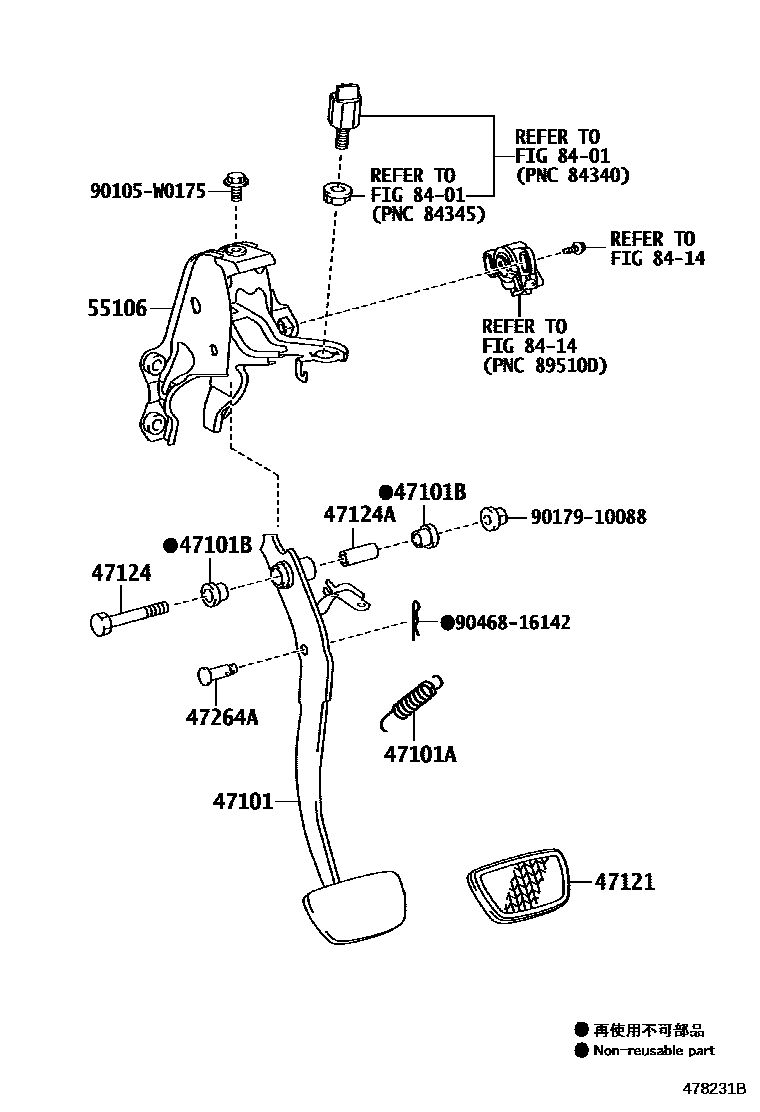

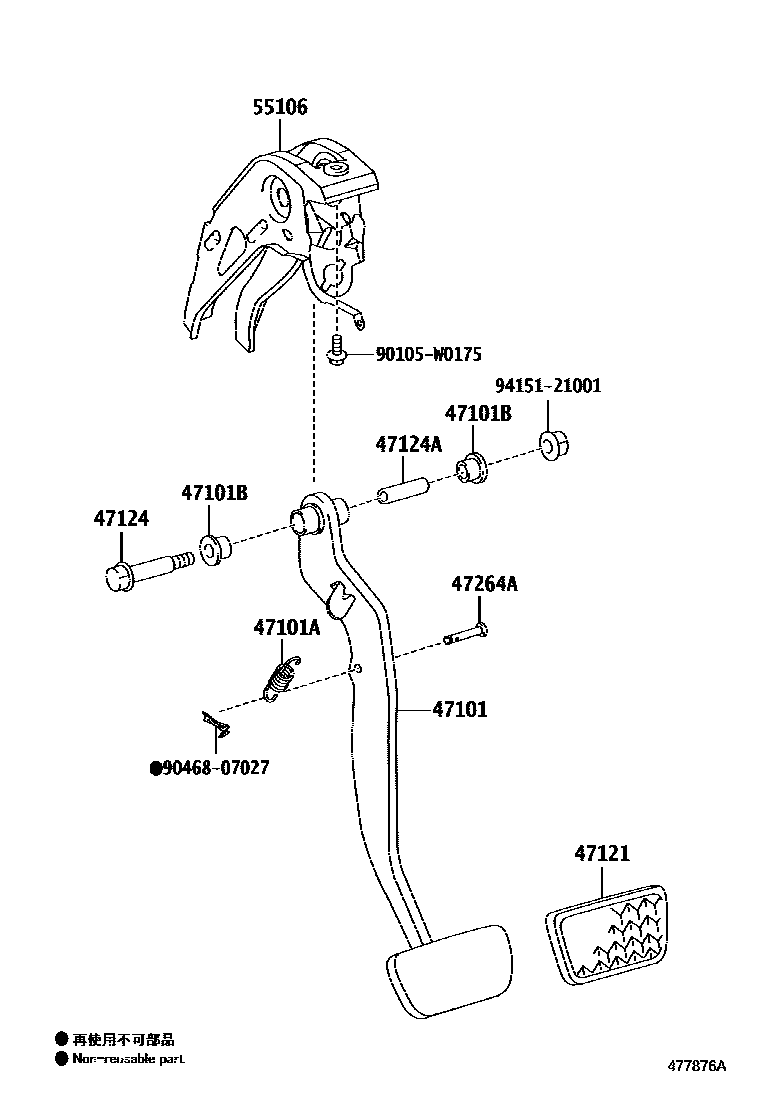

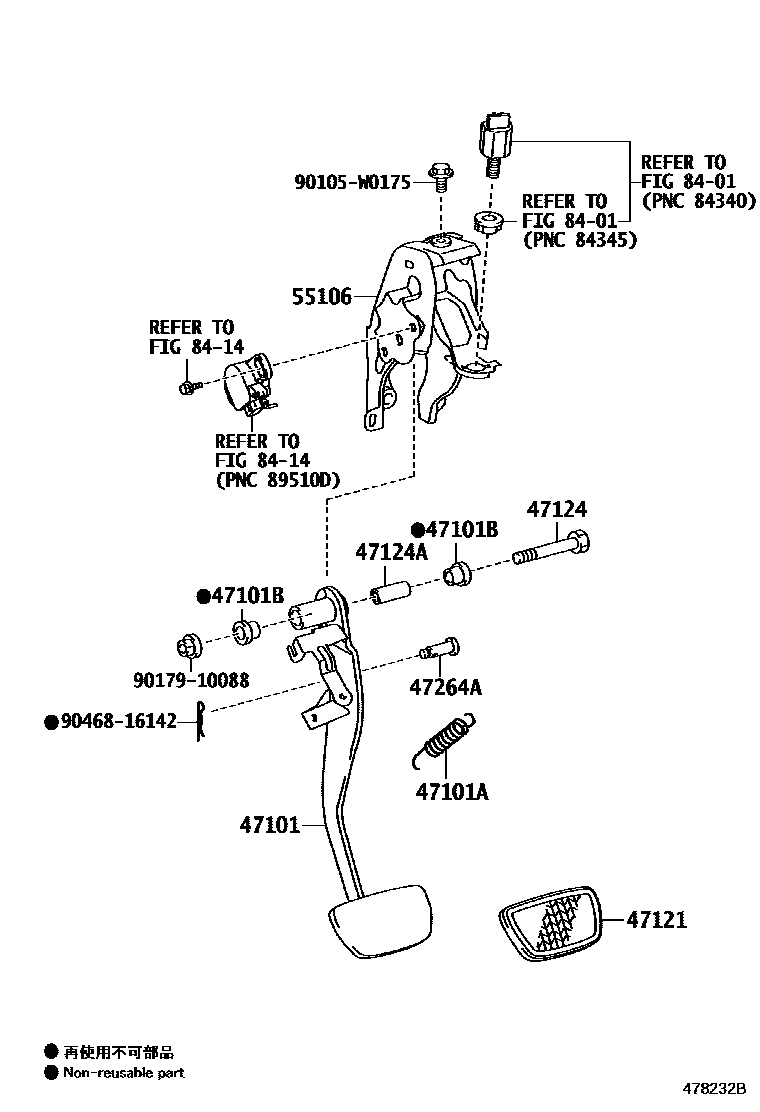

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-0D100 · 47101-0D110 · 47101-0D230 · 47101-0D240 · 47101-0D280 · 47101-52330 |
| 47101A | Spring (for brake pedal return) | 90506-14077 · 90506-14088 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-0D030 · 31321-52010 · 47121-0D040 · 47121-52010 |
| 47124 | brake pedal shaft | 90101-10039 · 90105-10444 · 90105-10538 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 · 90387-10105 |
| 47264A | Pin (for push rod) | 90249-08051 · 90249-08308 |
| 55106 | Brake pedal bracket sub-assembly | 55106-0D100 · 55106-0D110 · 55106-0D150 · 55106-52180 |
