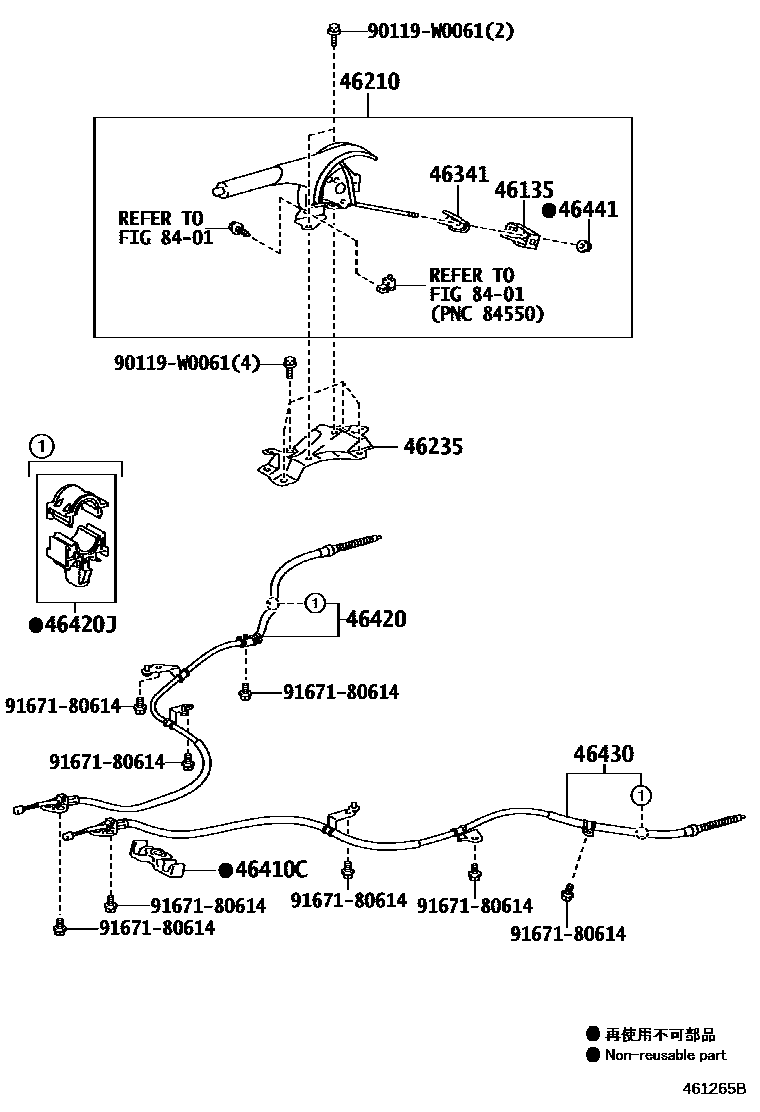

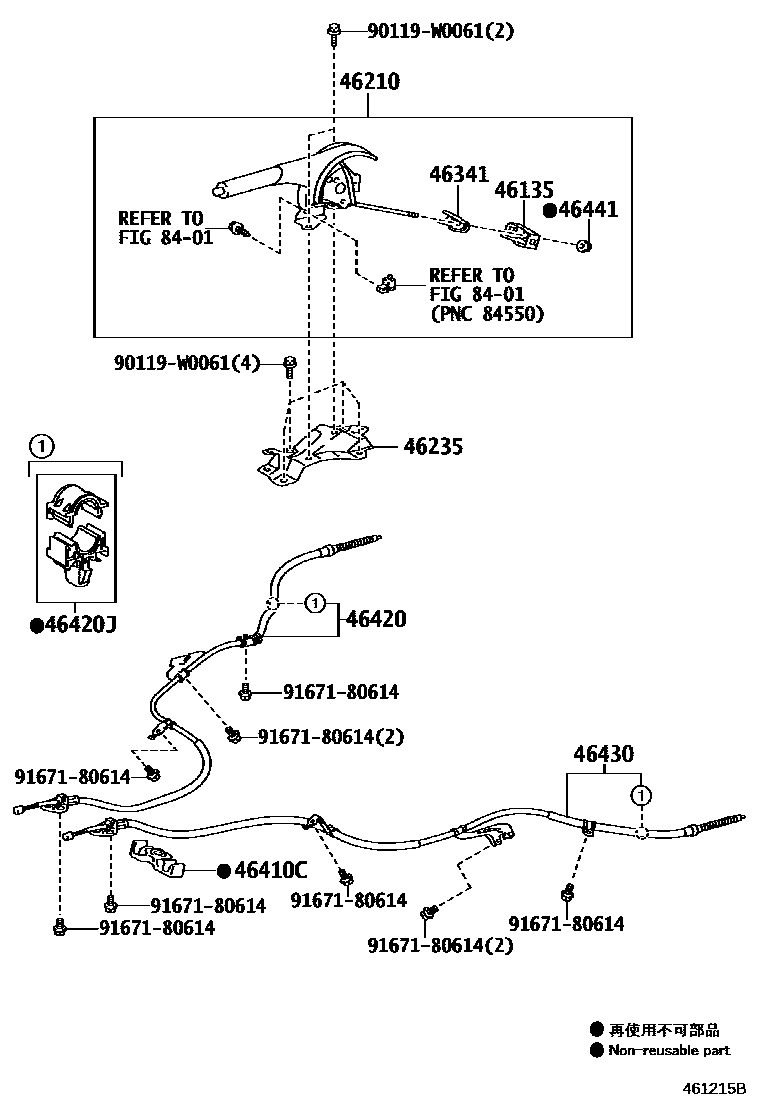

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-0D020 |
| 46235 | Parking brake lever bracket | 46235-0D060 |
| 46341 | Parking brake balancer | 46341-0D060 |
| 46410C | Clip (for front parking brake cable) | 46411-0D010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0D200 · 46420-0D210 · 46420-0D220 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-52030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0D200 · 46430-0D210 · 46430-0D220 |
| 46441 | No. 1 cable adjustment nut | 46441-0D060 |
