Toyota YARIS Steering Column & Shaft — Figure 4501

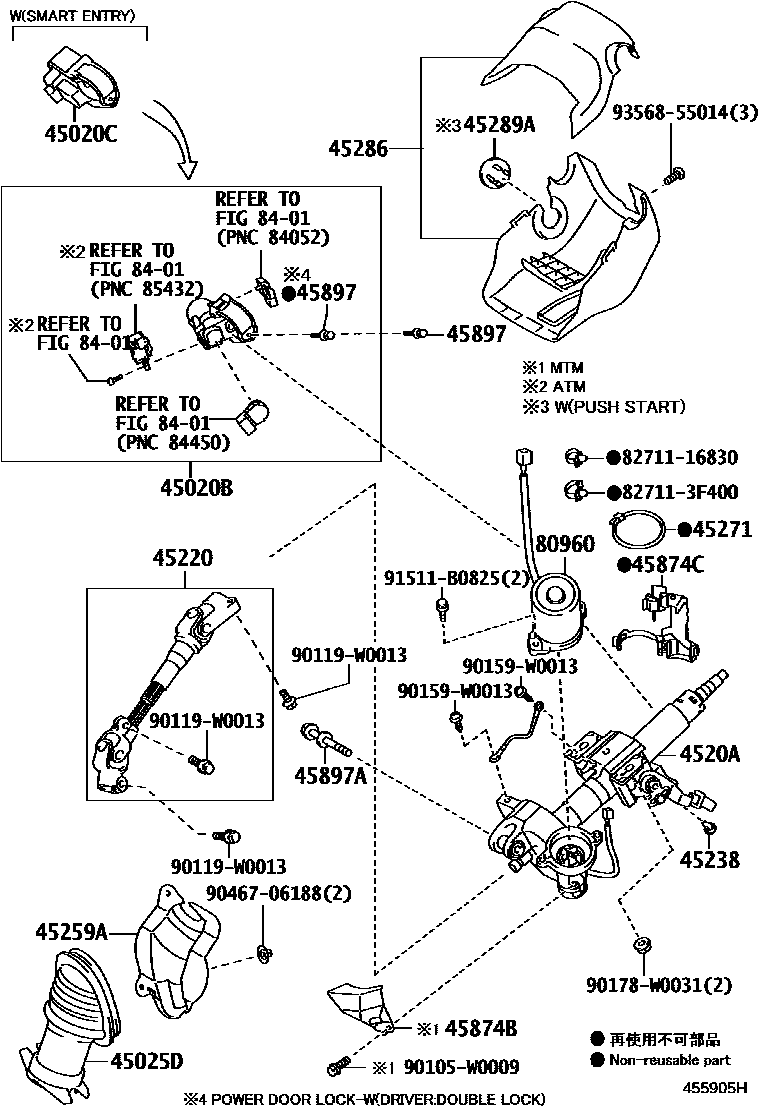

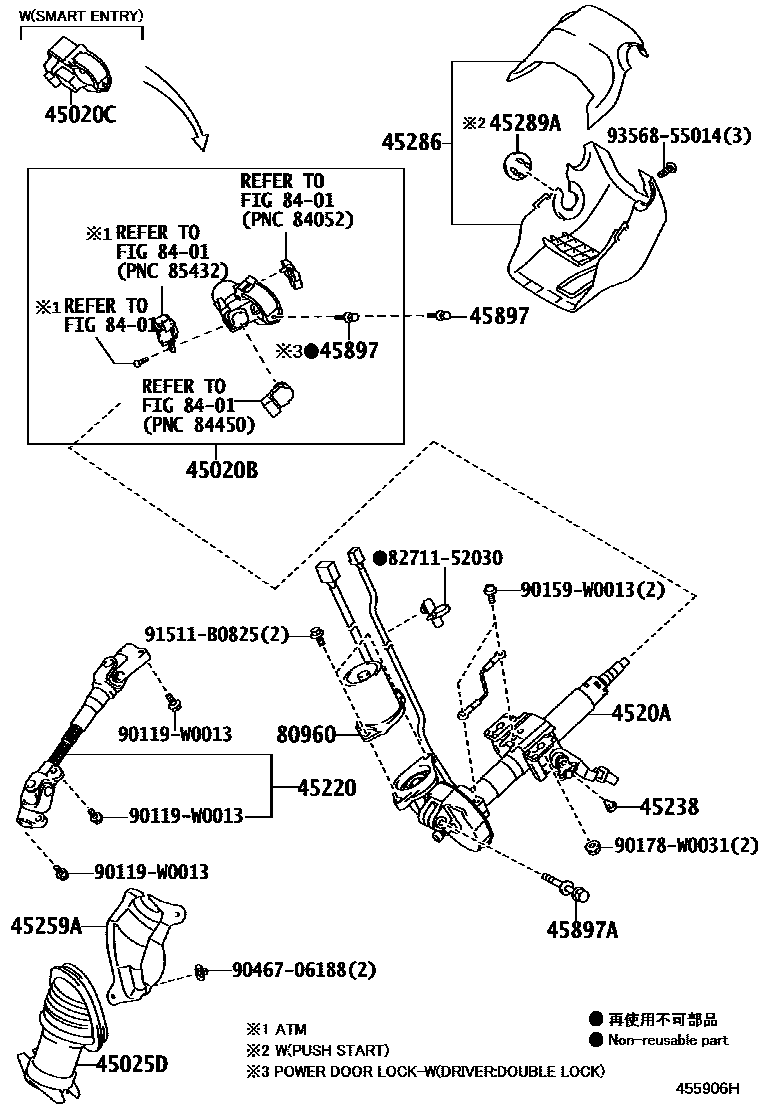

Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45020-0D080 · 45020-0D081 · 45020-0D090 · 45020-0D091 · 45020-0D100 · 45020-0D101 · 45020-0D110 · 45020-0D111 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-0D120 · 45020-0D130 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D061 · 45025-0D062 |
| 4520A | Electric steering column sub-assembly | 4520A-0D050 · 4520A-0D060 · 4520A-0D070 · 4520A-0D080 |
| 45220 | Steering intermediate shaft assembly | 45220-0D010 · 45220-0D020 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45259A | Steering column hole cover silencer plate | 45255-0D100 · 45255-0D110 · 45255-0D120 · 45255-0D160 |
| 45271 | Clamp on steering column | 45271-52040 |
| 45874B | No. 1 steering column guard | 45874-52030 |
| 45874C | No. 1 steering column guard | 45874-0D040 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10980 |
| 80960 | Power steering motor assembly | 80960-52070 · 80960-52080 · 80960-52090 · 80960-52110 |
