Toyota YARIS 前桥壳和差速器 — Figure 4301

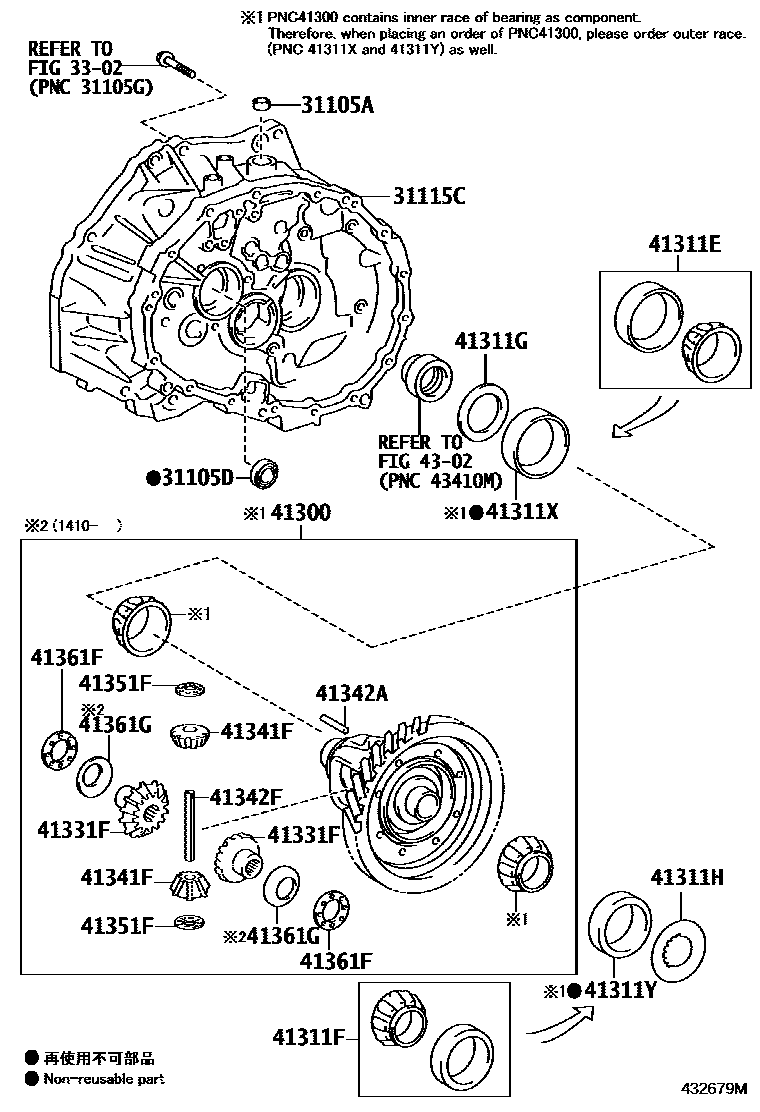

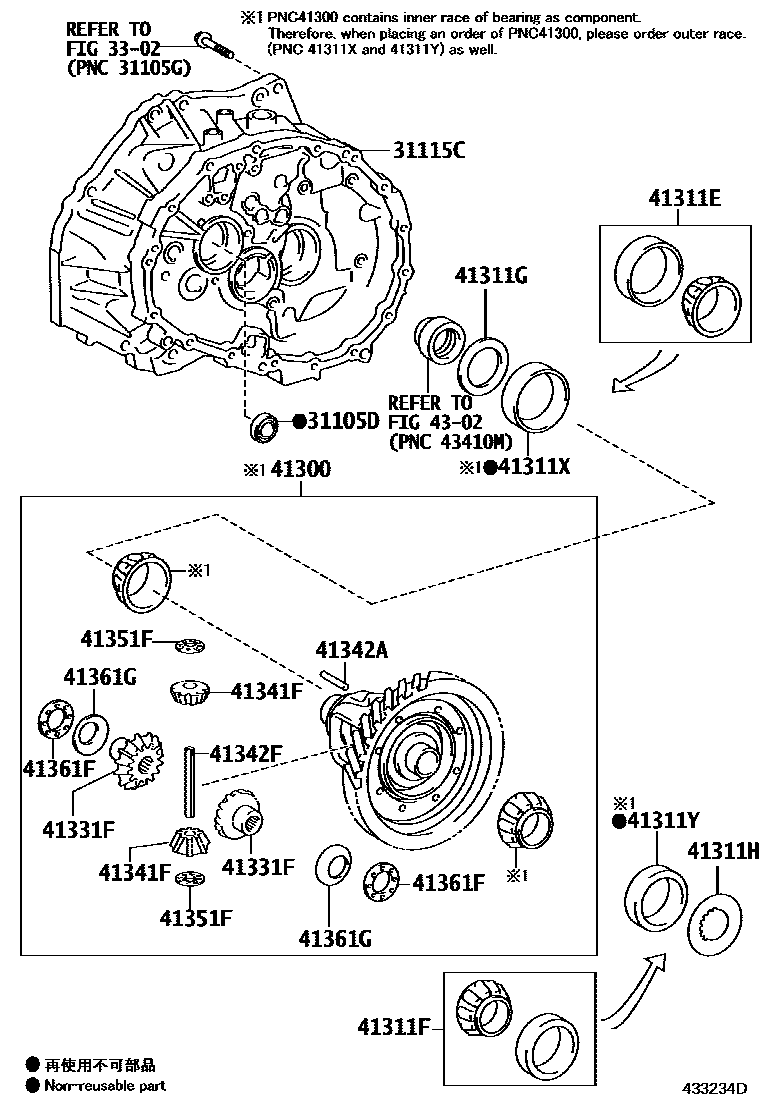

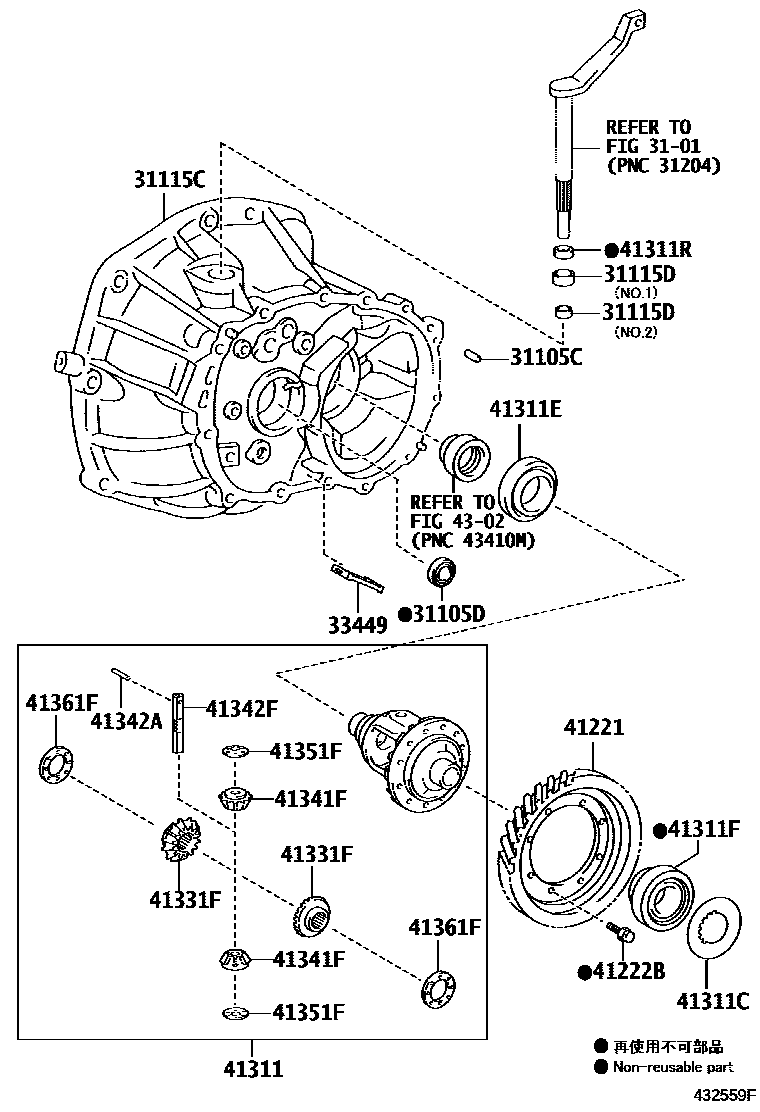

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-25005 |
| 31105C | Direct sales (for transmission axle housing) | 90250-W0001 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 · 90311-W0001 |
| 31115C | Front transmission axle housing (MTM) | 31115-0D110 · 31115-0D111 · 31115-0D120 · 31115-0D121 · 31115-0D140 · 31115-12160 · 31115-12161 · 31115-12170 · 31115-12171 · 31115-52140 · 31115-52141 |
| 31115D | Bimetallic bushing (for front transaxle housing) | 90384-W0004 · 90384-W0005 |
| 33449 | derailleur magnet | 33449-60010 |
| 41221 | Front differential ring gear | 41221-0D140 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12313 |
| 41300 | Front differential case assembly with ring gear | 41300-0D020 · 41300-0D030 · 41300-52030 · 41300-52080 · 41300-52100 |
| 41311 | front differential case | 41311-0H901 |
| 41311C | Rear gasket (for front differential case) | 90564-41065 · 90564-41066 · 90564-41067 · 90564-41068 · 90564-41069 · 90564-41070 · 90564-41071 · 90564-41072 · 90564-41073 · 90564-41074 · 90564-41075 · 90564-41076 · 90564-41077 · 90564-41078 · 90564-41079 · 90564-41080 · 90564-41081 · 90564-41082 · 90564-41083 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36143 · 90366-40129 · 90366-W0007 |
| 41311F | Rear tapered bearing (for front differential housing) | 90080-36166 · 90366-42009 · 90366-W0013 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311R | Oil seal (for front differential case) | 90310-W0002 |
| 41311X | Roller cone bearing outer race (for front differential) | 90080-36144 · 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 · 90366-W0014 |
| 41331F | Front differential side gear | 41331-05030 · 41331-0D050 · 41331-0D060 · 41331-12011 · 41331-12150 · 41331-12190 · 41331-20130 |
| 41341F | Front differential planetary gear | 41341-05030 · 41341-0D050 · 41341-0D060 · 41341-12030 · 41341-12100 · 41341-12130 · 41341-20050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 · 90250-W0005 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10041 · 41342-32020 · 41342-70030 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 · 41361-70010 · 41361-70020 · 41361-70030 · 41361-70040 · 41361-70050 · 41361-70060 · 41361-70070 · 41361-70080 · 41361-70090 · 41361-70100 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
