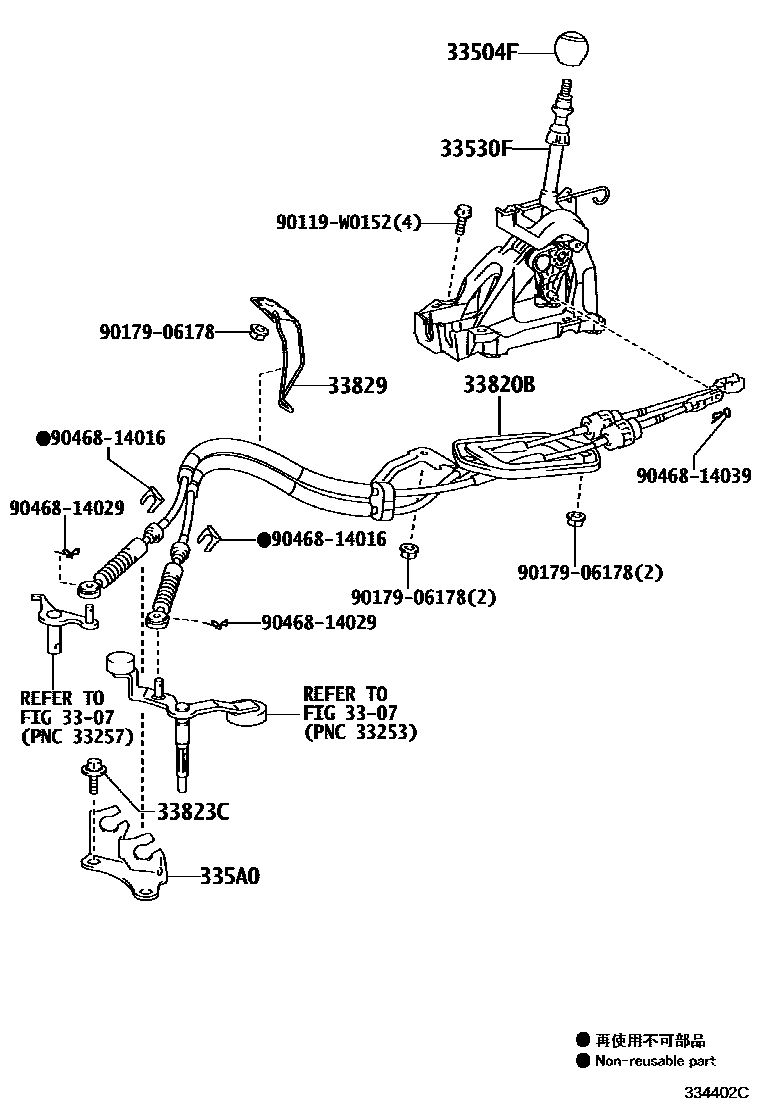

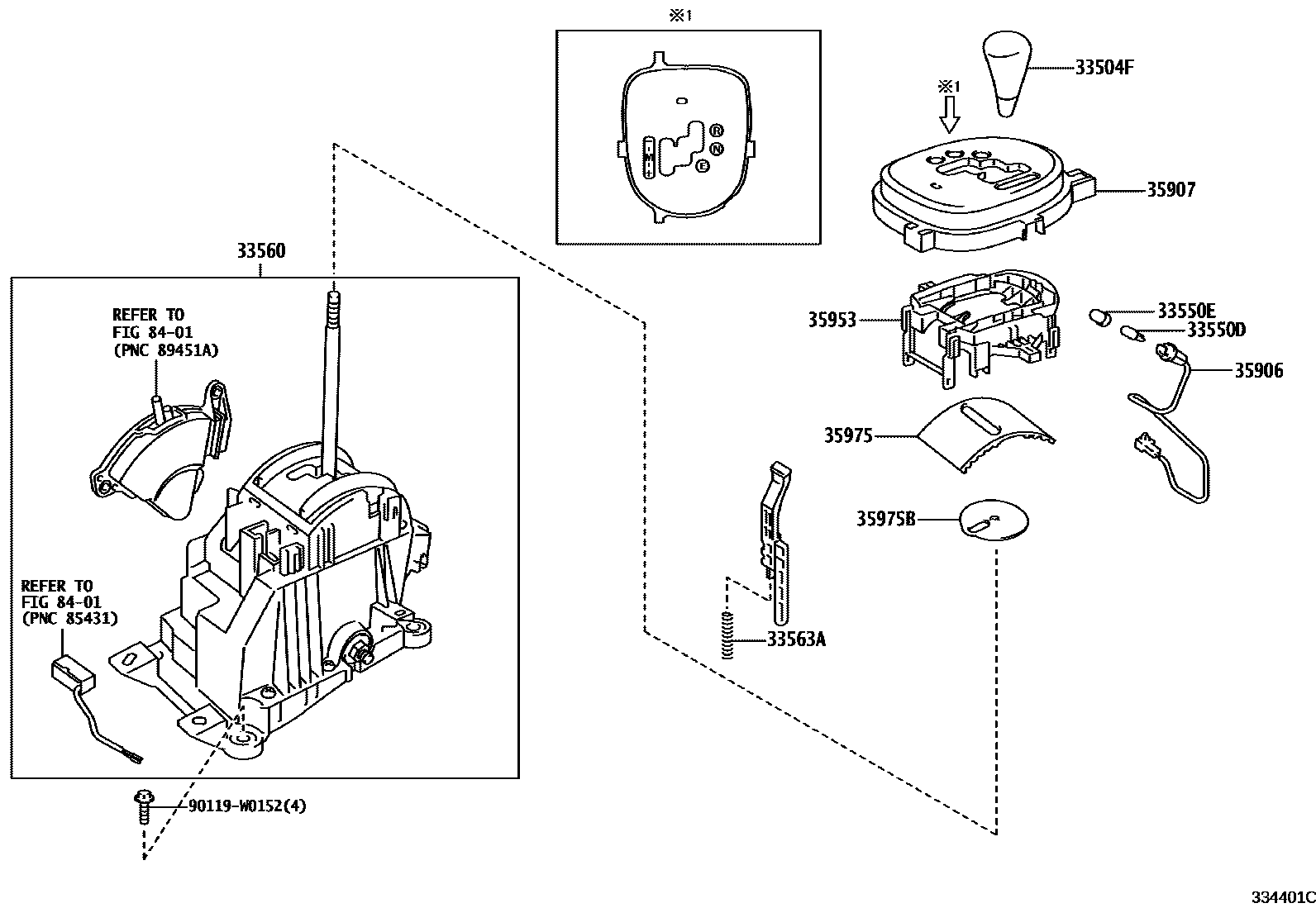

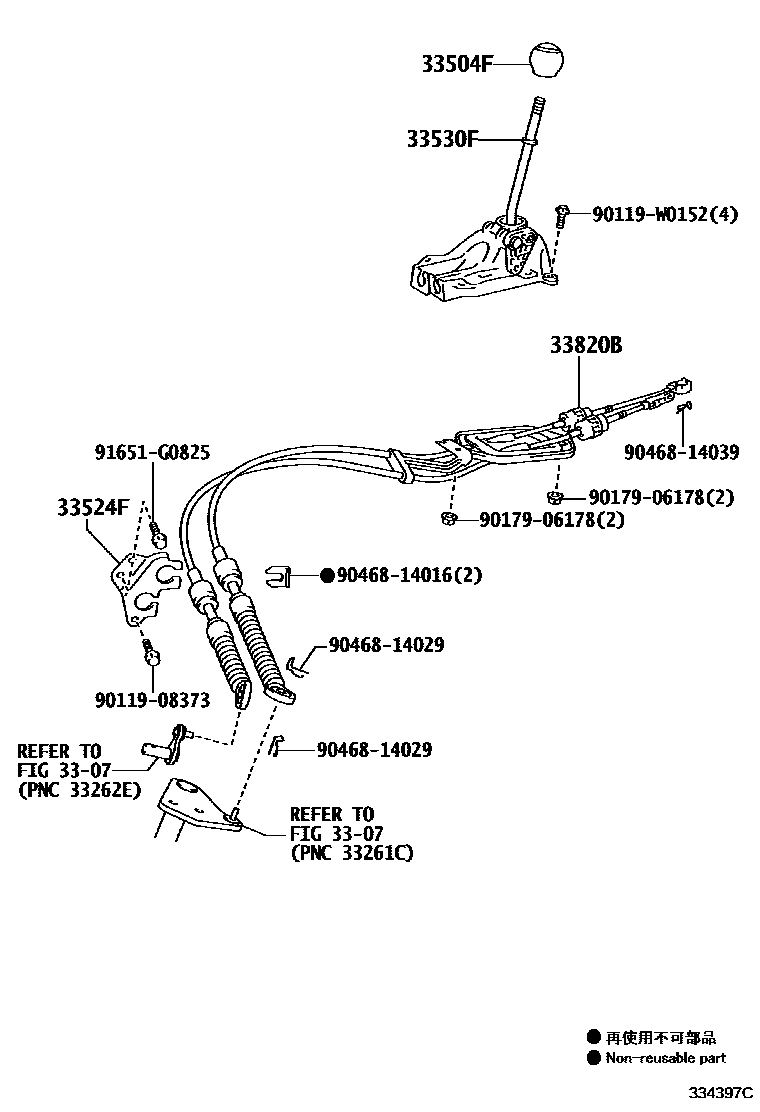

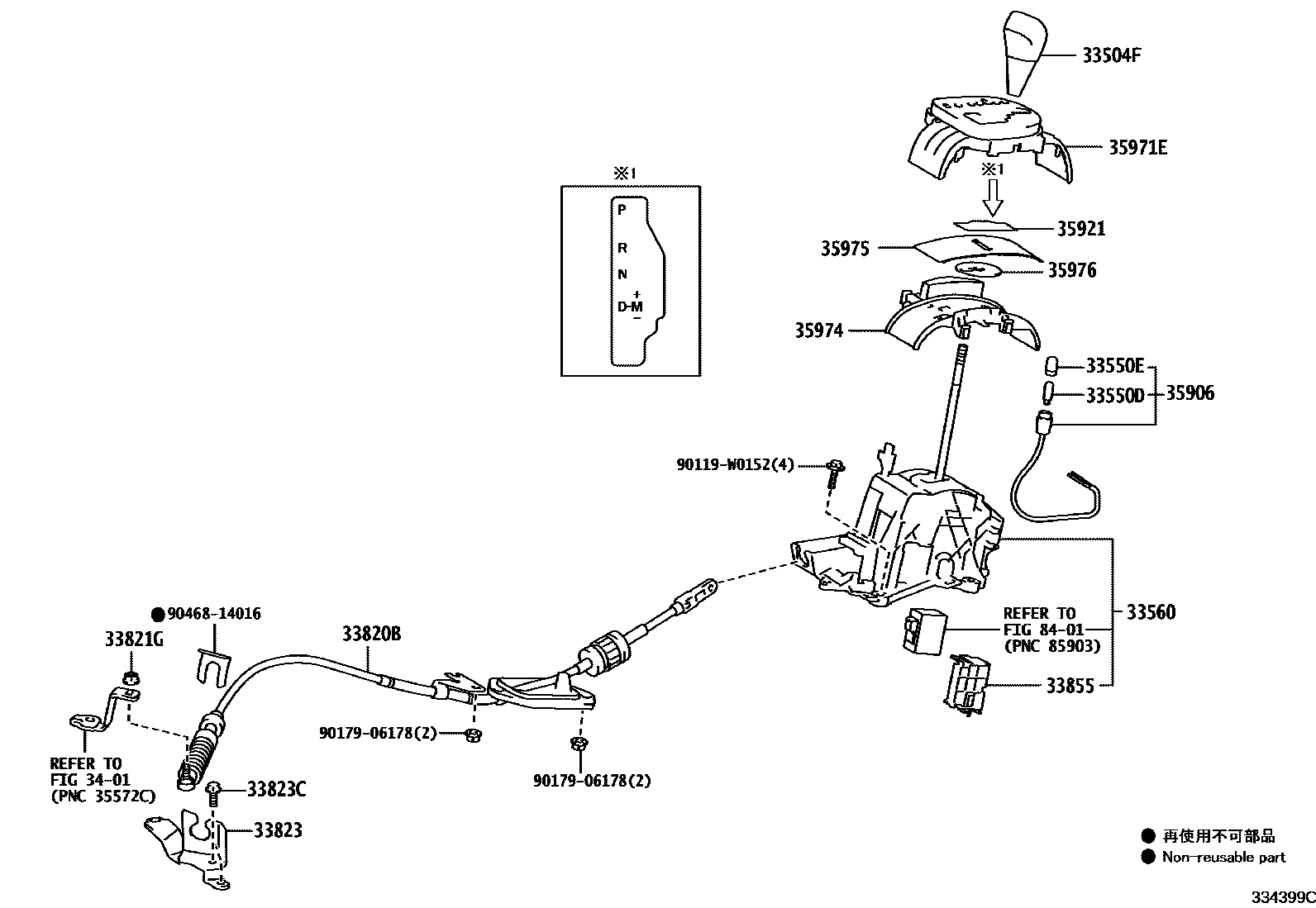

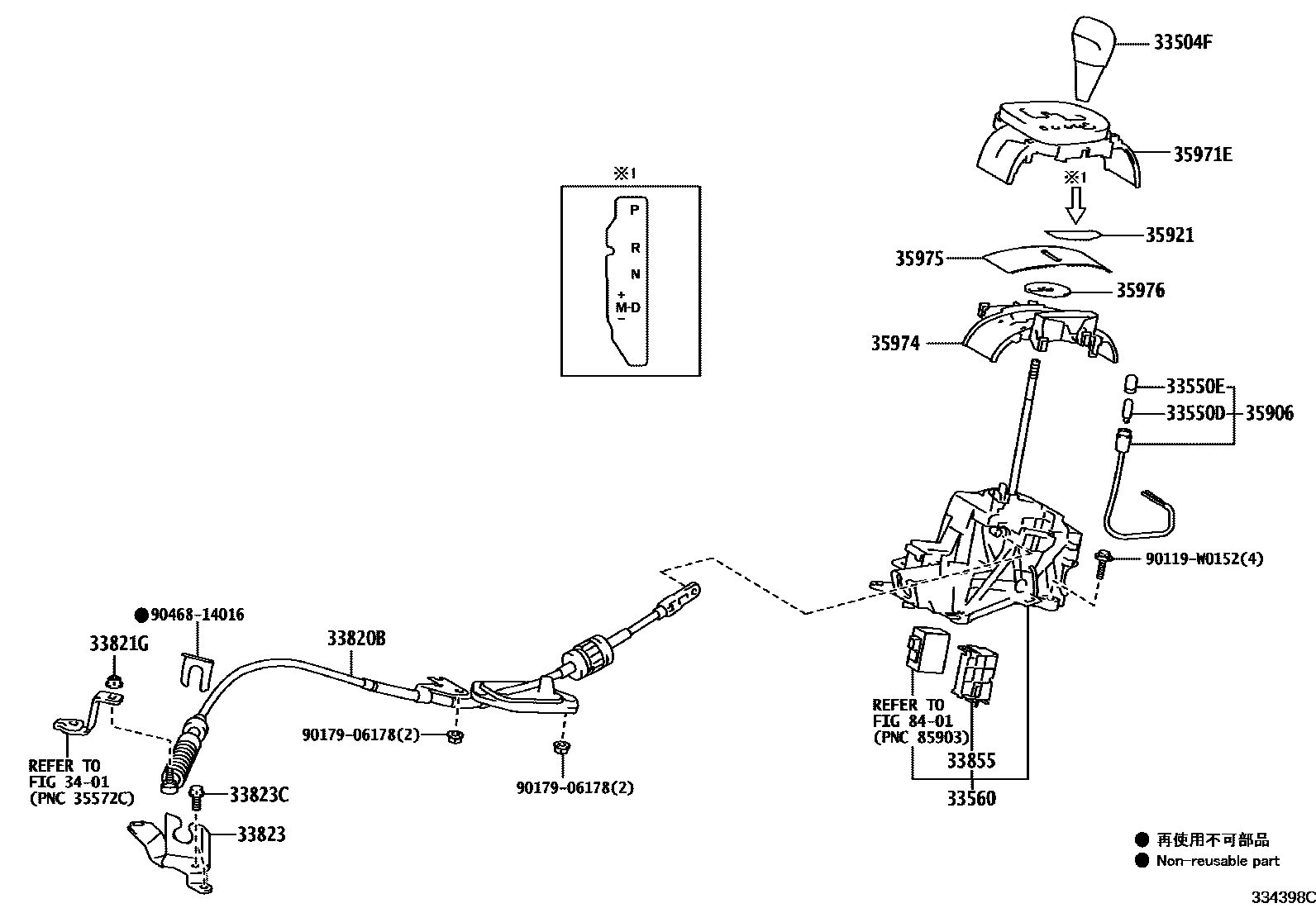

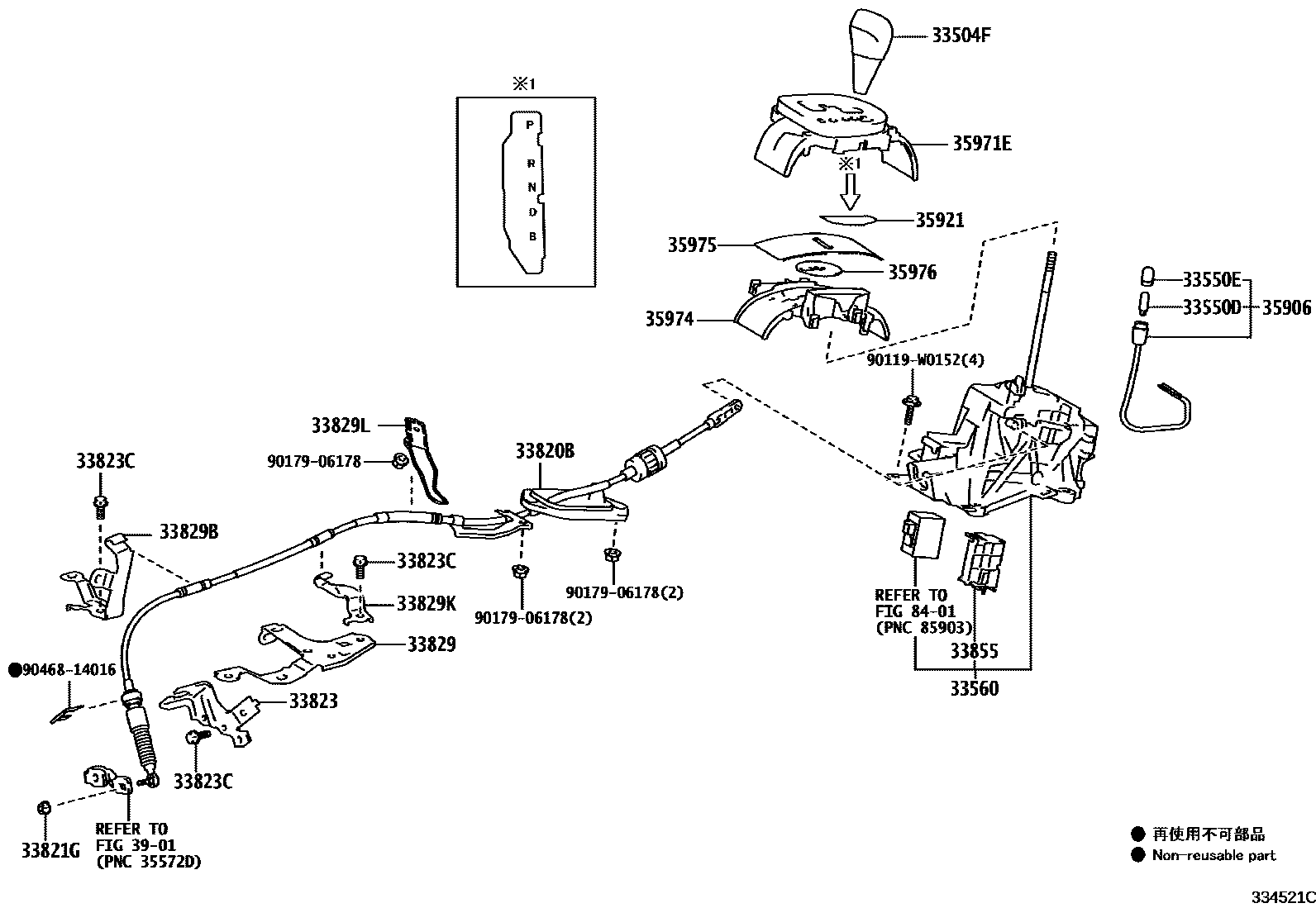

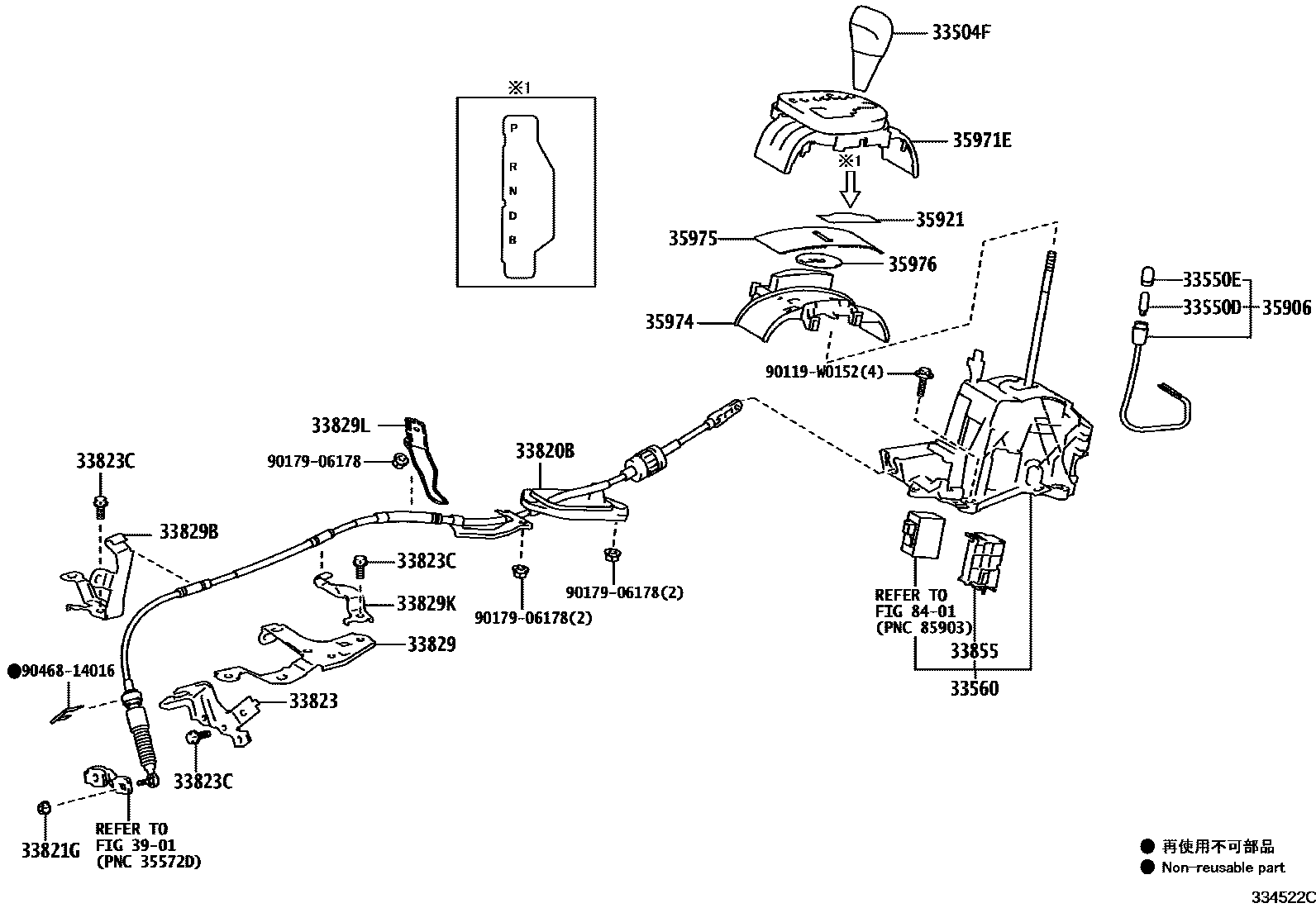

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524F | Lever housing bracket (for floor shift) | 33524-52030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D040 · 33530-0D070 |
| 33550D | position indicator light bulb | 35955-74010 · 90981-11018 |
| 33550E | position indicator cover | 35956-52010 · 35956-52020 · 90339-04074 |
| 33560 | Shift lock control unit assembly | 33560-52480 · 33560-52490 · 33560-52540 · 33560-52580 · 33560-52590 |
| 33563A | Compression spring (for shift lock release button) | 90501-07087 |
| 335A0 | Control cable bracket assembly | 335A0-0D030 · 335A0-0D040 · 335A0-52010 · 335A0-52020 |
| 33820B | Transmission control cable assembly | 33820-0D090 · 33820-0D371 · 33820-0D381 · 33820-0D420 · 33820-52750 · 33820-52810 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D070 · 33823-52100 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-W0027 |
| 33829 | Transmission control cable bracket | 33829-0D090 · 33829-52151 |
| 33829B | Transmission control cable clip | 33829-0D080 |
| 33829K | No. 2 transmission control cable clip | 33829-0D100 |
| 33829L | Transmission control cable clip No. 3 | 33829-52151 |
| 33855 | Shift lock unit cover | 33855-52020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12180 · 35906-52150 · 35906-52160 · 35906-52230 · 35906-52240 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-52300 |
| 35921 | control position indicator board | 35921-52140 · 35921-52150 · 35921-52210 · 35921-52220 |
| 35953 | Position indicator light guide | 35953-52120 |
| 35971E | position indicator housing | 35971-52480 · 35971-52490 · 35971-52580 · 35971-52590 · 35971-52610 · 35971-52620 |
| 35974 | Position indicator light lower shell | 35974-52050 · 35974-52060 |
| 35975 | Slide cover (for position indicator light) | 35975-52050 · 35975-52140 |
| 35975B | Slide No. 2 (for position indicator light) | 35975-52060 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52140 |
