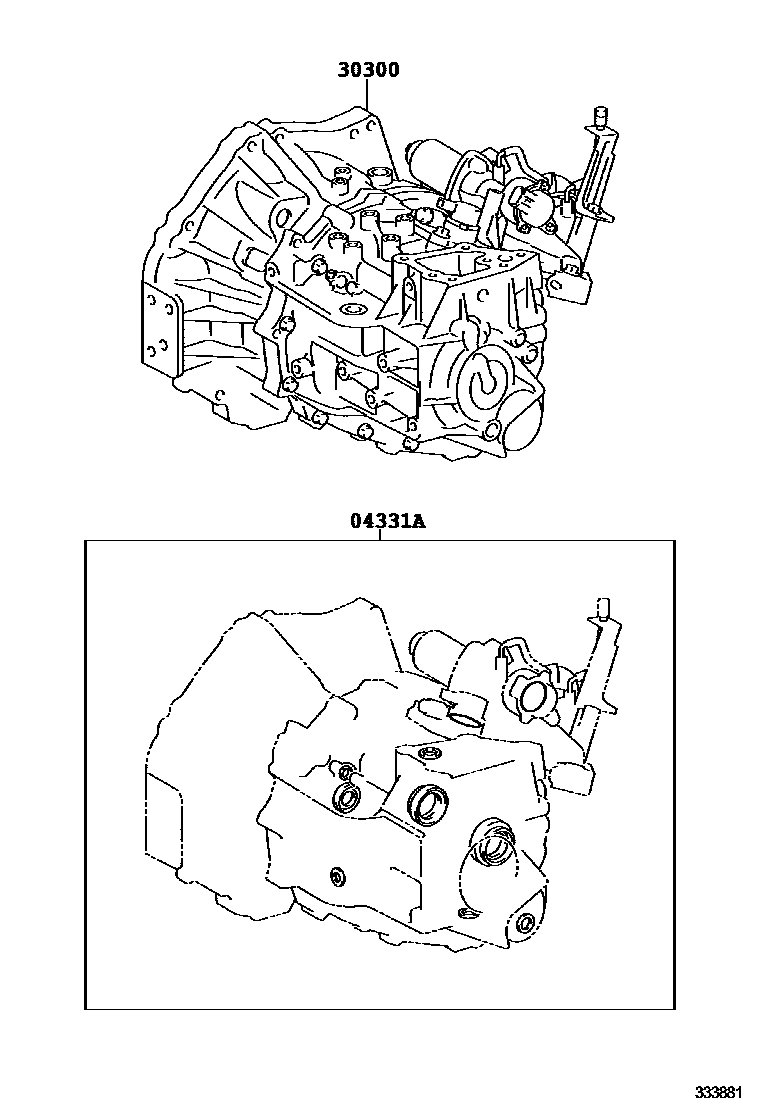

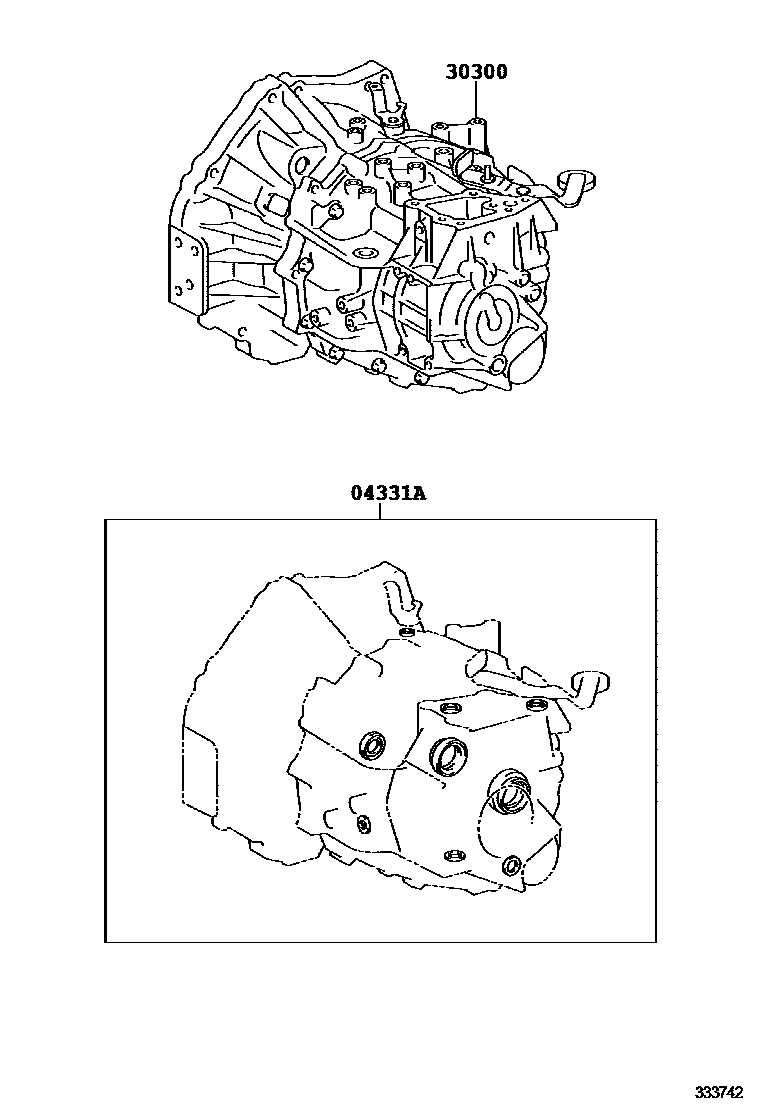

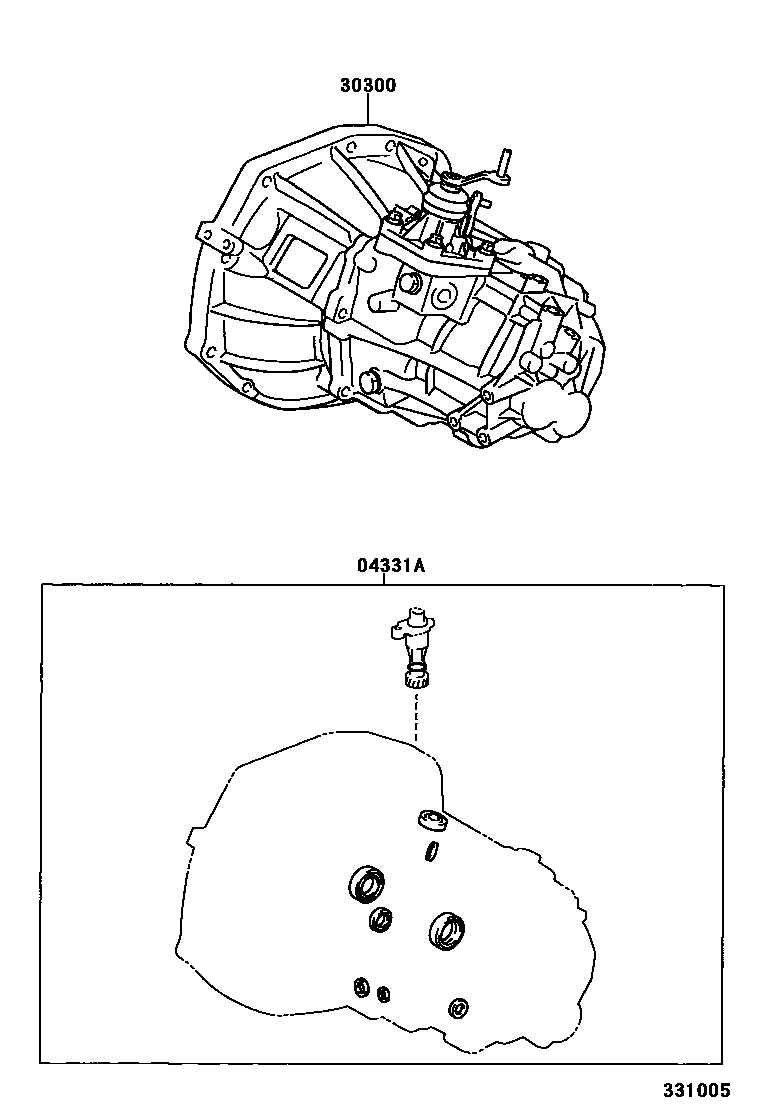

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-05210 · 04331-0D180 · 04331-0D181 · 04331-0F010 · 04331-20250 · 04331-20252 · 04331-52590 · 04331-52592 · 04331-52610 · 04331-52612 |
| 30300 | Manual transmission axle assembly | 30300-0D140 · 30300-0D190 · 30300-0D200 · 30300-0D210 · 30300-52661 · 30300-52881 · 30300-52891 · 30330-52061 · 30330-52062 |
