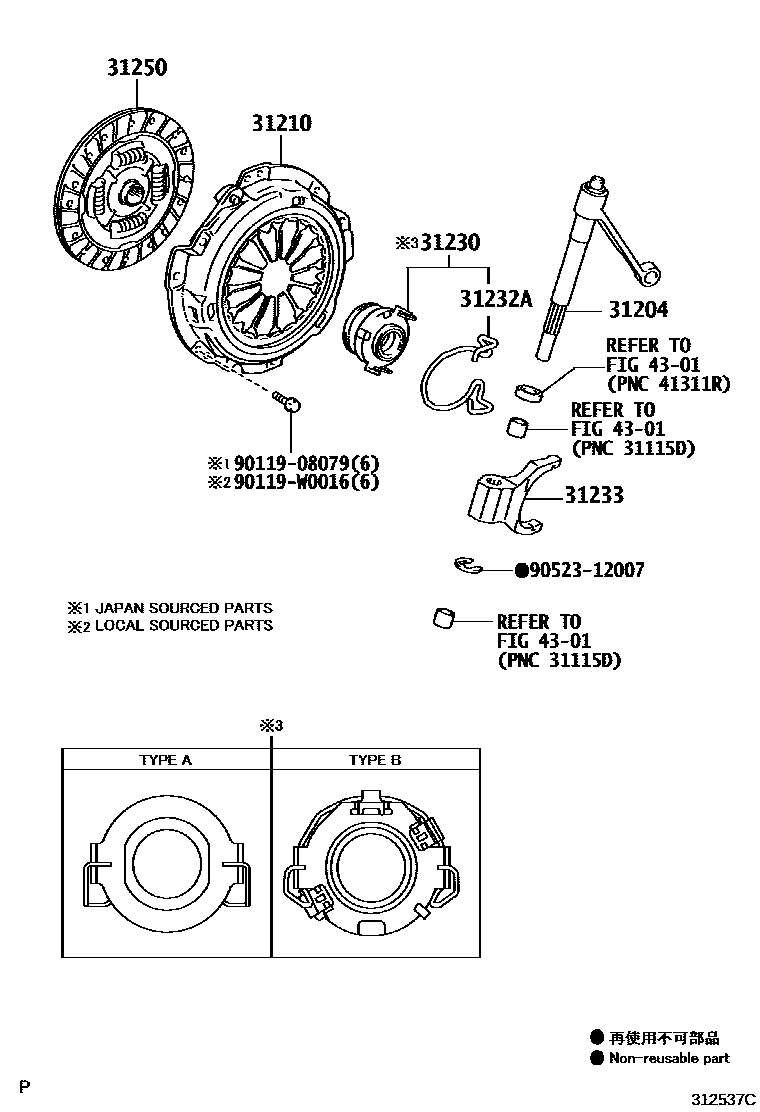

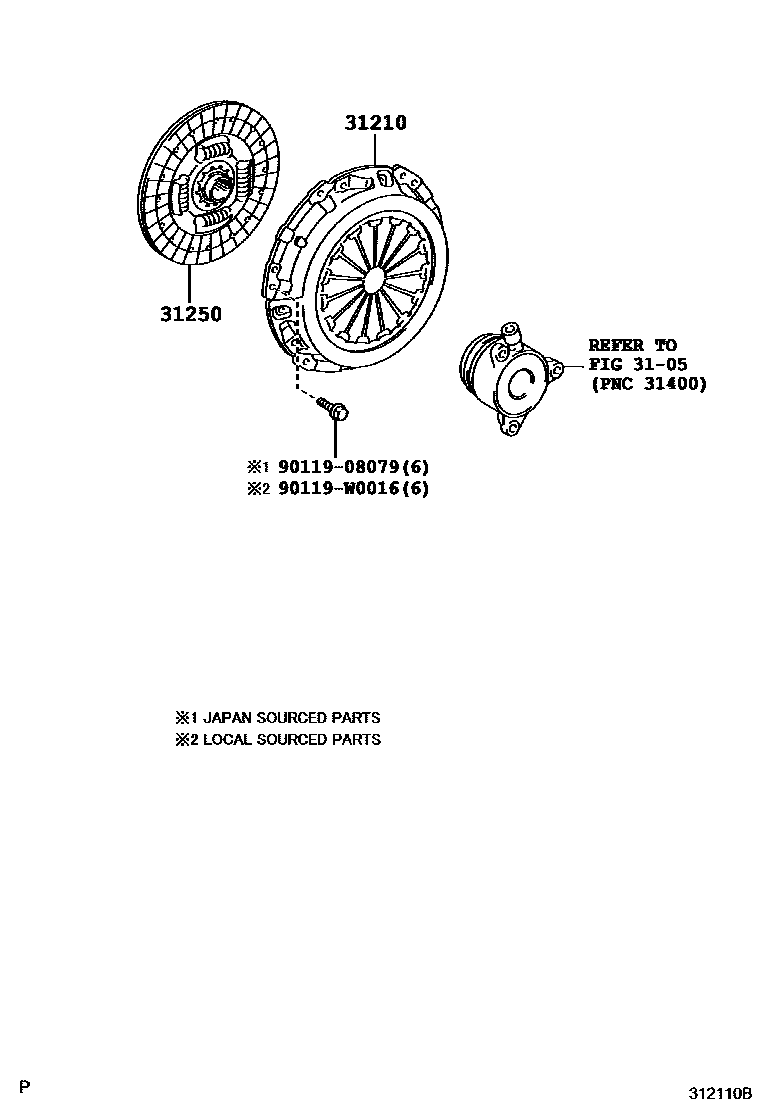

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31204 | Clutch release fork assembly | 31204-52060 |
| 31210 | Clutch cover assembly | 31210-0D150 · 31210-12350 · 31210-52100 · 31210-52110 · 31210-52130 |
| 31230 | Clutch release bearing assembly | 31230-0H010 · 31230-52040 |
| 31232A | Release bearing hub clip | 31232-52040 |
| 31233 | clutch release fork | 31233-0D010 · 31233-0D011 |
| 31250 | Clutch disc assembly | 31250-0D190 · 31250-12620 · 31250-52151 · 31250-52210 · 31250-52230 · 31250-52240 · 31250-52260 |
