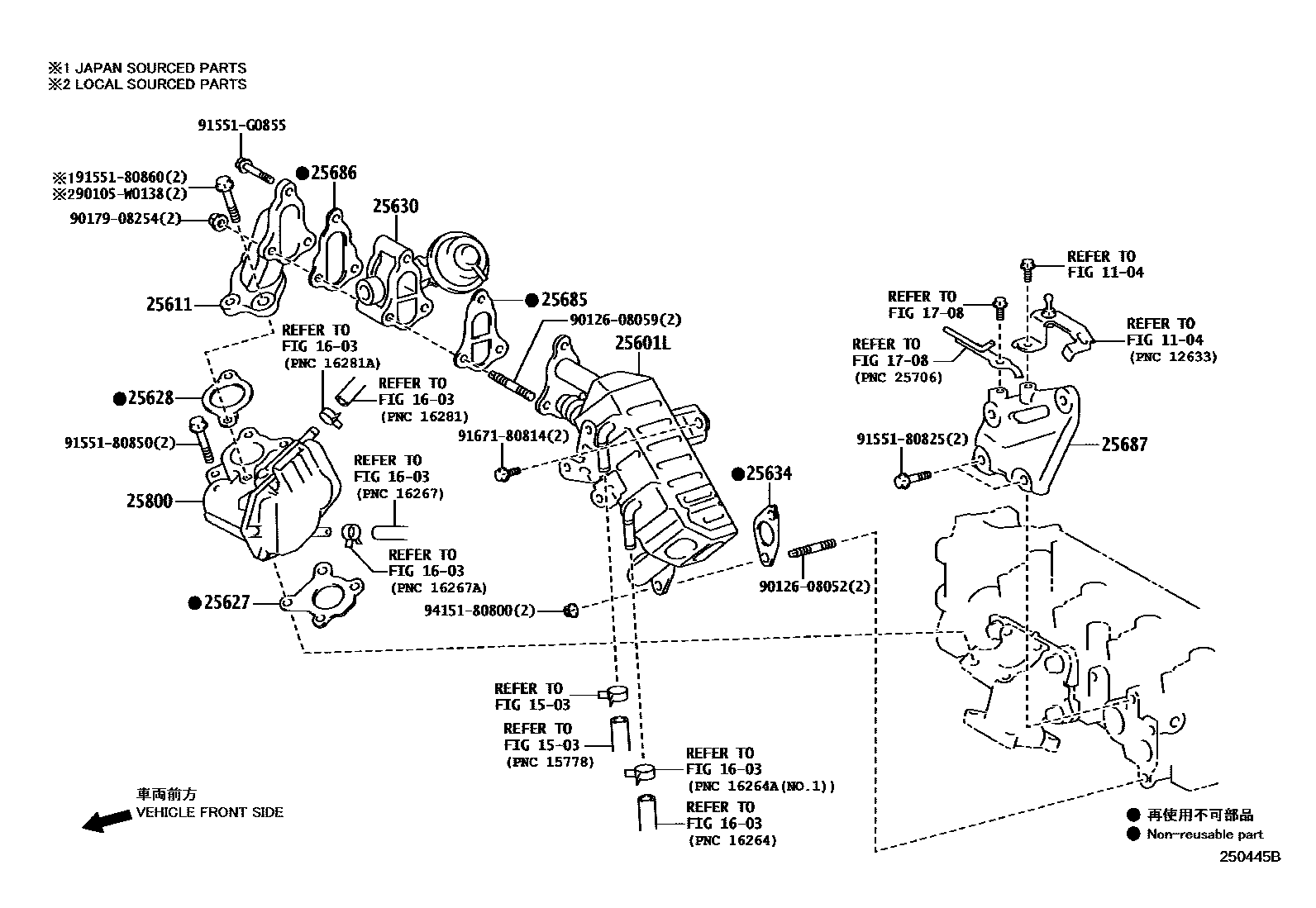

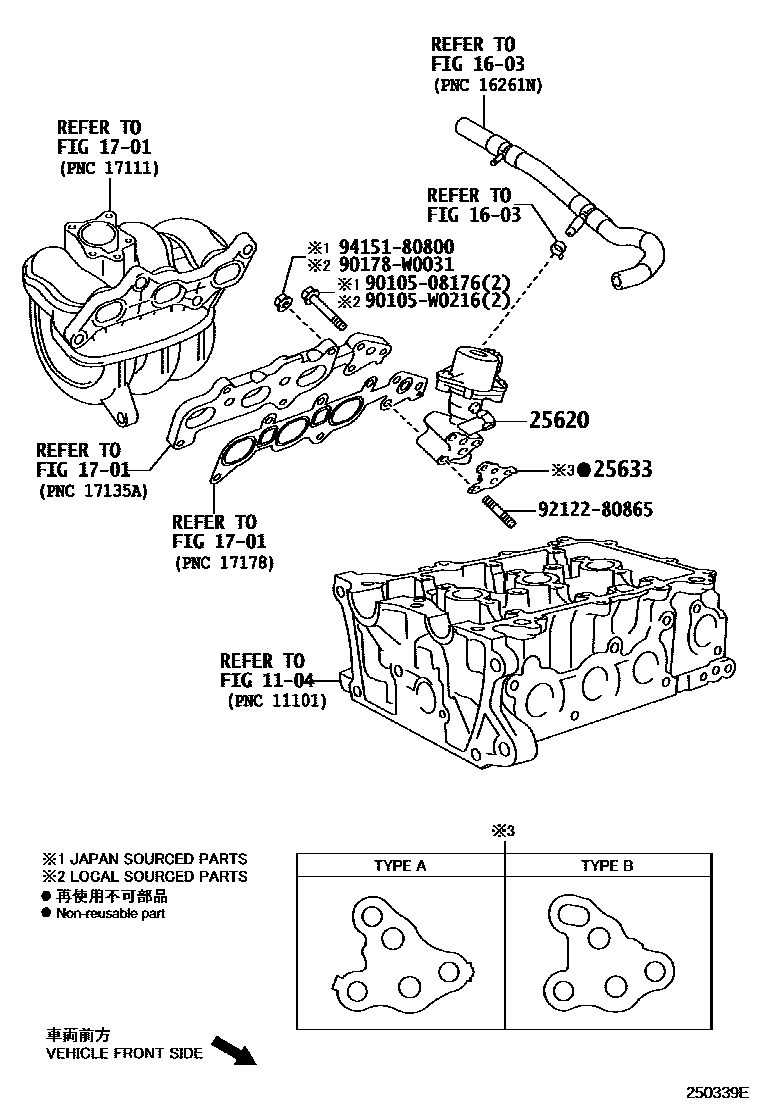

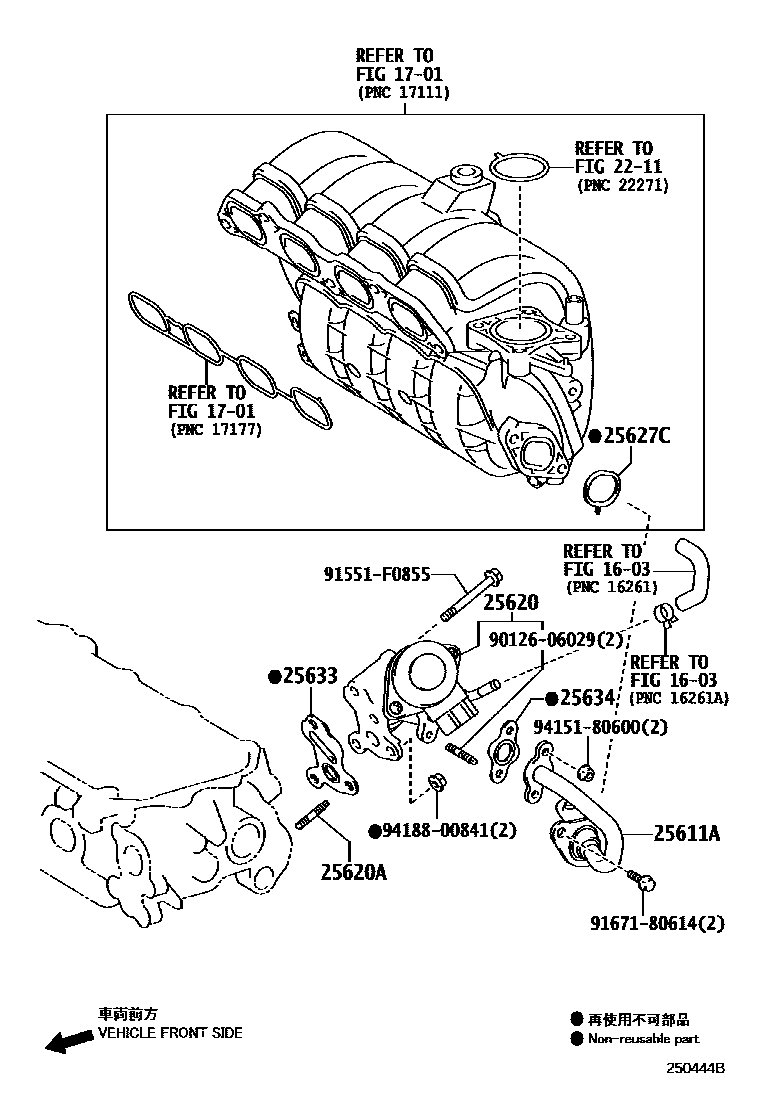

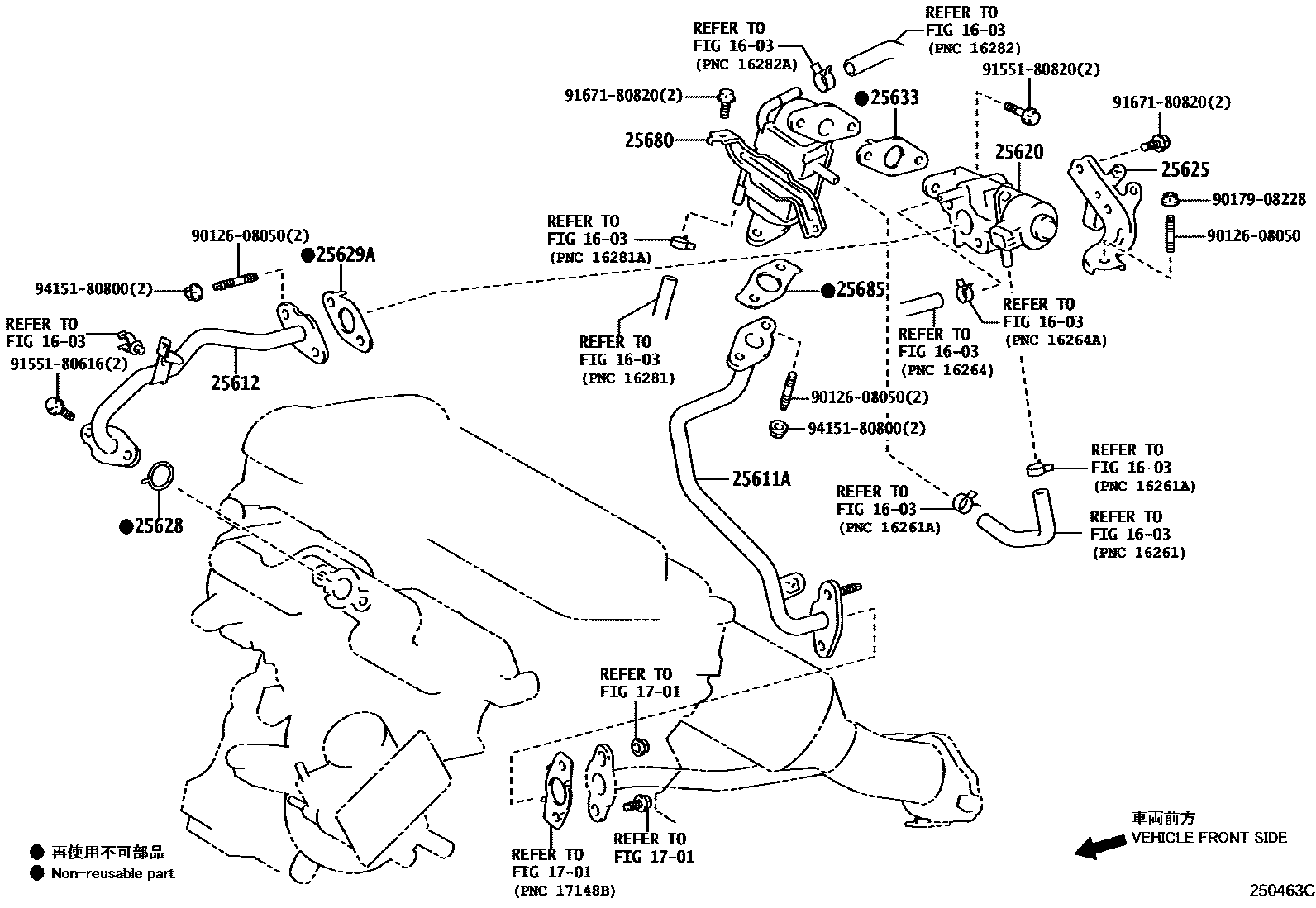

Toyota YARIS 废气再循环系统 — Figure 2501
Toyota YARIS EPC diagram 2501, 废气再循环系统, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601L | EGR pipe assembly with cooler | 25601-33070 |
| 25611 | EGR tube connector | 25611-33020 |
| 25611A | No. 1 EGR tube | 25611-21011 · 25611-47011 |
| 25612 | No. 2 EGR tube | 25612-21010 |
| 25620 | EGR valve assembly | 25620-21020 · 25620-40020 · 25620-47020 |
| 25620A | Stud bolts (for EGR valve) | 90126-08063 |
| 25625 | EGR valve bracket | 25625-21010 |
| 25627 | EGR valve gasket | 25627-33010 |
| 25627C | Gasket (for No. 2 EGR tube) | 25629-47010 |
| 25628 | EGR air intake gasket | 25628-28010 · 25628-33040 |
| 25629A | No. 2 EGR tube gasket | 25629-21010 |
| 25630 | No. 2 EGR valve assembly | 25630-33010 |
| 25633 | EGR valve gasket | 25633-0Q010 · 25633-21010 · 25633-40020 · 25633-40030 · 25633-47010 |
| 25634 | EGR tube gasket | 25634-33010 · 25634-47010 |
| 25680 | EGR cooler assembly | 25680-21010 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-21010 · 25685-33010 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-33010 |
| 25687 | No. 1 EGR cooler bracket | 25687-33021 |
| 25800 | Electronic EGR control valve assembly | 25800-33011 |
