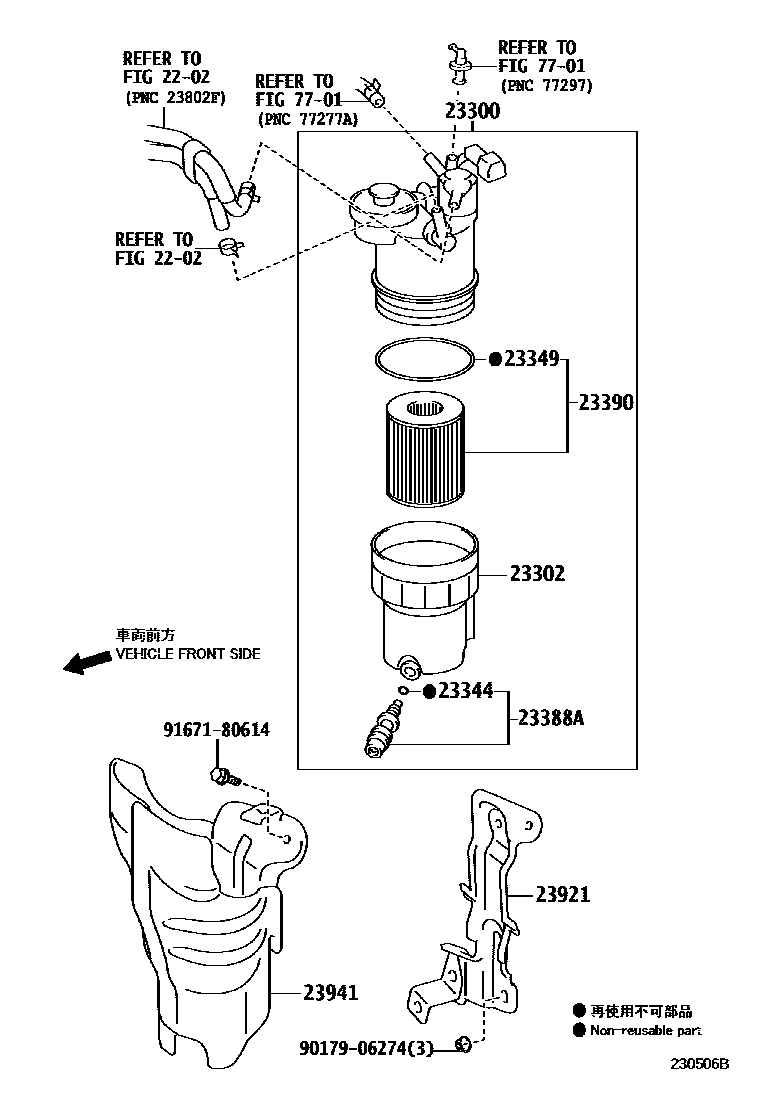

Toyota YARIS fuel filter — Figure 2302
Toyota YARIS EPC diagram 2302, fuel filter, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-0N100 |
| 23302 | Fuel filter lower housing sub-assembly | 23302-0N100 |
| 23344 | Clamp nut gasket (for fuel filter) | 23344-0N100 |
| 23349 | fuel precipitator liner | 23349-0N010 |
| 23388A | Fuel filter drain plug | 23388-0N100 |
| 23390 | Fuel filter element assembly | 23390-0N100 |
| 23921 | Fuel filter support | 23921-0N060 |
| 23941 | No. 1 fuel filter protection device | 23941-0N020 |
