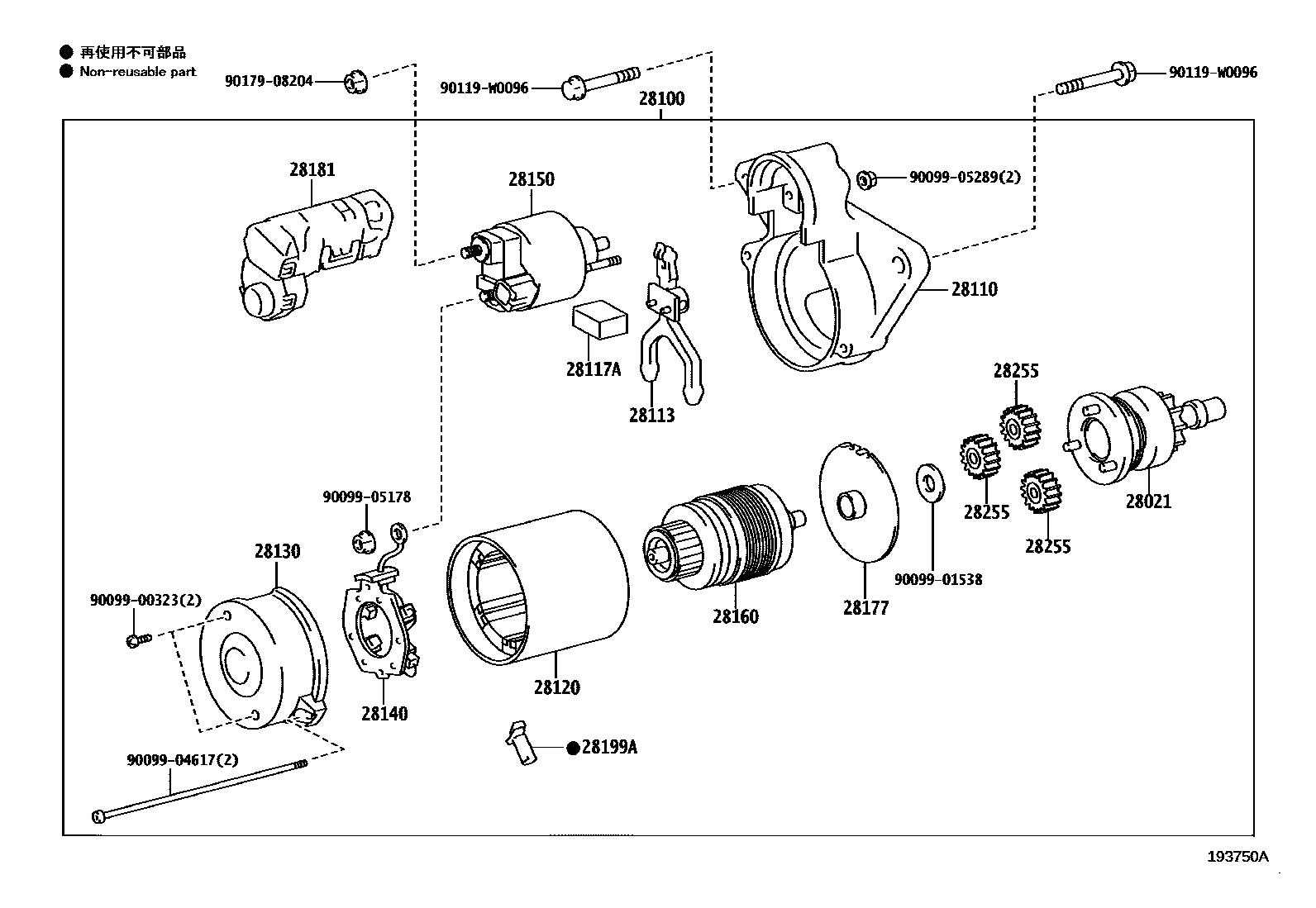

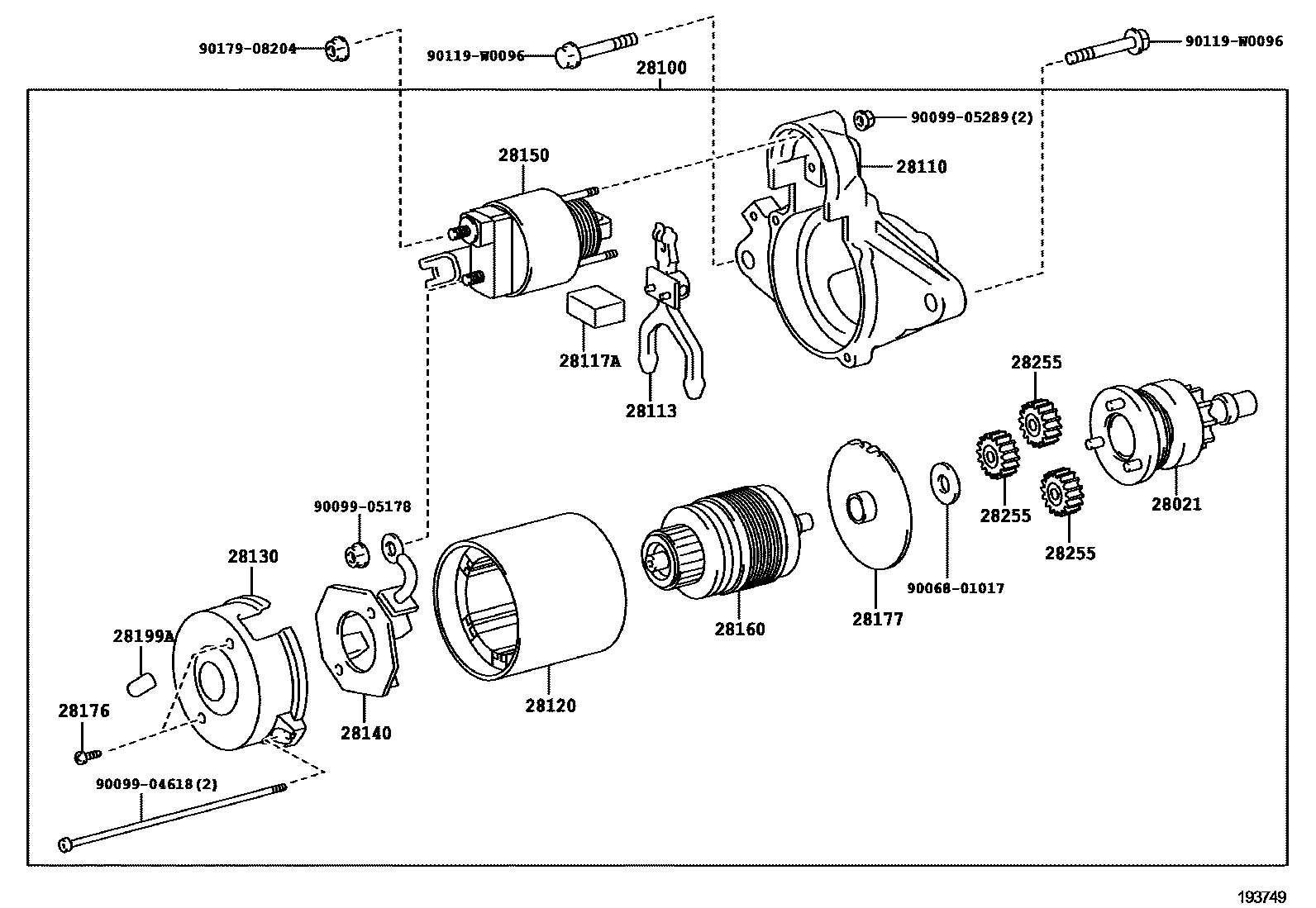

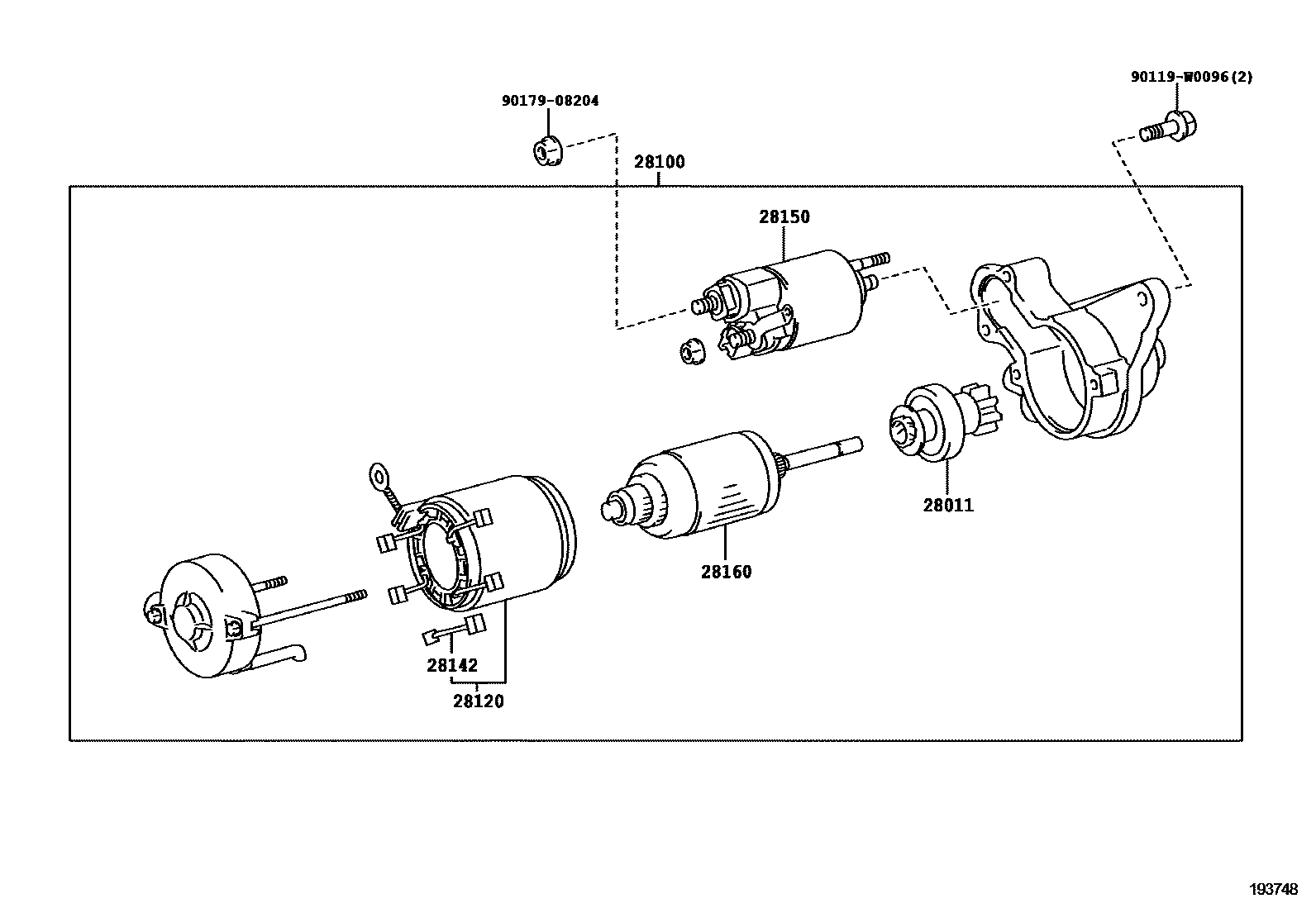

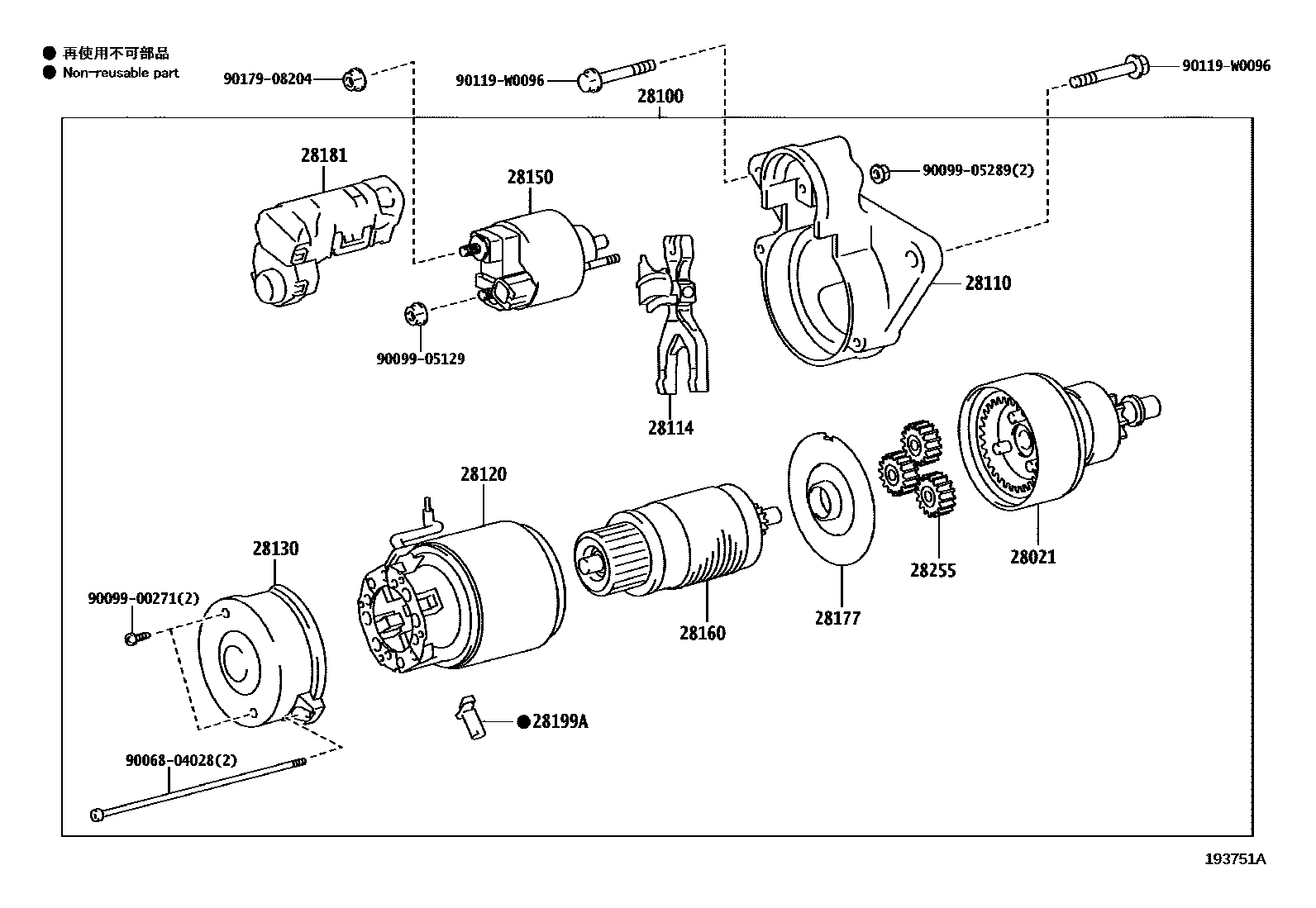

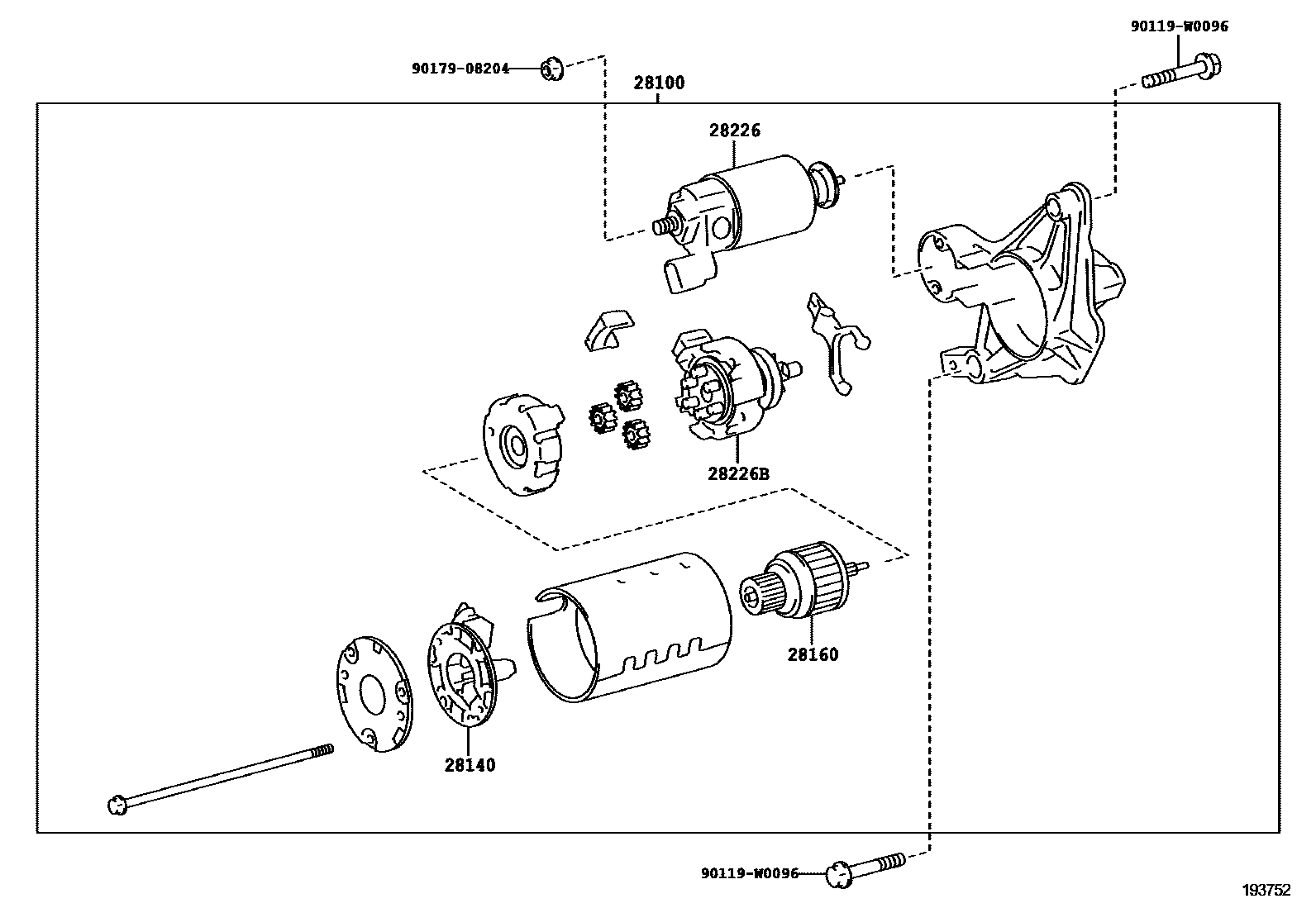

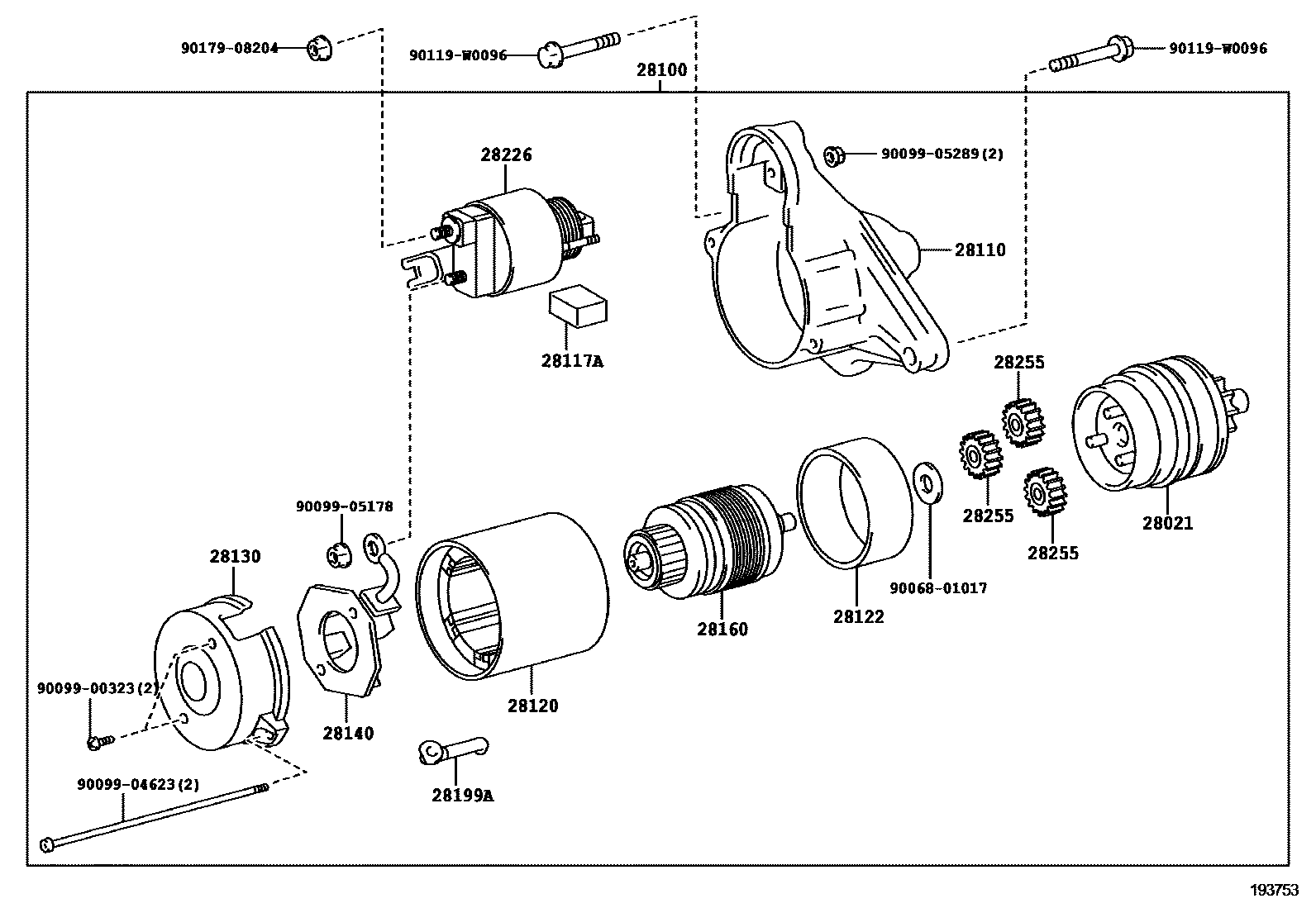

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-40070 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0J050 · 28021-0N050 · 28021-33090 · 28021-47110 |
| 28100 | Starter assembly | 28100-0N040 · 28100-0N050 · 28100-0Q050 · 28100-0Q080 · 28100-0Y090 · 28100-0Y100 · 28100-0Y110 |
| 28110 | Starter drive end housing assembly | 28110-0N050 · 28110-0Q050 · 28110-33110 · 28110-47191 |
| 28113 | starter pinion drive rod | 28113-37050 |
| 28114 | starter drive lever | 28114-33100 |
| 28117A | Rubber seal | 28117-37050 · 28117-47110 |
| 28120 | Starter yoke assembly | 28120-0Q050 · 28120-33110 · 28120-38020 · 28120-40120 · 28120-47110 |
| 28122 | isolation collar | 28122-47110 |
| 28130 | Starter commutator end frame assembly | 28130-0N050 · 28130-33110 · 28130-37050 · 28130-47110 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-37050 · 28140-47110 |
| 28142 | starter brush | 28142-10020 |
| 28150 | Starter electromagnetic switch assembly | 28150-37020 · 28150-40070 · 28150-40090 |
| 28160 | Starter armature assembly | 28160-0D180 · 28160-0G020 · 28160-21070 · 28160-21080 · 28160-33090 · 28160-40070 · 28180-47110 |
| 28176 | starter screw | 90099-00323 |
| 28177 | Plate (for starter armature) | 28177-0G020 · 28177-37050 |
| 28181 | starter terminal | 28181-33010 |
| 28199A | Starter dust protection device | 28199-0D180 · 28199-31090 · 28199-33110 · 28199-46080 |
| 28226 | battery terminal starter assembly | 28226-21080 |
| 28226B | starter magnetic switch | 28226-47170 · 28226-47190 |
| 28255 | Planetary gear | 28255-0G040 · 28255-33090 · 28255-37050 · 28255-47110 |
