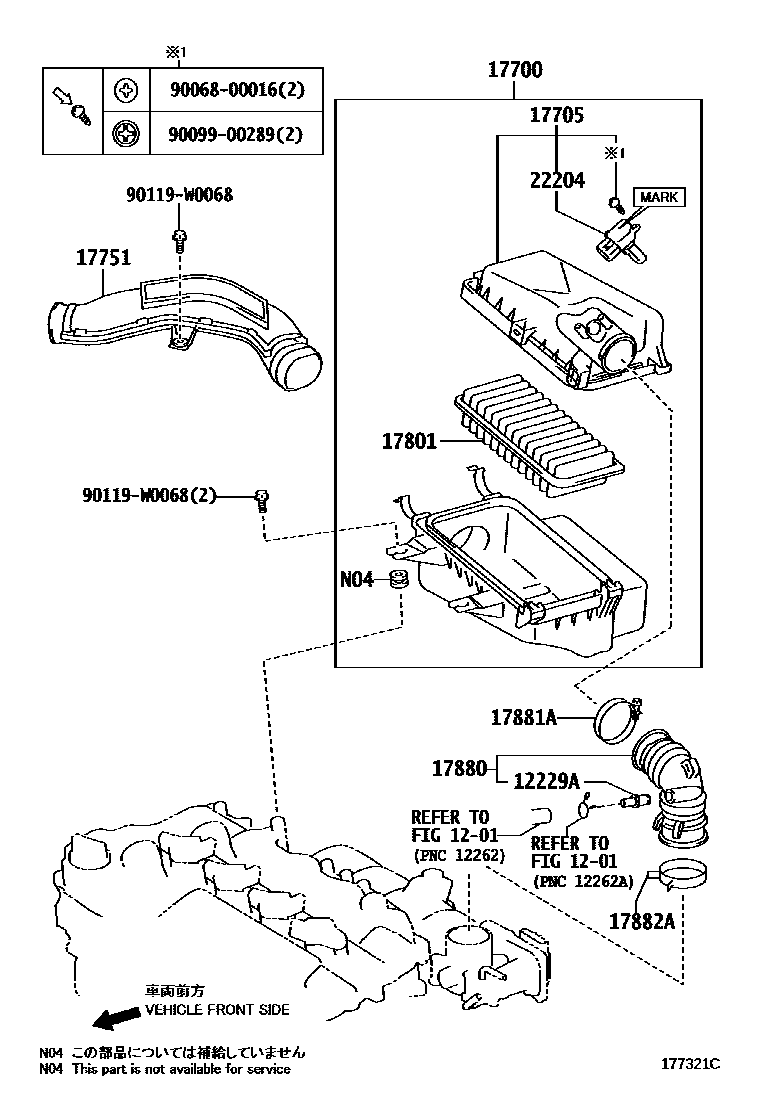

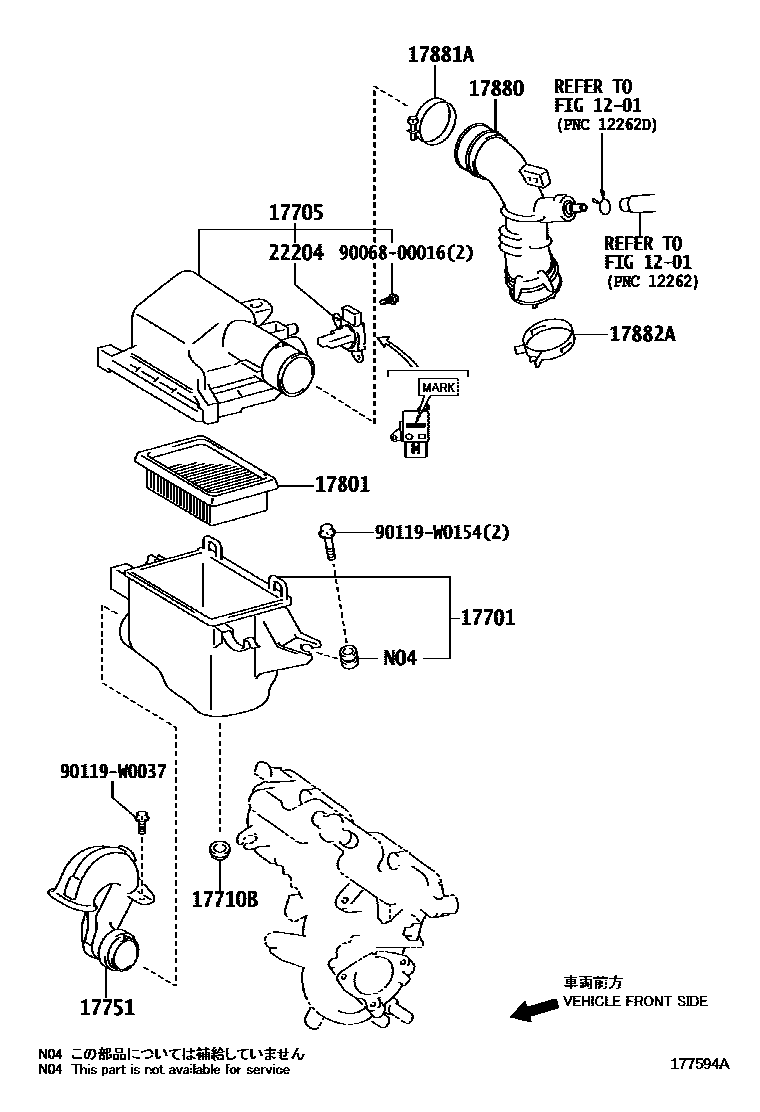

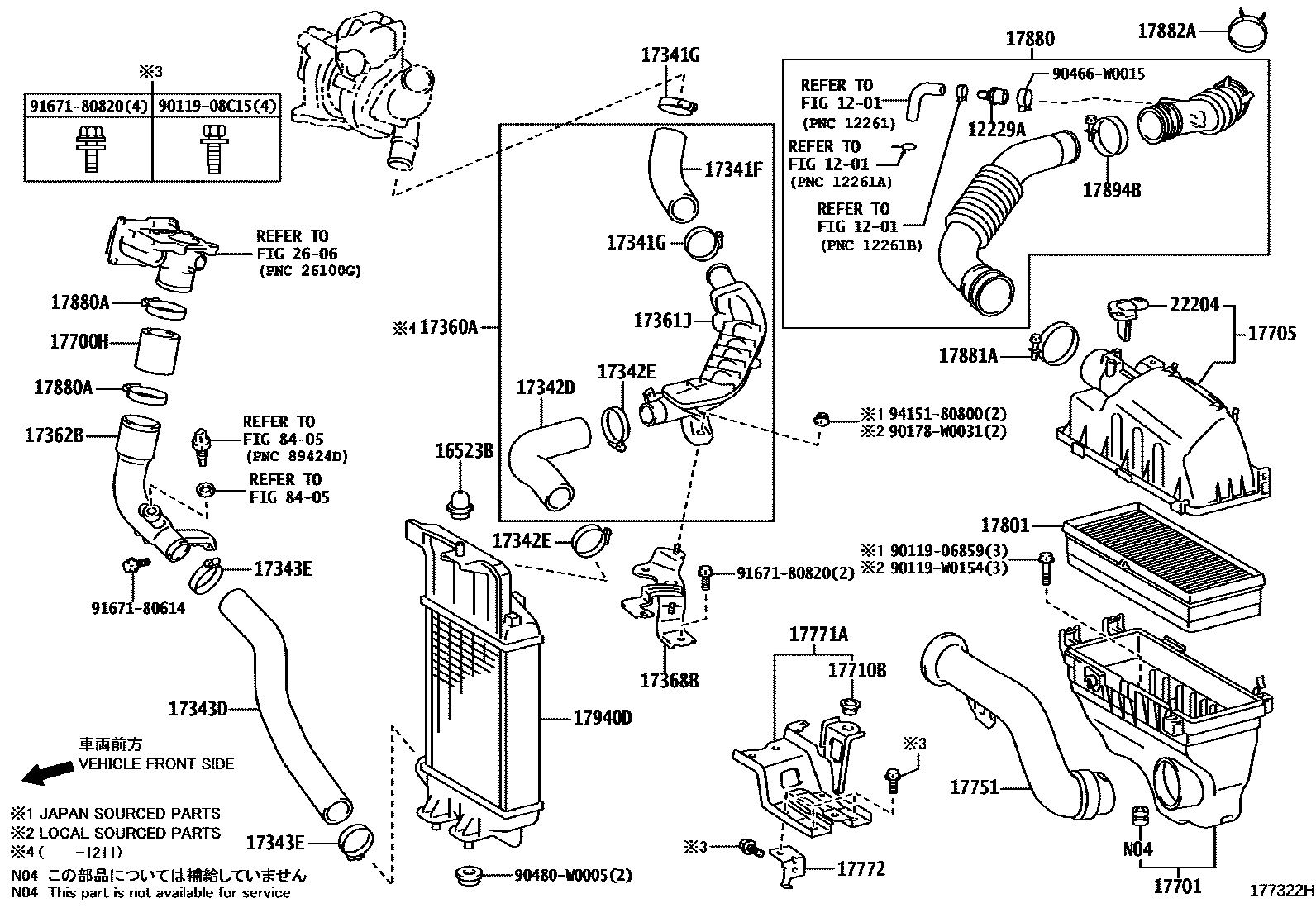

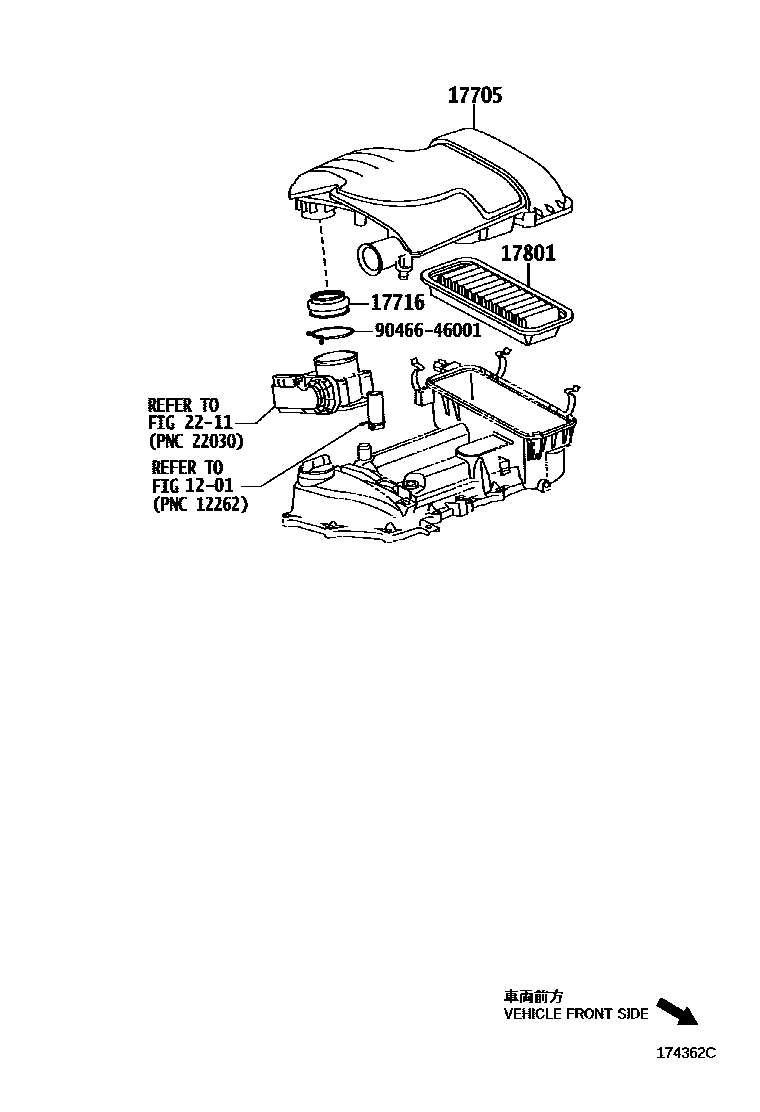

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0N010 · 12229-21010 · 12229-33010 |
| 16523B | Radiator bracket cushion | 16523-0Q020 |
| 17341F | Air hose No. 1 | 17341-33050 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50005 |
| 17342D | Air hose No. 2 | 17342-33051 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-50005 |
| 17343D | No. 3 air hose | 17343-33110 · 17343-33150 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-50005 |
| 17360A | air pipe assembly | 17360-0N050 |
| 17361J | Air tube No. 1 | 17361-0N050 |
| 17362B | No. 2 air pipe | 17362-33090 |
| 17368B | Air tube support | 17368-0N050 |
| 17700 | air filter assembly | 17700-0Y070 · 17700-47151 |
| 17700H | air hose | 17341-33080 |
| 17701 | Air filter housing sub-assembly | 17701-0M060 · 17701-0N032 |
| 17705 | Air filter cover sub-assembly | 17705-0M080 · 17705-0N050 · 17705-0Q020 · 17705-0Y070 · 17705-40110 · 17705-47102 |
| 17710B | gasket | 90480-15036 · 90480-18006 |
| 17716 | Air filter cover bracket | 17716-0Q020 · 17716-40030 |
| 17751 | No. 1 air filter air inlet | 17751-0M060 · 17751-0N032 · 17751-0Y050 |
| 17771A | air filter bracket | 17771-0N030 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0N010 |
| 17801 | Air filter element sub-assembly | 17801-0J020 · 17801-0M030 · 17801-0N040 · 17801-0Y010 · 17801-21030 · 17801-23030 |
| 17880 | Air cleaner hose assembly | 17880-0M090 · 17880-0N080 · 17880-0Y030 · 17880-33070 |
| 17880A | hose clamp | 90460-63011 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10600 · 96111-10690 · 96111-10750 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10630 |
| 17940D | Intercooler assembly | 17940-0N070 · 17940-0N090 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 |
