Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 4 images and 5 PNC and OE references.

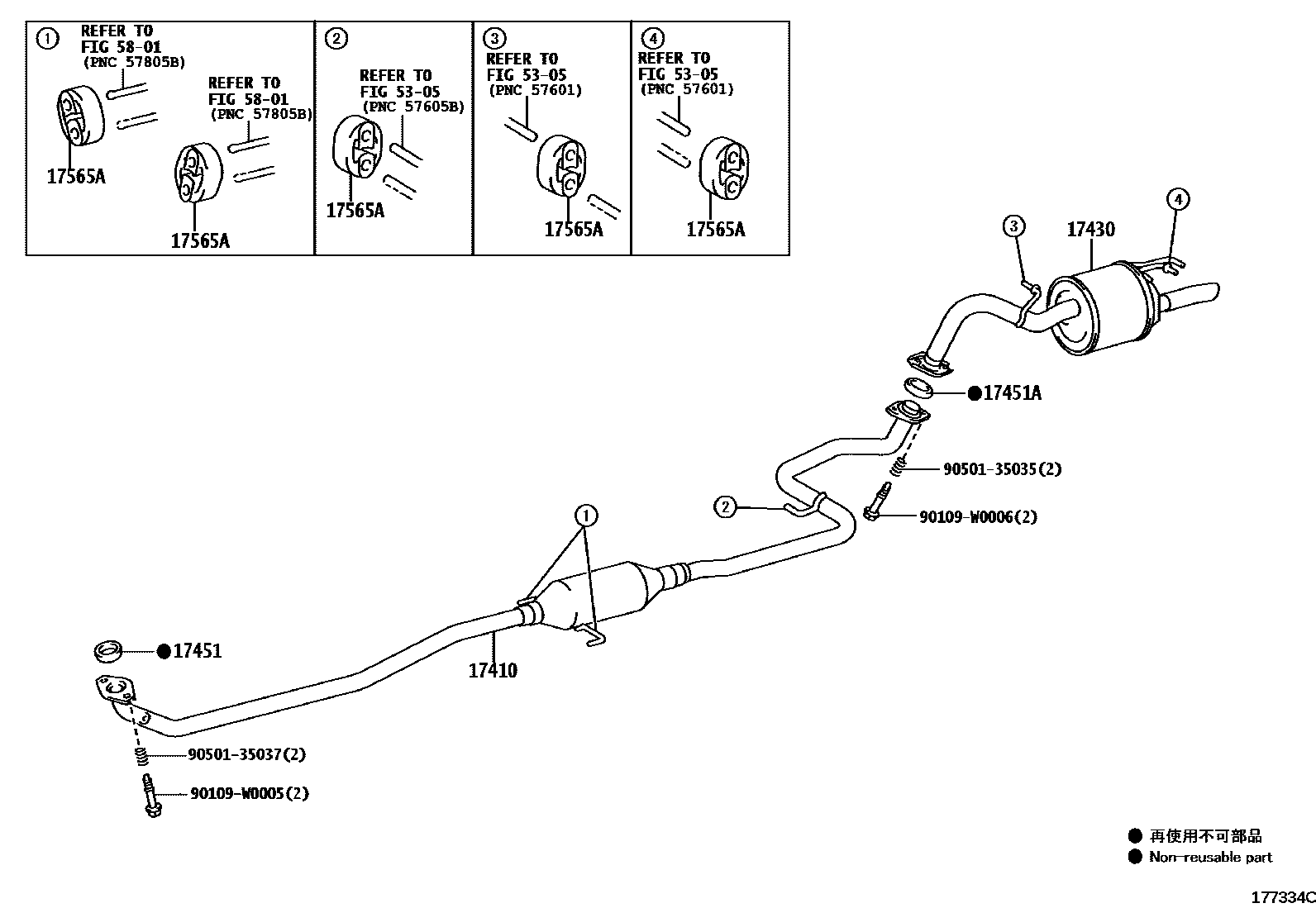

Toyota YARIS Exhaust Pipe EPC diagram — 177334C
Exhaust Pipe — 177334C (201107 – 999999)

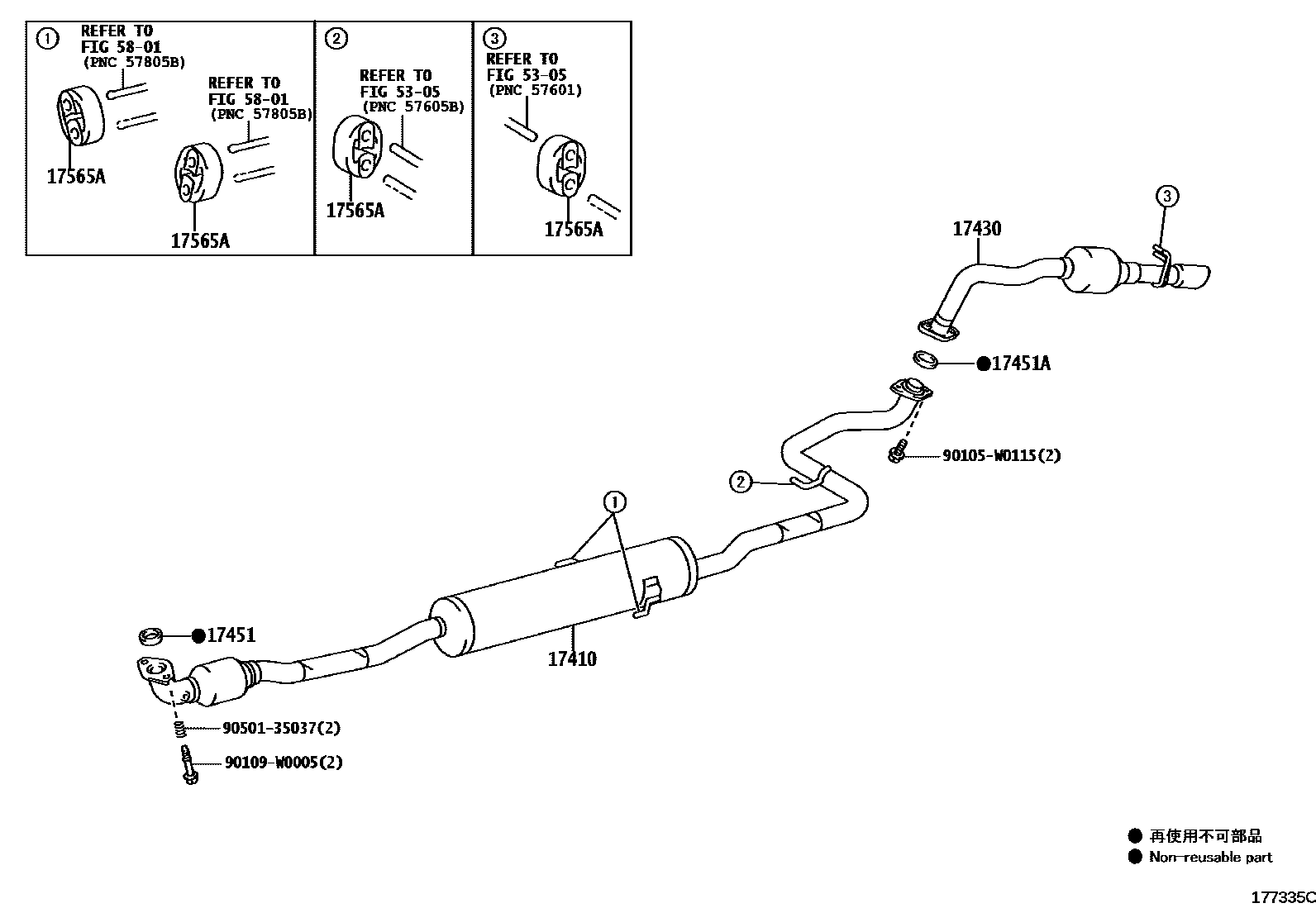

Toyota YARIS Exhaust Pipe EPC diagram — 177335C
Exhaust Pipe — 177335C (201107 – 999999)

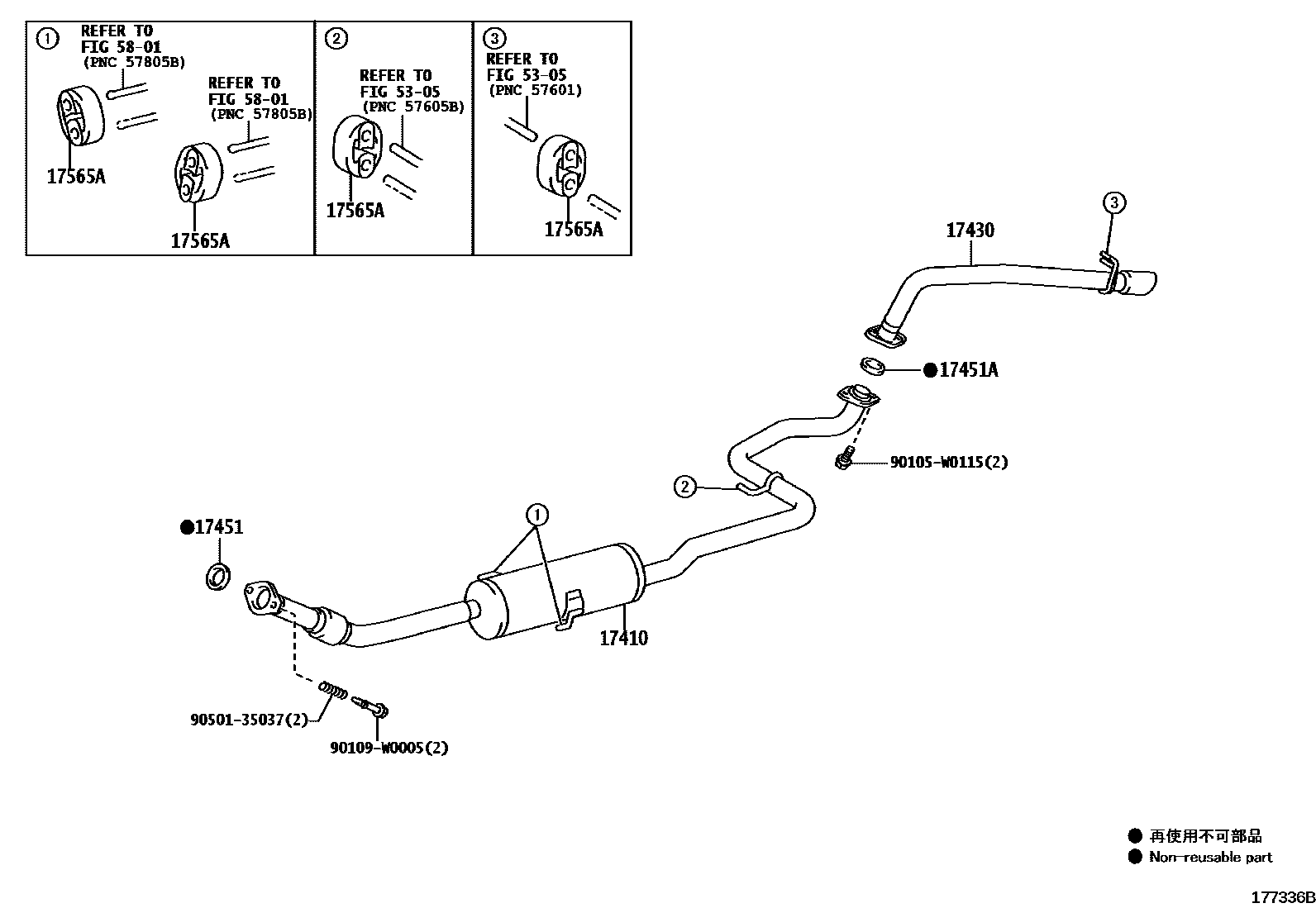

Toyota YARIS Exhaust Pipe EPC diagram — 177336B
Exhaust Pipe — 177336B (201107 – 999999)

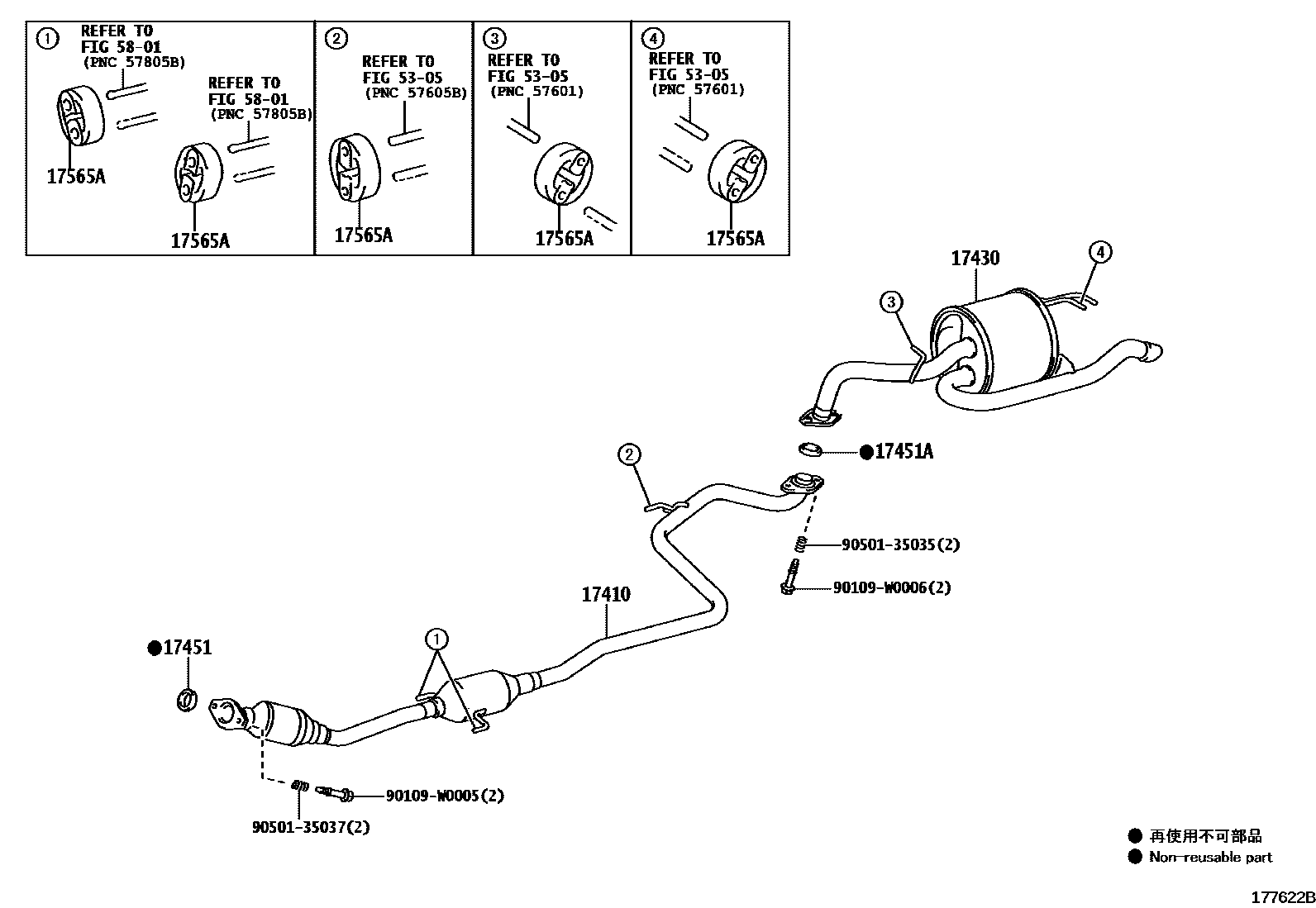

Toyota YARIS Exhaust Pipe EPC diagram — 177622B
Exhaust Pipe — 177622B (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0M180 · 17410-0N130 · 17410-0Q040 · 17410-0Q041 · 17410-0Y120
17430Exhaust tailpipe assembly17430-0M120 · 17430-0N080 · 17430-0N150 · 17430-0Q050 · 17430-0Y020
17451Exhaust pipe gasket17451-0J030 · 17451-0Q010 · 17451-0R010
17451ANo. 2 exhaust pipe gasket17451-0Q022 · 90917-06039
17565ANo. 4 exhaust pipe lifting lug17565-0Q030
