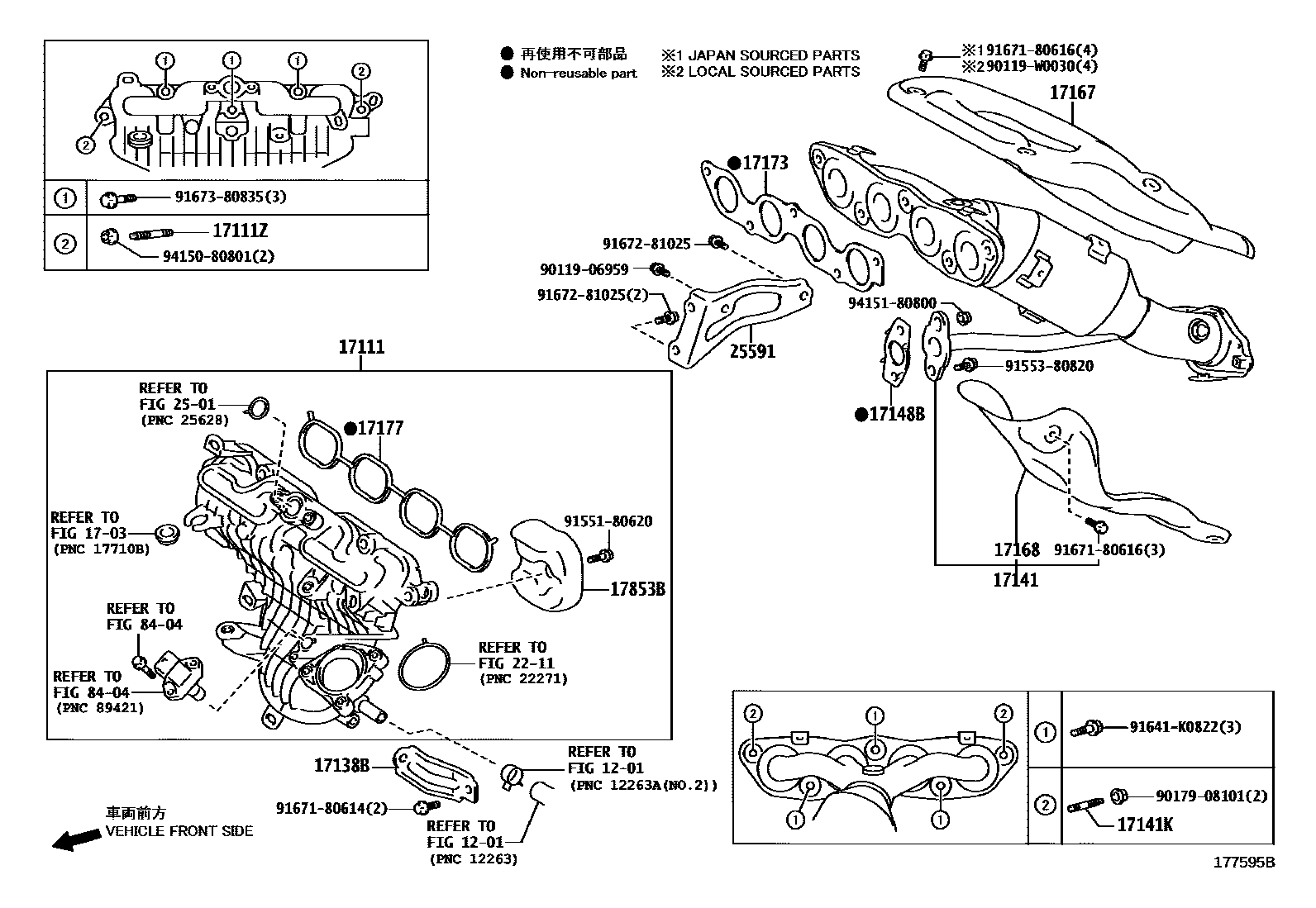

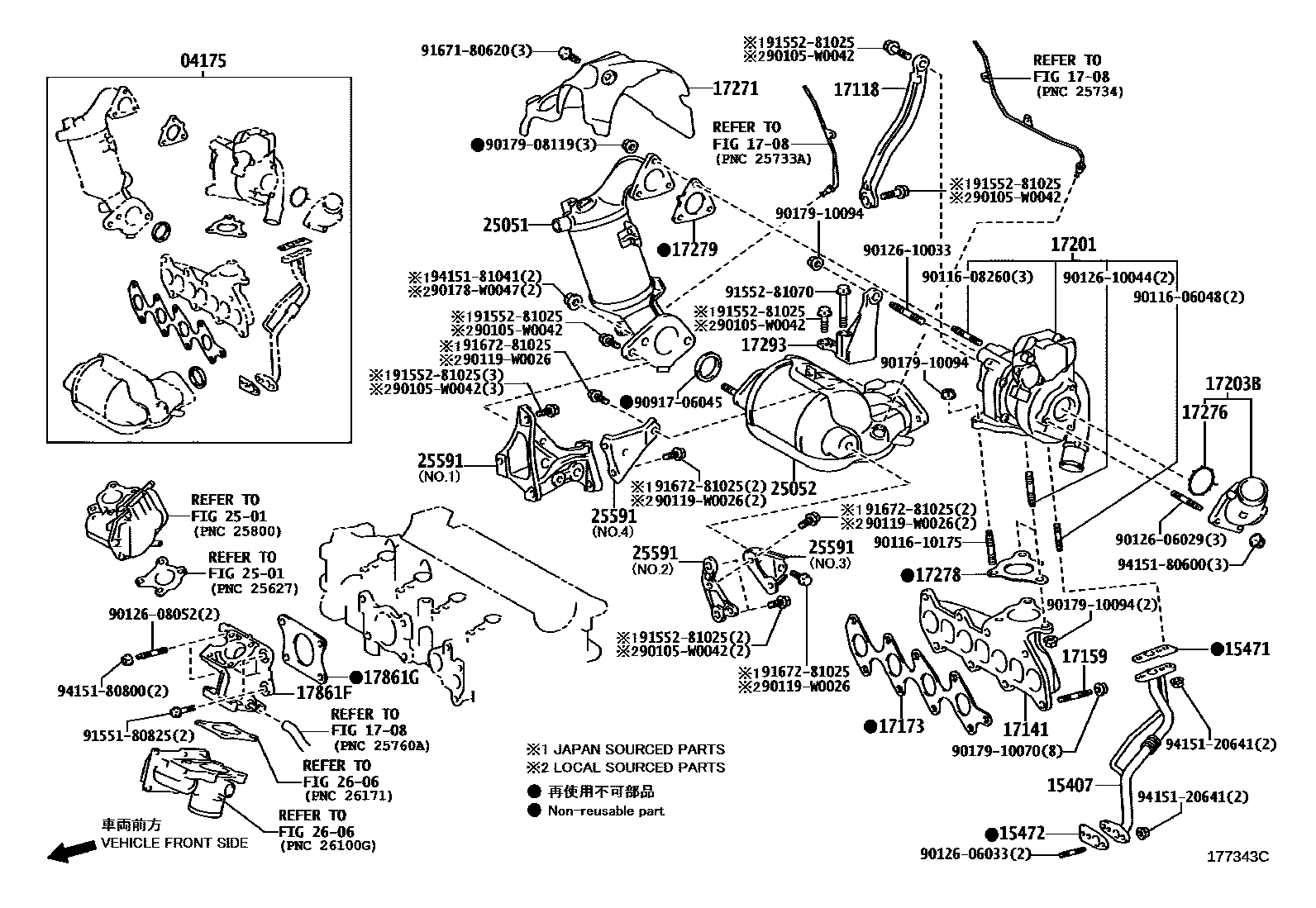

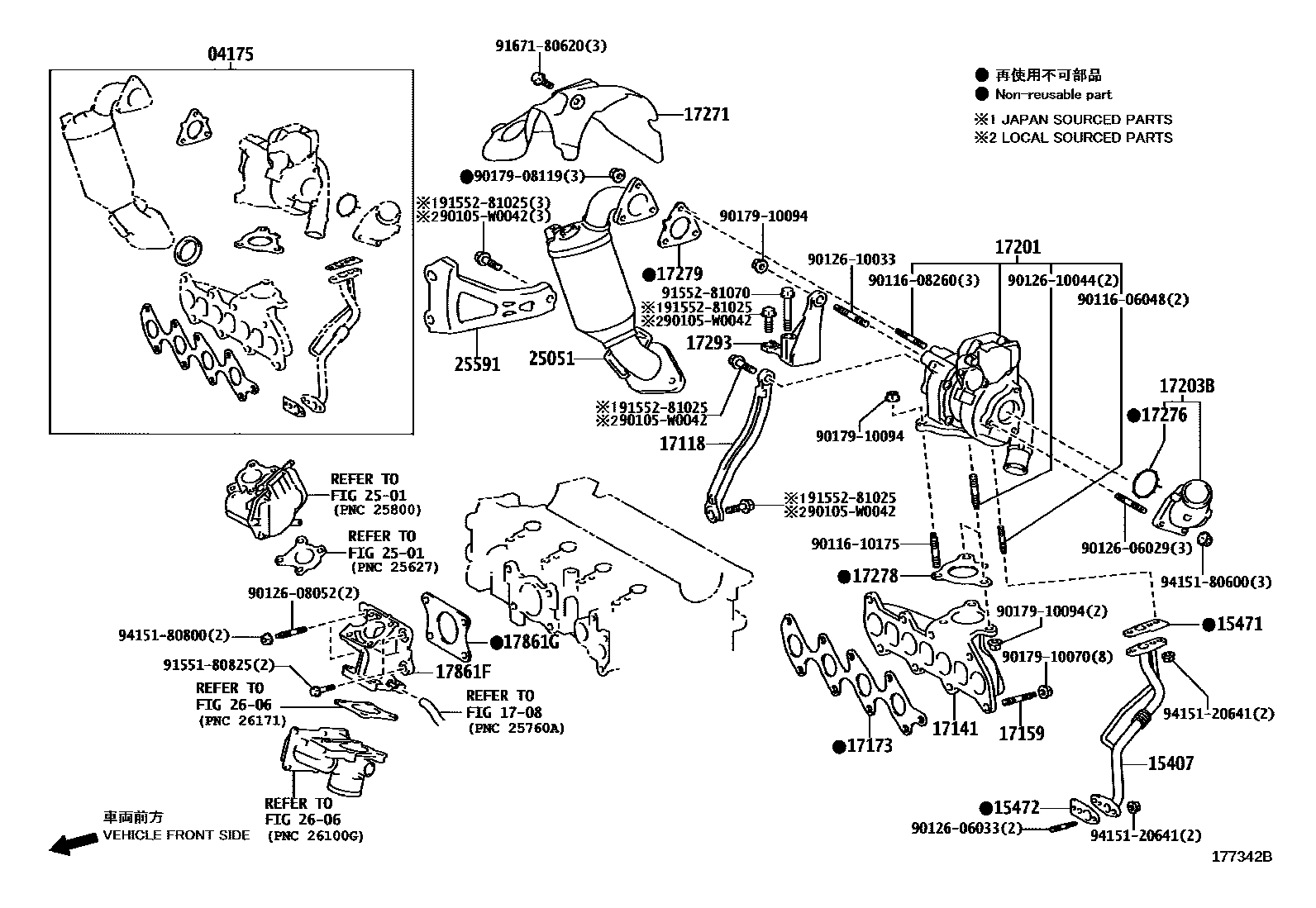

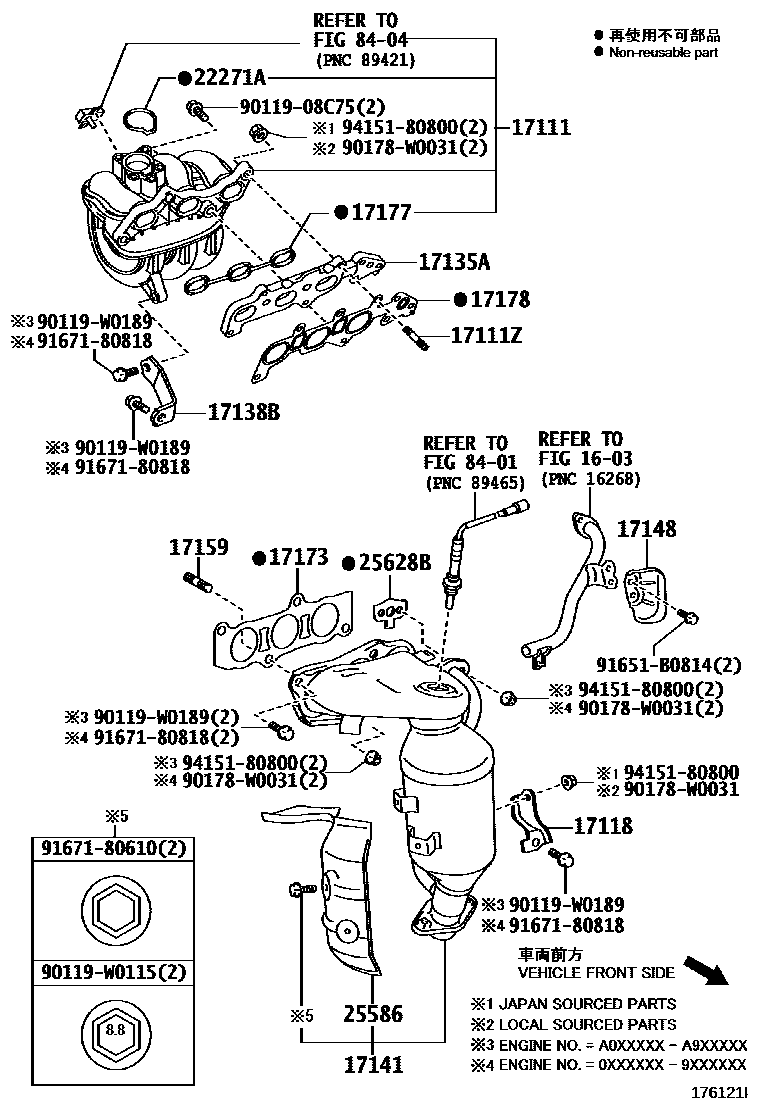

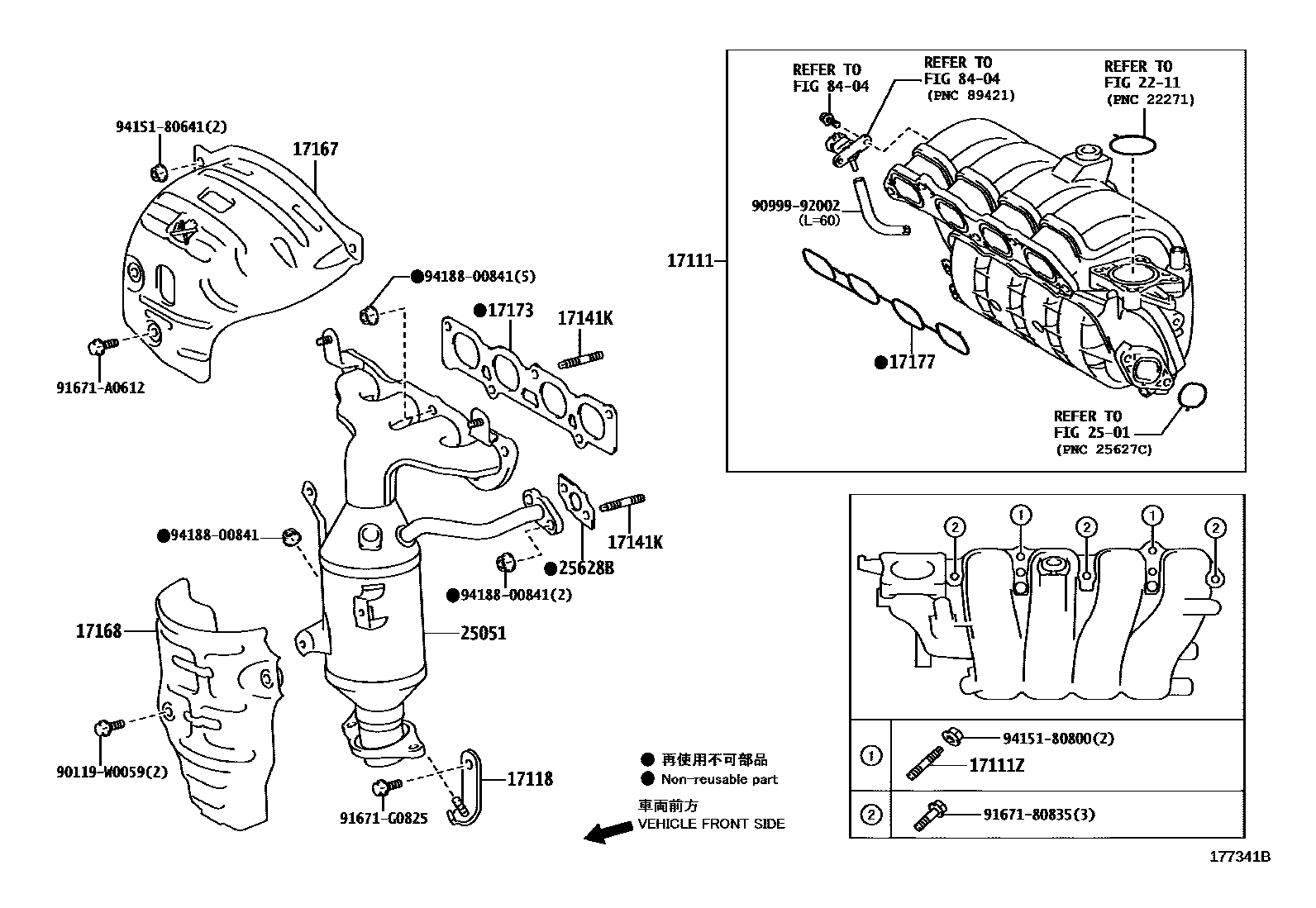

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 5 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-33070 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-33020 · 15407-33021 |
| 15471 | Turbine oil inlet pipe gasket | 15471-33010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-33020 |
| 17111 | Intake Manifold | 17120-0Q030 · 17120-21060 · 17120-47031 · 17120-47032 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 · 90126-08060 · 92122-80845 |
| 17118 | Manifold stays | 17118-0Q010 · 17118-33040 · 17118-40010 · 17118-47010 |
| 17135A | Intake manifold No. 1 heat shield | 17135-40020 |
| 17138B | Intake manifold stay | 17138-0Q010 · 17138-21020 · 17138-40040 |
| 17141 | exhaust manifold | 17140-0Q070 · 17140-21110 · 17140-40070 · 17141-33050 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 · 90126-08063 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-40020 |
| 17148B | EGR air intake gasket | 25634-21020 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08055 · 90126-10033 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-21170 · 17167-47011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-21060 · 17168-47030 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0Q010 · 17173-21020 · 17173-33030 · 17173-40020 · 17173-47021 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0Q020 · 17177-21040 · 17177-40020 · 17177-47010 · 17177-47011 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-40020 |
| 17201 | Turbocharger sub-assembly | 17201-0N042 |
| 17203B | Compressor oil inlet elbow sub-assembly | 17203-33010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-33060 · 17271-33090 |
| 17276 | Compressor oil inlet gasket | 17276-33010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-33010 |
| 17279 | Turbine outlet elbow gasket | 17279-27020 |
| 17293 | Turbocharger stay | 17293-0N010 · 17293-33010 |
| 17853B | Intake manifold heat shield | 17853-21010 |
| 17861F | Intake connecting pipe | 17861-33080 |
| 17861G | Intake connecting pipe gasket | 26171-33050 |
| 22271A | Throttle body gasket | 22271-40010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-33060 · 25051-33090 · 25051-47070 |
| 25052 | No. 2 exhaust manifold three-way catalytic converter sub-assembly | 25052-33040 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-40040 |
| 25591 | Manifold bracket | 25591-0N010 · 25591-21070 · 25591-33030 · 25591-33050 · 25592-33020 · 25593-0N010 · 25593-33010 · 25594-0N010 · 25594-33010 |
| 25628B | EGR air intake gasket | 25628-0Q010 · 25628-40020 · 25628-47010 |
