Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 4 images and 3 PNC and OE references.

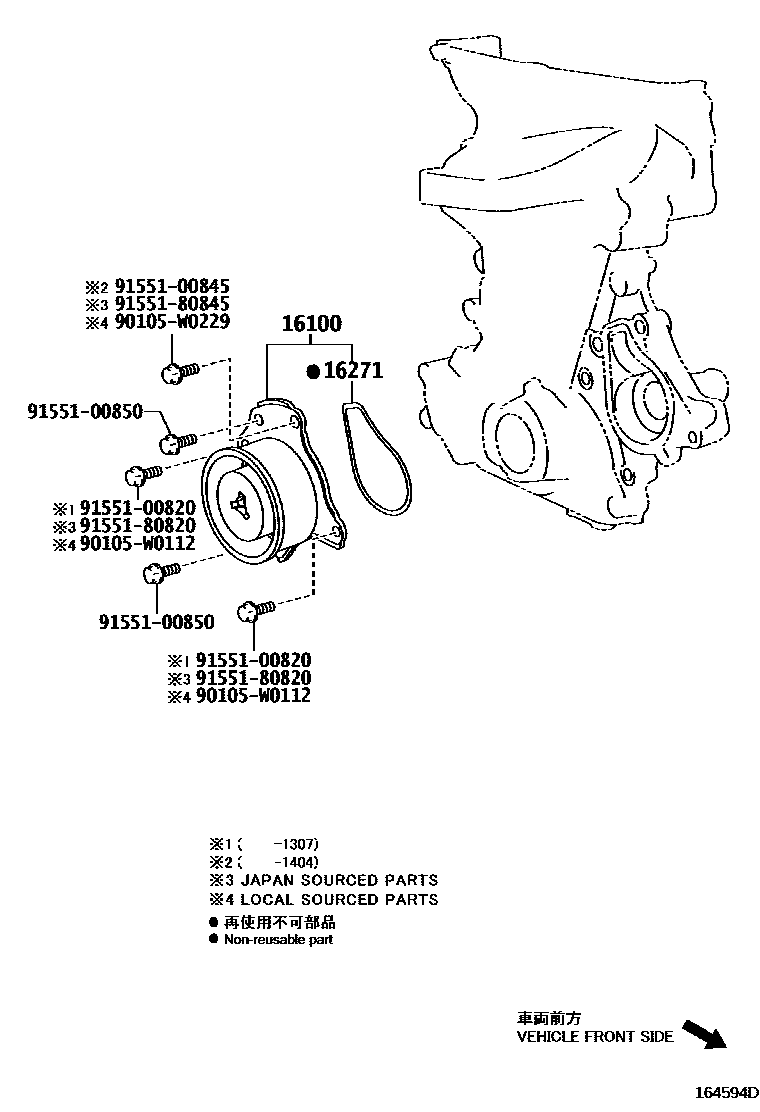

Toyota YARIS Water Pump EPC diagram — 164594D
Water Pump — 164594D (201106 – 999999)

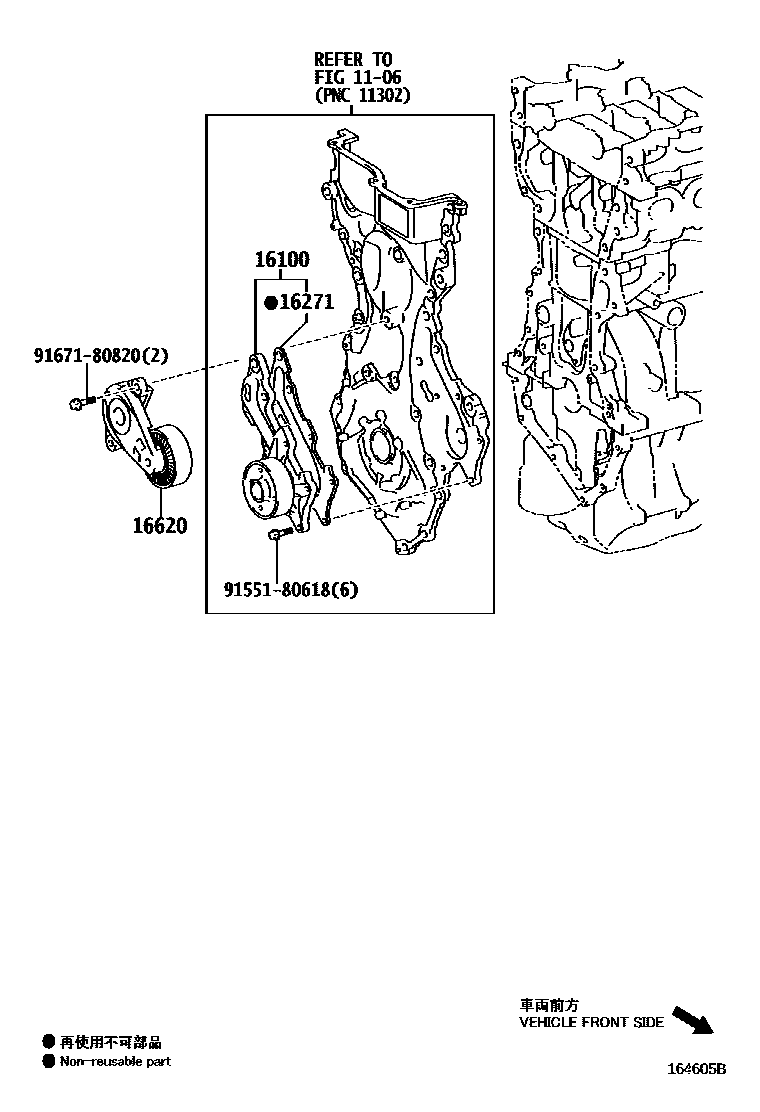

Toyota YARIS Water Pump EPC diagram — 164605B
Water Pump — 164605B (201107 – 999999)

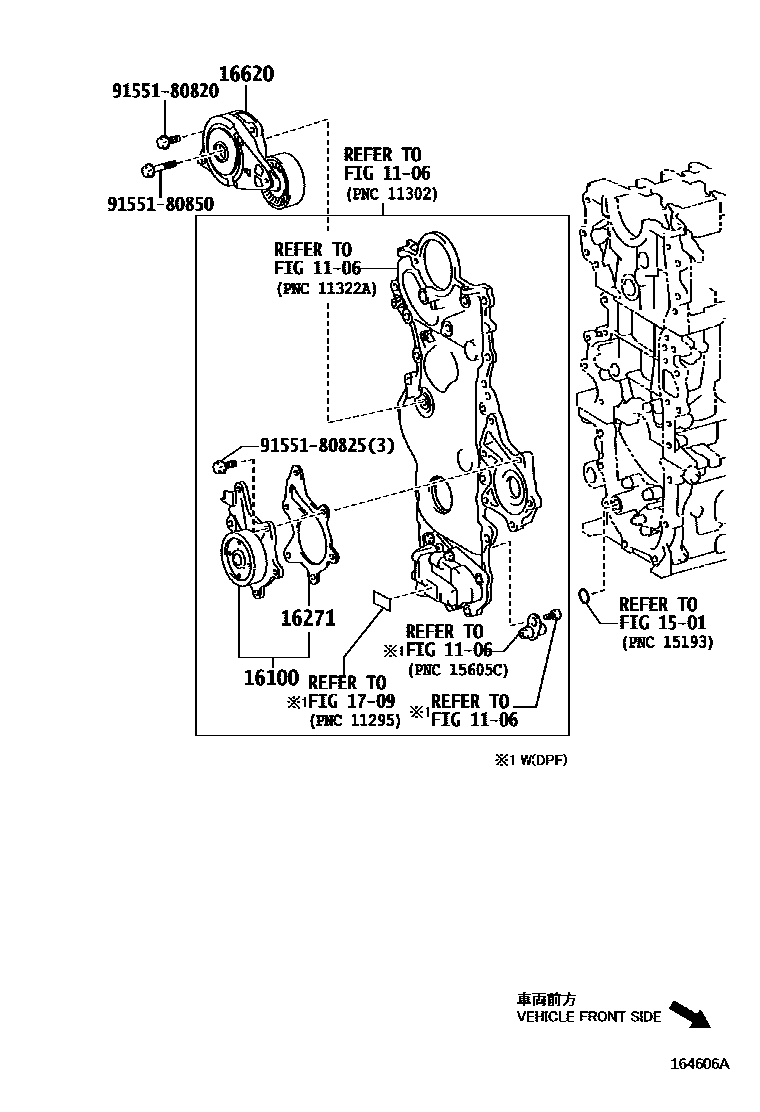

Toyota YARIS Water Pump EPC diagram — 164606A
Water Pump — 164606A (201107 – 999999)

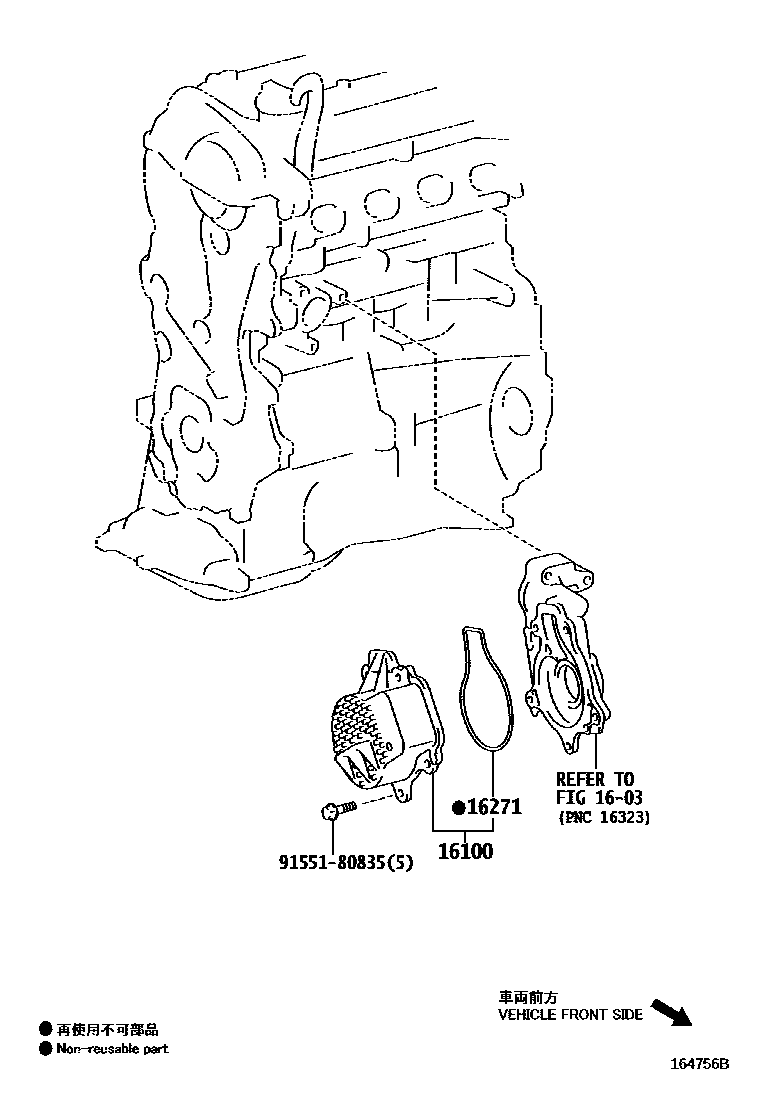

Toyota YARIS Water Pump EPC diagram — 164756B
Water Pump — 164756B (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09530 · 16100-09610 · 16100-39525 · 16100-80004 · 16100-80007 · 16100-80010 · 161A0-29015
16271water pump gasket16271-0Q010 · 16271-33030 · 16271-37020 · 16271-40020 · 16271-47031
16620Poly V-belt tensioner assembly16620-33020 · 16620-33021 · 16620-33040 · 16620-47030
