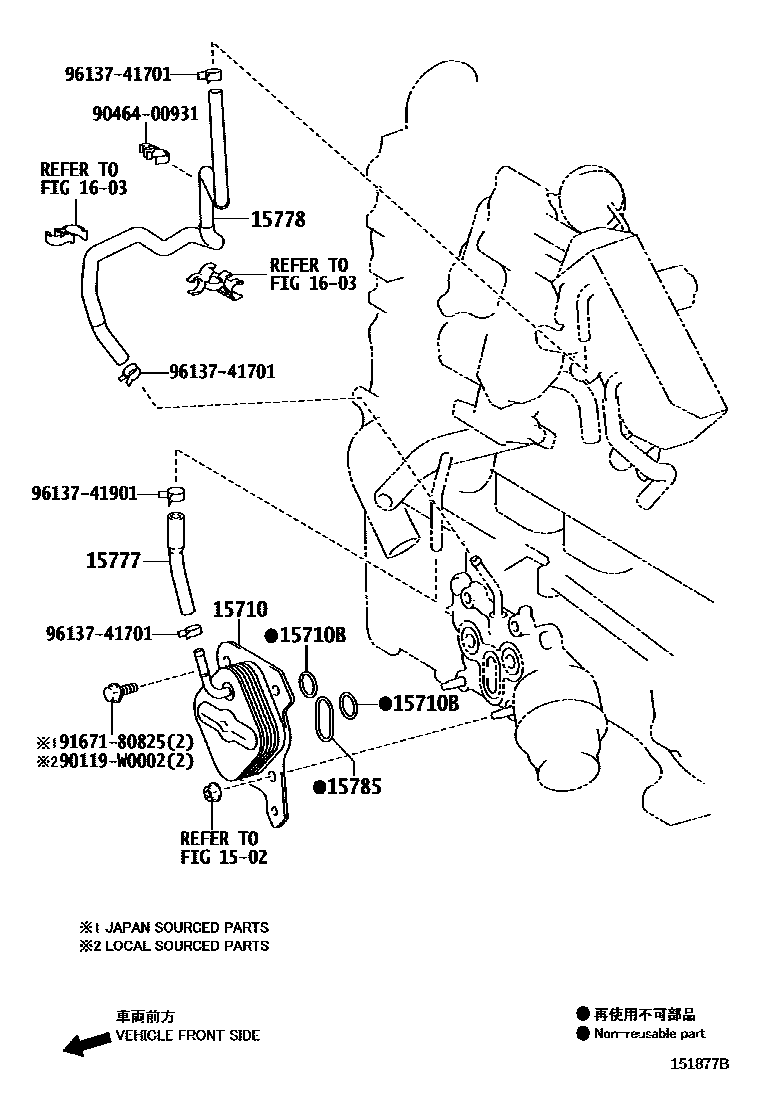

Toyota YARIS Engine Oil Cooler — Figure 1503
Toyota YARIS EPC diagram 1503, Engine Oil Cooler, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15710-33050 |
| 15710B | O-ring (for oil cooler) | 96723-35024 |
| 15777 | oil cooler hose | 15777-0N010 · 15777-33010 |
| 15778 | No. 2 oil cooler hose | 15778-0N010 · 15778-33030 |
| 15785 | oil cooler gasket | 15785-33010 |
