Toyota YARIS Crankshaft & Piston — Figure 1301

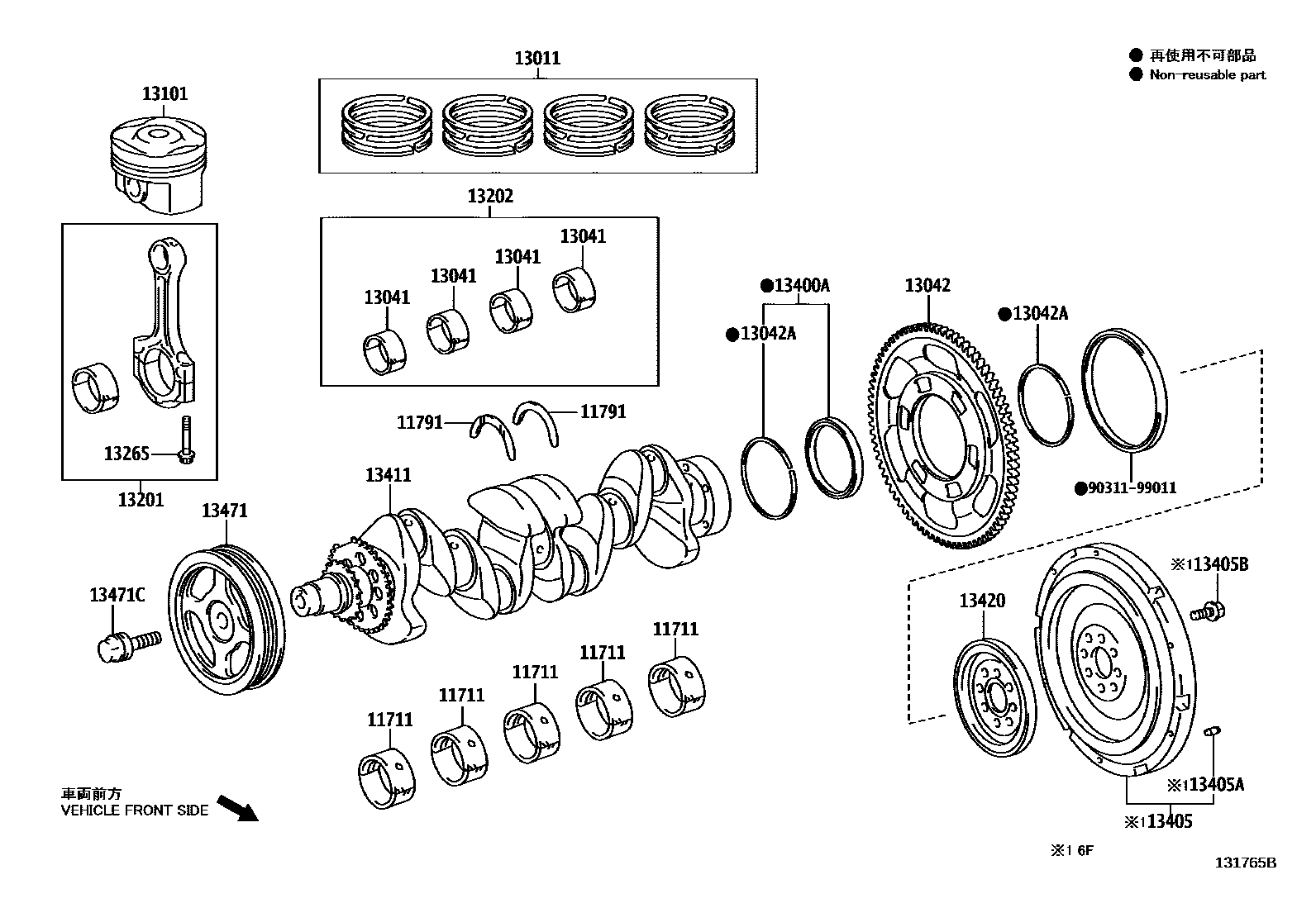

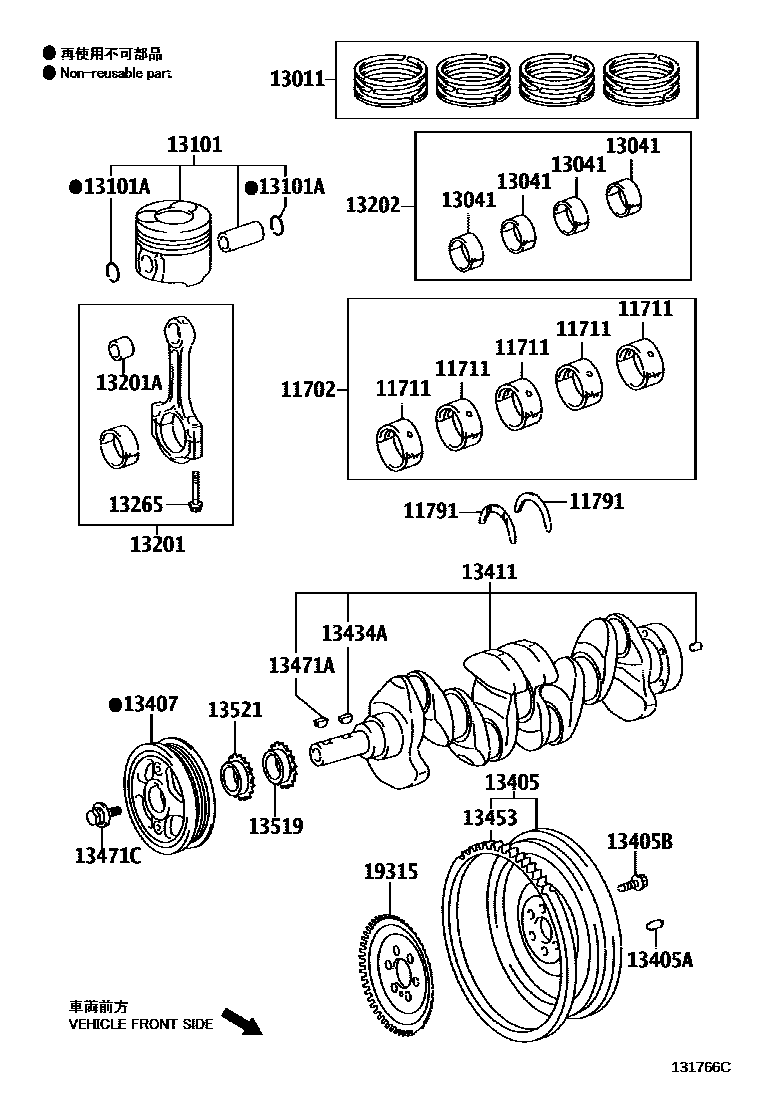

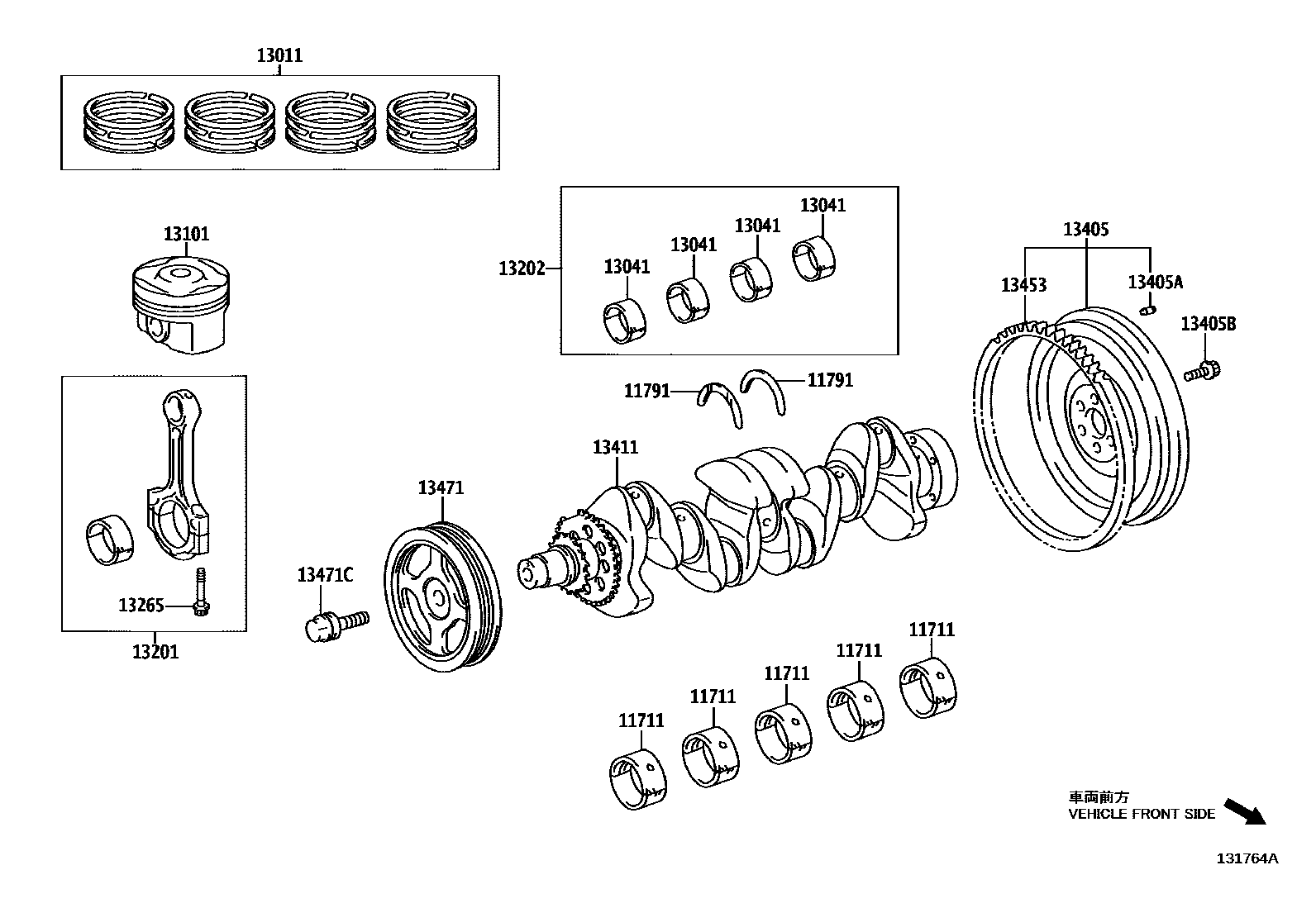

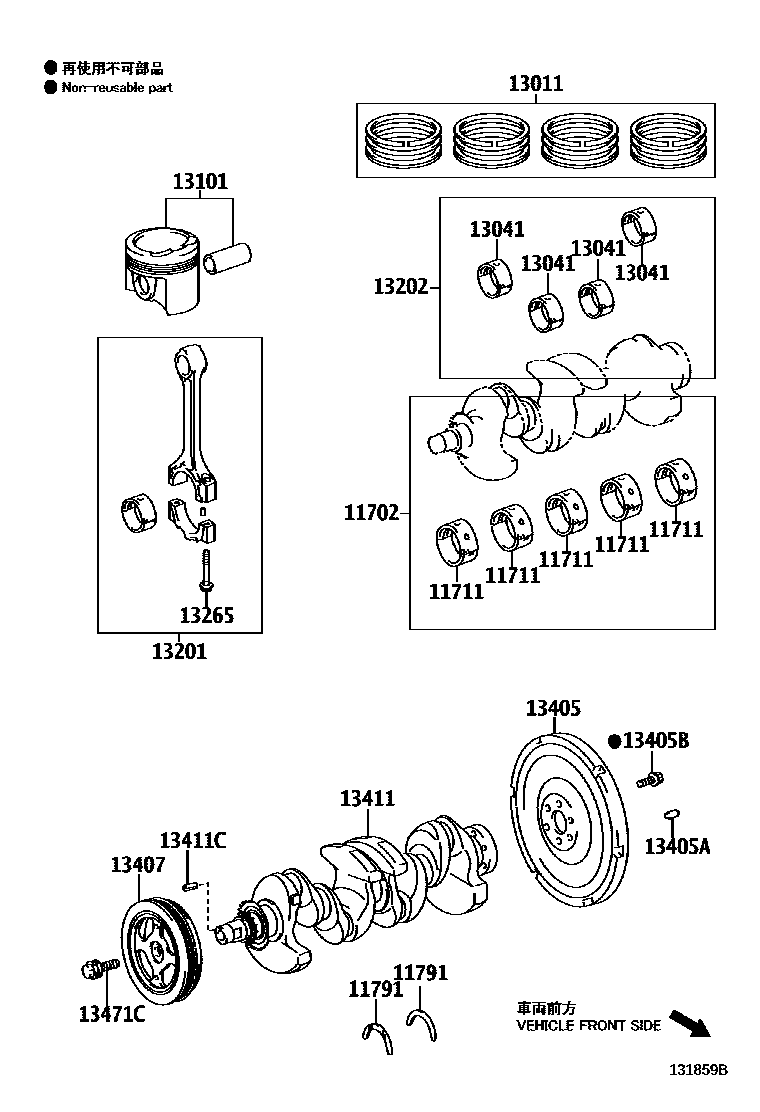

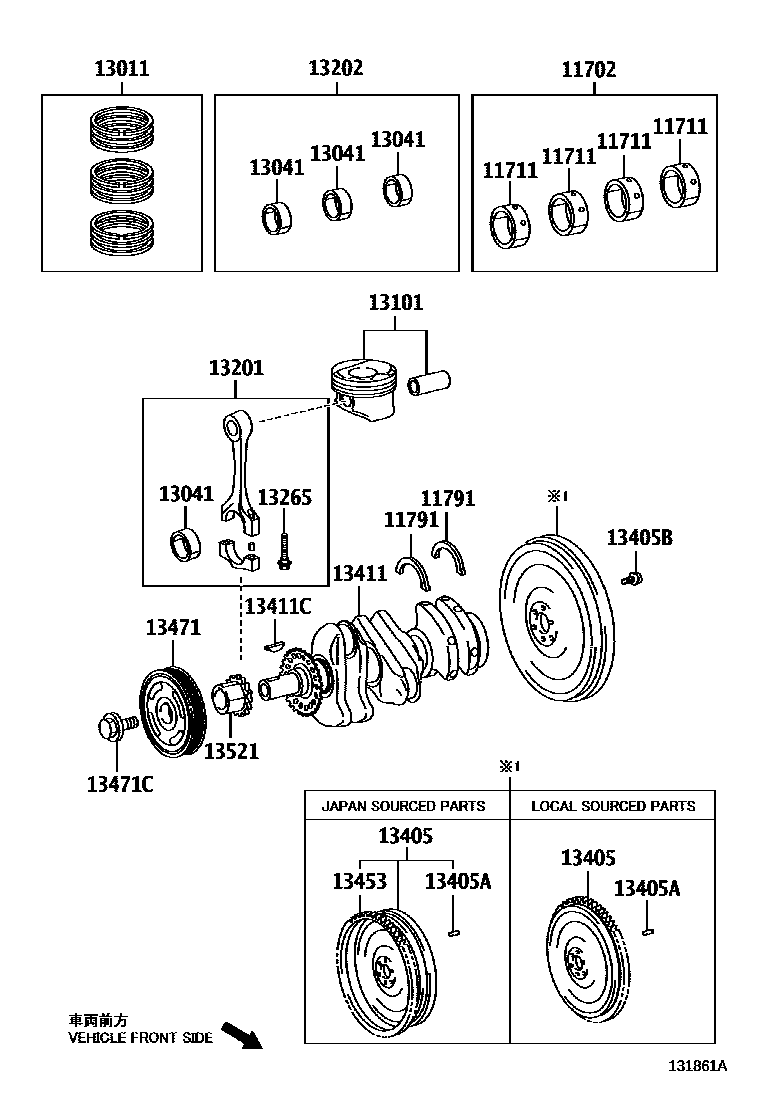

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21031 · 11704-21032 · 11704-21033 · 11704-40040 |
| 11791 | Thrust washer on crankshaft | 11791-0Q010 · 11791-22020 · 11791-33030 · 11791-37010 · 11791-40020 · 11791-40040 · 11791-47010 · 11791-47030 · 11792-22020 · 11792-33030 · 11792-37010 · 11792-40020 · 11792-40040 · 11793-22020 · 11793-33030 · 11793-37010 · 11793-40020 · 11793-40040 |
| 13011 | Piston ring assembly | 13011-0Q031 · 13011-21110 · 13011-21111 · 13011-33052 · 13011-33053 · 13011-33054 · 13011-40052 · 13011-47030 · 13011-47031 · 13011-47032 · 13011-47033 |
| 13042 | ERS ring gear sub-assembly | 13042-47011 |
| 13042A | Snap ring (for ring gear) | 90520-95001 |
| 13101 | Piston sub-assembly with pin | 13101-21130 · 13101-40050 · 13101-47020 · 13101-47021 · 13101-47022 · 13101-47110 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 |
| 13201 | Connecting rod sub-assembly | 13201-09296 · 13201-09B50 · 13201-29735 · 13201-29736 · 13201-29737 · 13201-39055 · 13201-49077 · 13201-49085 · 13201-49086 |
| 13201A | Bushing (for connecting rod small end) | 90999-73147 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-21033 · 13204-33041 · 13204-40031 |
| 13265 | Connecting rod bolts | 13265-21020 |
| 13400A | Bearings (for crankshaft) | 90369-78001 |
| 13405 | Flywheel sub-assembly | 13405-0N020 · 13405-0Q010 · 13405-0Q011 · 13405-0Q020 · 13405-33030 · 13405-40070 · 13405-47050 · 13405-47060 · 13451-21081 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10048 · 90105-10463 · 90913-01024 · 90913-01029 |
| 13407 | Crankshaft damper sub-assembly | 13407-21070 · 13407-33050 |
| 13411 | crankshaft | 13401-0Q010 · 13401-21020 · 13401-33020 · 13401-40030 · 13401-47020 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 · 90280-04001 |
| 13420 | ERS one-way clutch assembly | 13420-47011 |
| 13434A | Key (for oil pump active spline) | 95161-30416 |
| 13453 | flywheel ring gear | 13453-0N020 · 13453-10010 · 13453-23020 · 13453-55010 |
| 13471 | crankshaft pulley | 13470-0Q010 · 13470-0Q011 · 13470-0Q012 · 13470-40040 · 13470-47070 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 · 90119-16004 |
| 13519 | Oil pump driving gear | 13519-33010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-33030 · 13521-40020 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-33021 |
