Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 4 images and 11 PNC and OE references.

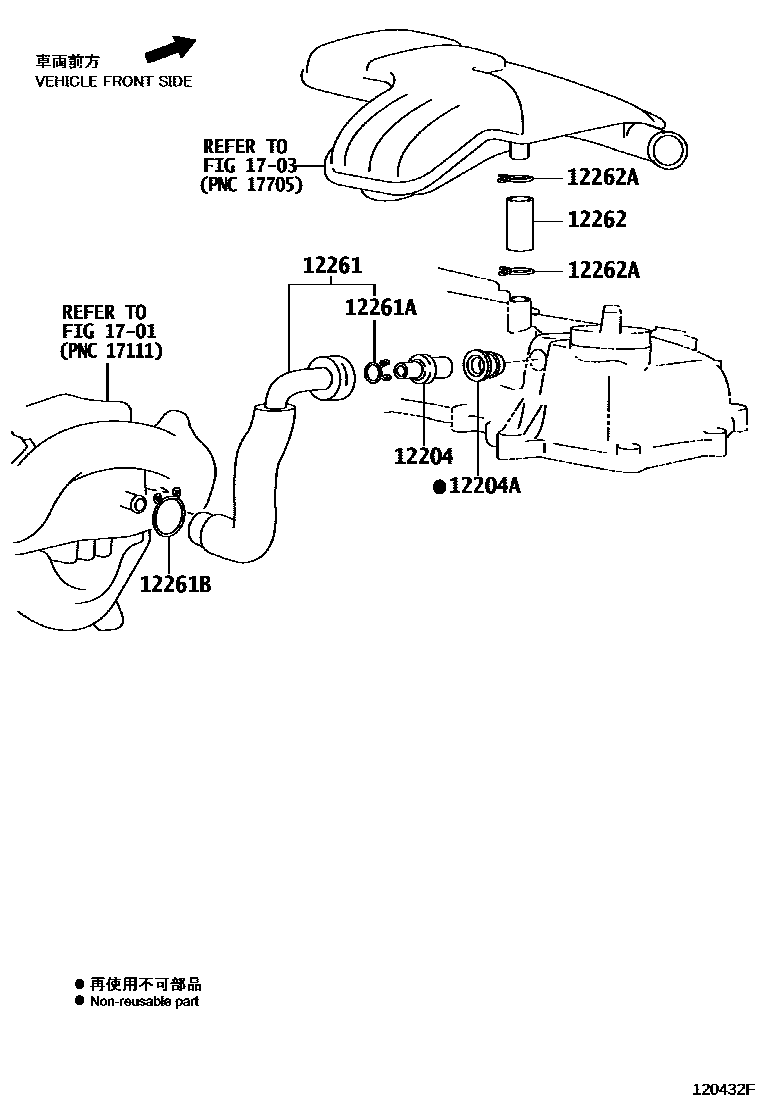

Toyota YARIS Ventilation Hose EPC diagram — 120432F
Ventilation Hose — 120432F (201106 – 999999)

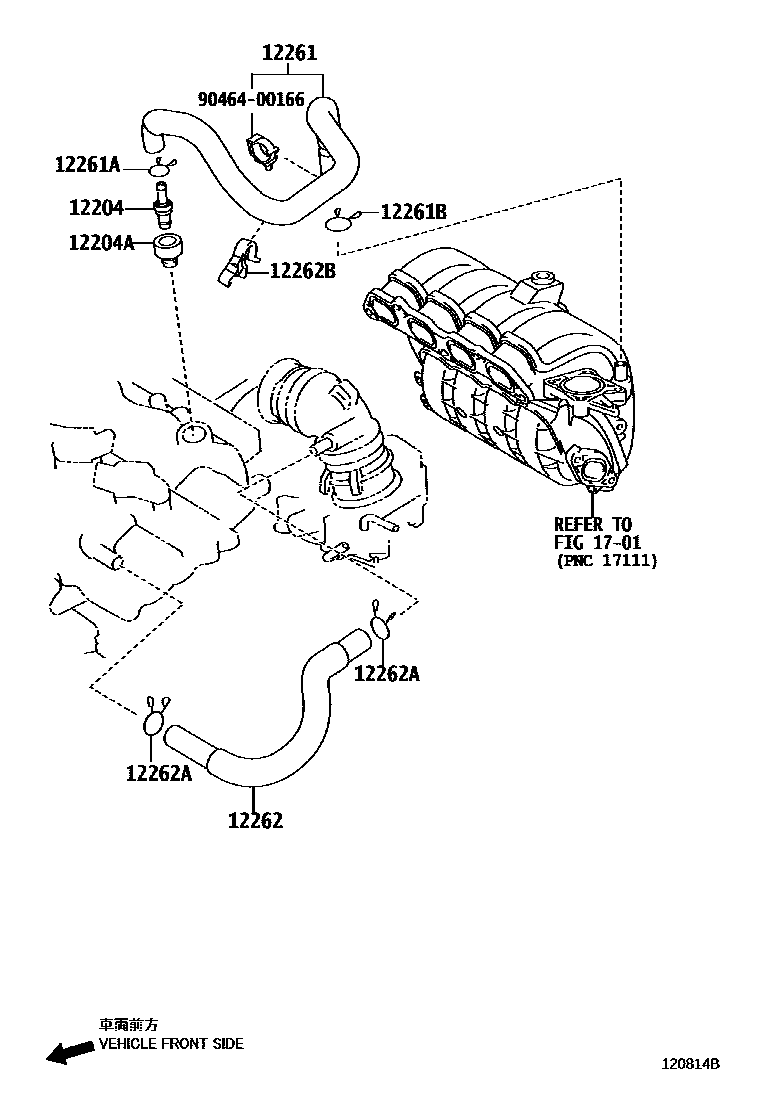

Toyota YARIS Ventilation Hose EPC diagram — 120814B
Ventilation Hose — 120814B (201107 – 999999)

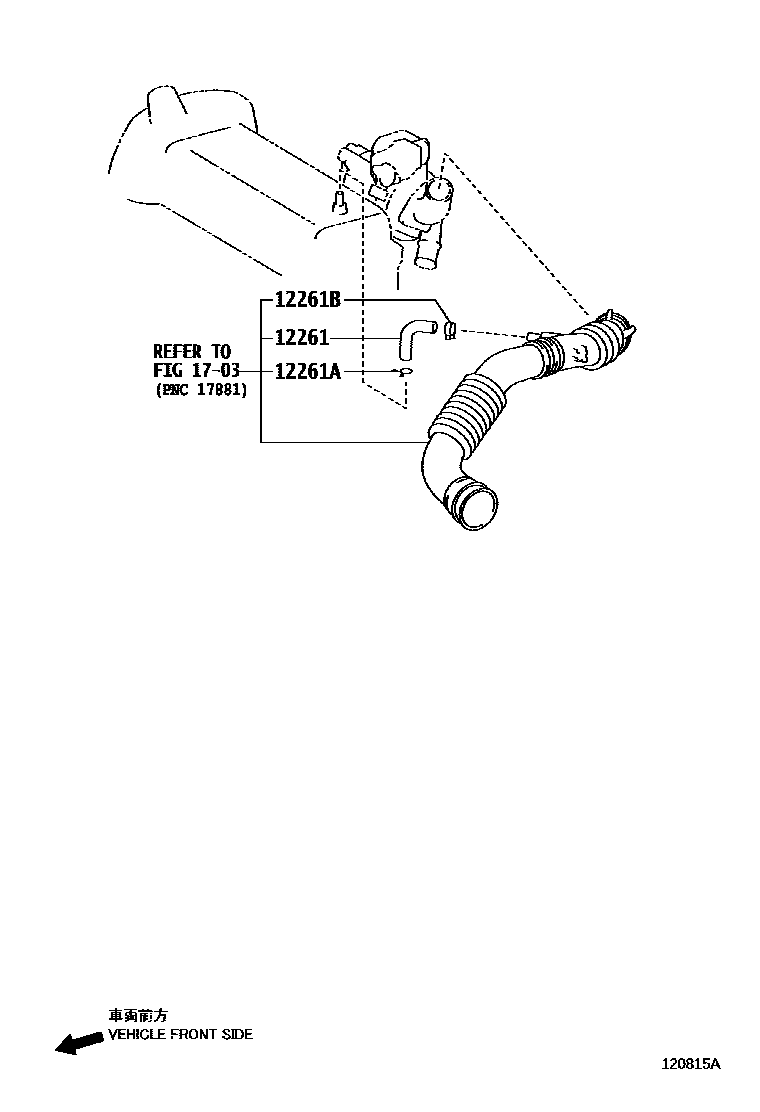

Toyota YARIS Ventilation Hose EPC diagram — 120815A
Ventilation Hose — 120815A (201107 – 999999)

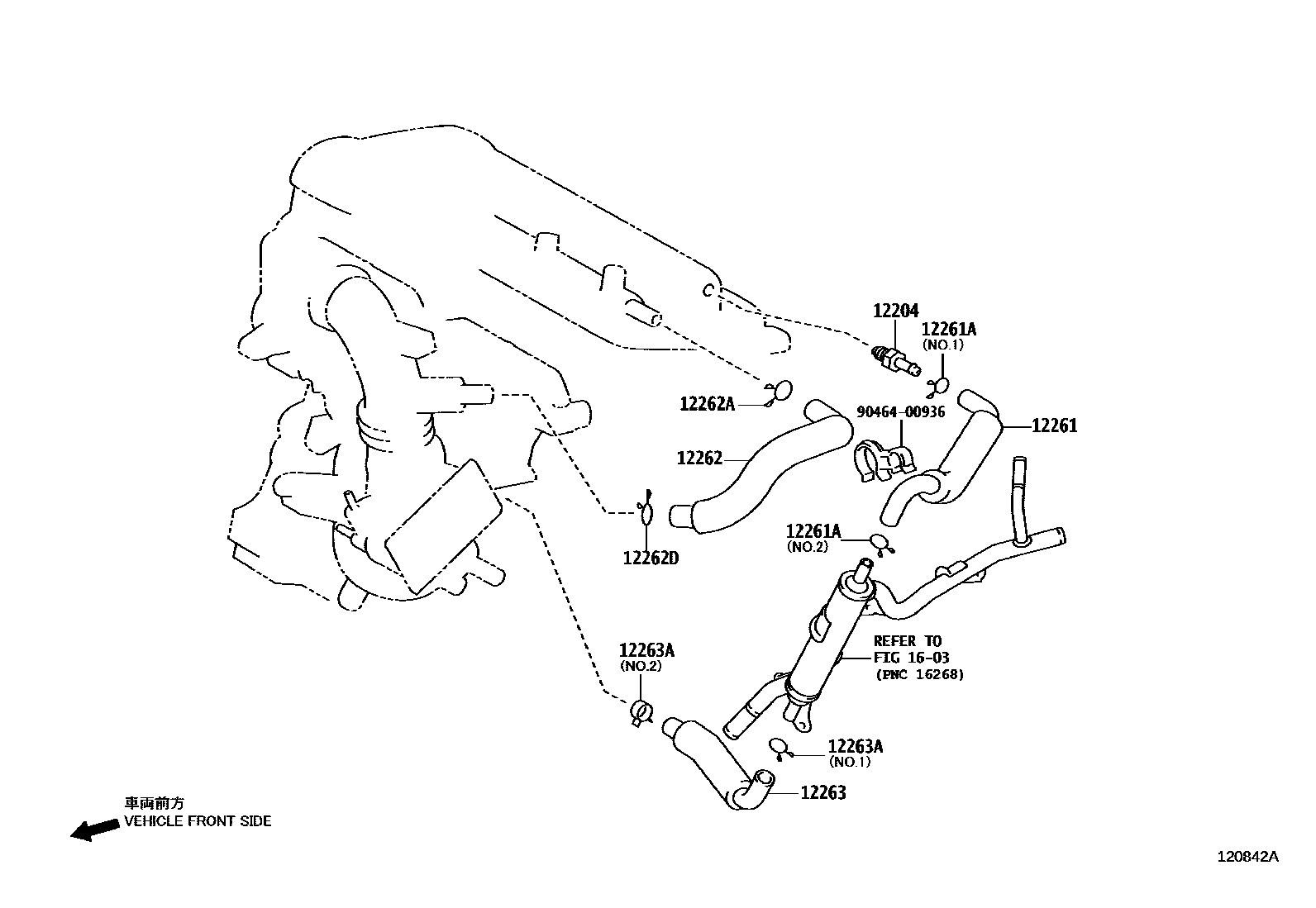

Toyota YARIS Ventilation Hose EPC diagram — 120842A
Ventilation Hose — 120842A (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21012 · 12204-21013 · 12204-40030 · 12204-47010
12204AGasket (for ventilation system)90480-18014 · 90480-18016
12261Ventilation Hose12261-21101 · 12261-33100 · 12261-40020 · 12261-47010
12261AClip or clip (for vent hose)90466-17004 · 90467-15120 · 90467-16035 · 90467-21004
12261BClip or clip (for vent hose)90467-21010 · 90467-22010 · 96137-52501
12262Ventilation hose No. 212262-21110 · 12262-40020 · 12262-47010
12262AClamp (for vent hose No. 2)16581-21050 · 90467-21004 · 90467-23002
12262BClamp (for ventilation hose)16581-47020
12262DClamp (for vent hose No. 2)90467-21004
12263No. 3 ventilation hose12263-21020
12263AClip (for ventilation hose)90466-17004 · 96137-41901
