Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

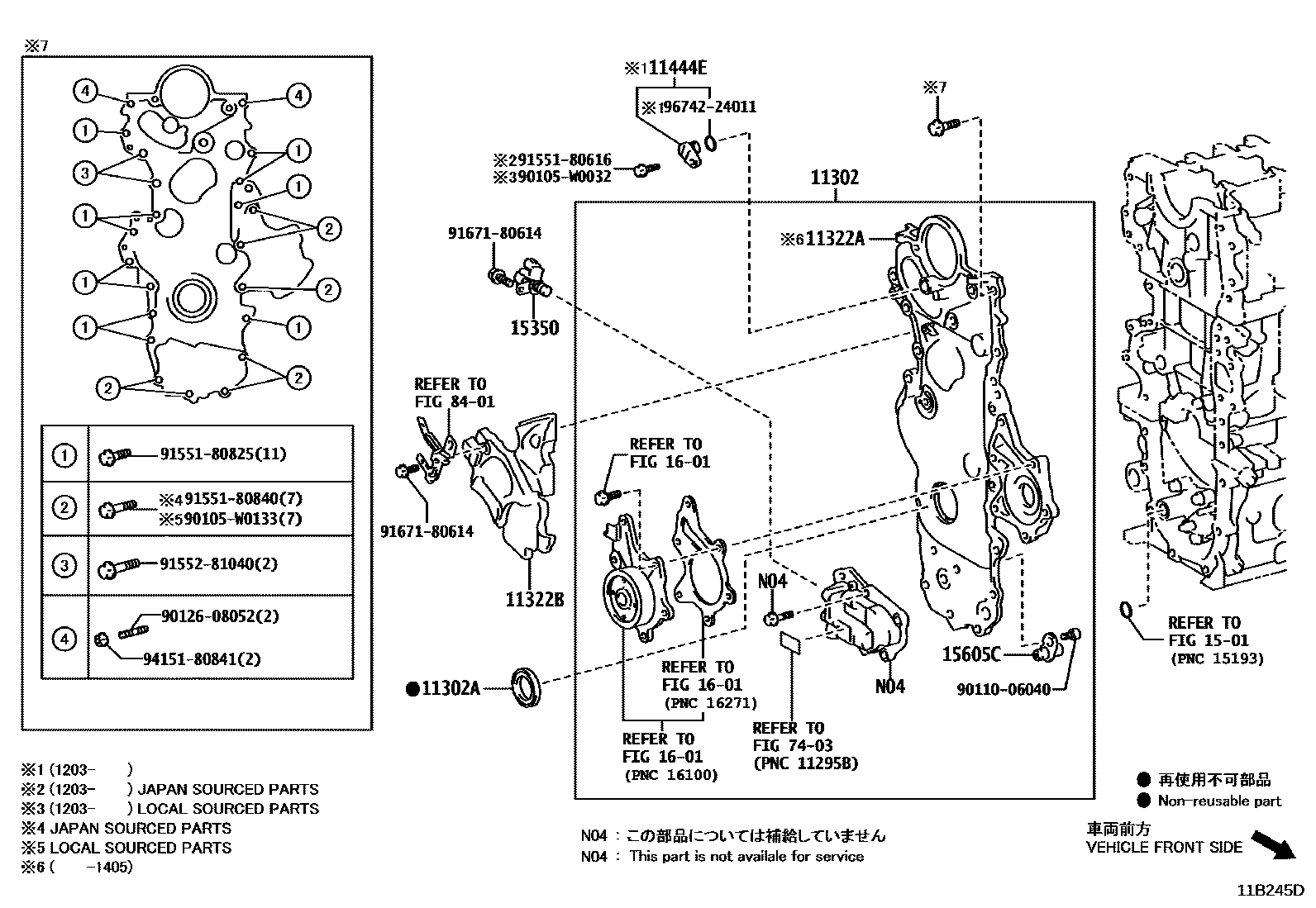

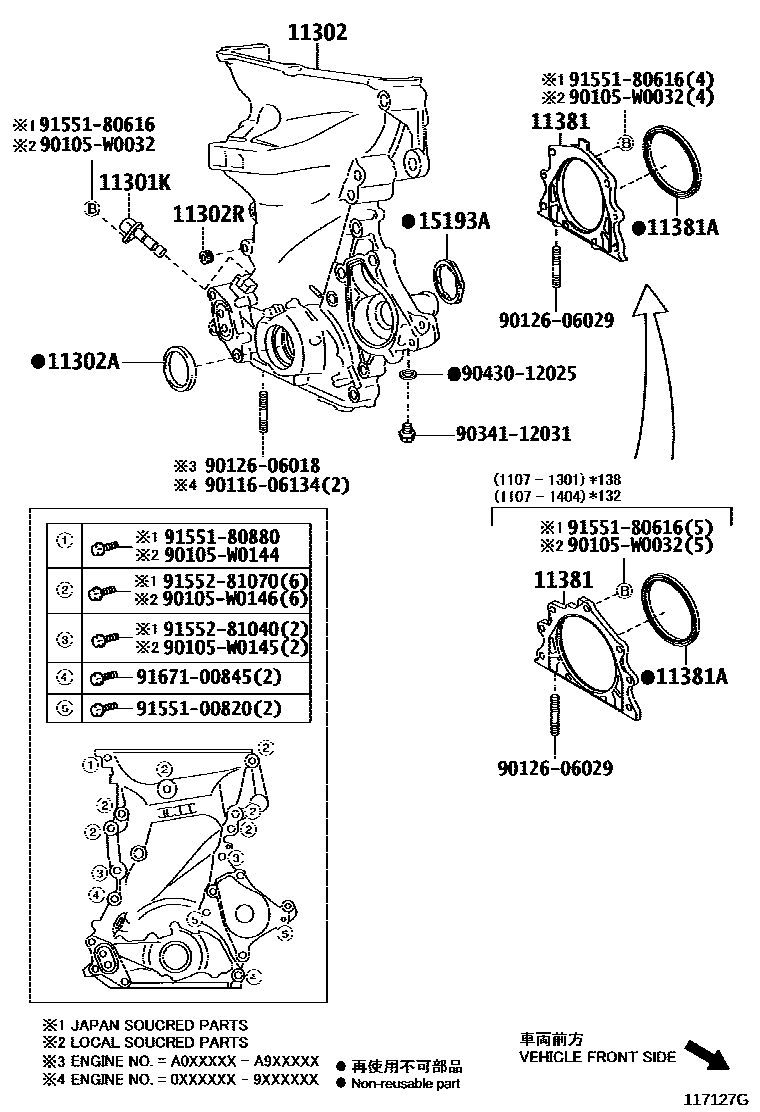

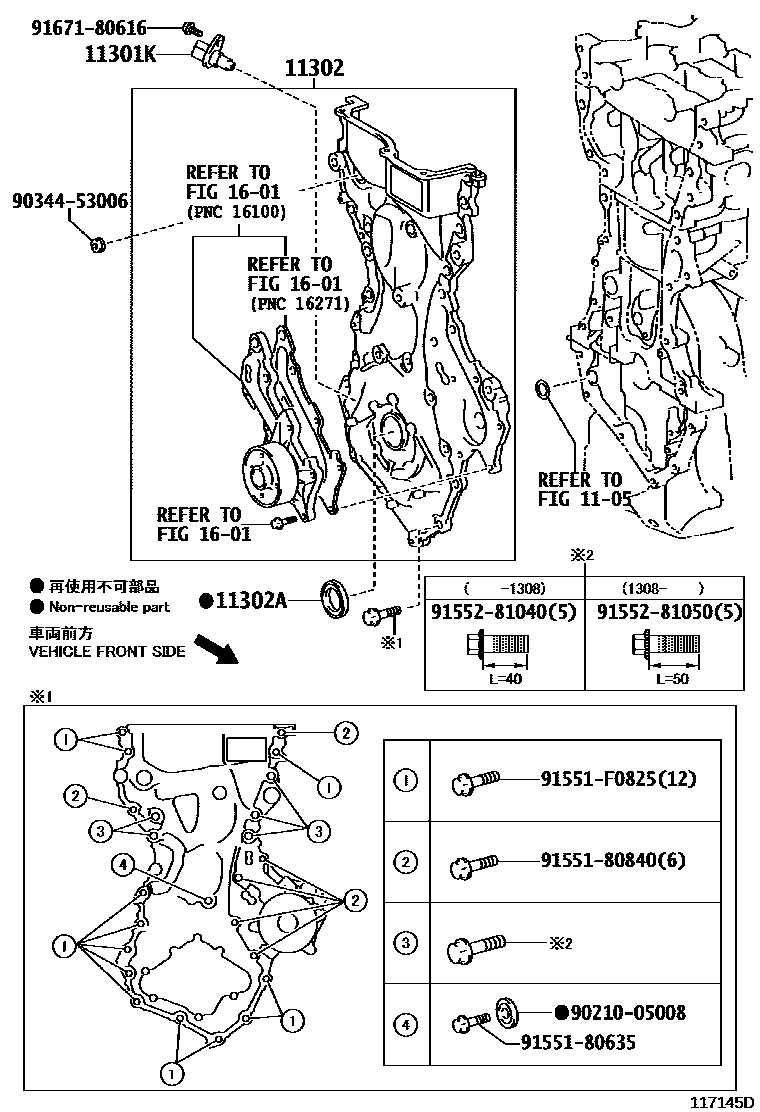

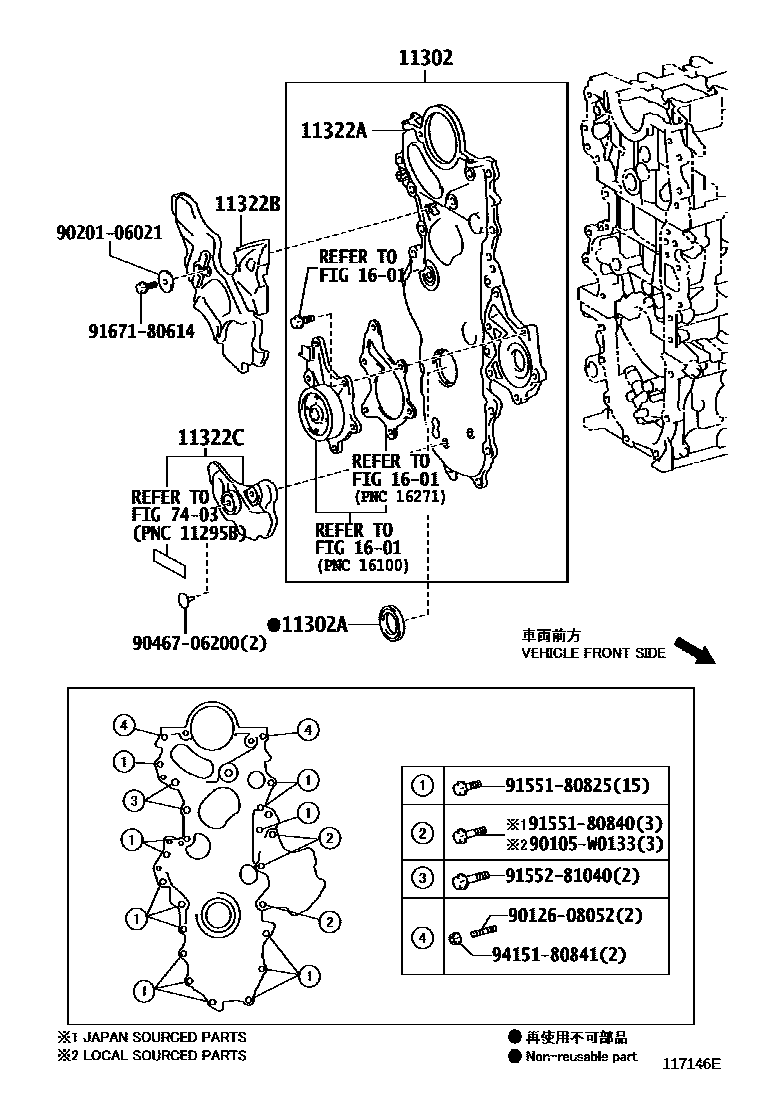

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301K | crankshaft position sensor | 90919-05062 · 90919-05073 · 90919-05079 · 90919-W5002 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0N010 · 11310-0N011 · 11310-0Q021 · 11310-0Q022 · 11310-33011 · 11310-33030 · 11310-40041 · 11310-47040 · 11310-47041 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-25021 · 90311-25032 · 90311-38092 · 90311-40033 · 90311-40040 · 90311-W0013 |
| 11302R | No. 1 sealing plug (for timing gear cover) | 90344-53006 |
| 11322A | No. 1 timing belt cover | 11321-0N010 · 11321-33020 · 11321-33040 |
| 11322B | No. 2 timing belt cover | 11322-33020 · 11322-33040 |
| 11322C | No. 3 timing belt cover | 11323-33010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0Q010 · 11381-0Q020 · 11381-40010 · 11381-40030 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-73004 · 90311-73005 · 90311-W0014 · 90311-W0018 |
| 11444E | hole plug | 11444-33020 |
| 15193A | oil pump gasket | 15193-40010 |
| 15350 | Oil pressure switch valve assembly | 15350-33010 · 15350-33012 |
| 15605C | Oil check valve sub-assembly | 15605-30040 |
