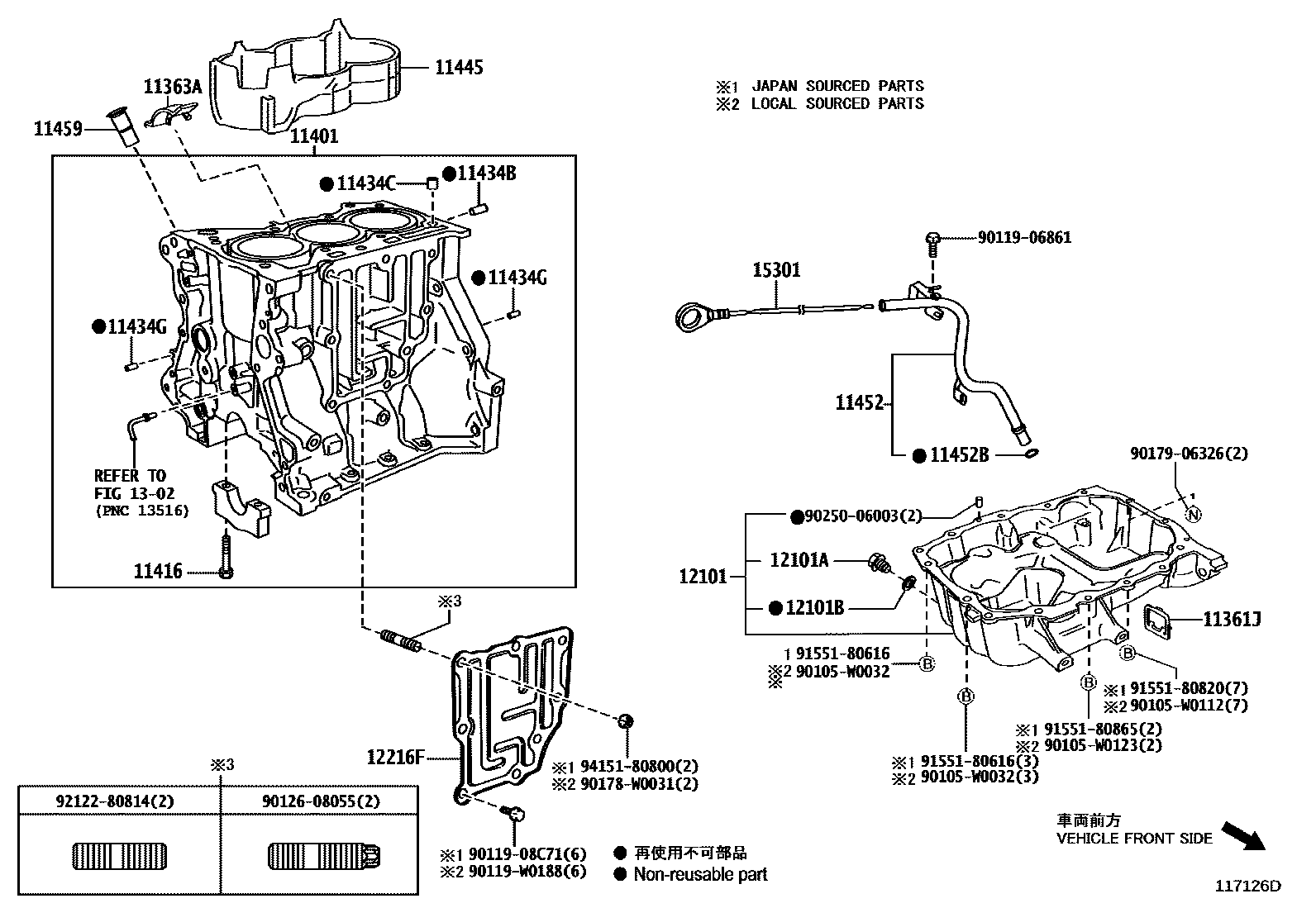

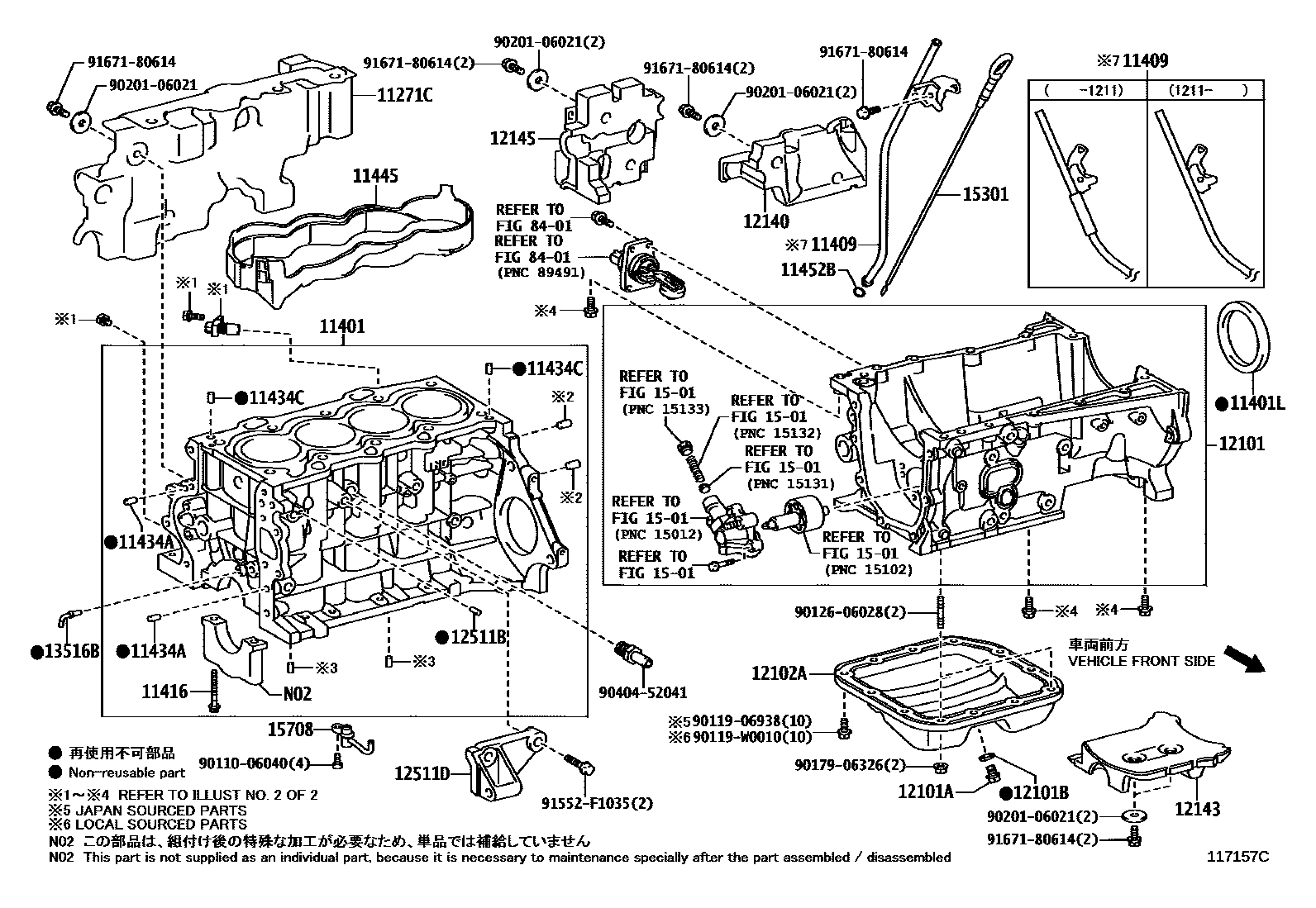

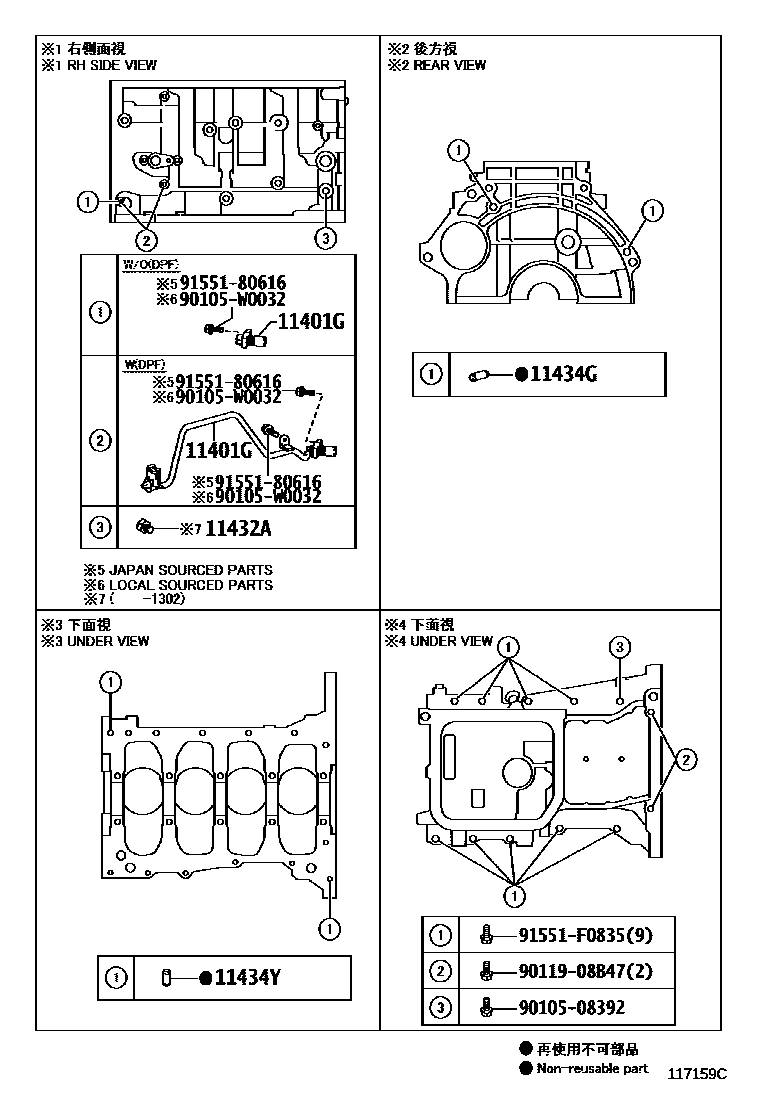

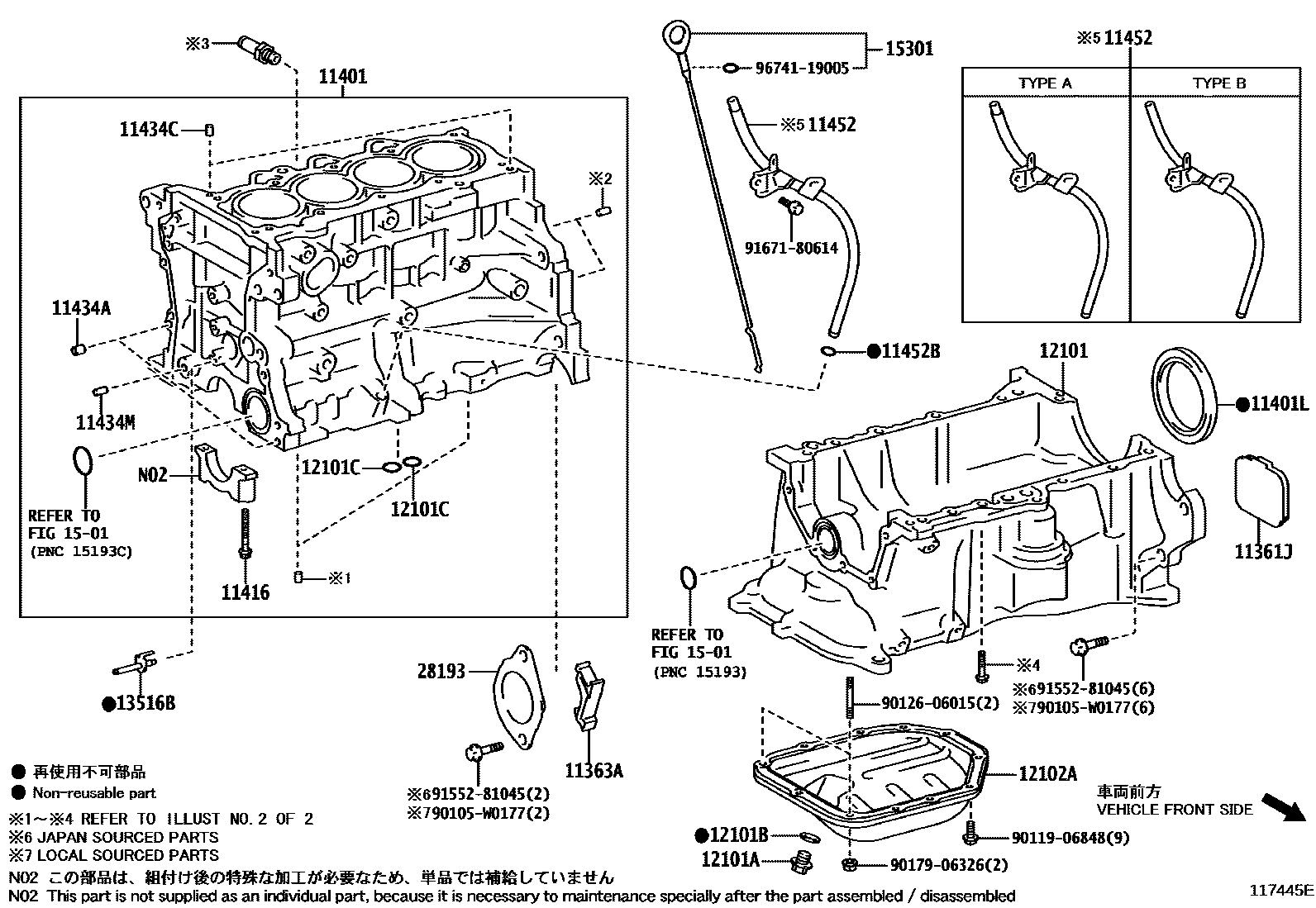

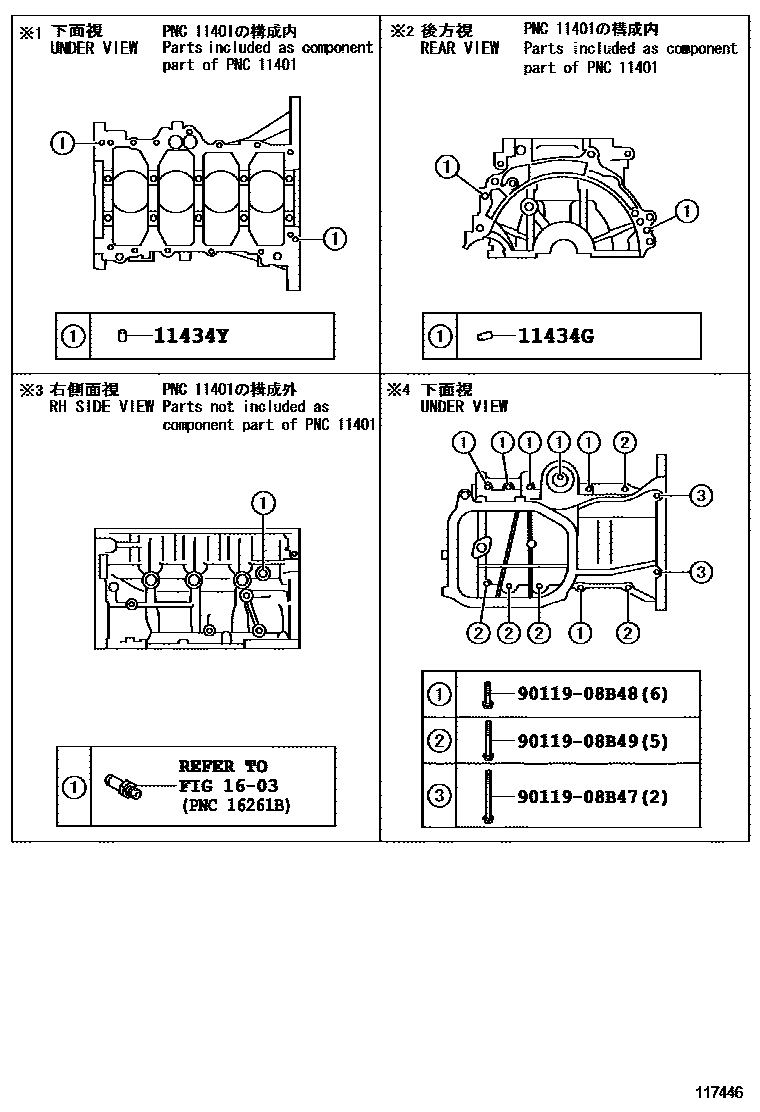

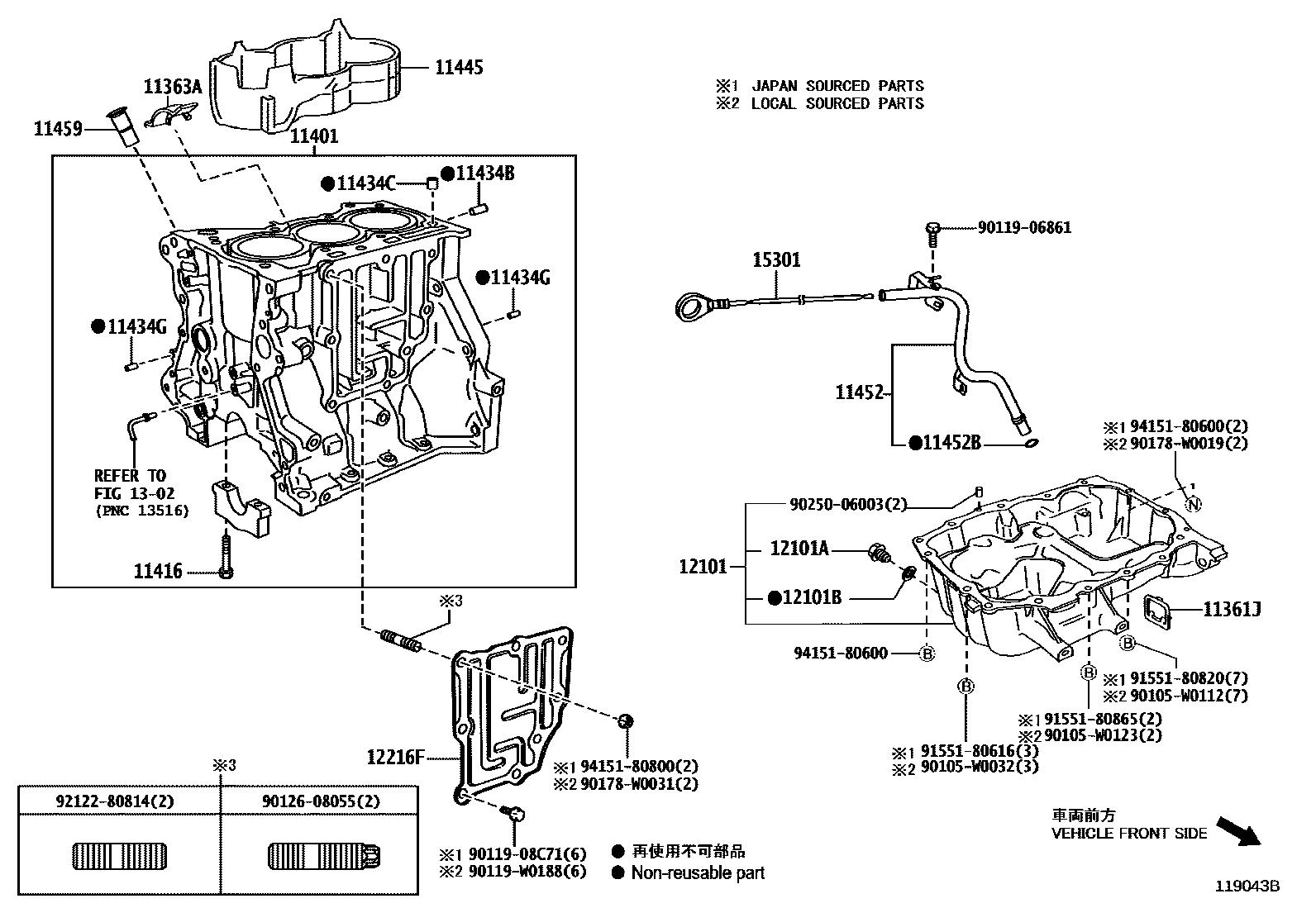

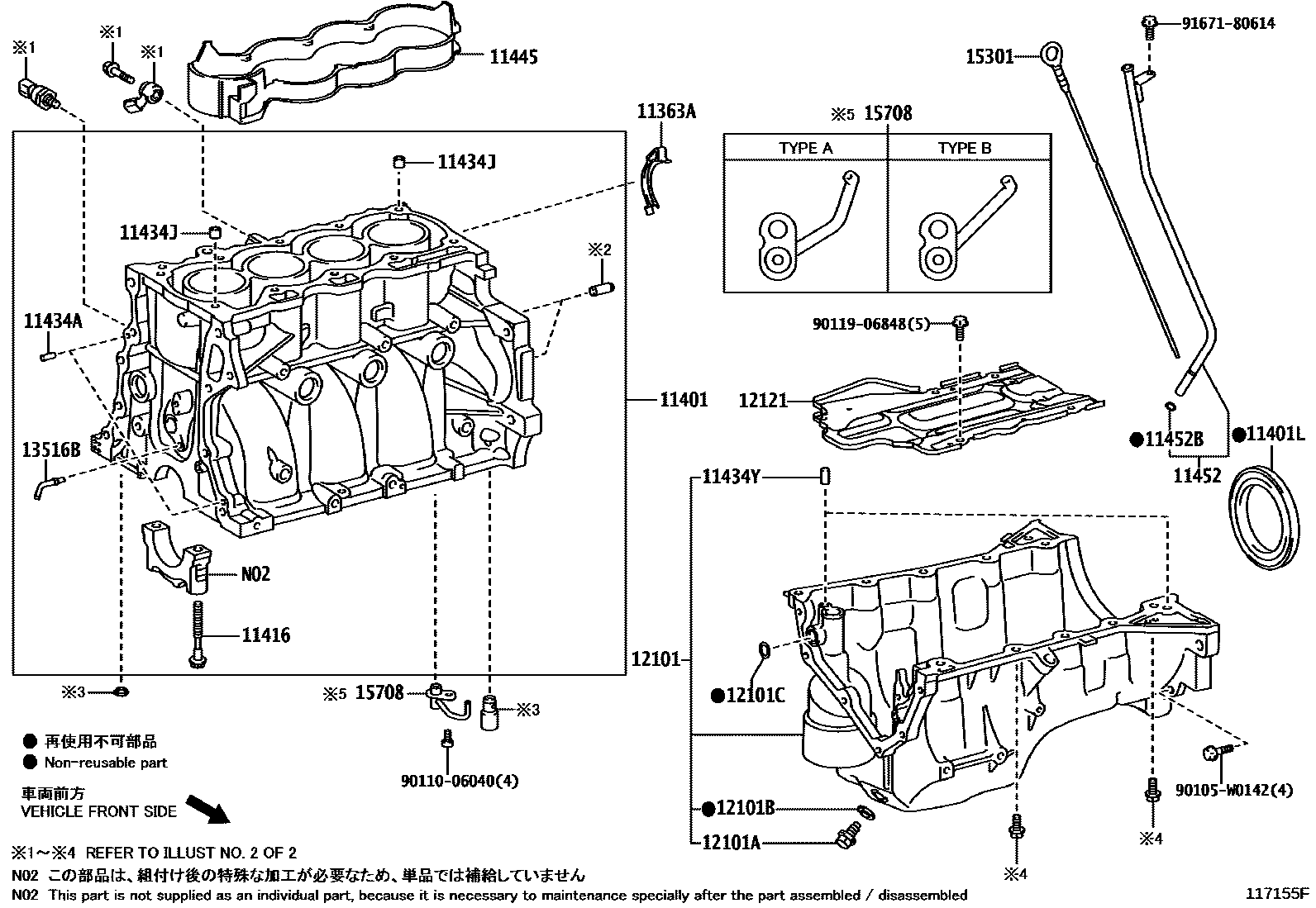

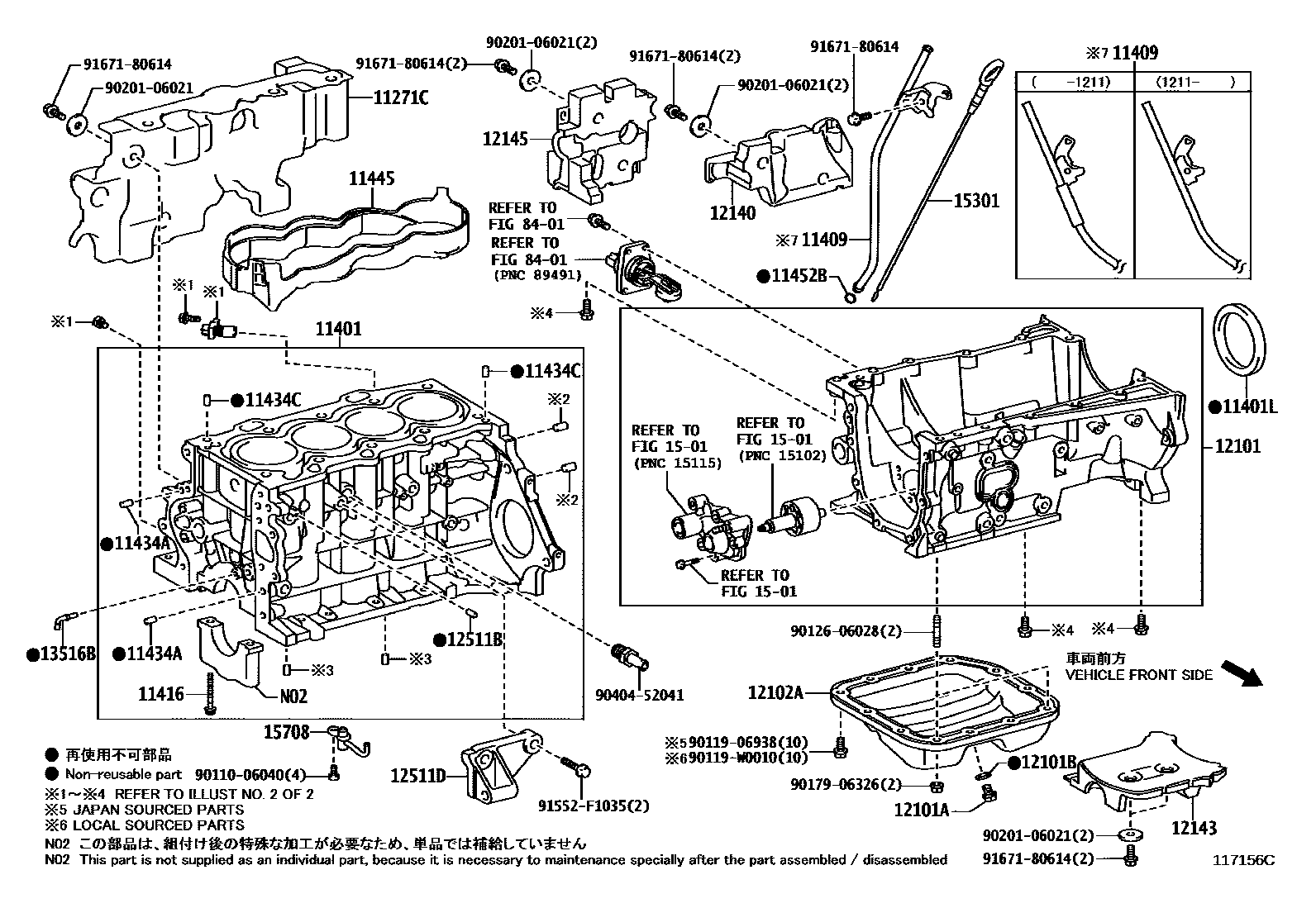

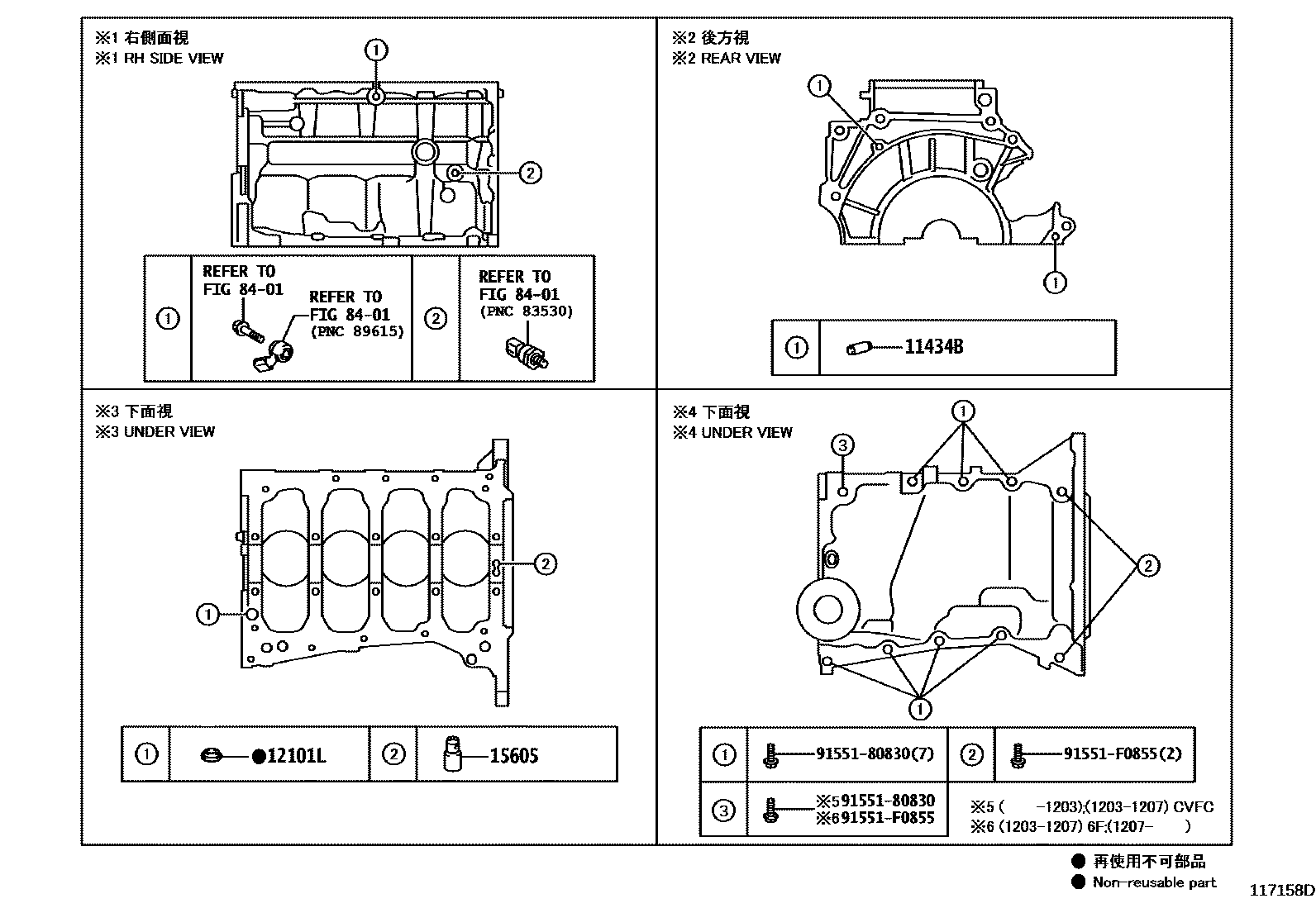

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 9 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271C | Cylinder block side cover | 11271-33031 · 11271-33051 |
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-23020 · 11361-28010 |
| 11363A | Flywheel housing side cover | 11363-0Q010 · 11363-21020 · 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-0Q011 · 11401-0Q030 · 11401-40041 · 11401-40060 · 11401-80804 · 11410-39085 · 11410-39155 · 11410-49025 · 11410-49026 · 11410-49028 |
| 11401G | crankshaft position sensor | 90919-05063 · 90919-05074 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75017 · 90311-75019 · 90311-75020 · 90311-78003 · 90311-78005 · 90311-99012 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-33010 · 11409-33011 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10531 · 90910-02125 · 90910-02154 · 90910-02175 |
| 11432A | No. 1 headed tapered thread plug | 90345-51011 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-08120 · 90253-08003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-10232 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-12002 |
| 11434G | Direct sales (for end plates) | 90250-06003 · 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 |
| 11445 | Cylinder block water jacket spacer | 11445-33010 · 11445-40010 · 11445-47010 |
| 11452 | Engine oil level gauge guide | 11409-40060 · 11409-47011 · 11409-47012 · 11452-21040 · 11452-21041 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 11459 | Oil level gauge guide bracket | 11459-40010 |
| 12101 | Oil pan sub-assembly | 12101-0N010 · 12101-0N011 · 12101-0Q020 · 12101-33040 · 12101-33060 · 12101-40100 · 12101-47100 · 12101-47101 · 12101-47120 · 12101-47121 · 12111-21070 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43037 · 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-19023 · 96722-24020 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 |
| 12102A | No. 2 oil pan sub-assembly | 12102-21010 · 12102-33010 |
| 12121 | No. 1 oil pan baffle | 12121-B1060 |
| 12140 | oil pan cover | 12615-33011 |
| 12143 | oil pan cover | 12143-33031 |
| 12145 | No. 2 oil pan cover muffler | 12145-33011 |
| 12216F | ventilation baffle | 12216-40020 |
| 12511B | Ring pin (for generator bracket) | 90250-04097 |
| 12511D | Generator bracket | 12511-33020 · 12511-33021 |
| 13516B | oil nozzle | 13516-21010 · 13516-21011 · 13516-33030 · 13516-40010 |
| 15301 | Engine oil level scoring assembly | 15301-21050 · 15301-33050 · 15301-40100 · 15301-47050 |
| 15605 | Oil check valve sub-assembly | 15703-47010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-33020 · 15708-47030 · 15708-47031 · 15708-47040 · 15708-47060 |
| 28193 | Starter hole vibration isolation pad | 28193-21020 |
