Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

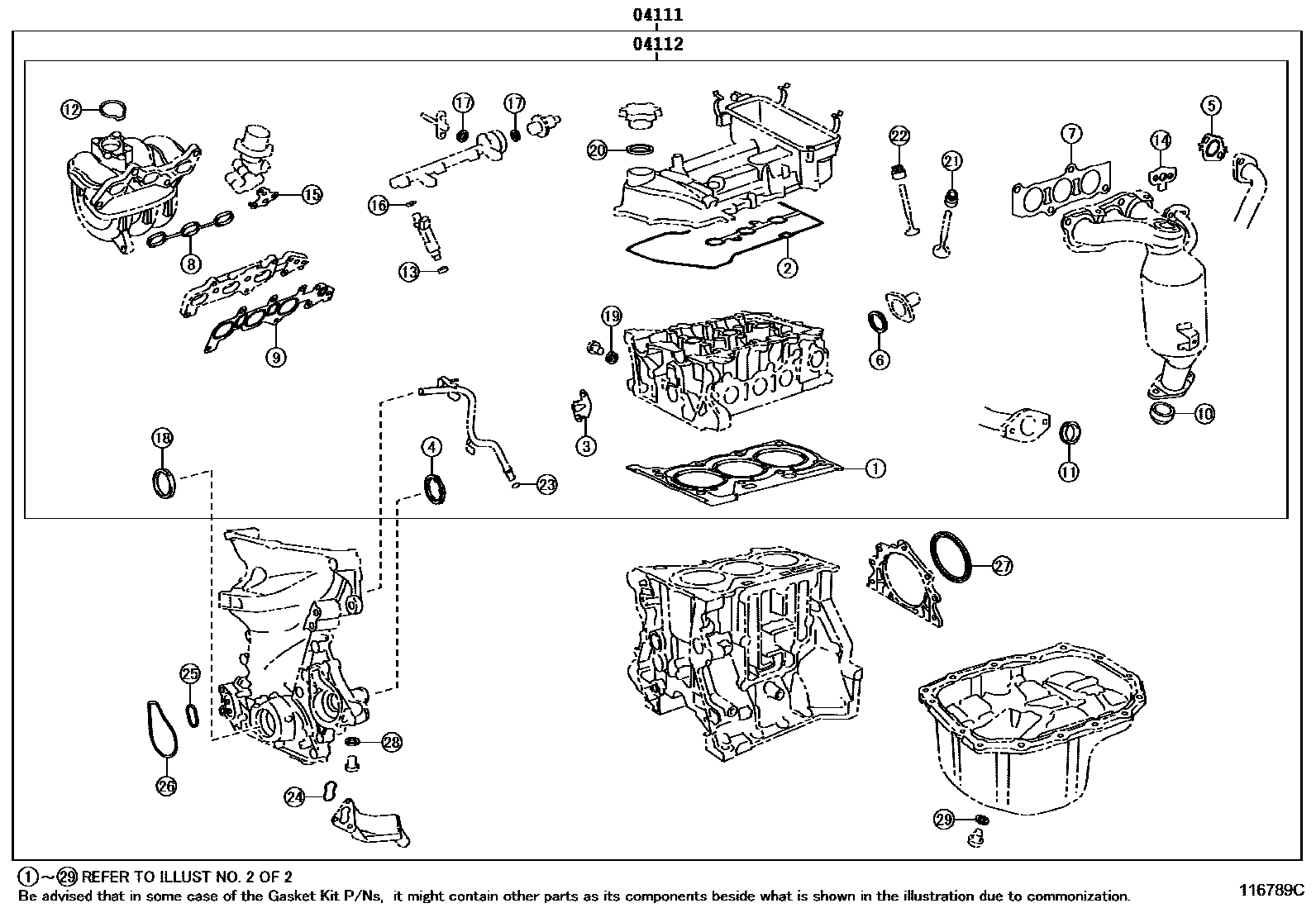

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 116789C
Engine Overhaul Gasket Kit — 116789C (201107 – 999999)

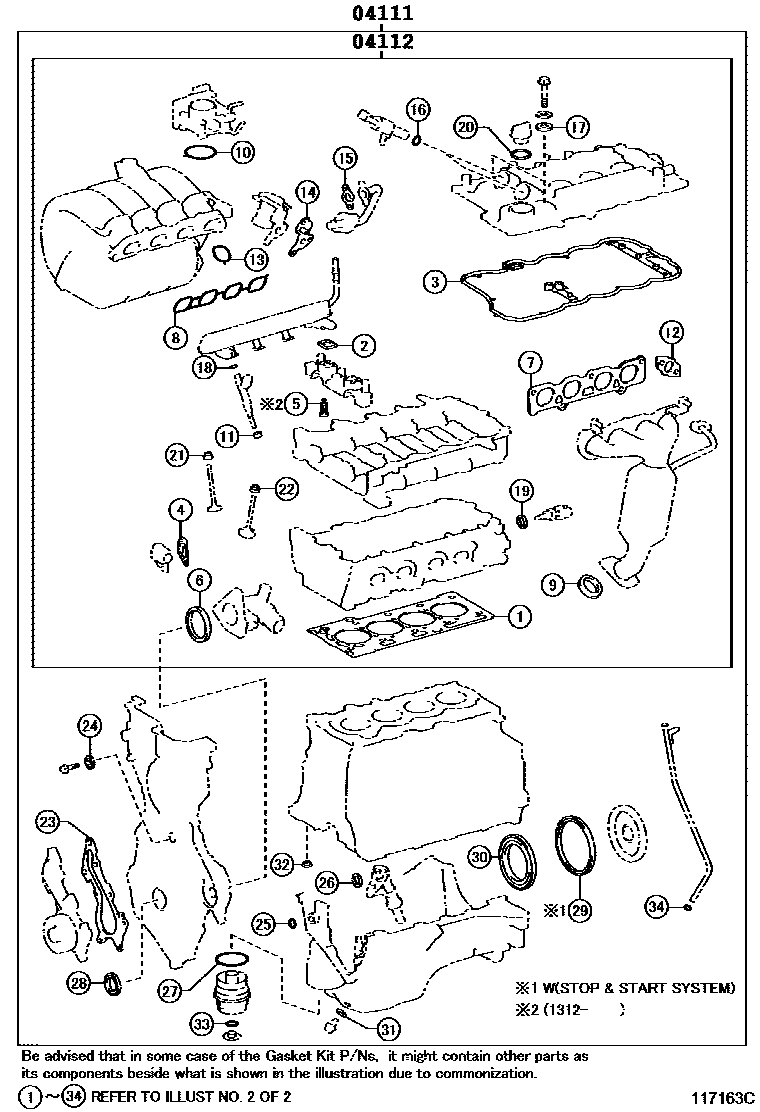

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 117163C
Engine Overhaul Gasket Kit — 117163C (201107 – 999999)

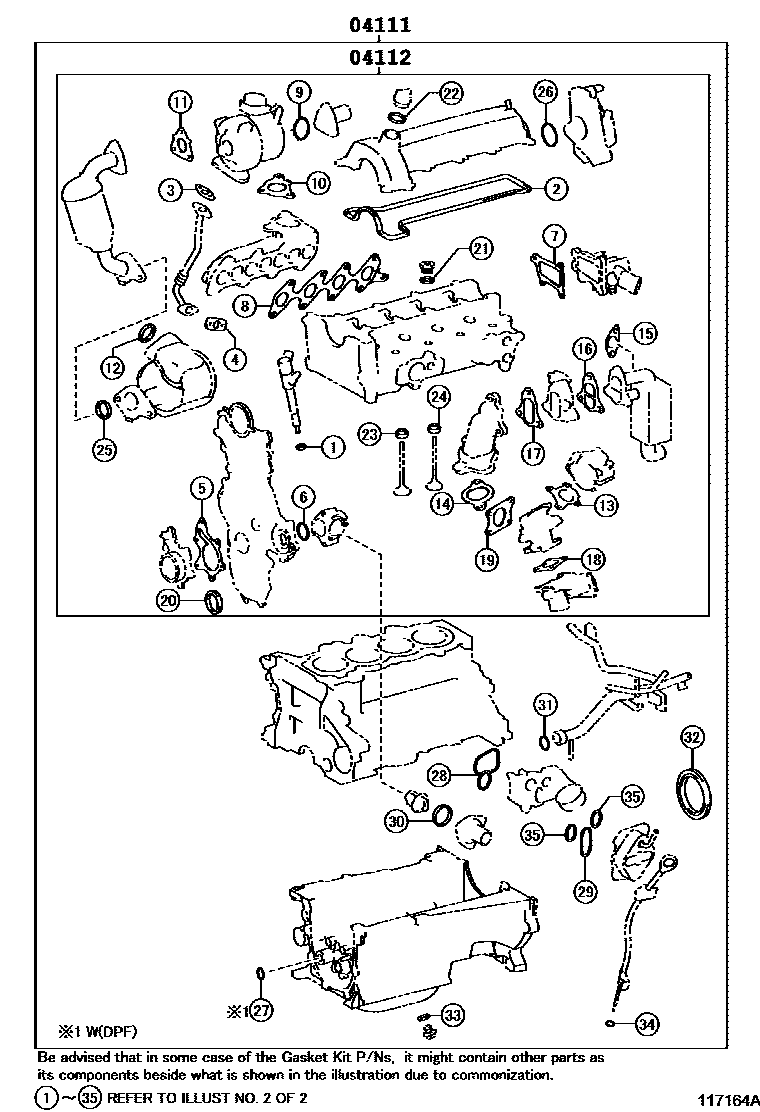

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 117164A
Engine Overhaul Gasket Kit — 117164A (201107 – 999999)

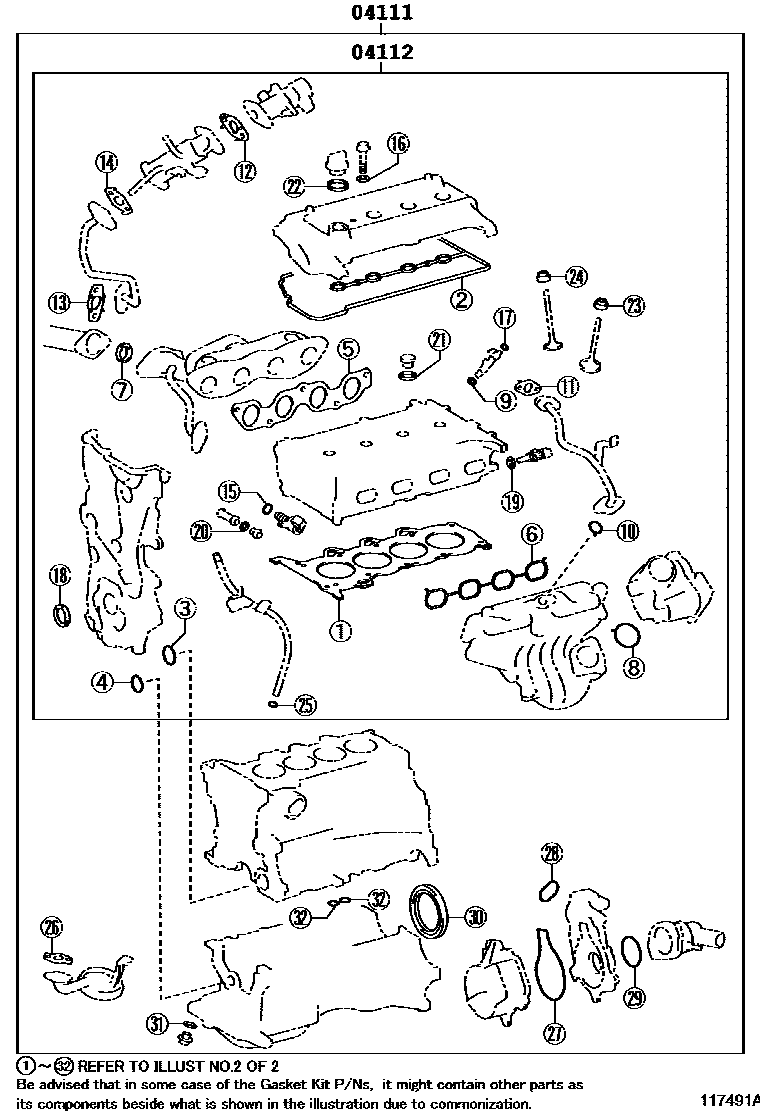

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 117491A
Engine Overhaul Gasket Kit — 117491A (201204 – 999999)

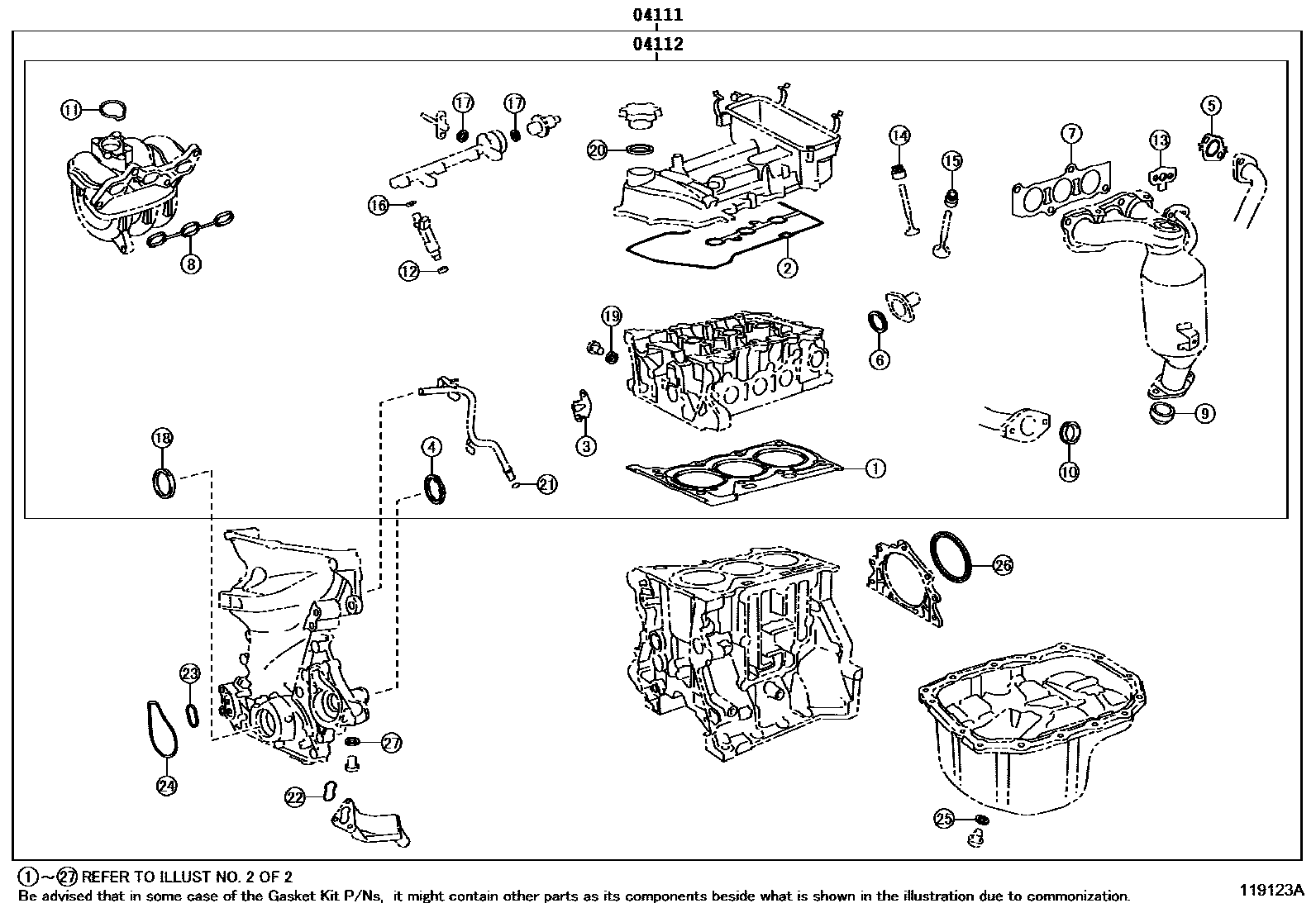

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119123A
Engine Overhaul Gasket Kit — 119123A (201107 – 999999)

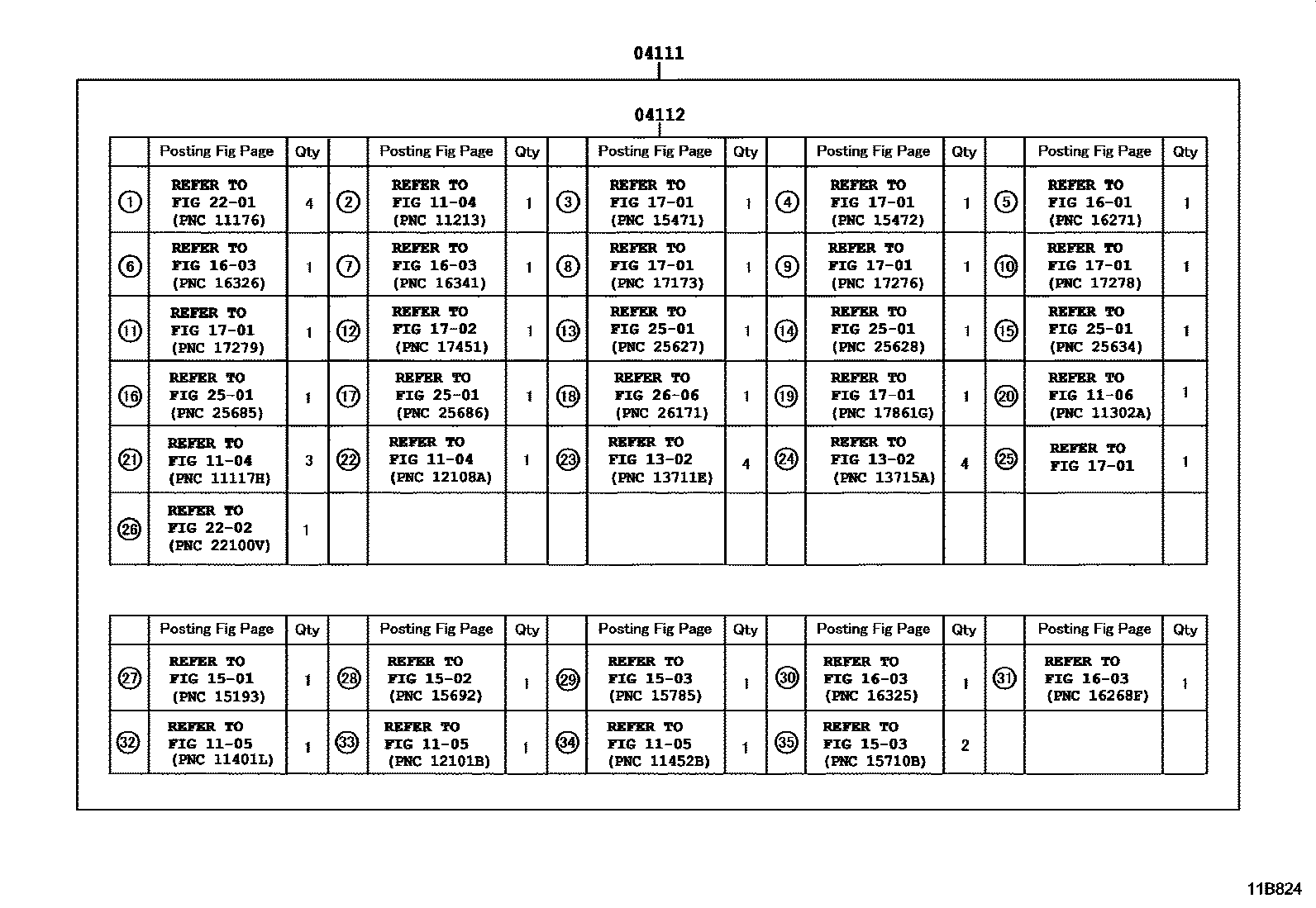

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B824
Engine Overhaul Gasket Kit — 11B824 (201107 – 999999)

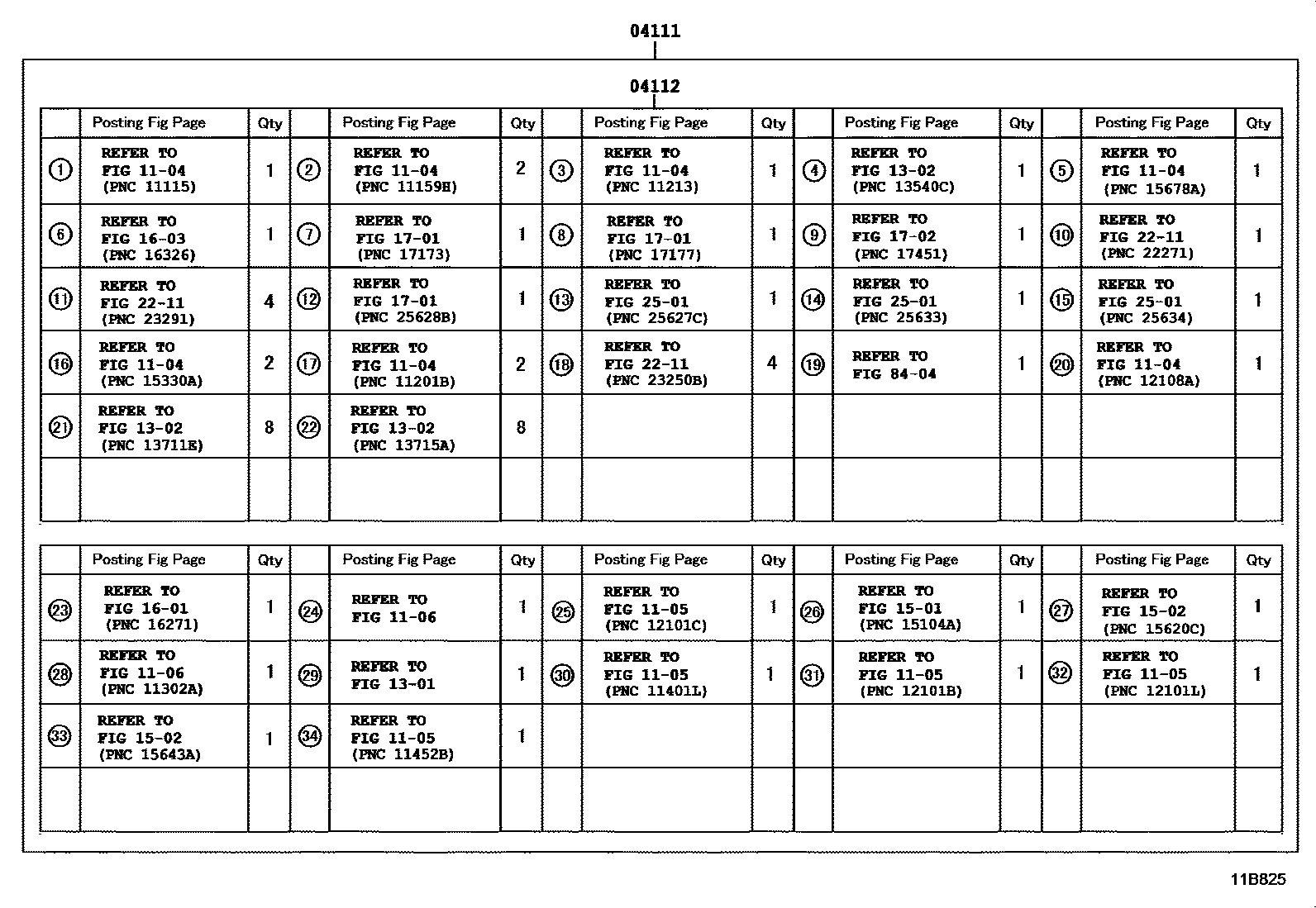

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B825
Engine Overhaul Gasket Kit — 11B825 (201107 – 999999)

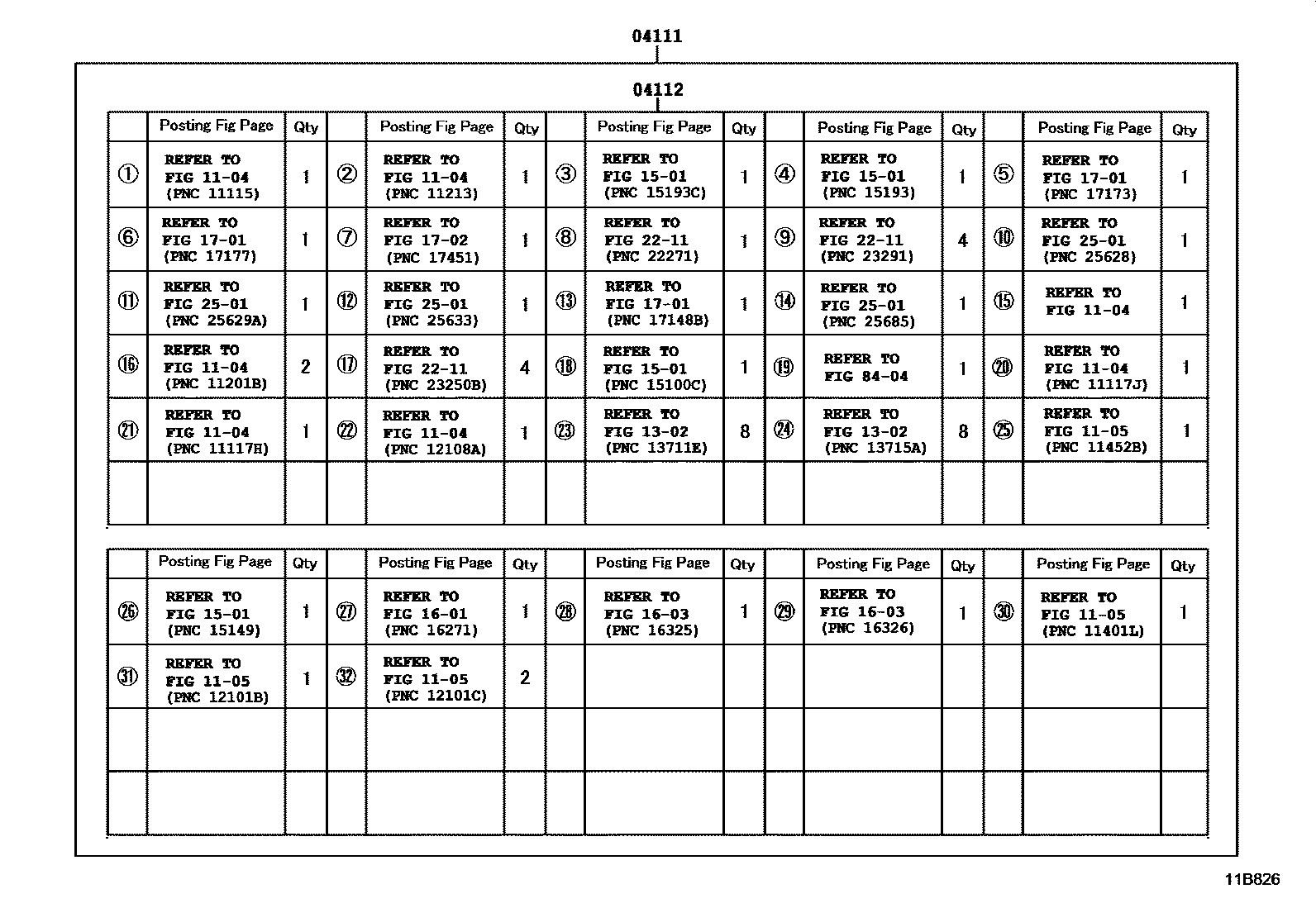

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B826
Engine Overhaul Gasket Kit — 11B826 (201204 – 999999)

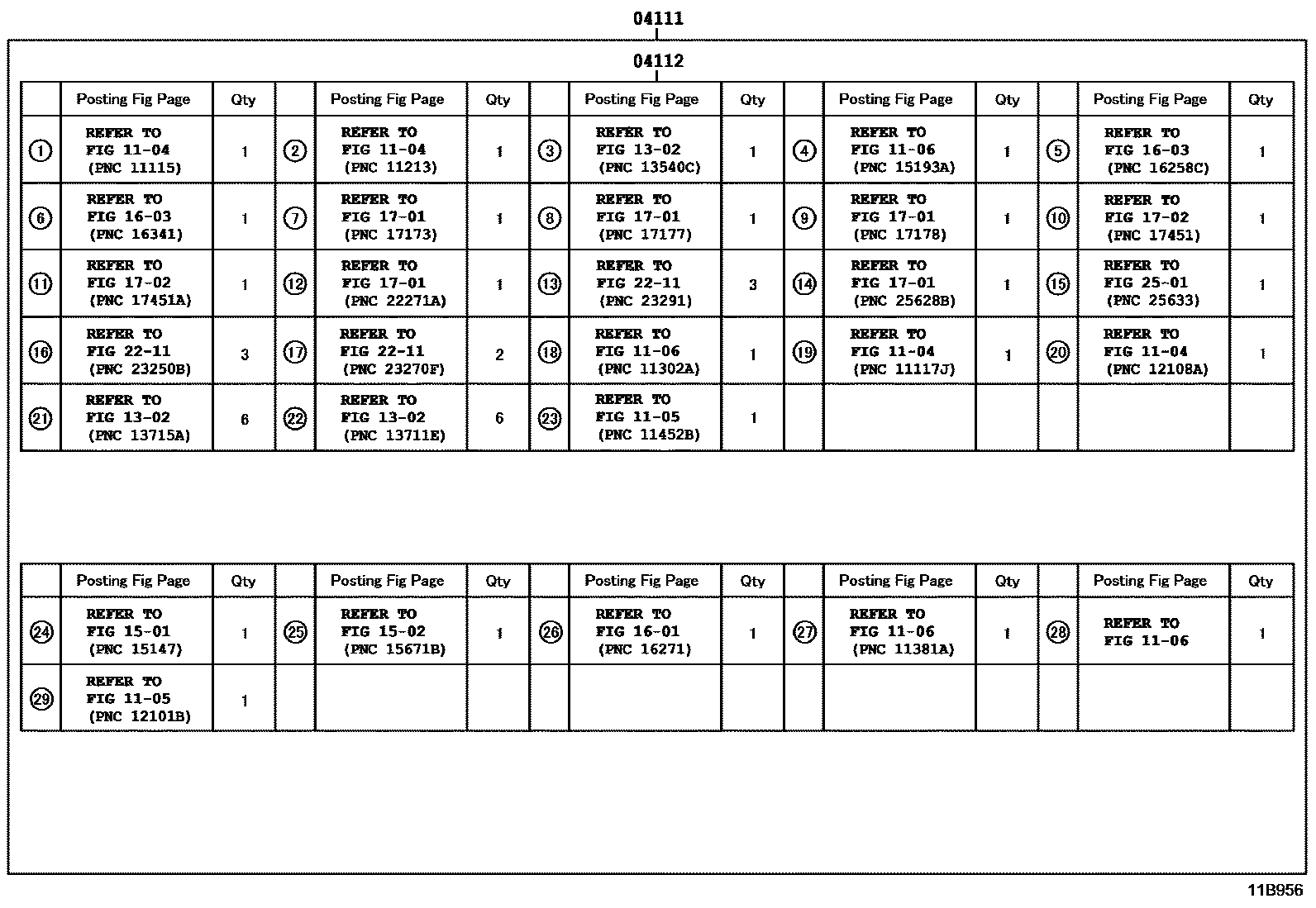

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B956
Engine Overhaul Gasket Kit — 11B956 (201107 – 999999)

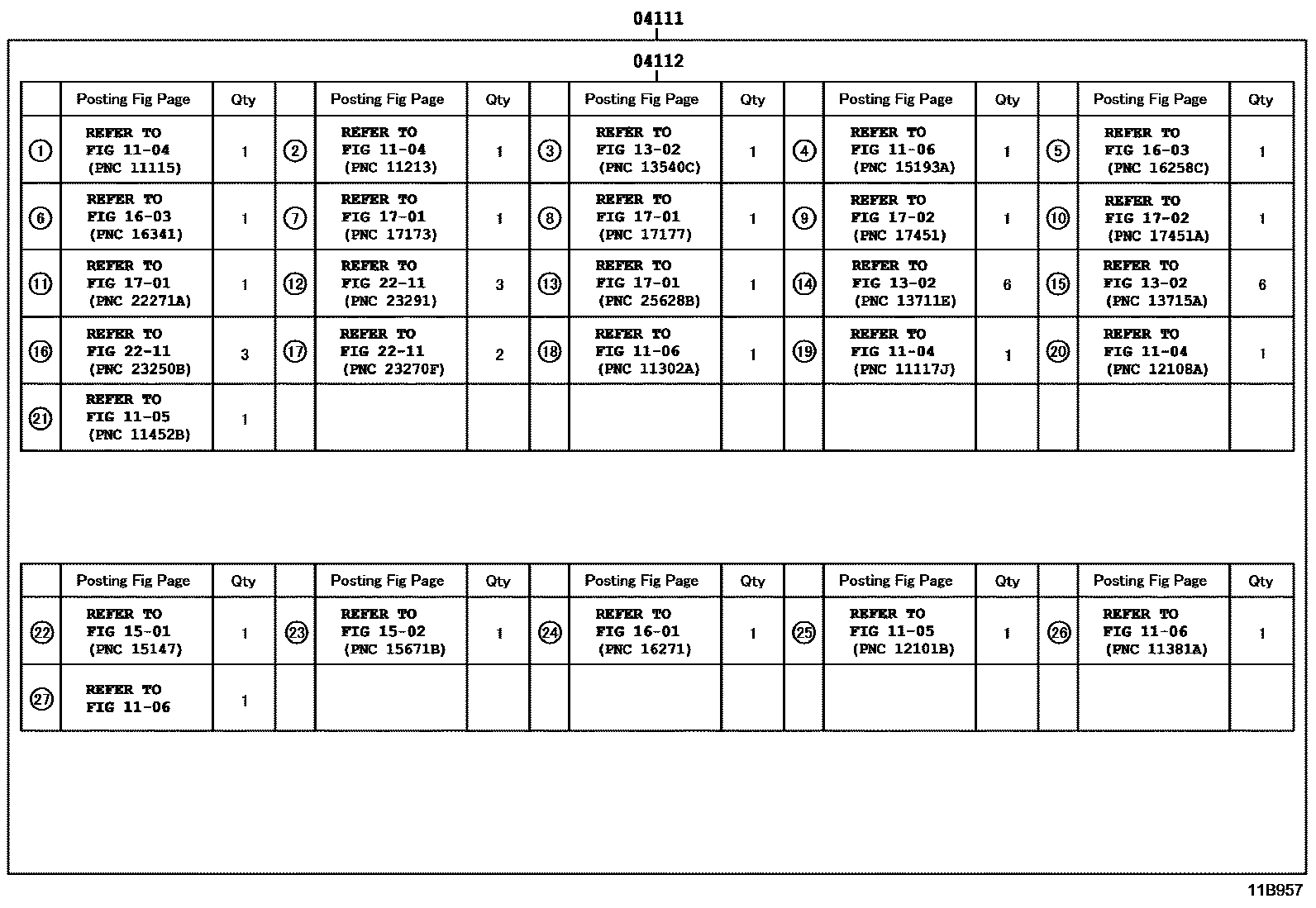

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B957
Engine Overhaul Gasket Kit — 11B957 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0Q043 · 04111-0Q044 · 04111-0Q045 · 04111-21322 · 04111-21323 · 04111-21324 · 04111-33180 · 04111-33181 · 04111-33190 · 04111-33191 · 04111-40073 · 04111-40074 · 04111-40140 · 04111-47044 · 04111-47045 · 04111-47054 · 04111-47055 · 04111-47056 · 04111-47057 · 04111-47170 · 04111-47220
04112Engine valve grinding pad assembly04112-0Q042 · 04112-0Q043 · 04112-21321 · 04112-21322 · 04112-21323 · 04112-33180 · 04112-33181 · 04112-40033 · 04112-40034 · 04112-40090 · 04112-47044 · 04112-47045 · 04112-47046 · 04112-47120
