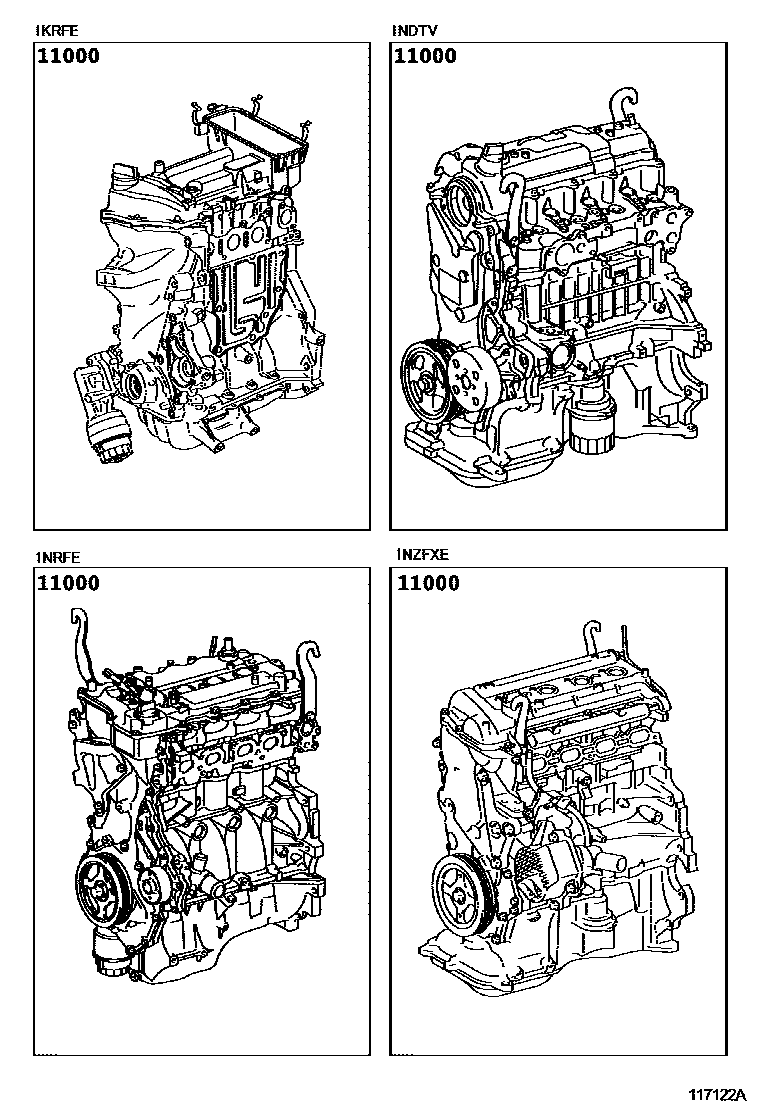

Toyota YARIS Partial Engine Assembly — Figure 1101
Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11000 | Partial Engine Assembly | 19000-0N050 · 19000-0N051 · 19000-0N052 · 19000-0N060 · 19000-0N061 · 19000-0Q050 · 19000-21D00 · 19000-21D01 · 19000-40260 · 19000-40261 · 19000-47170 · 19000-47171 · 19000-47180 · 19000-47181 · 19000-47190 · 19000-47191 · 19000-47200 · 19000-47201 · 19000-47310 · 19000-47320 · 19000-47330 · 19000-47340 |
