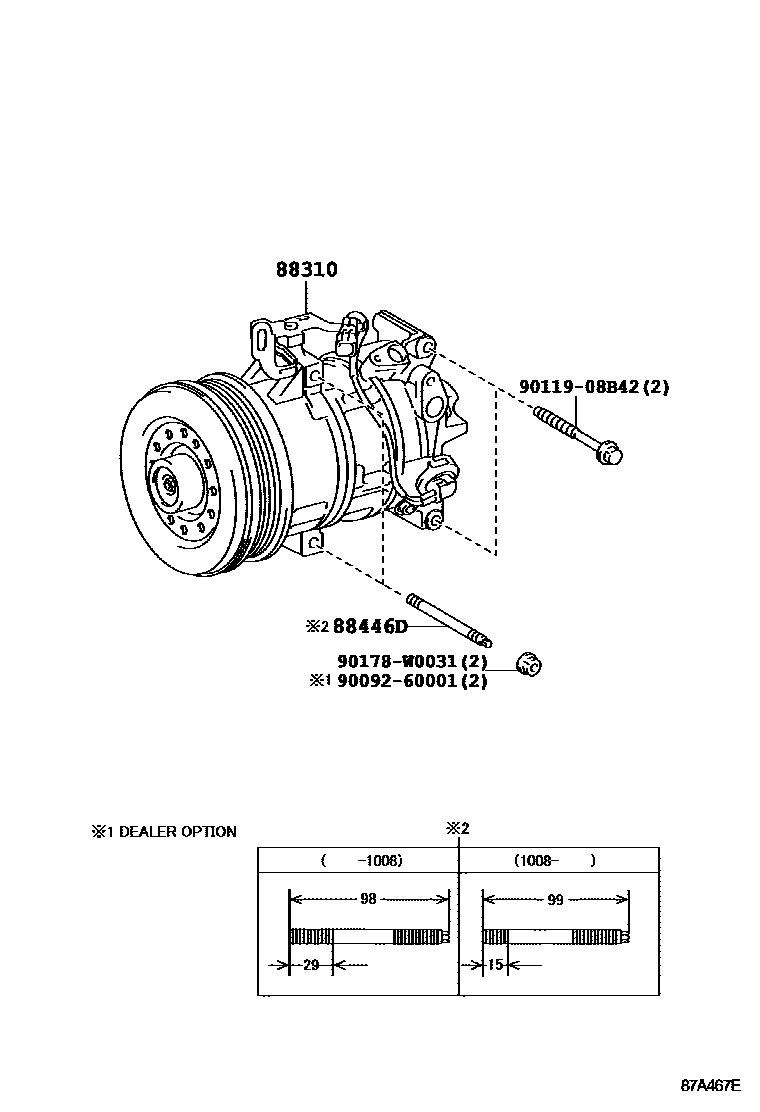

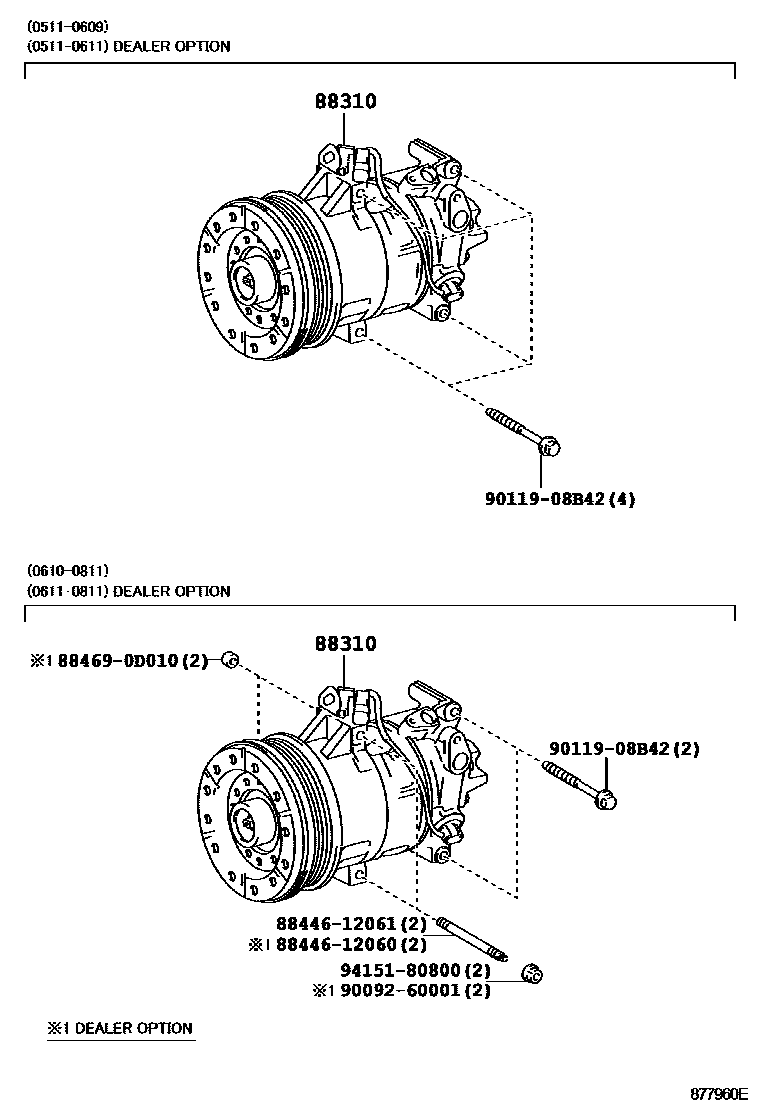

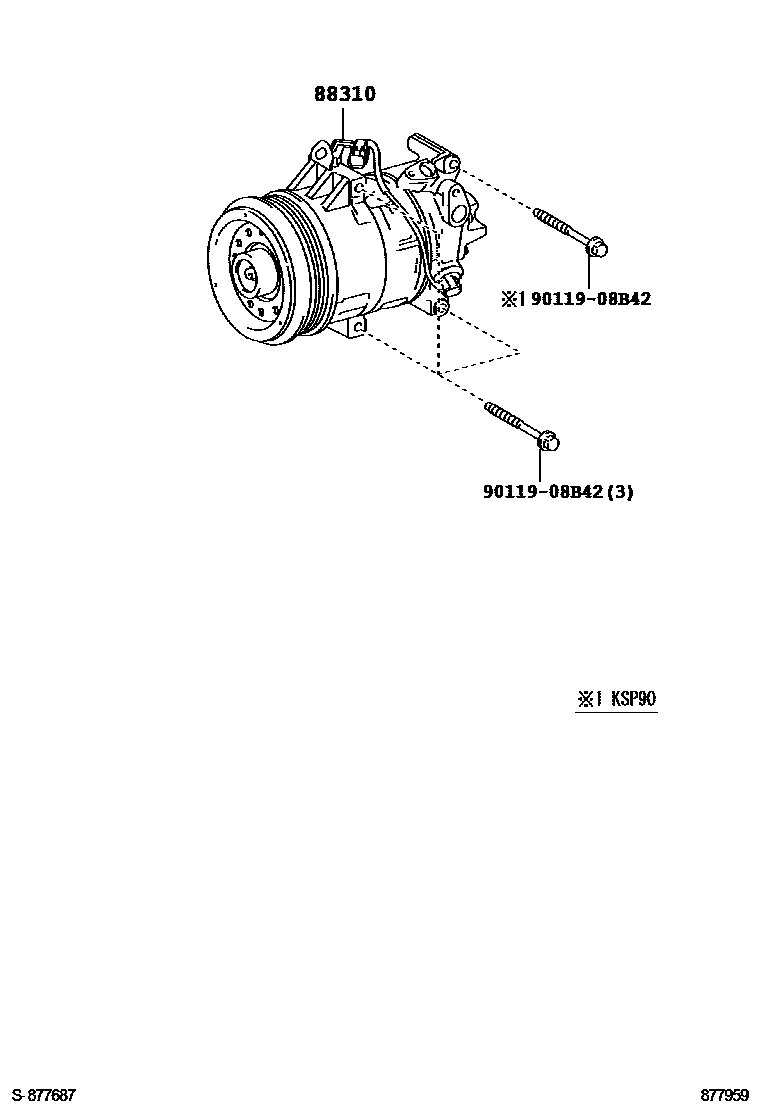

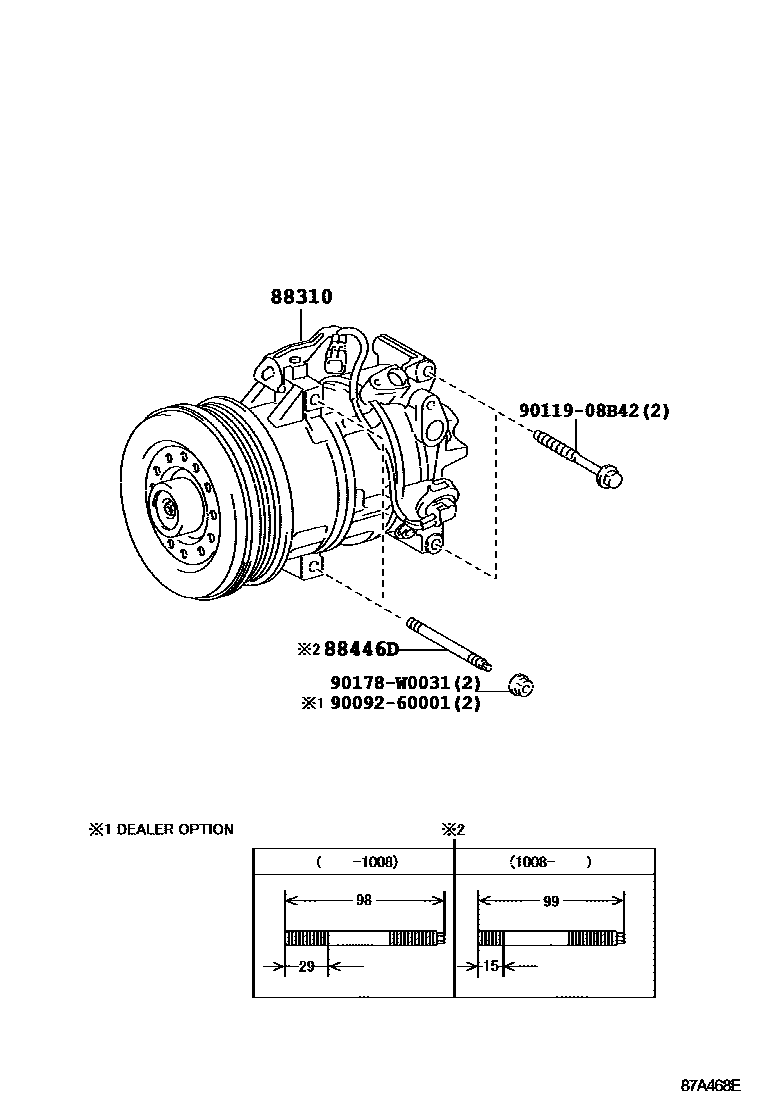

Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-0D200 · 88310-0D201 · 88310-0D202 · 88310-0D210 · 88310-0D211 · 88310-0D212 · 88310-0D230 · 88310-0D231 · 88310-0D232 · 88310-0D320 · 88310-0D330 |
| 88446D | cooler bolt | 88446-12061 · 88446-42030 |
