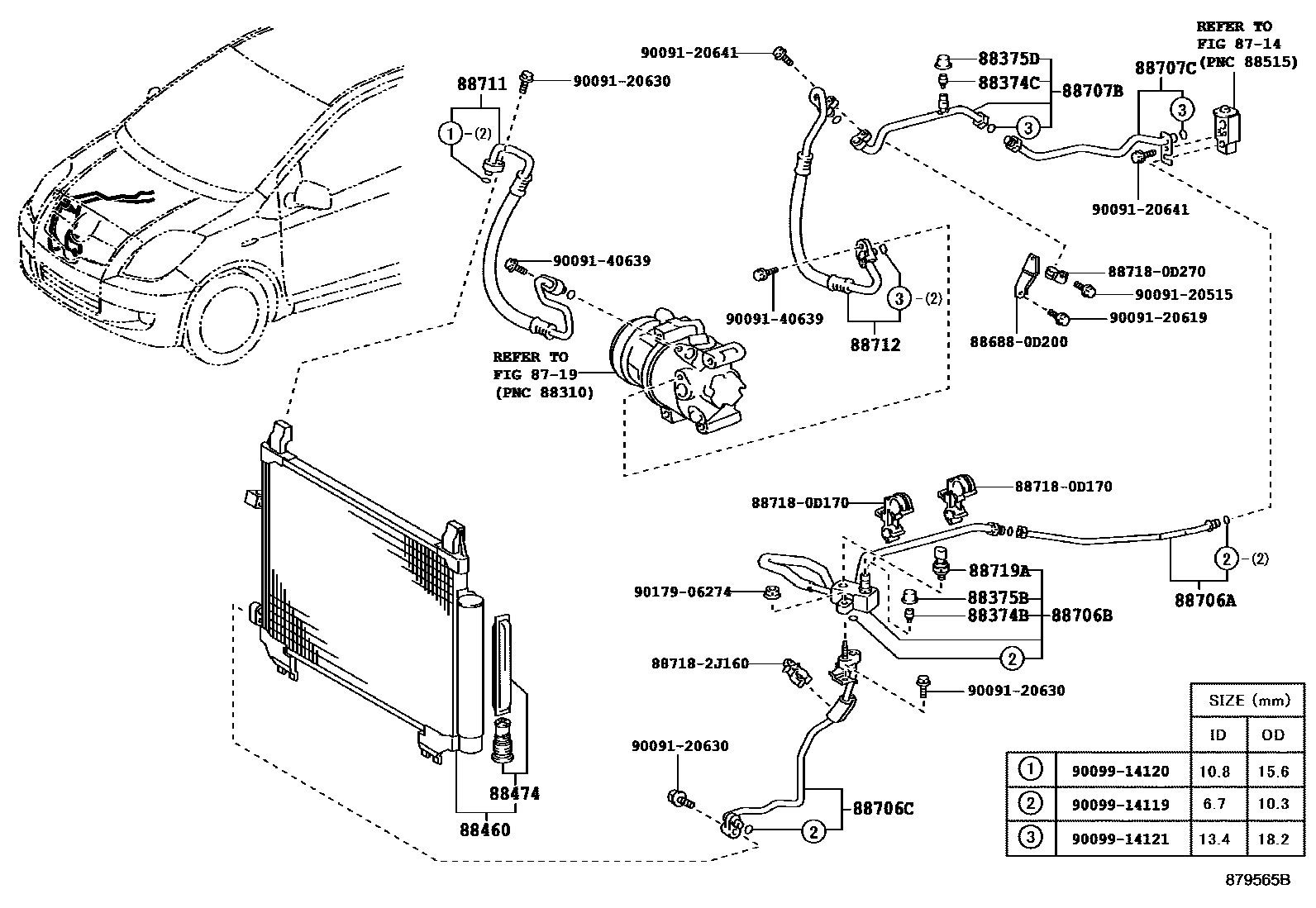

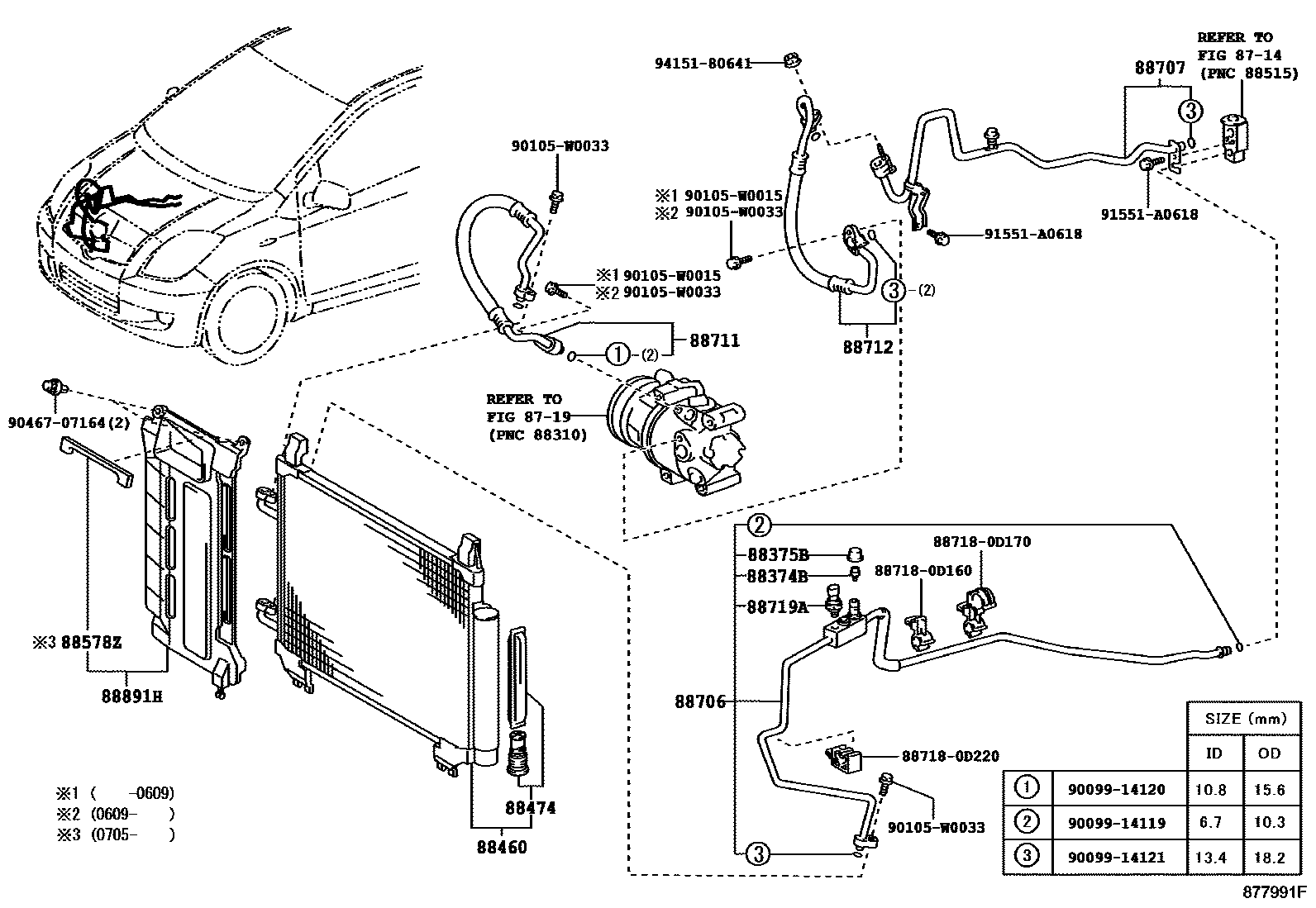

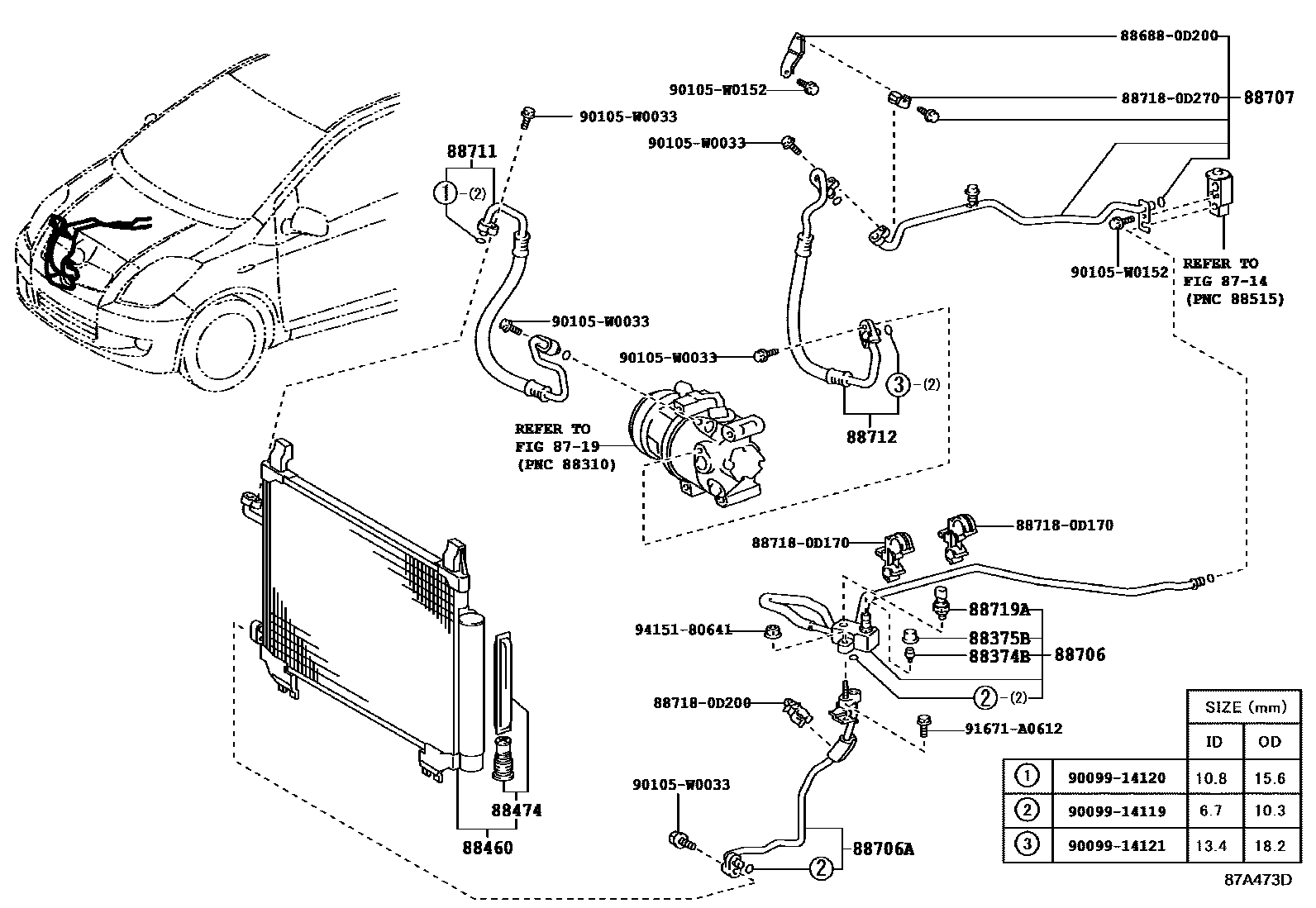

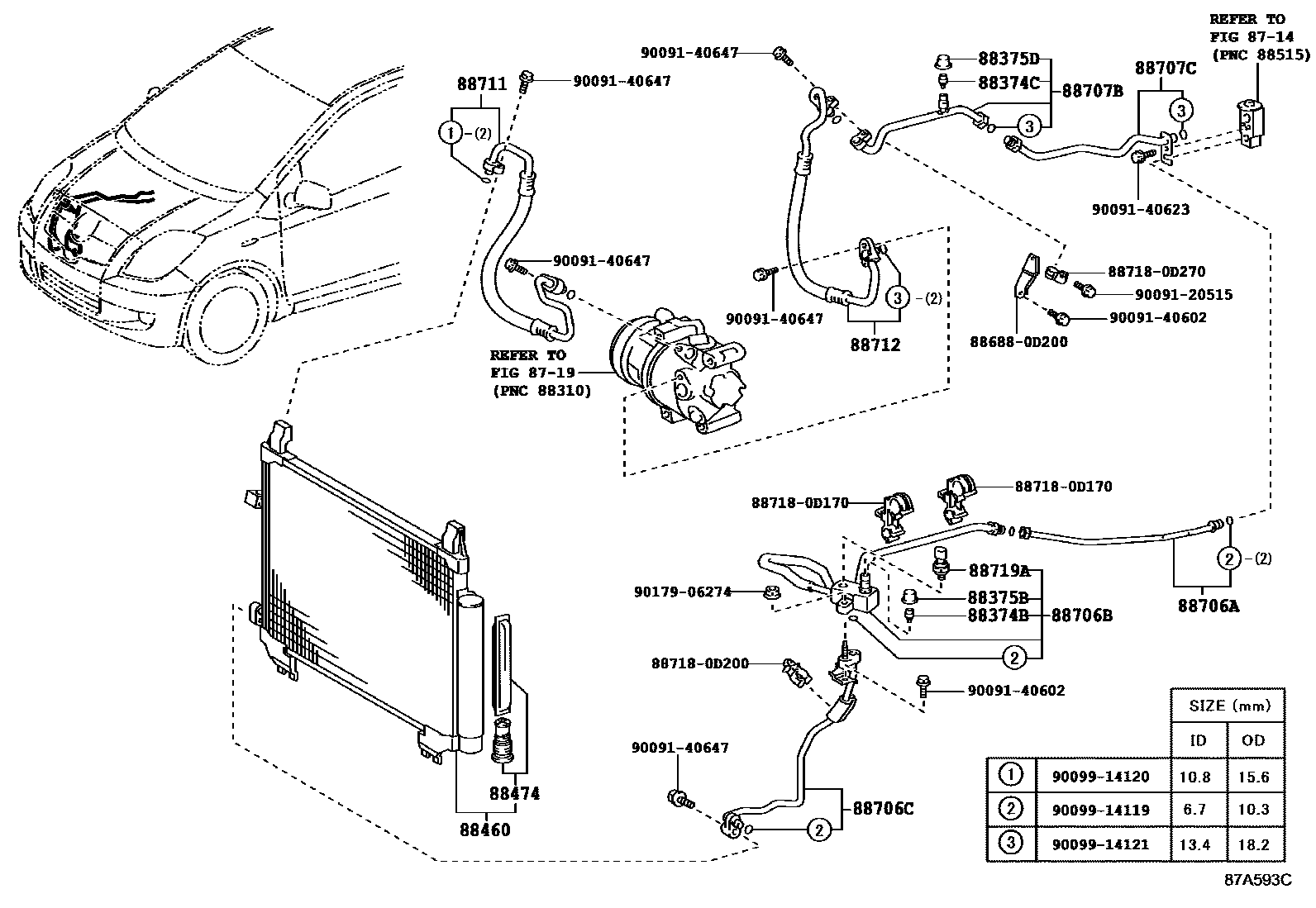

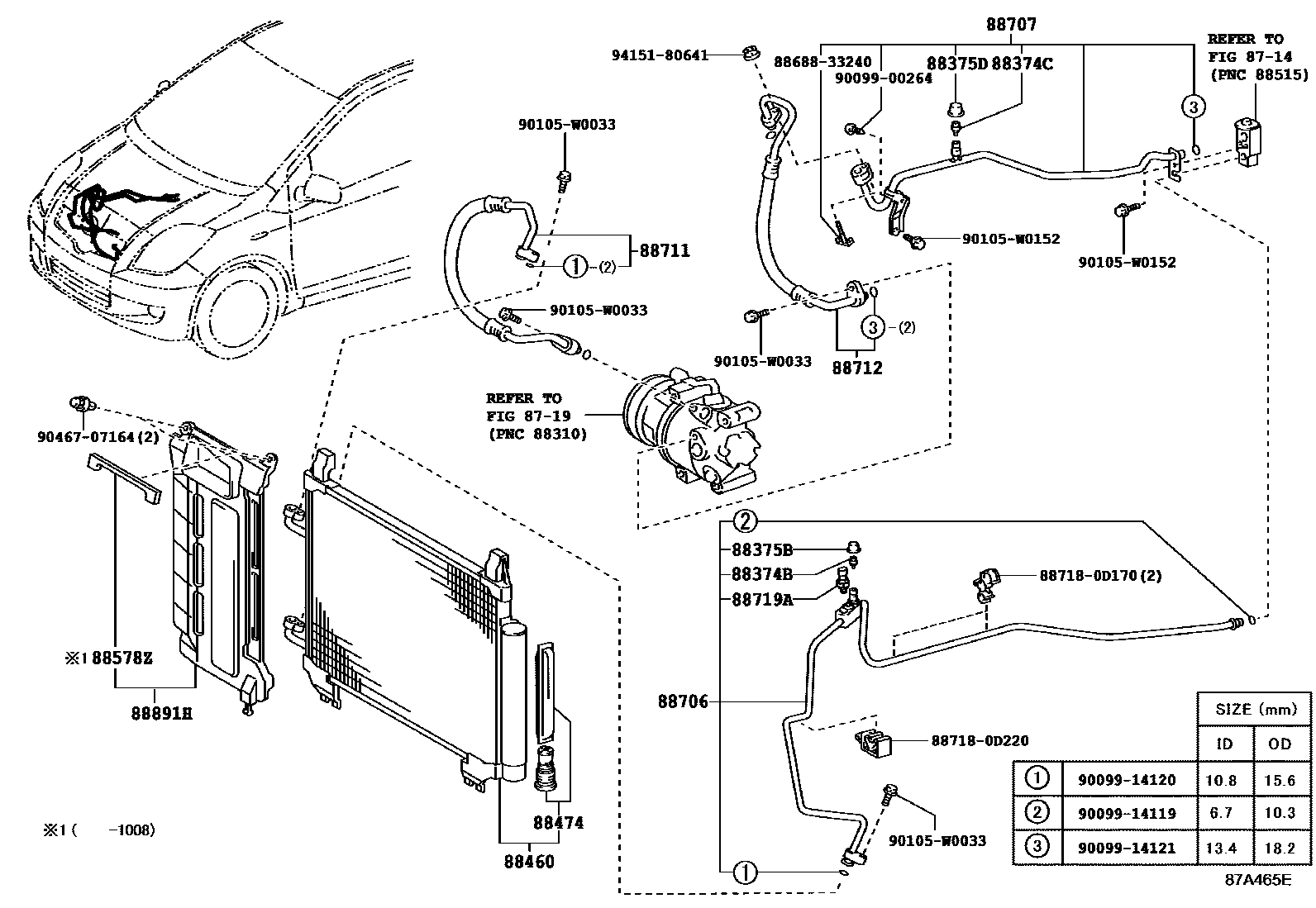

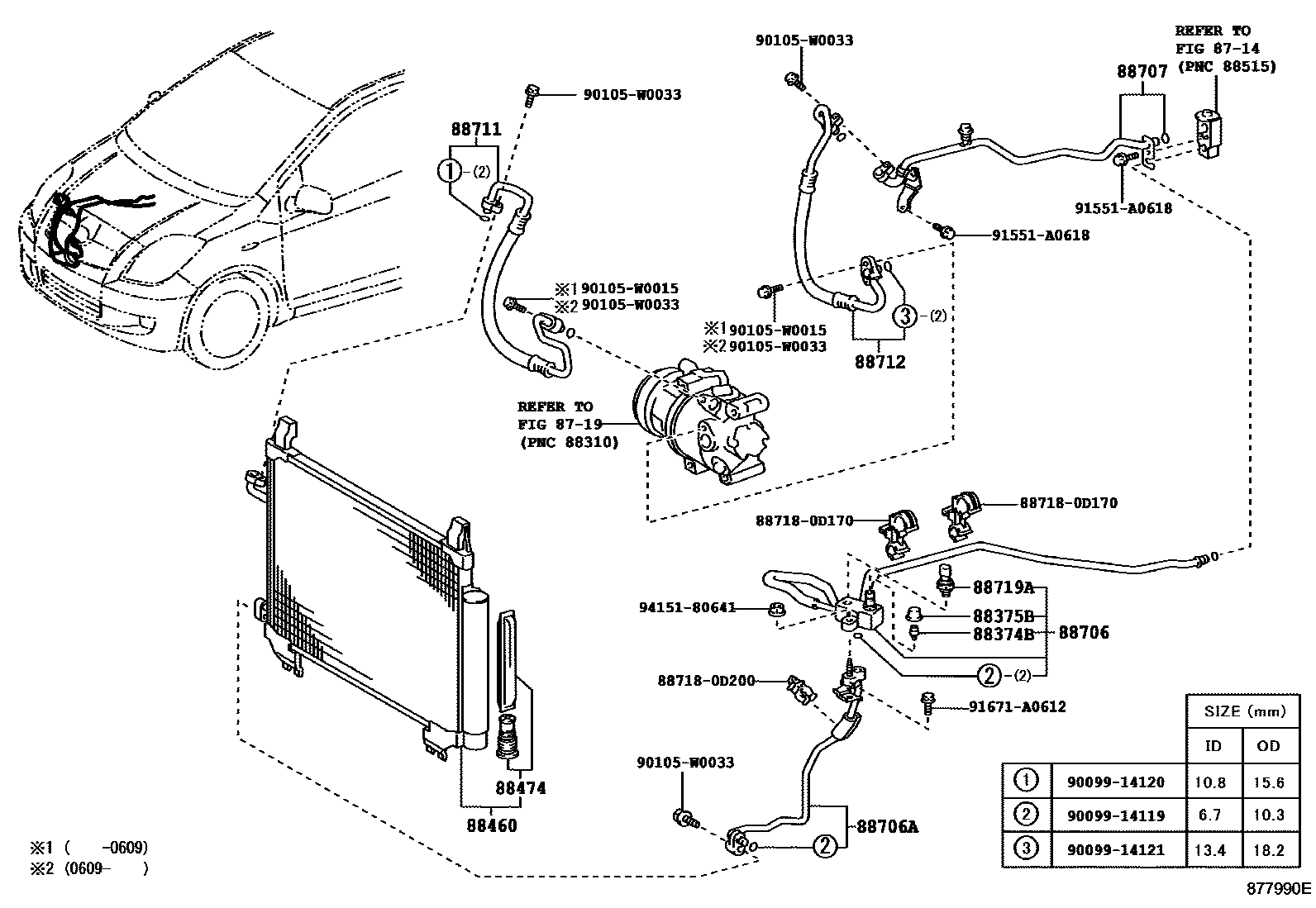

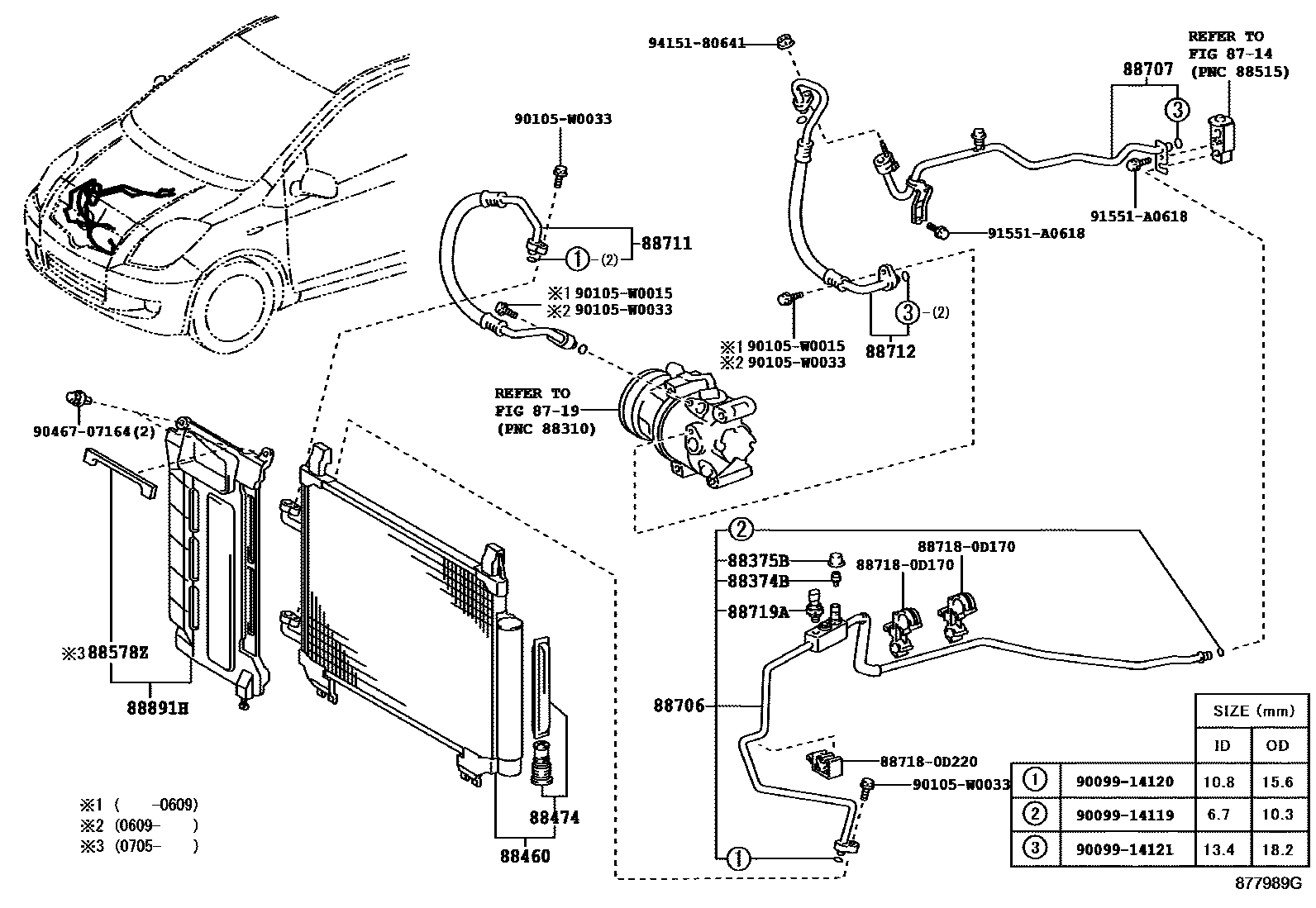

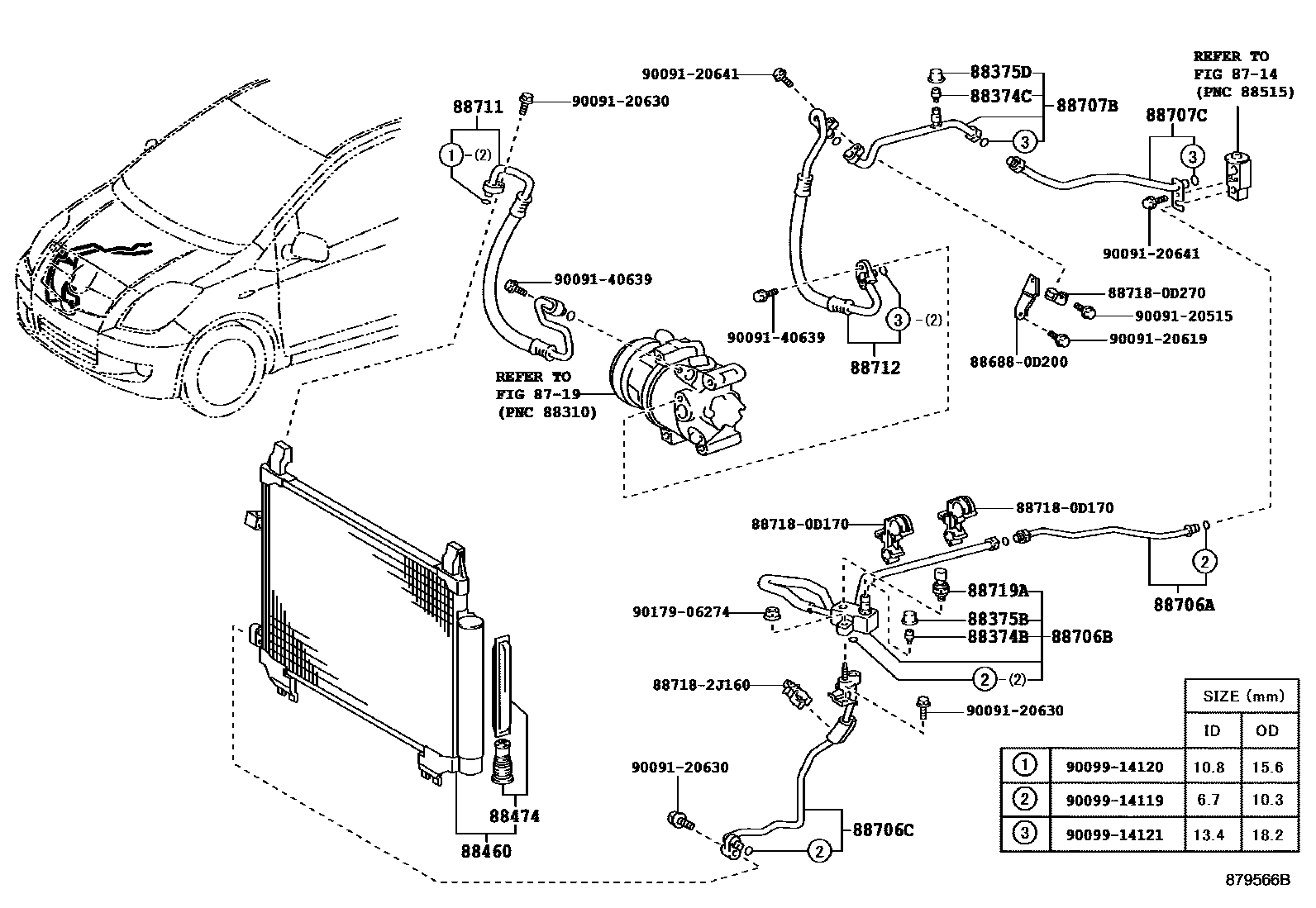

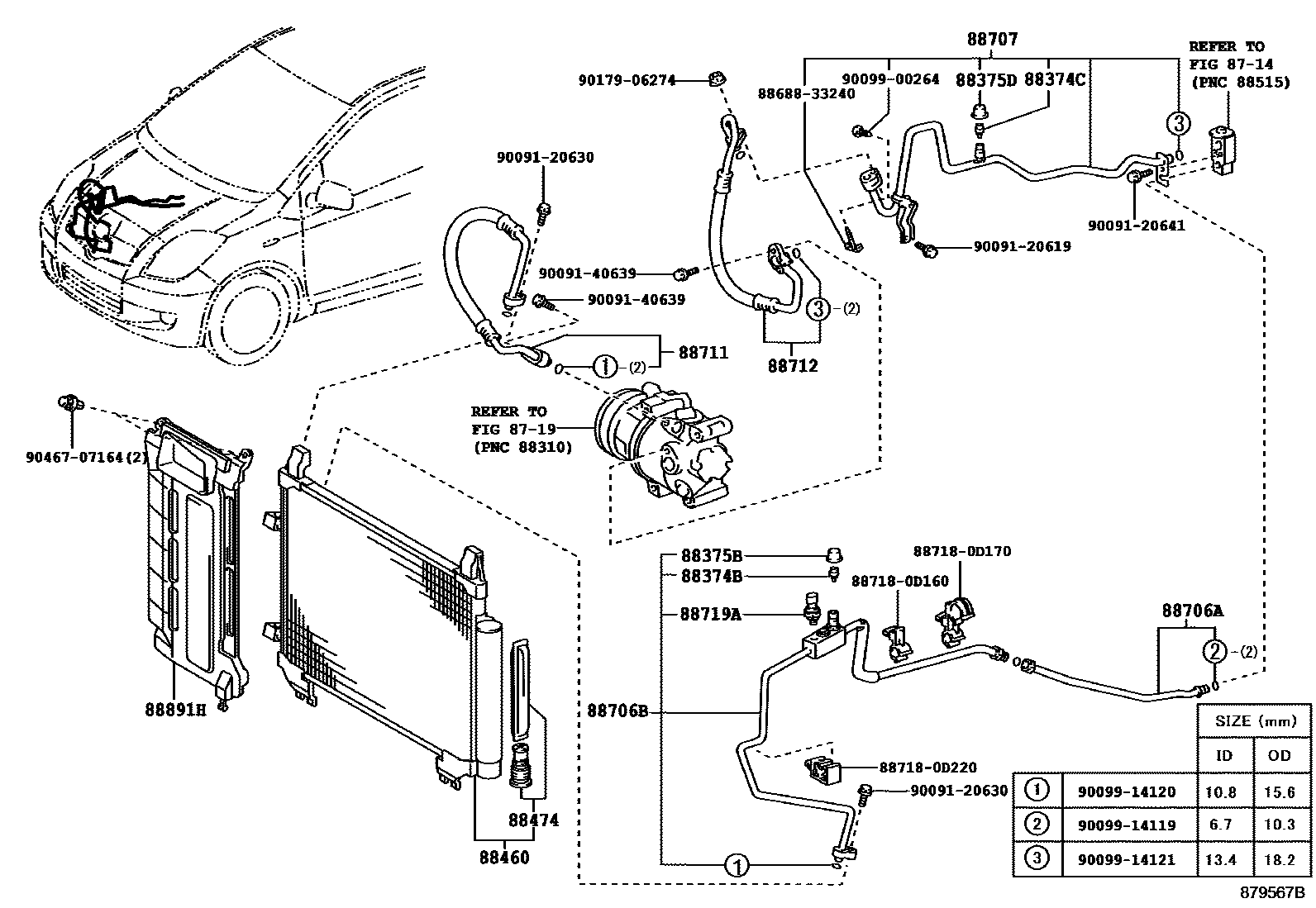

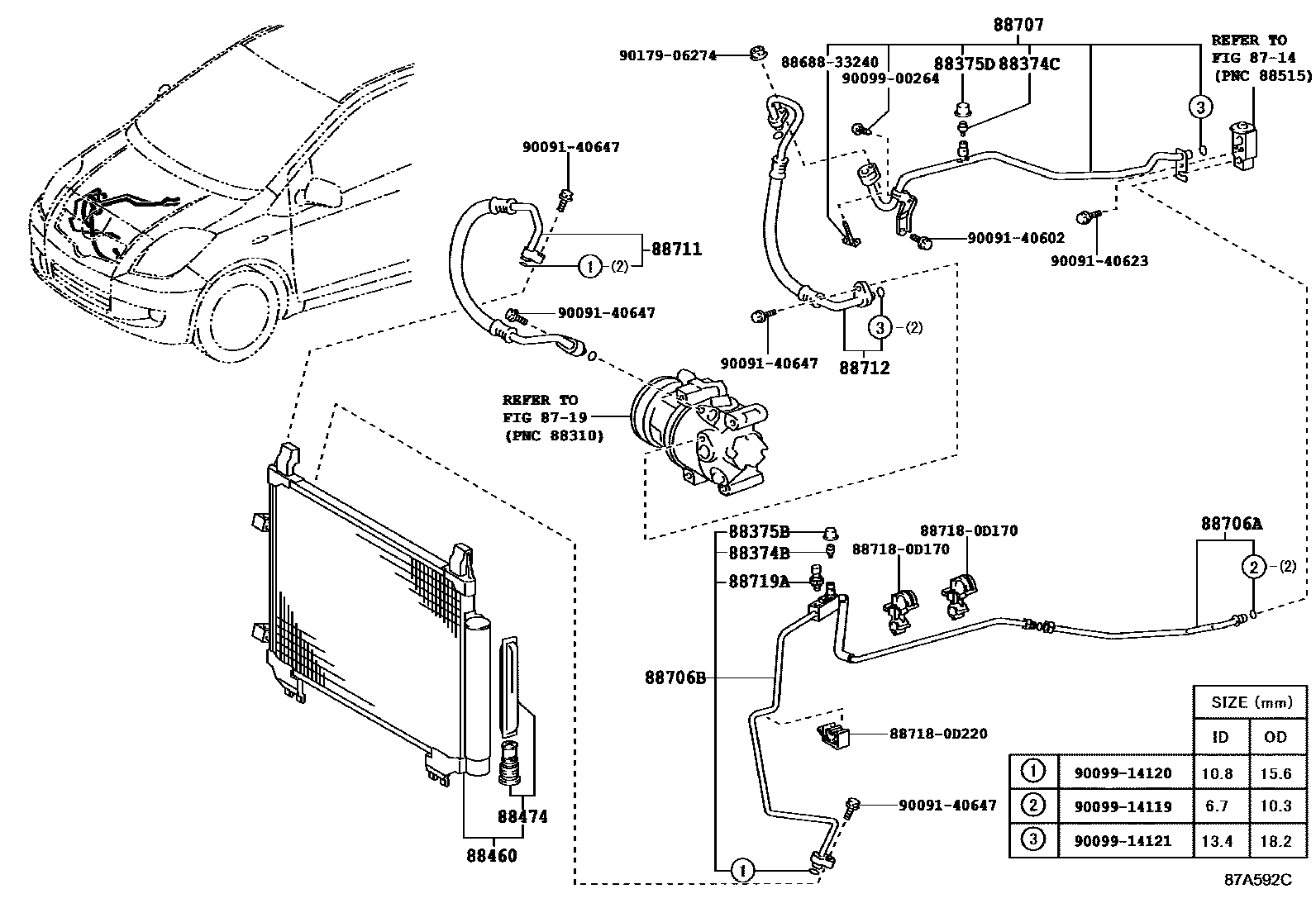

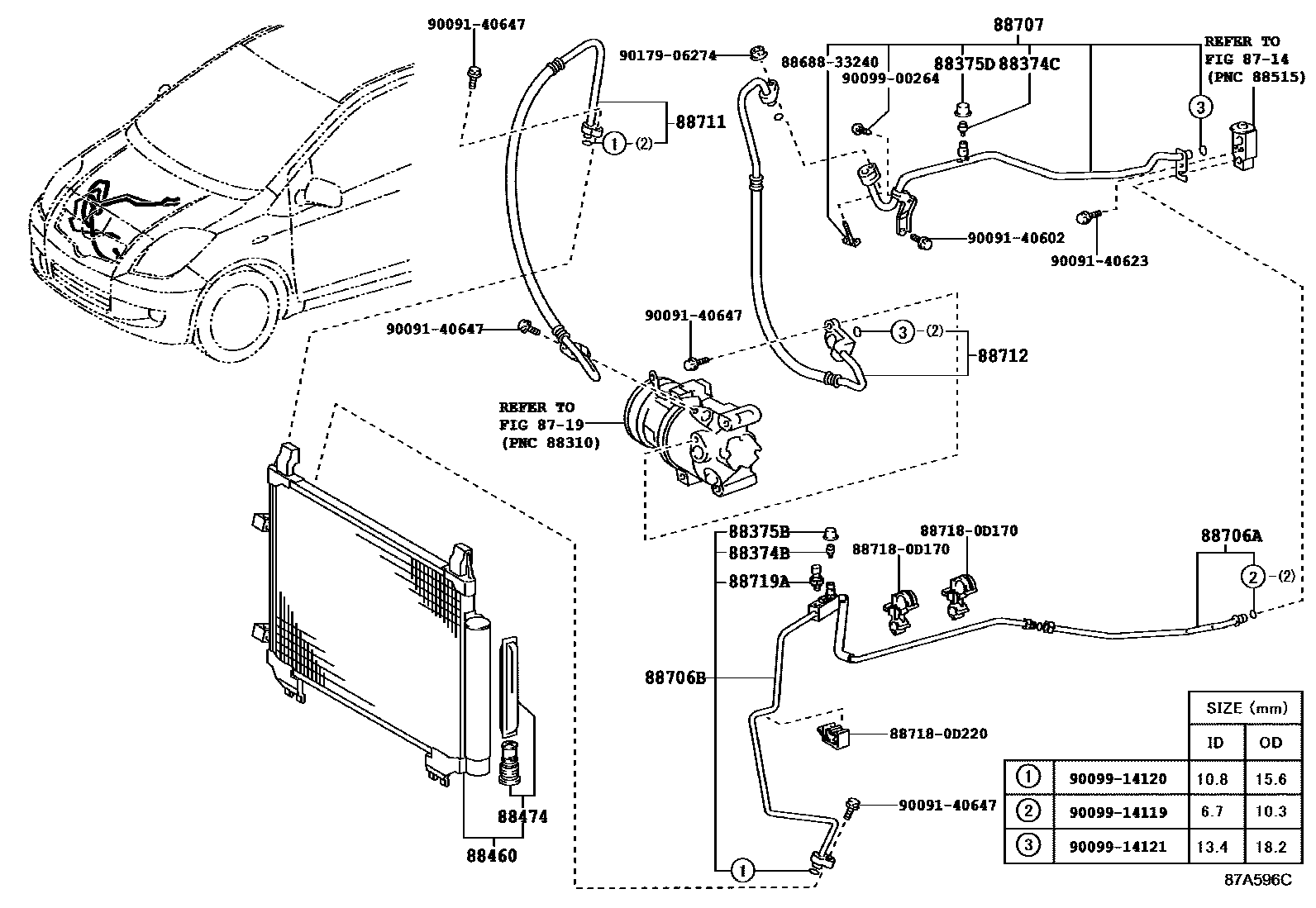

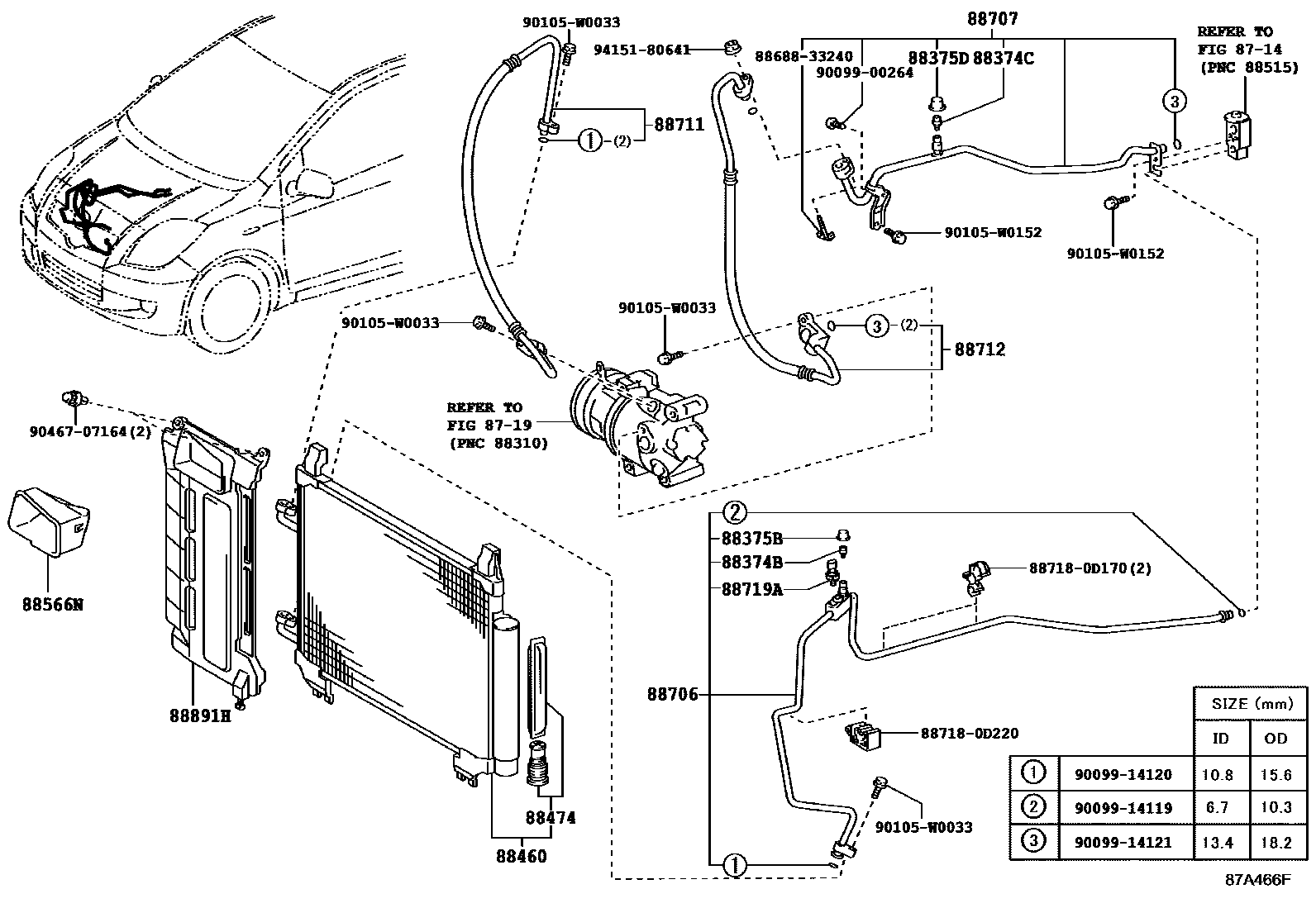

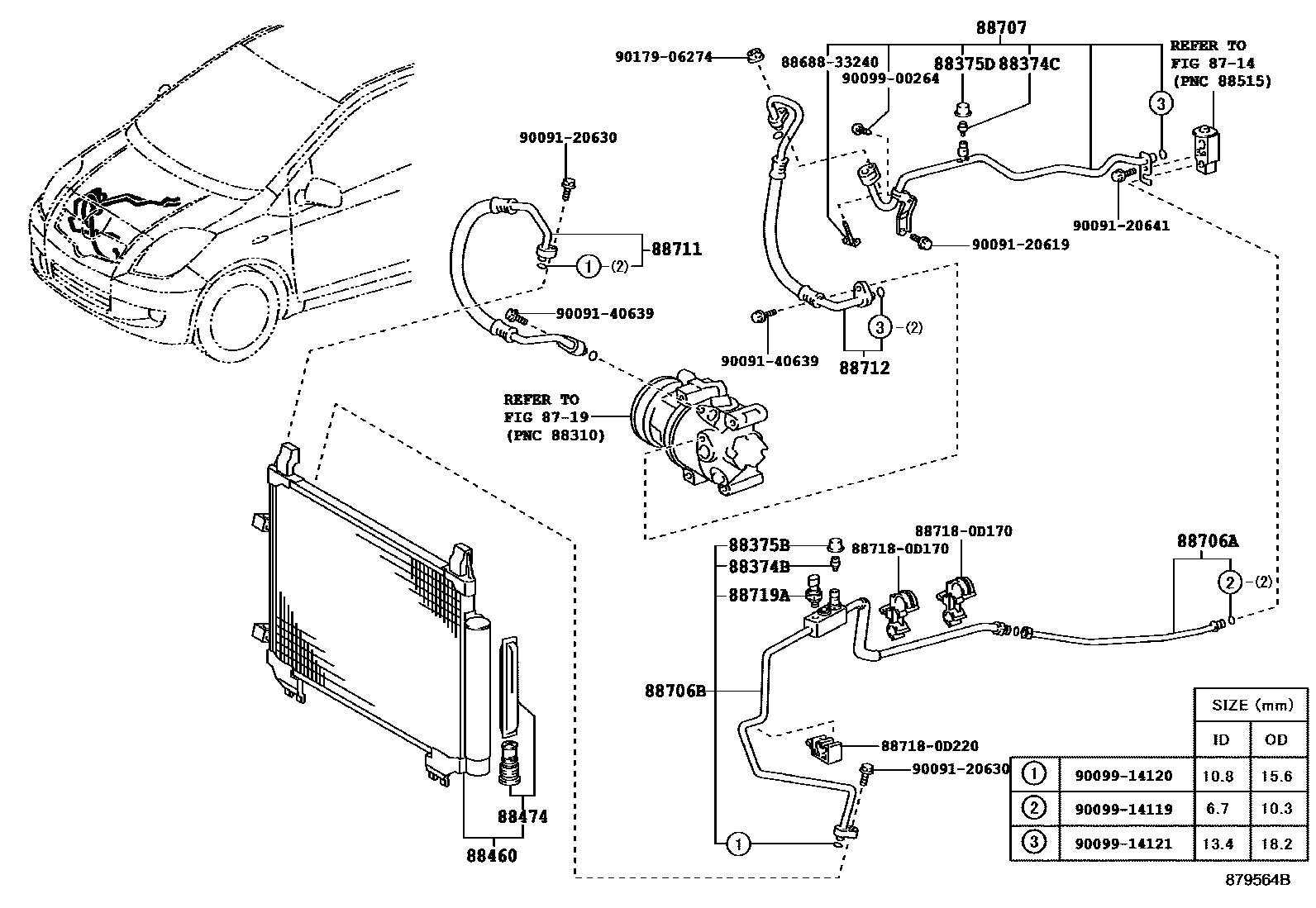

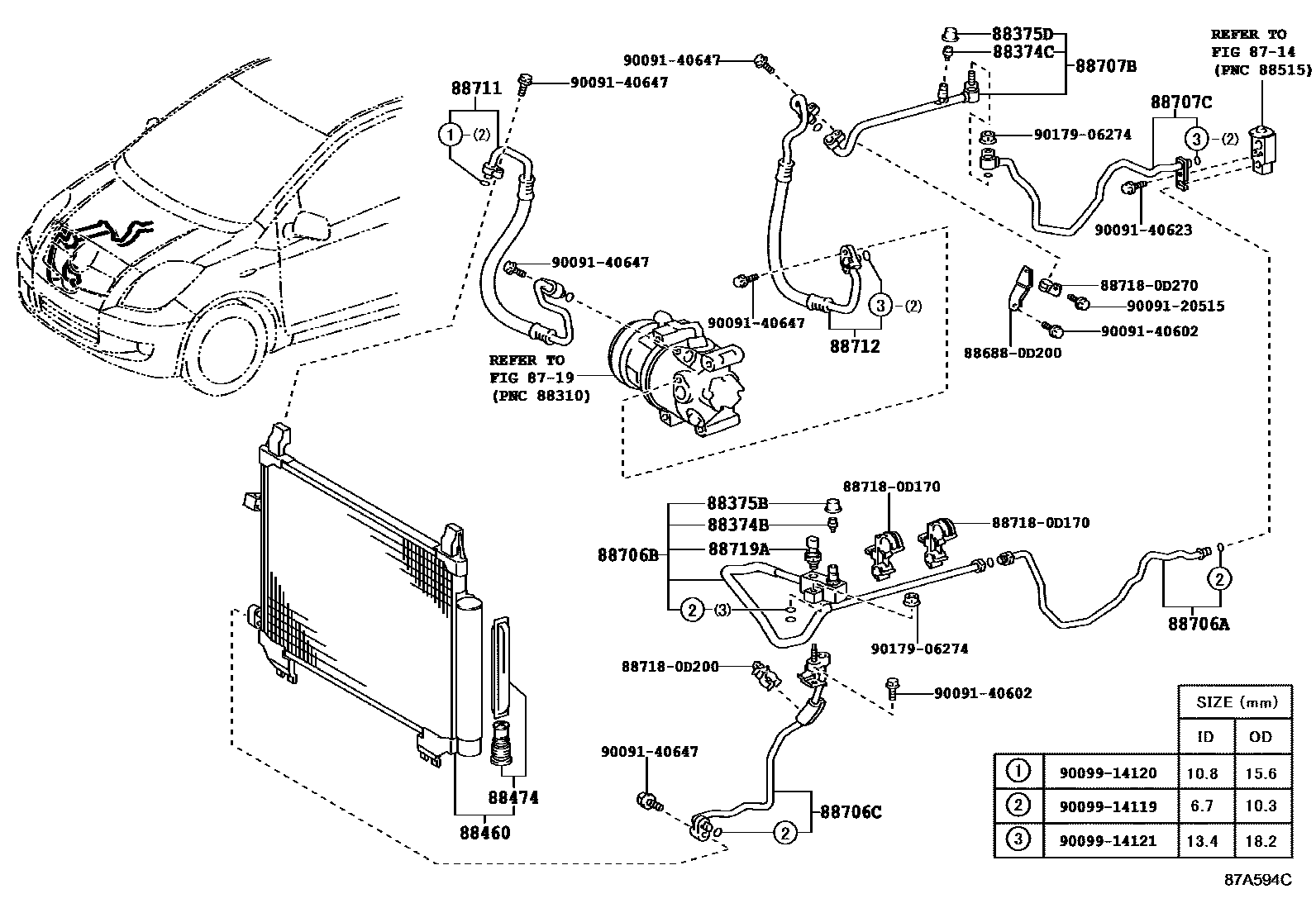

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 14 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D050 · 88460-0D060 |
| 88474 | cooler dryer | 88474-17010 |
| 88566N | Cooler No. 1 air duct | 88566-0D010 |
| 88578Z | Cooler seal No. 1 | 88578-0D070 |
| 88706 | Liquid pipe sub-assembly | 88706-0D190 · 88706-0D191 · 88706-0D200 |
| 88706A | Liquid pipe A sub-assembly | 88706-0D210 · 88716-0D260 · 88716-0D400 · 88716-52510 |
| 88706B | Liquid pipe B sub-assembly | 88706-0D250 · 88706-0D260 · 88706-0D270 · 88706-0D340 |
| 88706C | Liquid pipe C sub-assembly | 88706-0D210 |
| 88707 | Suction pipe sub-assembly | 88707-0D060 · 88707-0D070 · 88707-0D071 · 88707-0D080 · 88707-0D200 |
| 88707B | Suction pipe B sub-assembly | 88707-0D100 · 88707-0D130 · 88707-0D180 |
| 88707C | Suction pipe C sub-assembly | 88707-0D110 · 88707-0D120 · 88707-0D190 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D120 · 88711-0D130 · 88711-0D131 · 88711-0D140 · 88711-0D250 · 88711-0D260 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D160 · 88712-0D170 · 88712-0D180 · 88712-0D330 · 88712-0D340 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
| 88891H | Cooler cover No. 1 | 88891-0D060 · 88891-0D070 |
