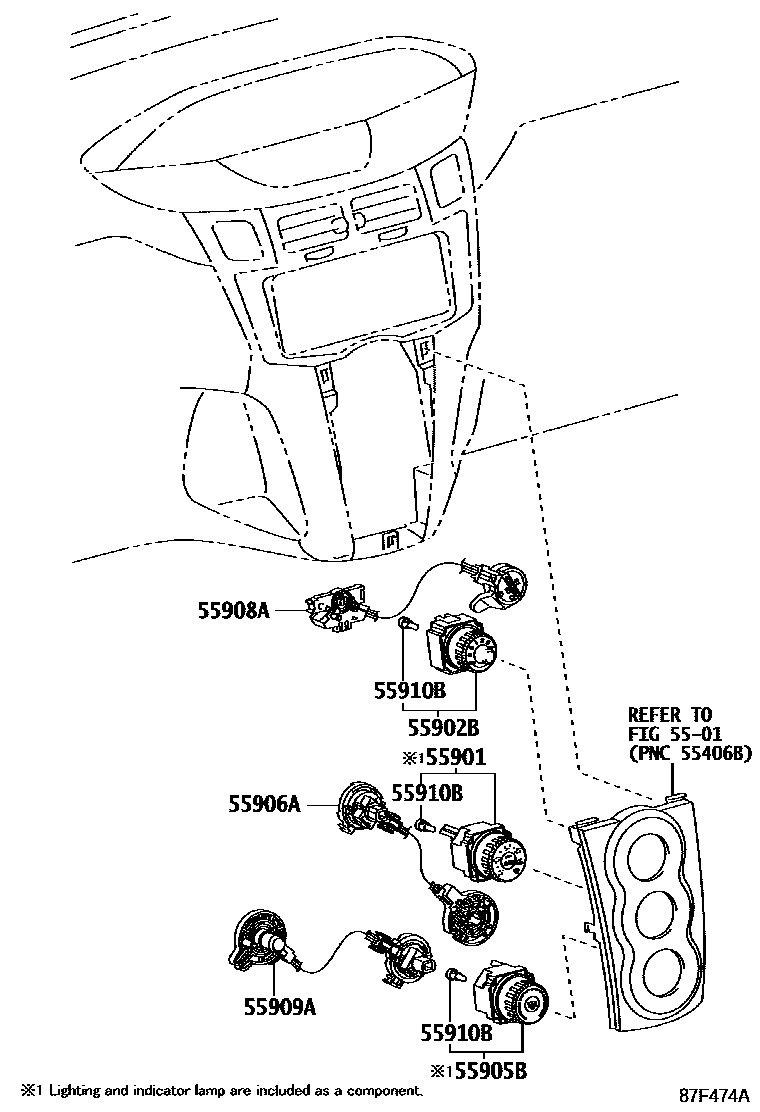

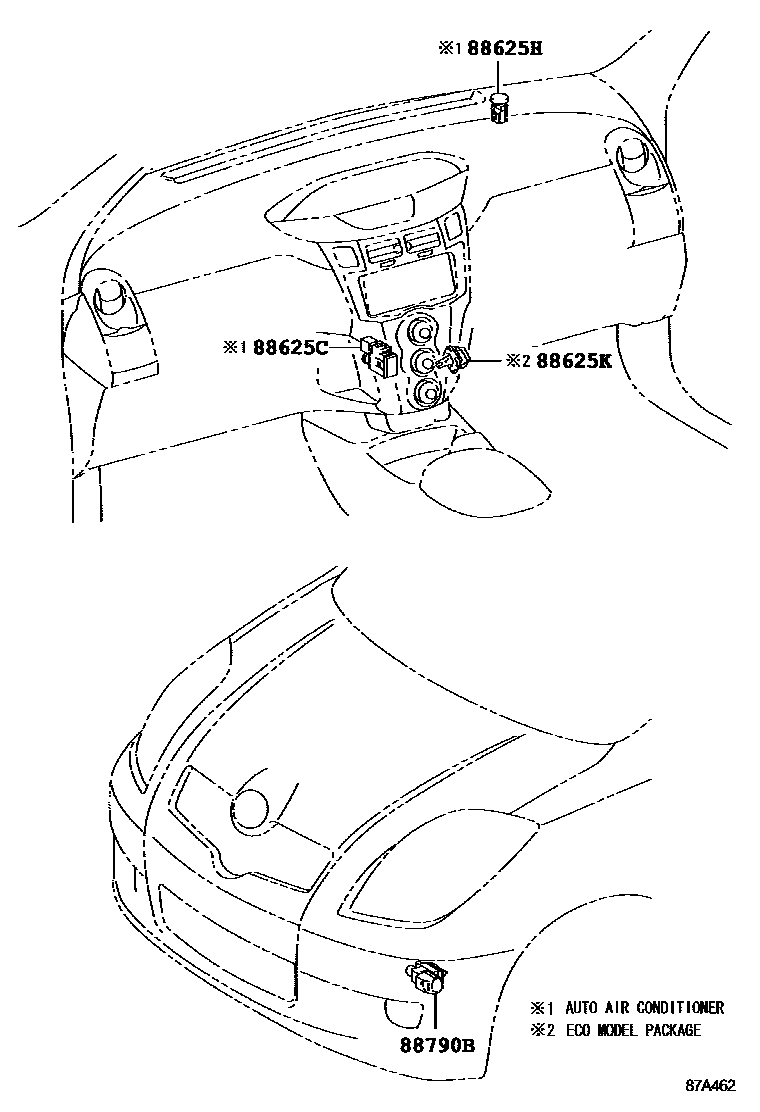

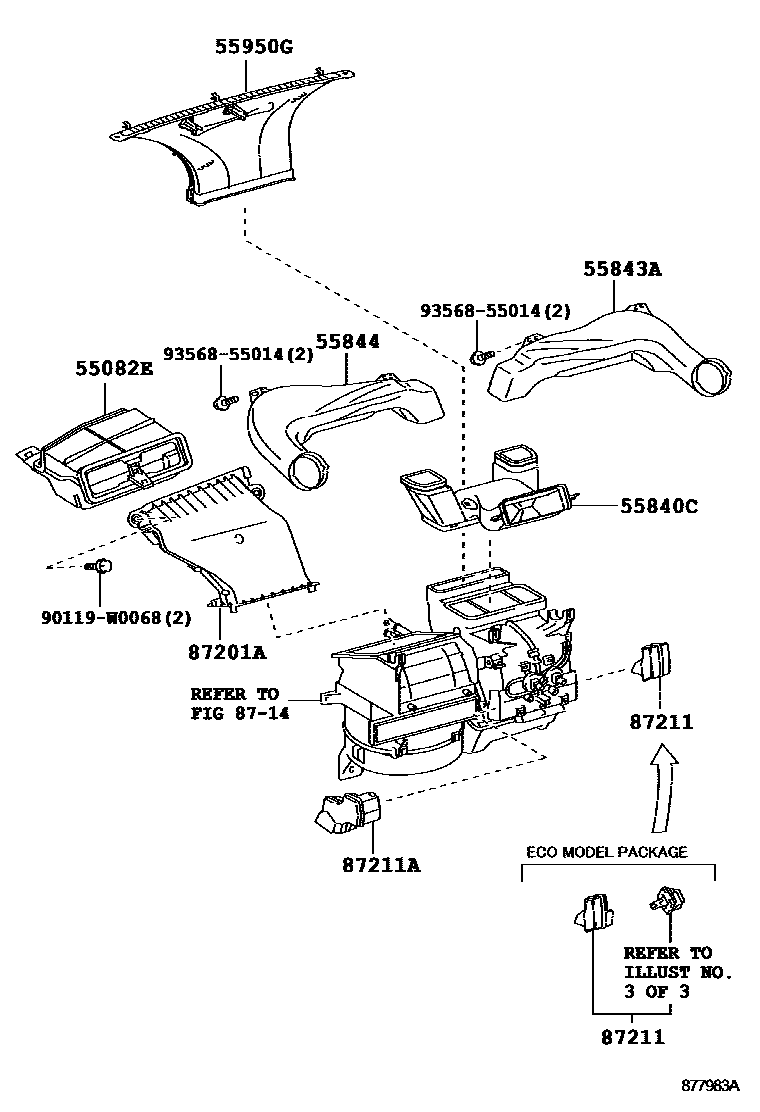

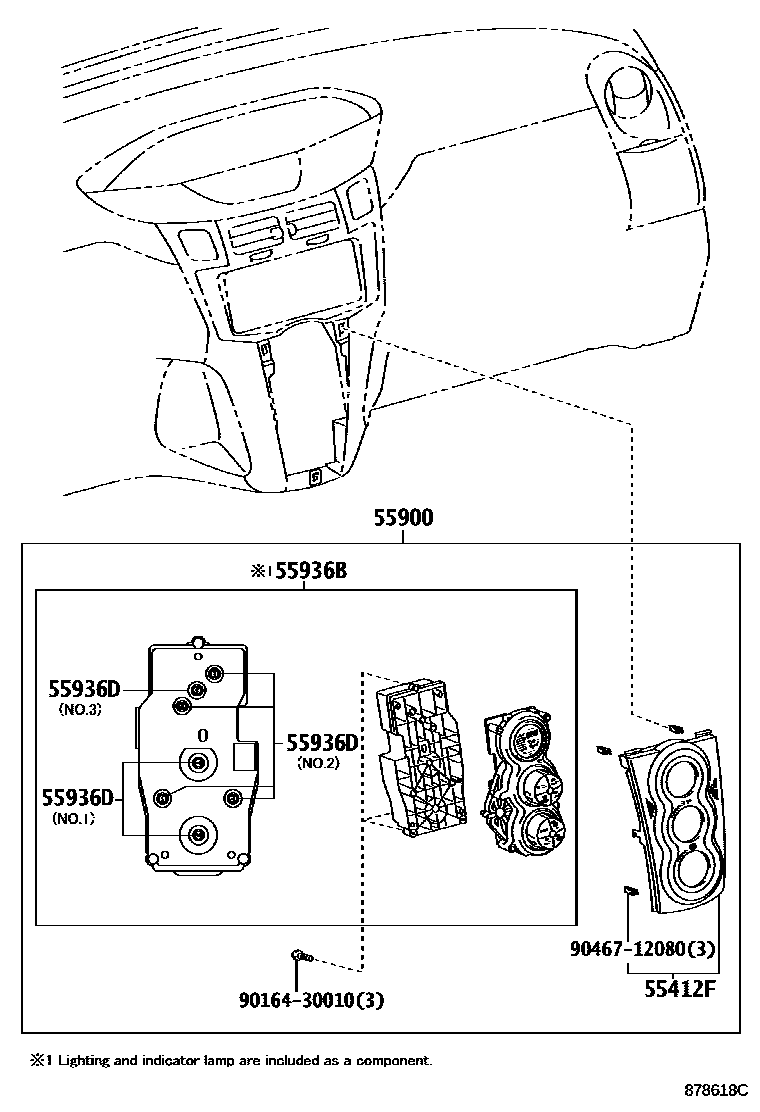

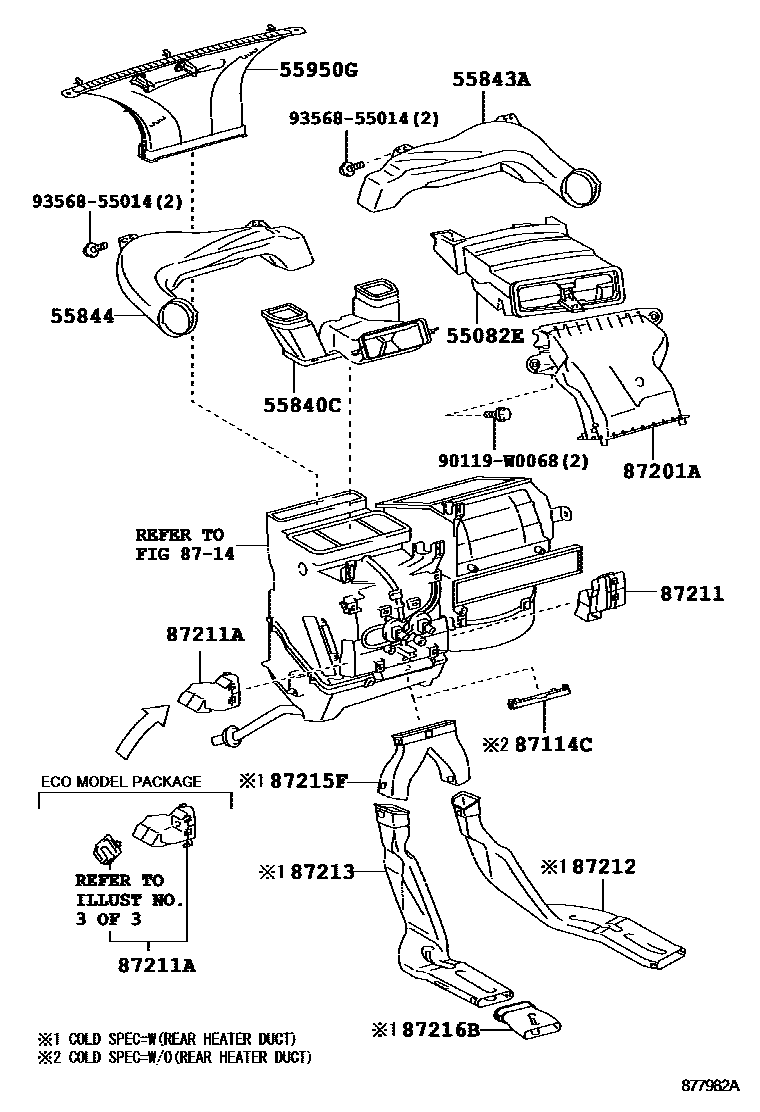

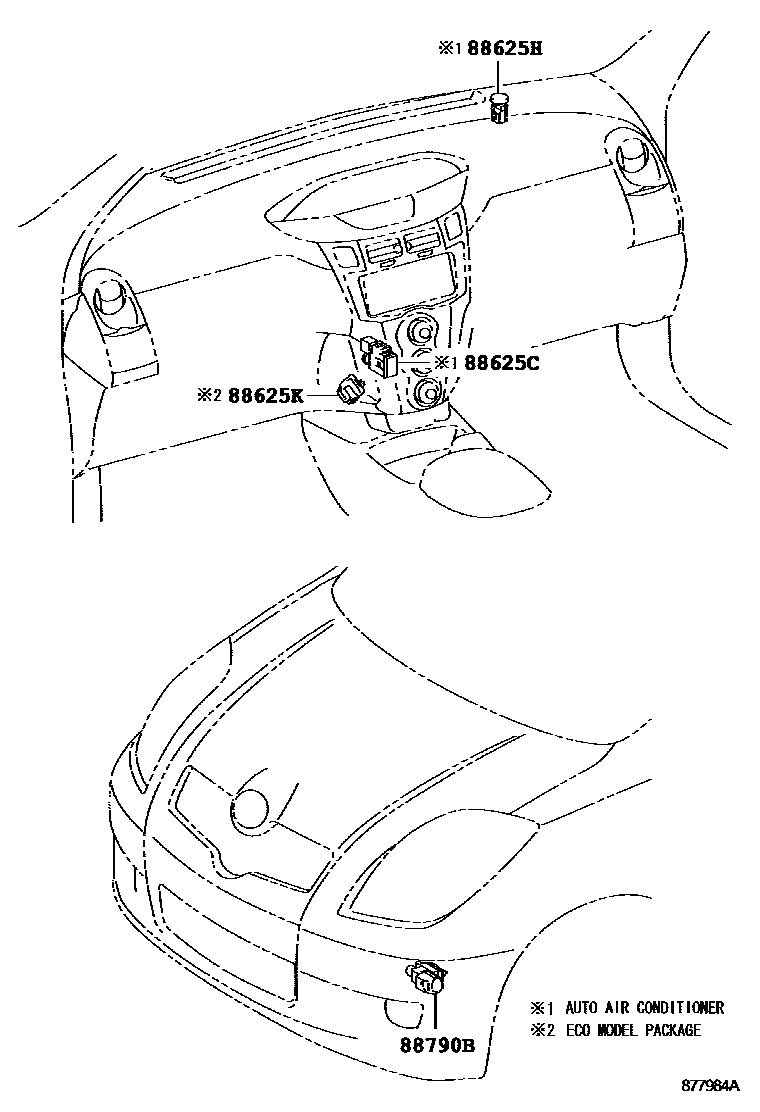

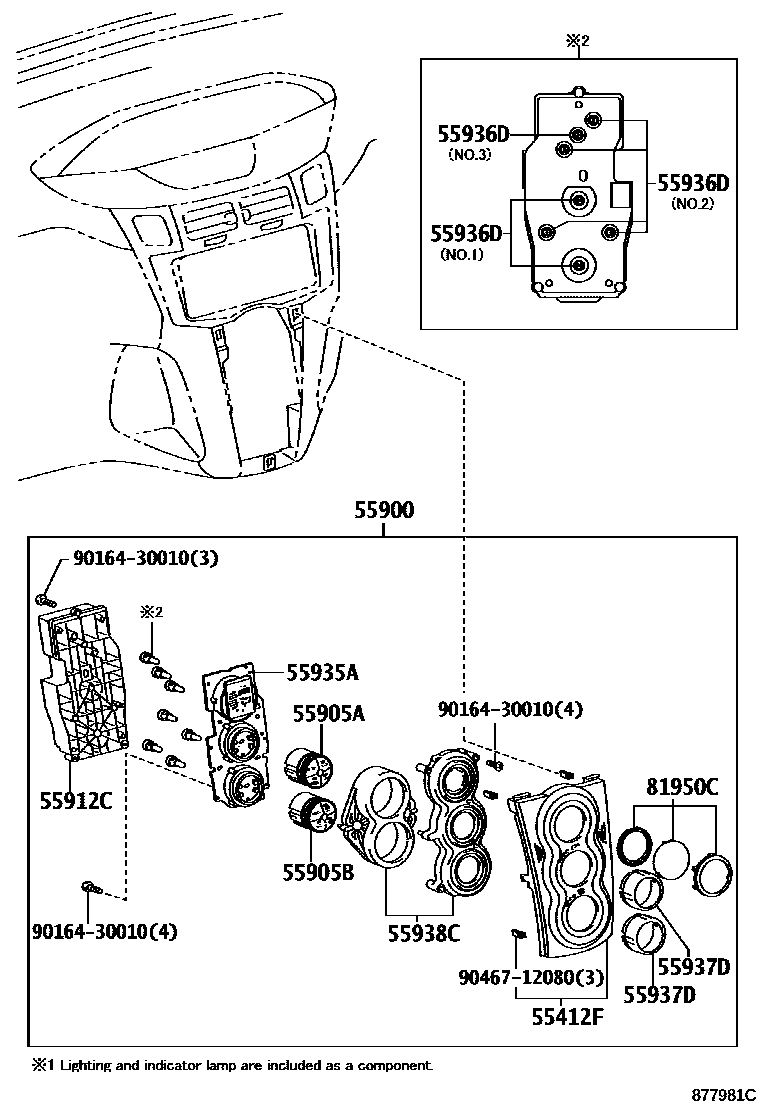

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55082E | Air duct sub-assembly from front wall to air register No. 2 | 55081-0D010 · 55081-0D040 · 55082-0D010 · 55082-0D040 |
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-0D010 · 55840-0D020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-0D090 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0D090 |
| 55901 | Heater controller base sub-assembly | 55901-0D010 · 55901-0D020 · 55901-0D130 · 55901-0D140 · 55901-0D150 · 55901-0D160 |
| 55902B | Heater control sub-assembly | 55902-0D010 · 55902-0D120 · 55902-0D130 |
| 55905A | Heater control button | 55905-0D080 |
| 55905B | Heater control button 2 | 55903-0D010 · 55903-0D020 · 55903-0D130 · 55903-0D140 · 55903-0D150 · 55903-0D160 · 55905-0D050 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52120 · 55908-52130 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55910B | heater control light bulb | 90010-01112 · 90010-01113 |
| 55912C | heater control housing | 55912-0D010 |
| 55935A | Central instrument cluster module circuit | 55935-0D010 |
| 55936B | Central instrument cluster module switch | 55936-0D010 · 55936-0D020 · 55936-0D040 |
| 55936D | Center instrument cluster module switch bulb | 90010-01097 · 90010-01114 · 90010-01115 · 90010-01131 · 90010-01132 · 90010-01144 |
| 55937D | No. 1 central instrument cluster module button | 55937-0D140 |
| 55938C | Center instrument cluster module indicator lamp cover | 55938-0D010 |
| 55950G | Defroster nozzle assembly | 55950-0D050 |
| 81950C | Central instrument cluster module indicator lamp shade assembly | 81950-0D020 |
| 87114C | heater cover | 87114-0D060 |
| 87201A | Air duct sub-assembly | 87201-0D010 · 87201-0D020 |
| 87211 | No. 1 air duct | 87201-0D120 · 87211-0D020 · 87211-0D030 |
| 87211A | Duct No. 2 | 87201-0D110 · 87211-0D010 · 87211-0D040 |
| 87212 | No. 1 rear air duct | 87212-0D060 |
| 87213 | No. 2 rear air duct | 87213-0D060 |
| 87215F | No. 3 rear air duct | 87215-0D030 |
| 87216B | No. 4 rear air duct | 87216-0D030 |
| 88625C | Cooler thermistor | 88625-47021 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625K | Cooler thermistor | 88625-50130 |
| 88790B | Thermistor assembly | 88790-22131 |
