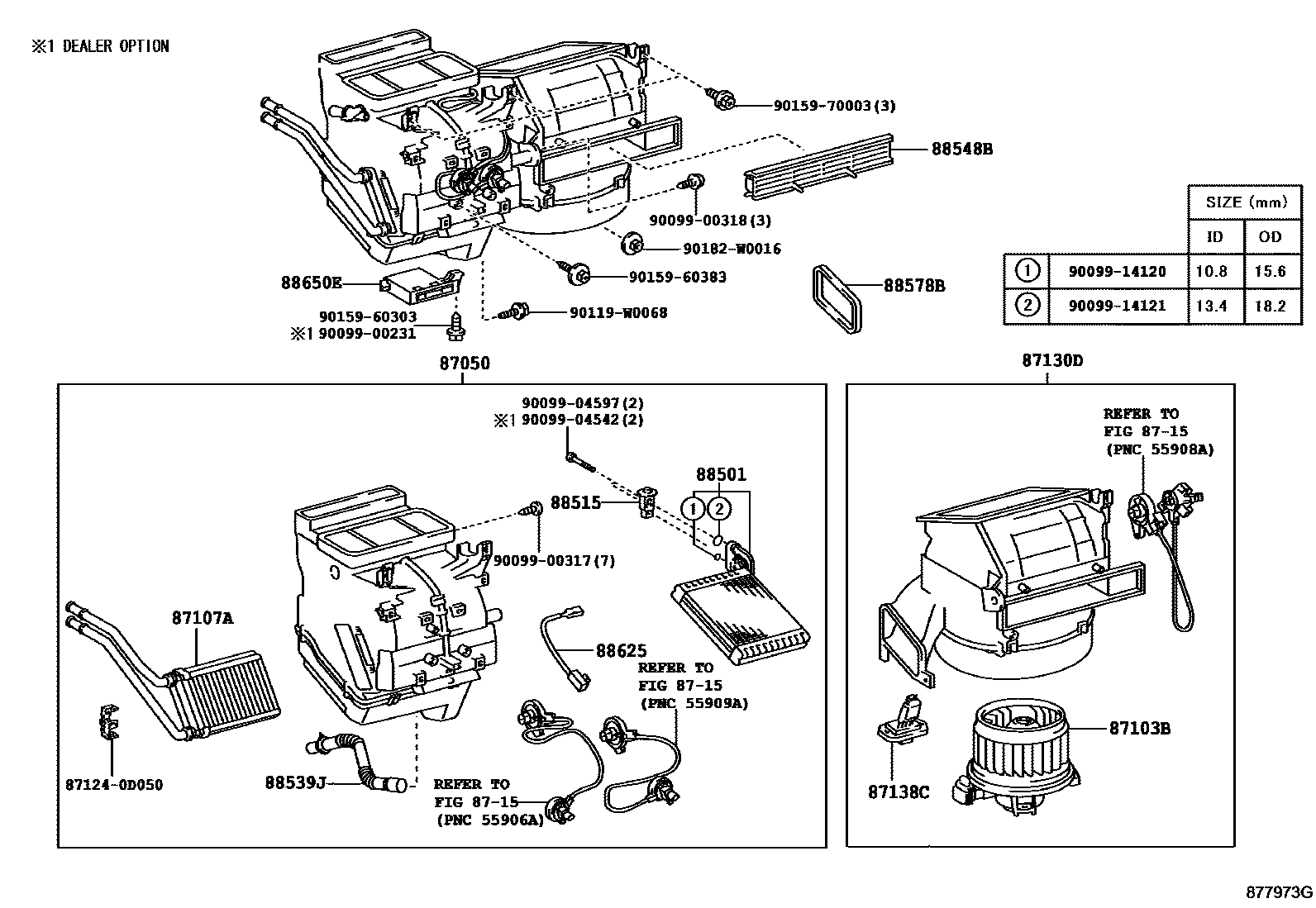

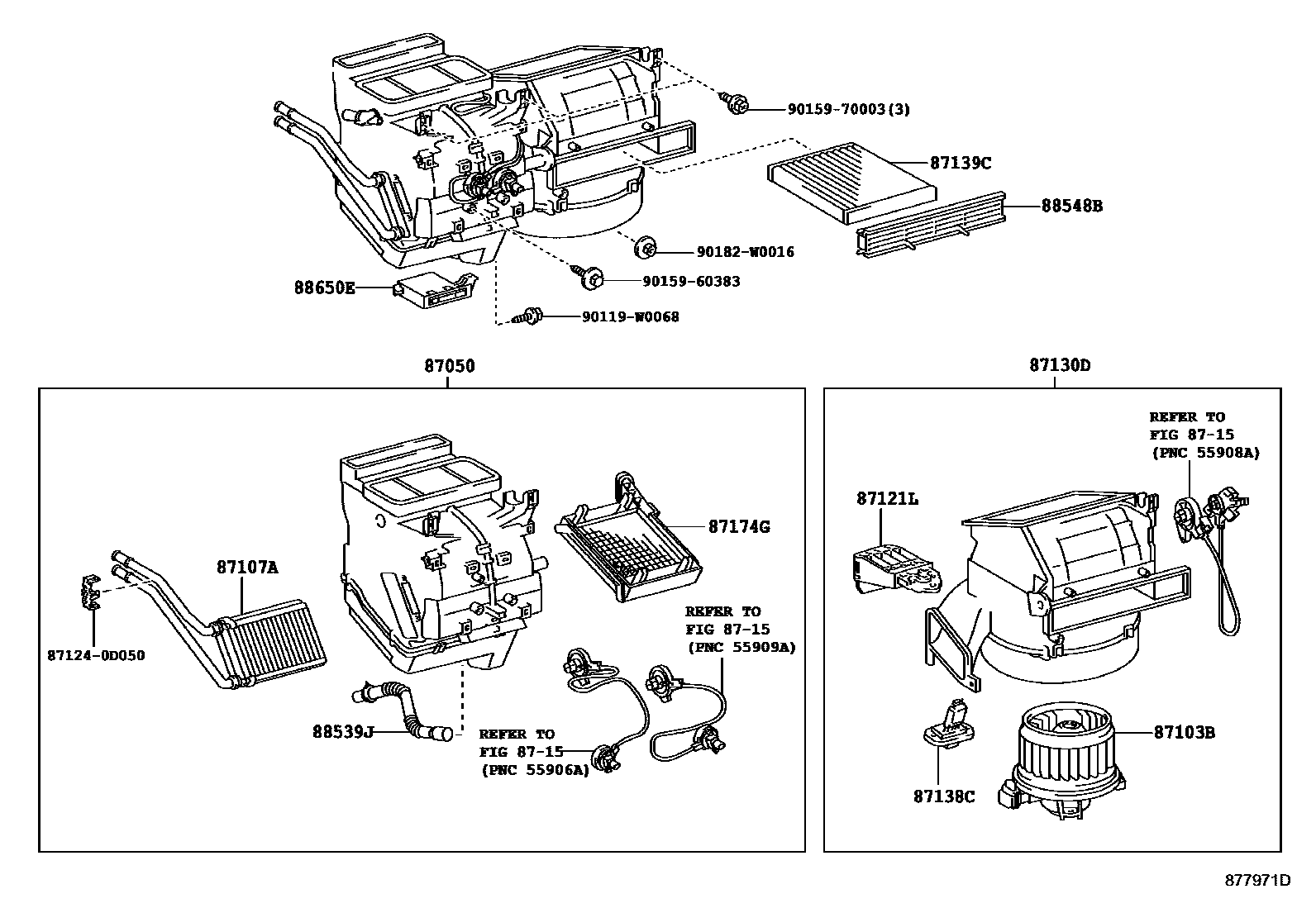

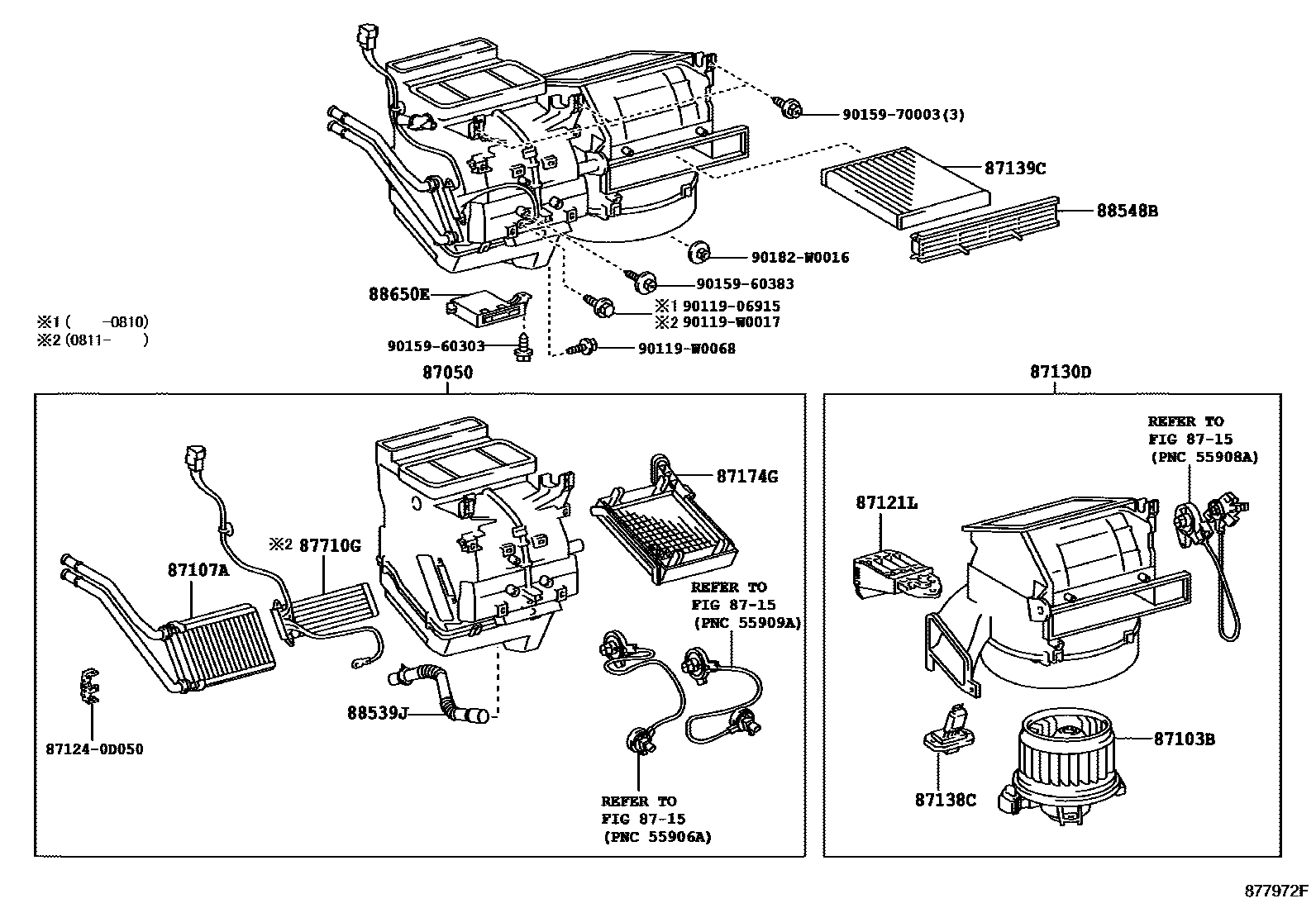

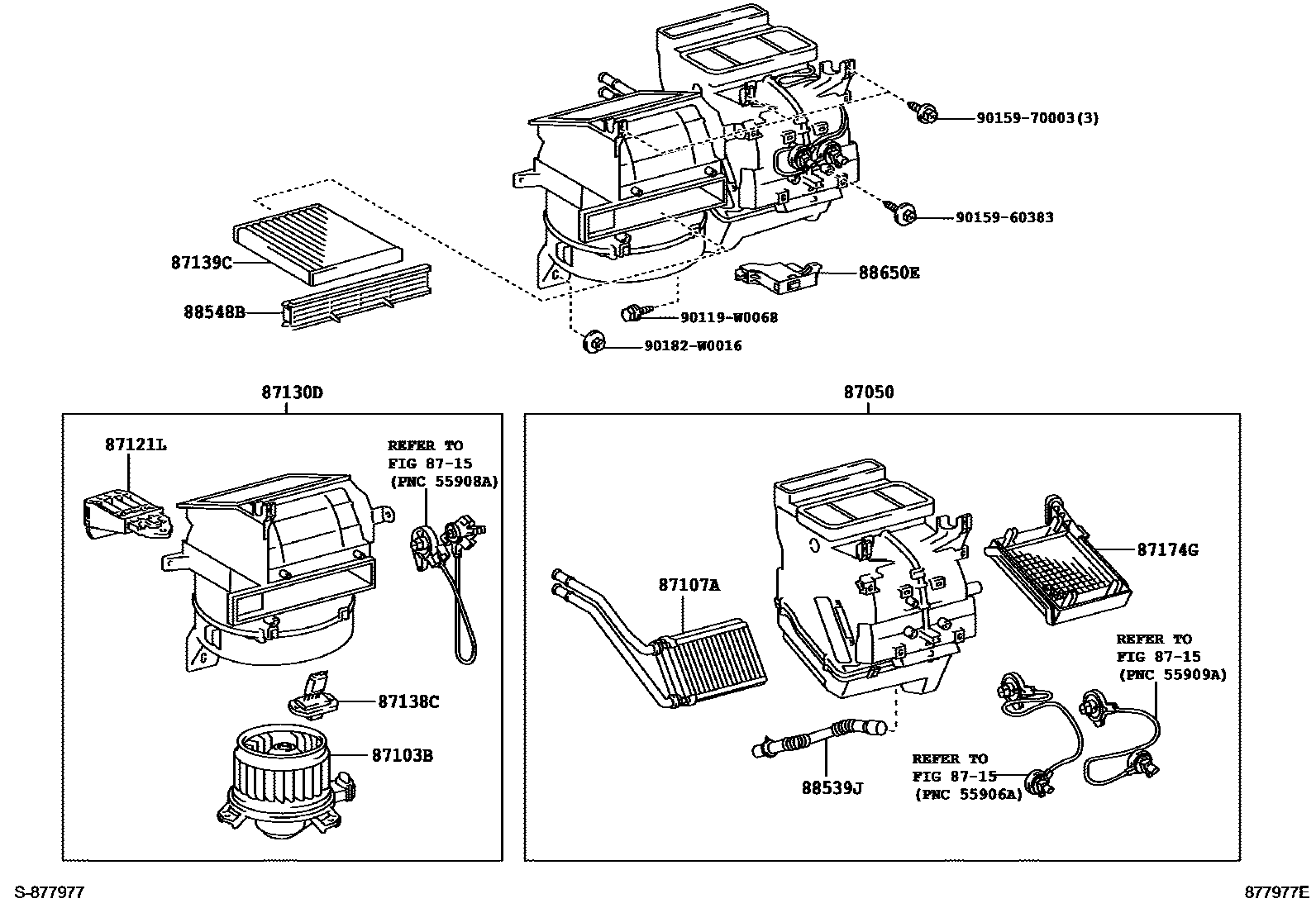

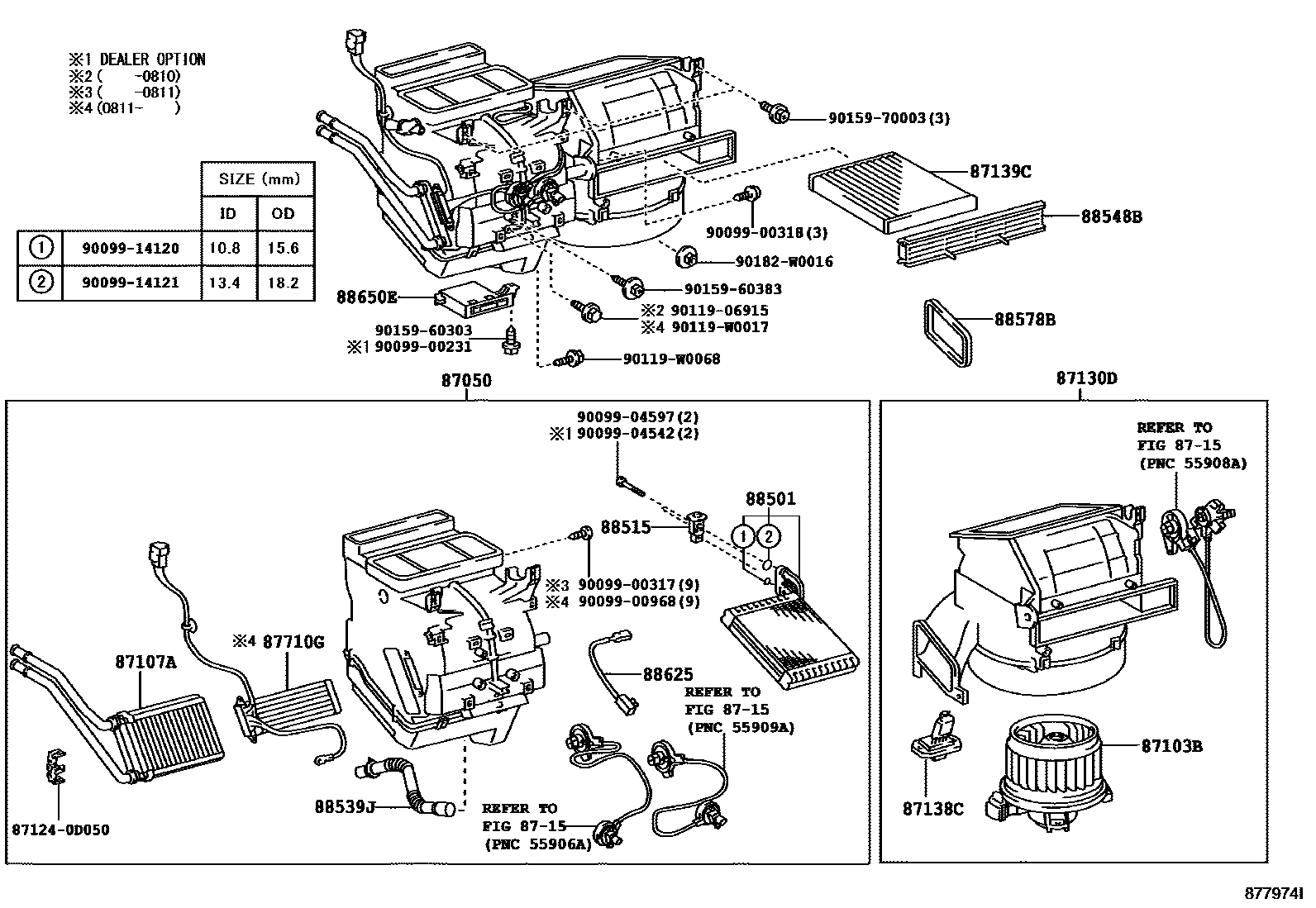

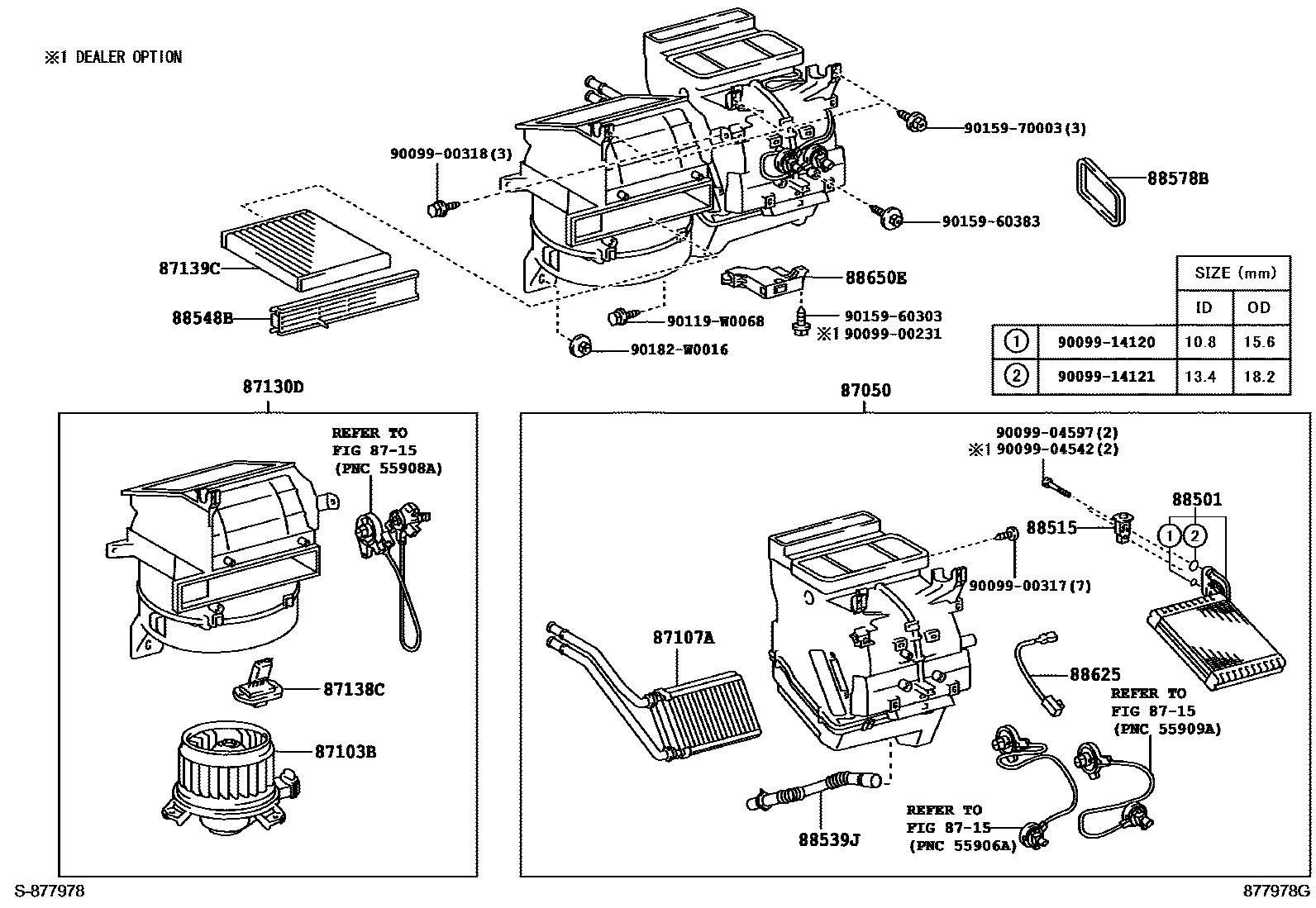

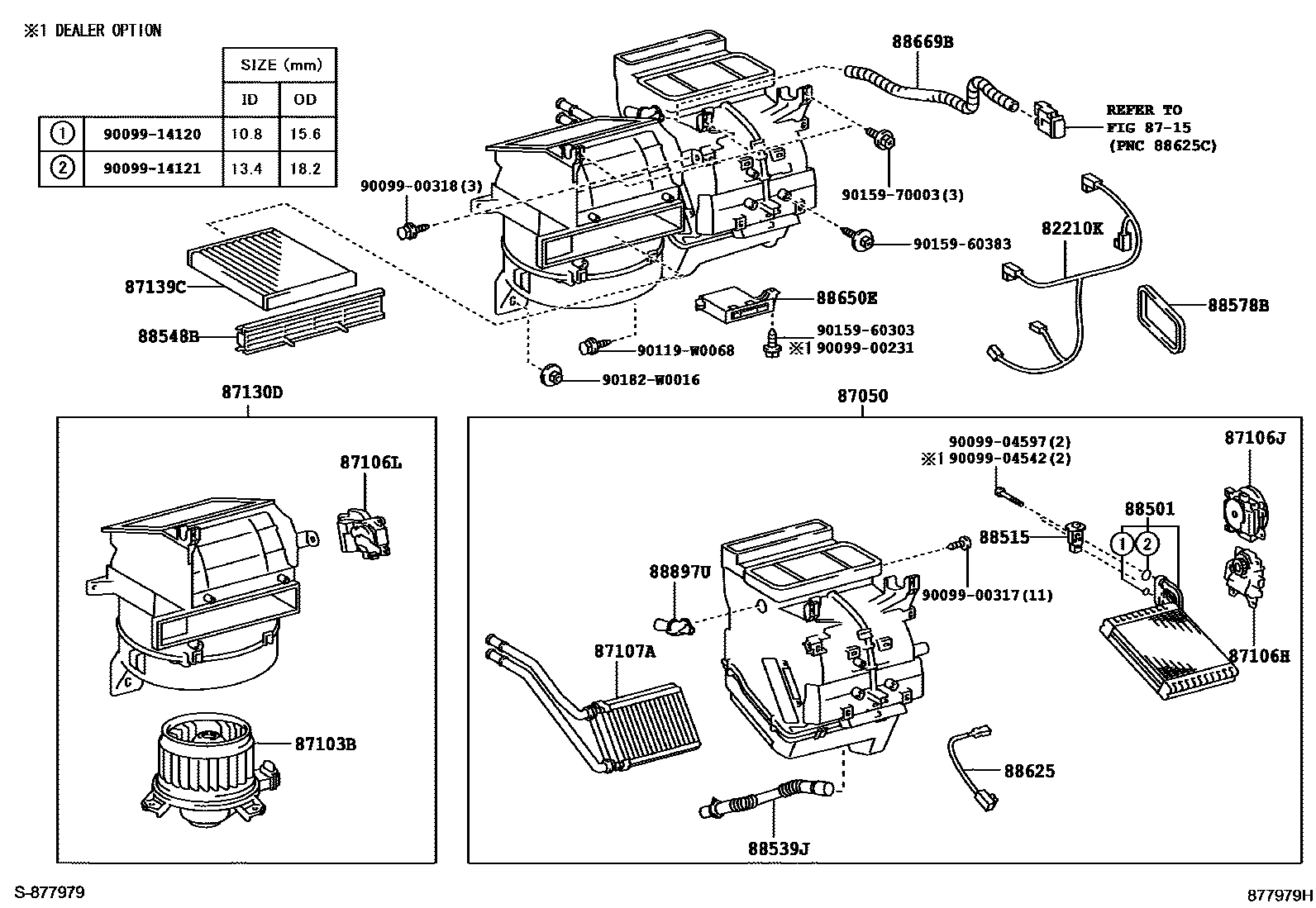

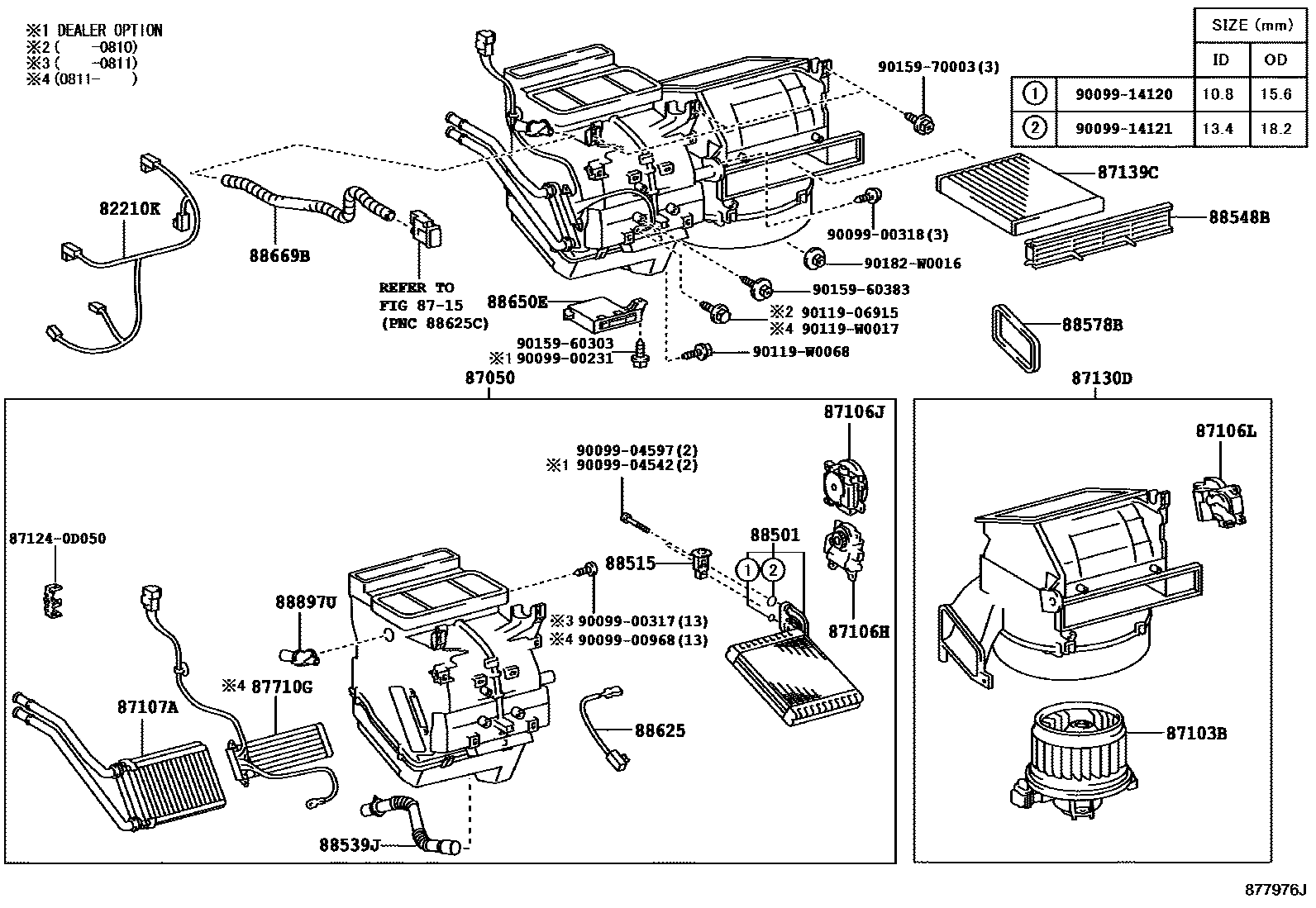

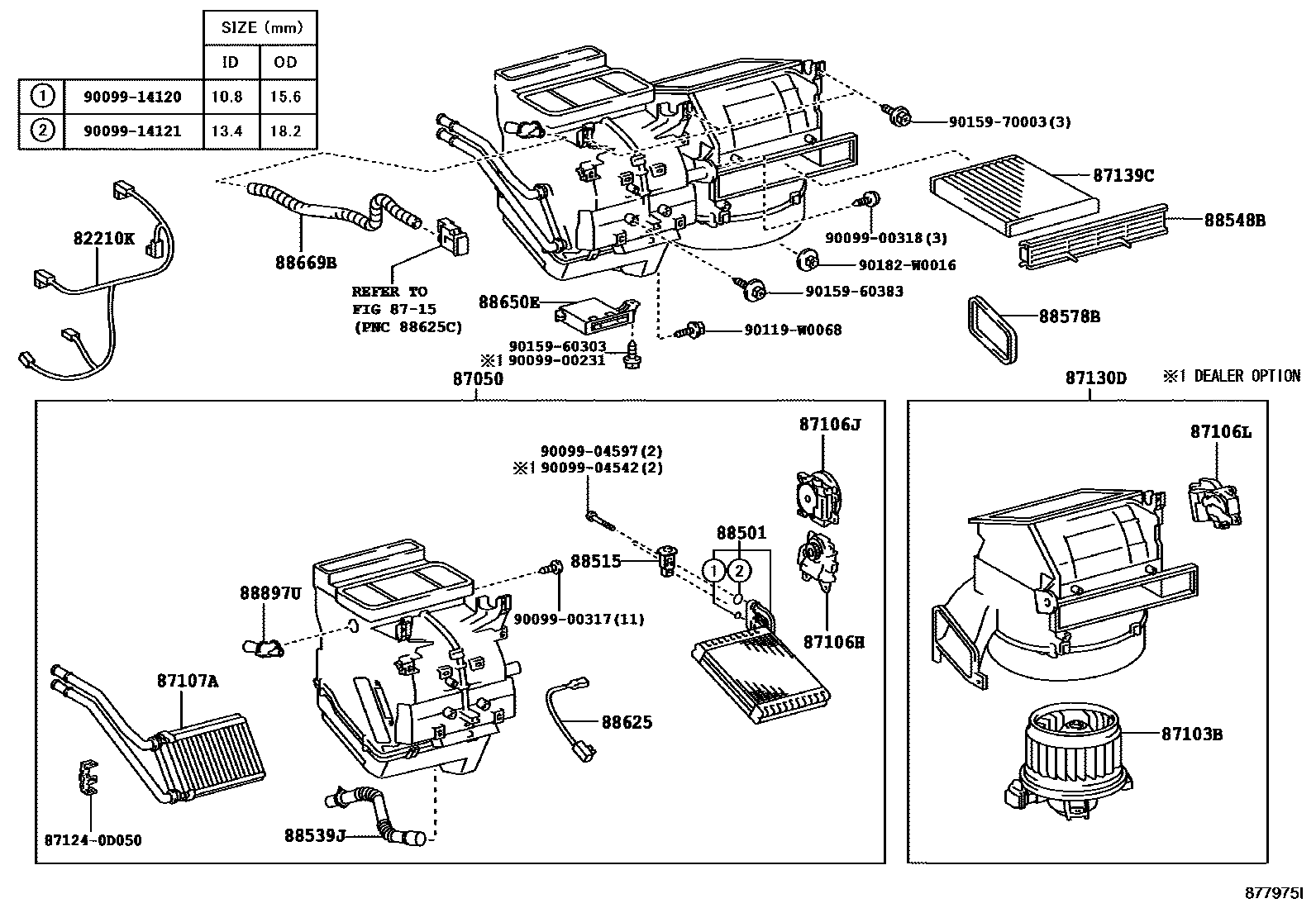

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 9 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-52010 · 82212-52020 · 82212-52030 · 82212-52040 |
| 87050 | Air conditioning radiator assembly | 87050-0D010 · 87050-0D020 · 87050-0D030 · 87050-0D041 · 87050-0D051 · 87050-0D060 · 87050-0D071 · 87050-0D080 · 87050-0D090 · 87050-0D100 · 87050-0D180 · 87050-0D190 · 87050-0D200 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D100 · 87103-0D110 · 87103-52130 · 87103-52131 · 87103-52132 · 87103-52150 · 87103-52151 · 87103-52152 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-0D020 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-0D030 |
| 87106L | Damper servo mechanism sub-assembly | 87106-0D040 |
| 87107A | Heater radiator device sub-assembly | 87107-0D050 · 87107-0D051 |
| 87121L | heater bracket | 87121-0D010 |
| 87130D | Blower assembly | 87130-0D010 · 87130-0D011 · 87130-0D020 · 87130-0D021 · 87130-0D030 · 87130-0D031 · 87130-0D040 · 87130-0D041 · 87130-0D042 · 87130-0D050 · 87130-0D051 · 87130-0D052 · 87130-0D060 · 87130-0D061 · 87130-0D062 · 87130-0D070 · 87130-0D071 · 87130-0D080 · 87130-0D081 · 87130-0D090 · 87130-0D091 |
| 87138C | Blower resistor | 87138-0K090 |
| 87139C | air purification filter | 87139-0D010 |
| 87174G | Air heater deflector | 87174-0D010 |
| 87710G | Rapid heater assembly | 87710-0D030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D100 · 88501-0D101 |
| 88515 | Cooler expansion valve | 88515-26070 |
| 88539J | Cooler drain hose | 88539-0D060 · 88539-0D170 · 88539-0D180 |
| 88548B | air filter housing | 88548-0D040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-02100 · 88625-02110 · 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0D150 · 88650-0D160 · 88650-0D170 · 88650-0D180 · 88650-0D190 · 88650-0D250 · 88650-0D260 · 88650-0D270 · 88650-0D280 · 88650-0D290 |
| 88669B | Cooler air hose | 88669-0D010 |
| 88897U | aspirator tube | 88897-02180 |
