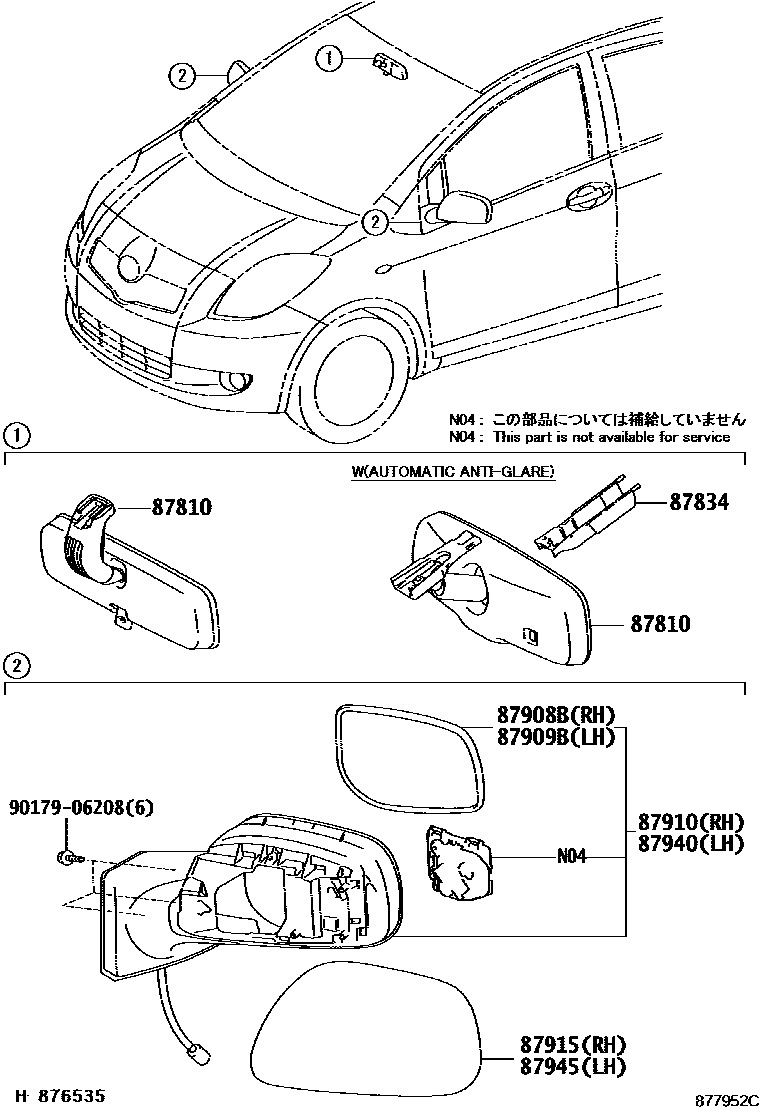

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0D011 · 87810-0F050 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87908B | Right rearview mirror sub-assembly | 87908-0D210 · 87908-0D260 |
| 87909B | Left rearview mirror sub-assembly | 87909-0D210 · 87909-0D260 |
| 87910 | Right exterior rearview mirror assembly | 87910-0D210 · 87910-0D240 · 87910-0D250 · 87910-0D260 |
| 87915 | Right exterior rearview mirror cover | 87915-0D030 · 87915-0D901 |
| 87940 | Left exterior rearview mirror assembly | 87940-0D210 · 87940-0D240 · 87940-0D250 · 87940-0D260 |
| 87945 | Left exterior rearview mirror cap | 87945-0D030 · 87945-0D901 |
