Toyota YARIS 后清洗器 — Figure 8504

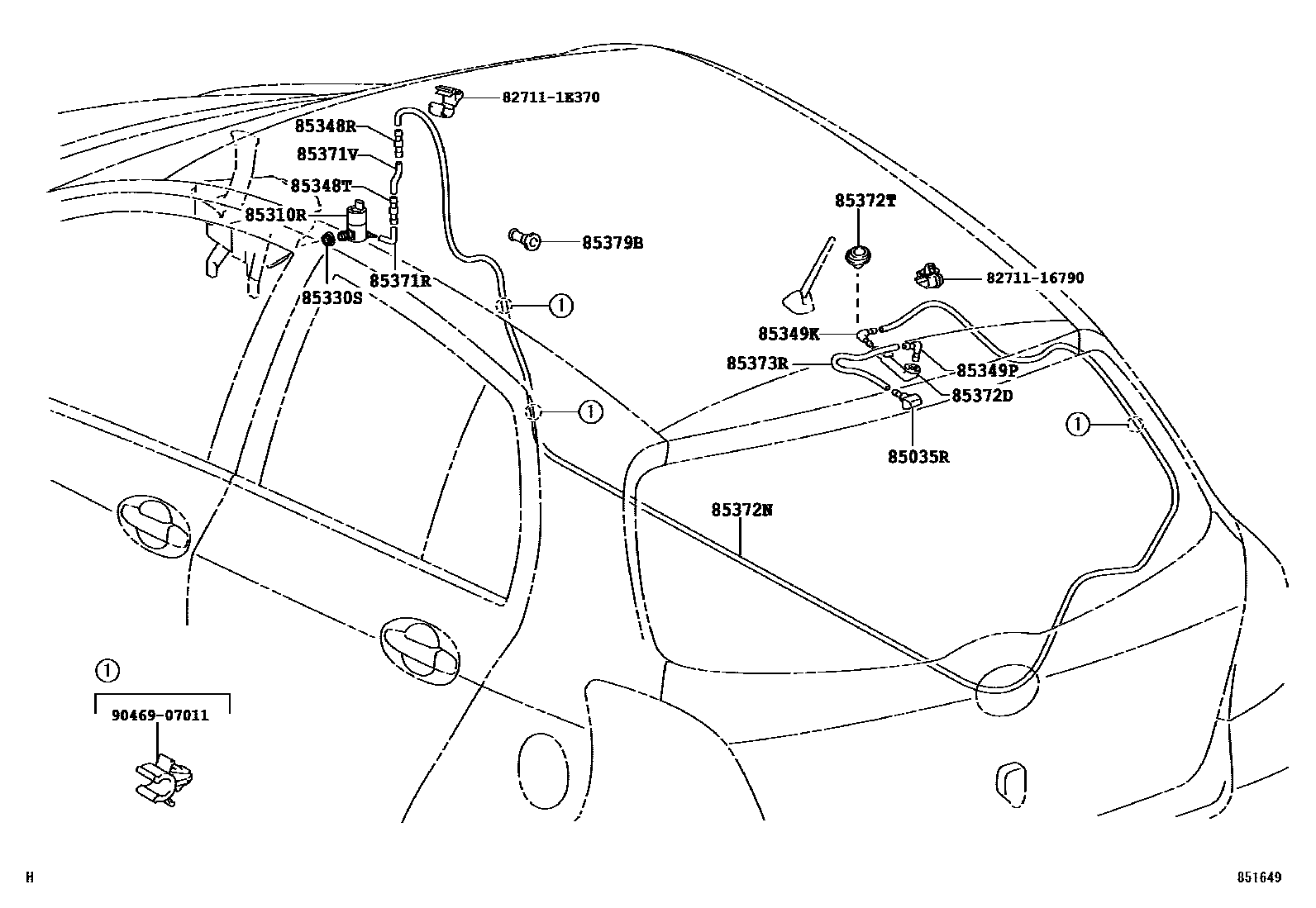

Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-0D010 |
| 85310R | Rear washer motor assembly | 85330-0D060 |
| 85330S | Rear washer fluid tank bushing | 90069-20005 |
| 85348R | No. 1 rear washer hose connector | 85375-02050 |
| 85348T | No. 2 rear washer hose connector | 85375-05050 |
| 85349K | No. 2 rear cleaner elbow joint | 85395-0D010 |
| 85349P | No. 3 rear cleaner elbow joint | 85395-0D010 |
| 85371R | Rear washer hose (from motor to connector) | 90069-46036 |
| 85371V | Rear washer hose (from fitting to fitting) | 90069-16009 |
| 85372D | Rear washer hose seal | 85373-0D020 · 85373-0D021 · 85373-0D022 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90069-16010 |
| 85372T | Cleaner seal | 85373-0D010 |
| 85373R | Rear washer hose (from connector to nozzle) | 90069-16009 |
| 85379B | Cleaner seal A | 85379-0D080 |
