Toyota YARIS 防盗装置 — Figure 8424

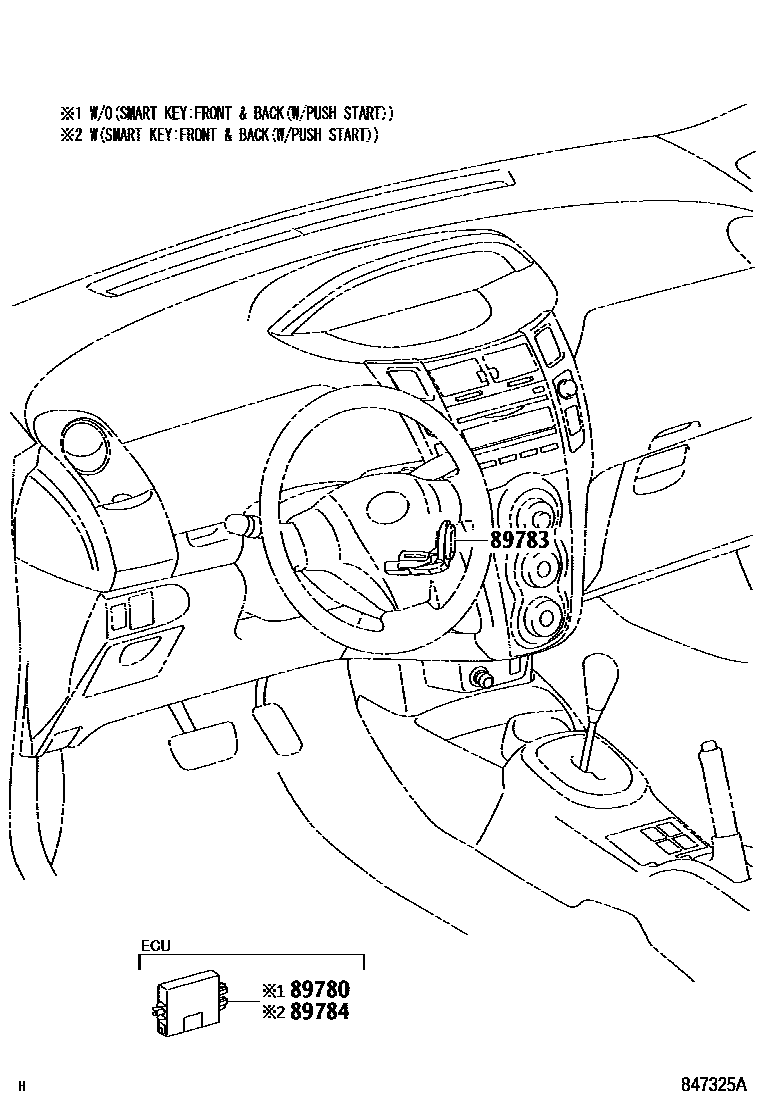

Toyota YARIS EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-0D010 · 89780-0D011 · 89780-0D070 |
| 89783 | transceiver key amplifier | 89783-0D020 · 89783-0D060 |
| 89784 | Shutdown code system ECU | 89784-0D010 · 89784-0D011 |
