Toyota YARIS 超速档和电子控制变速器 — Figure 8410

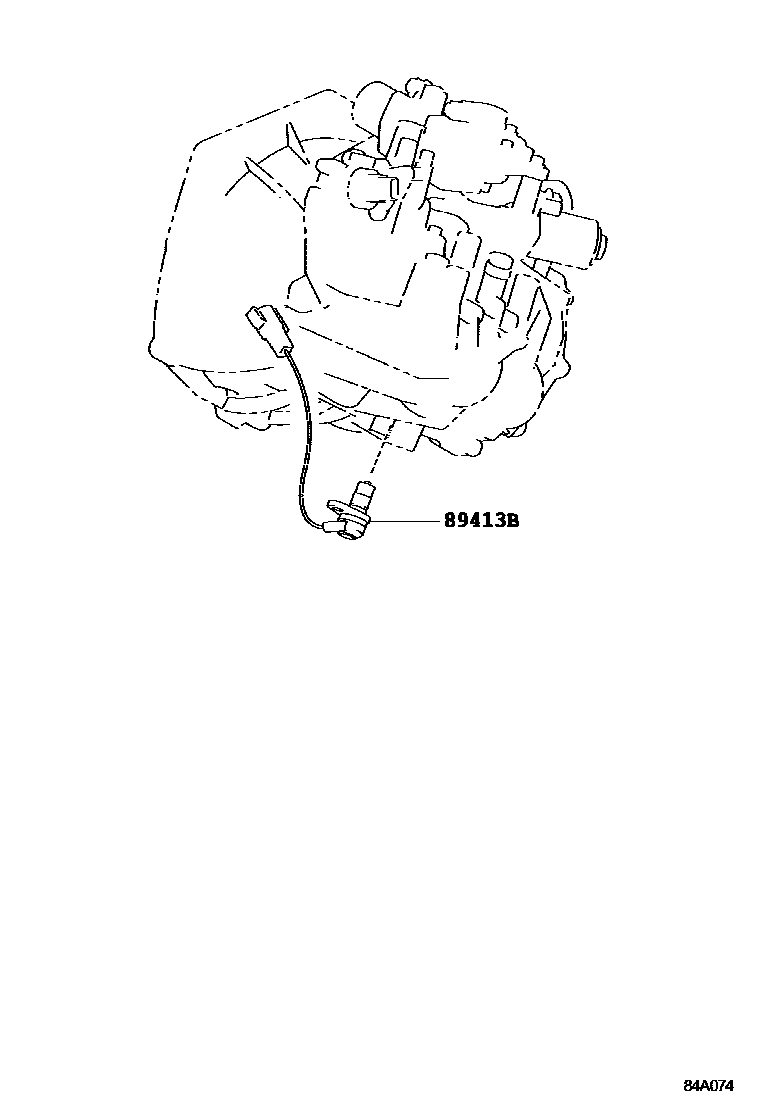

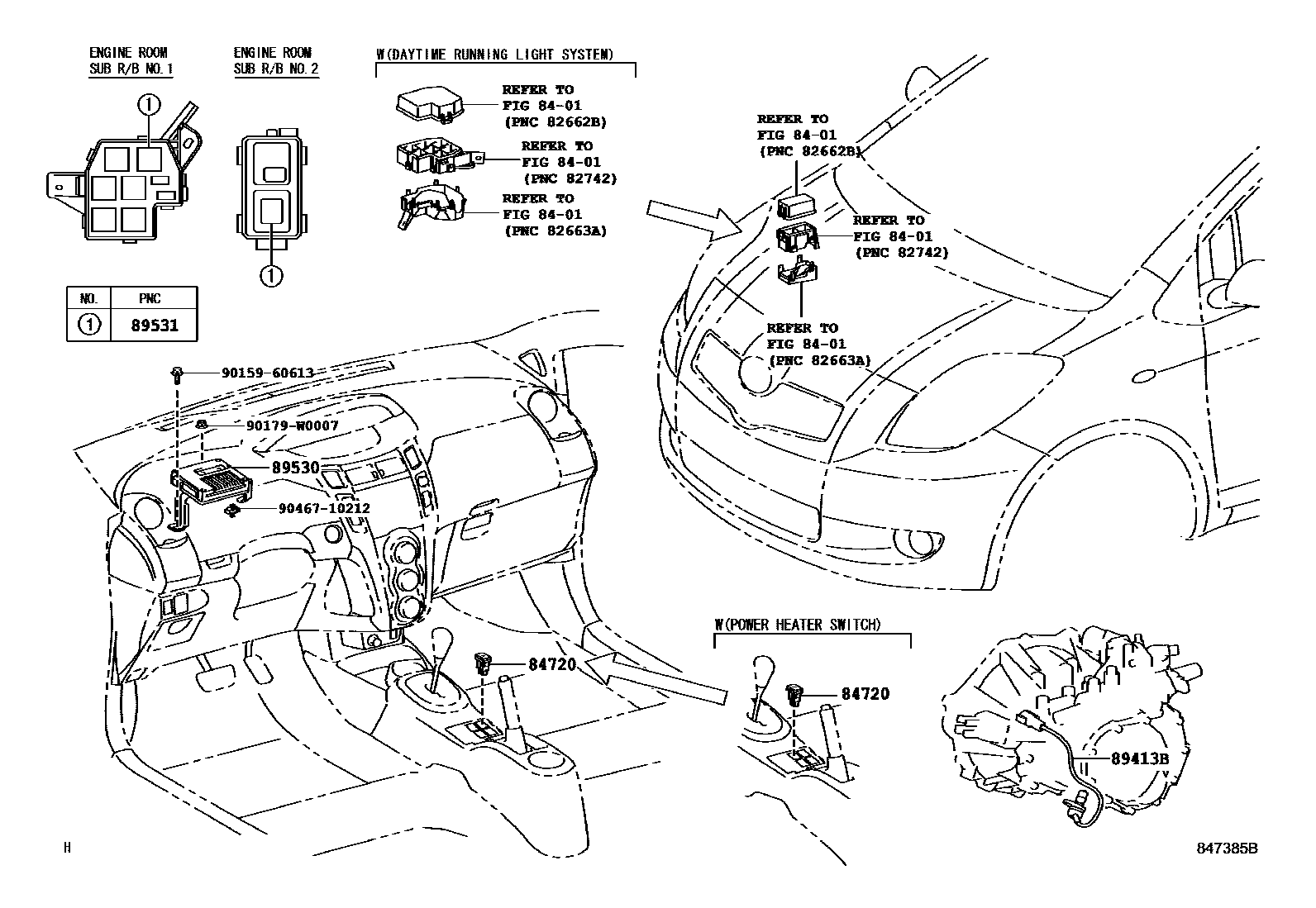

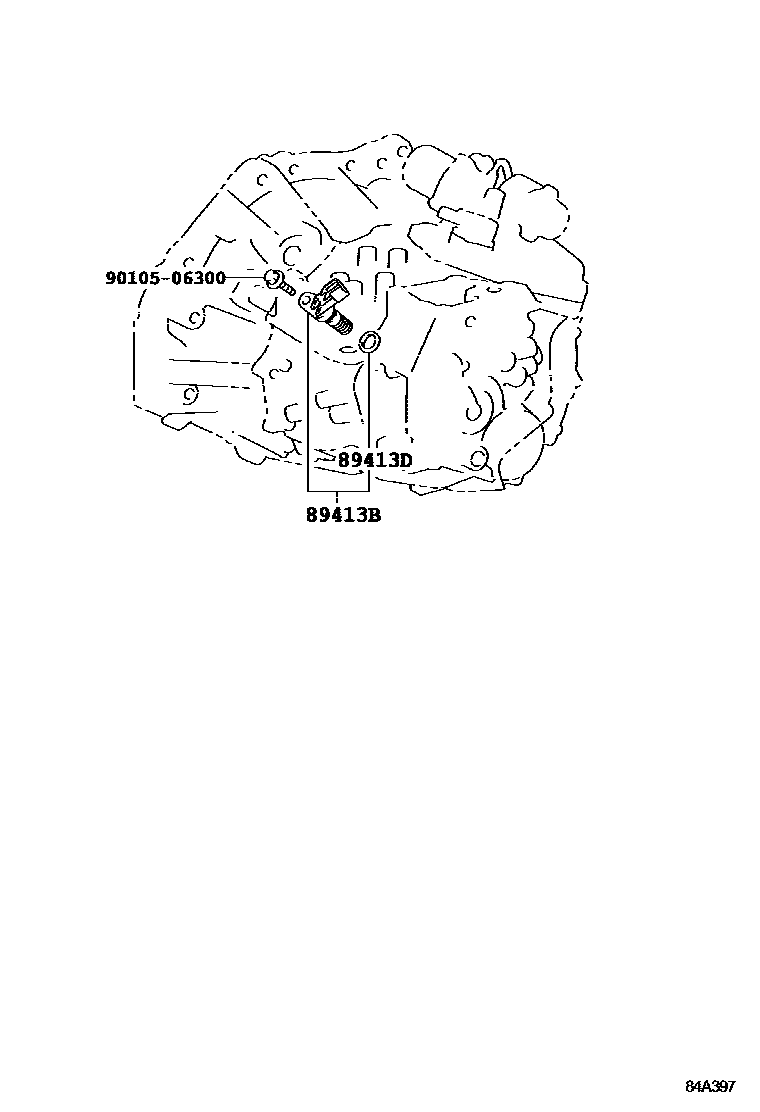

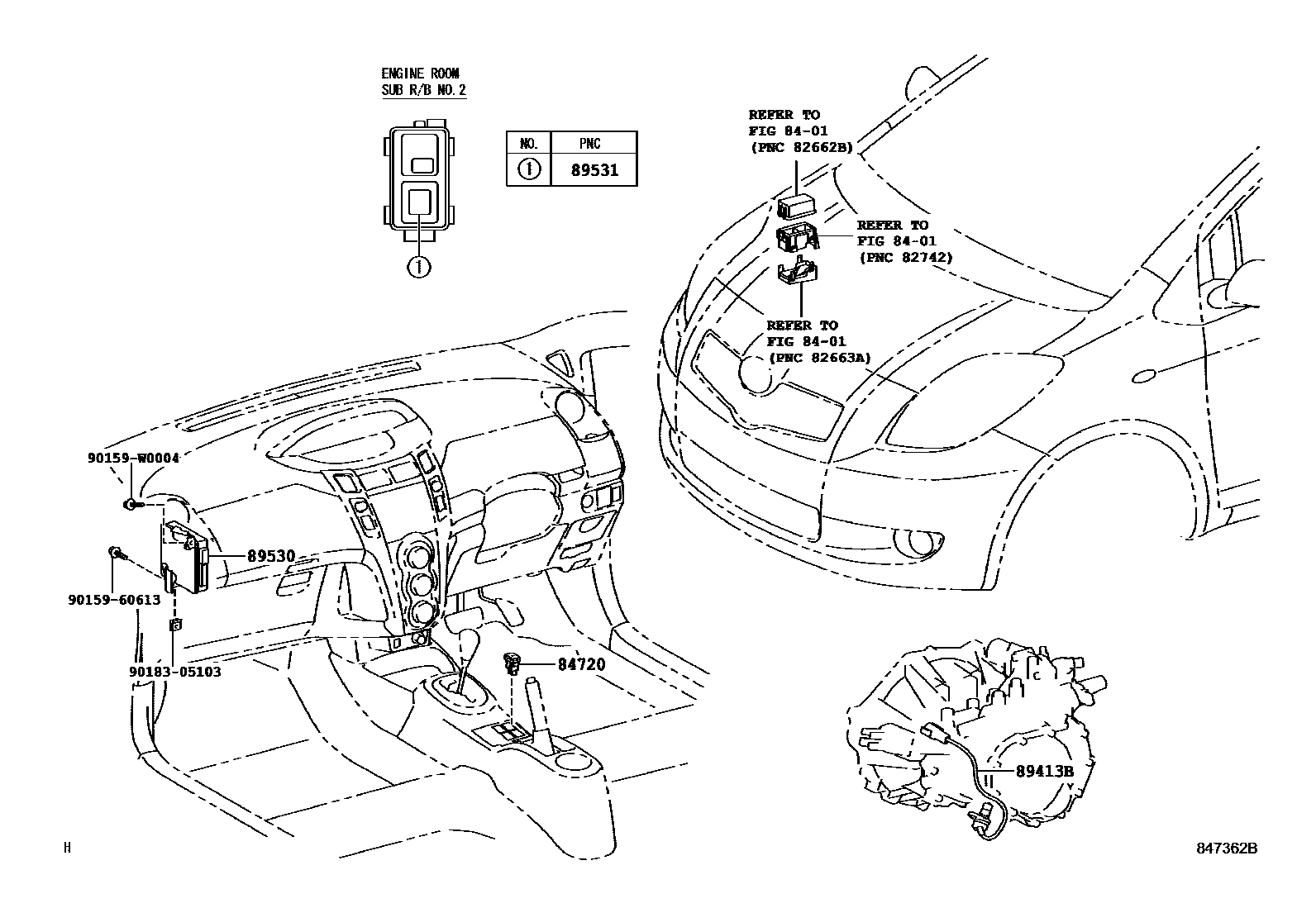

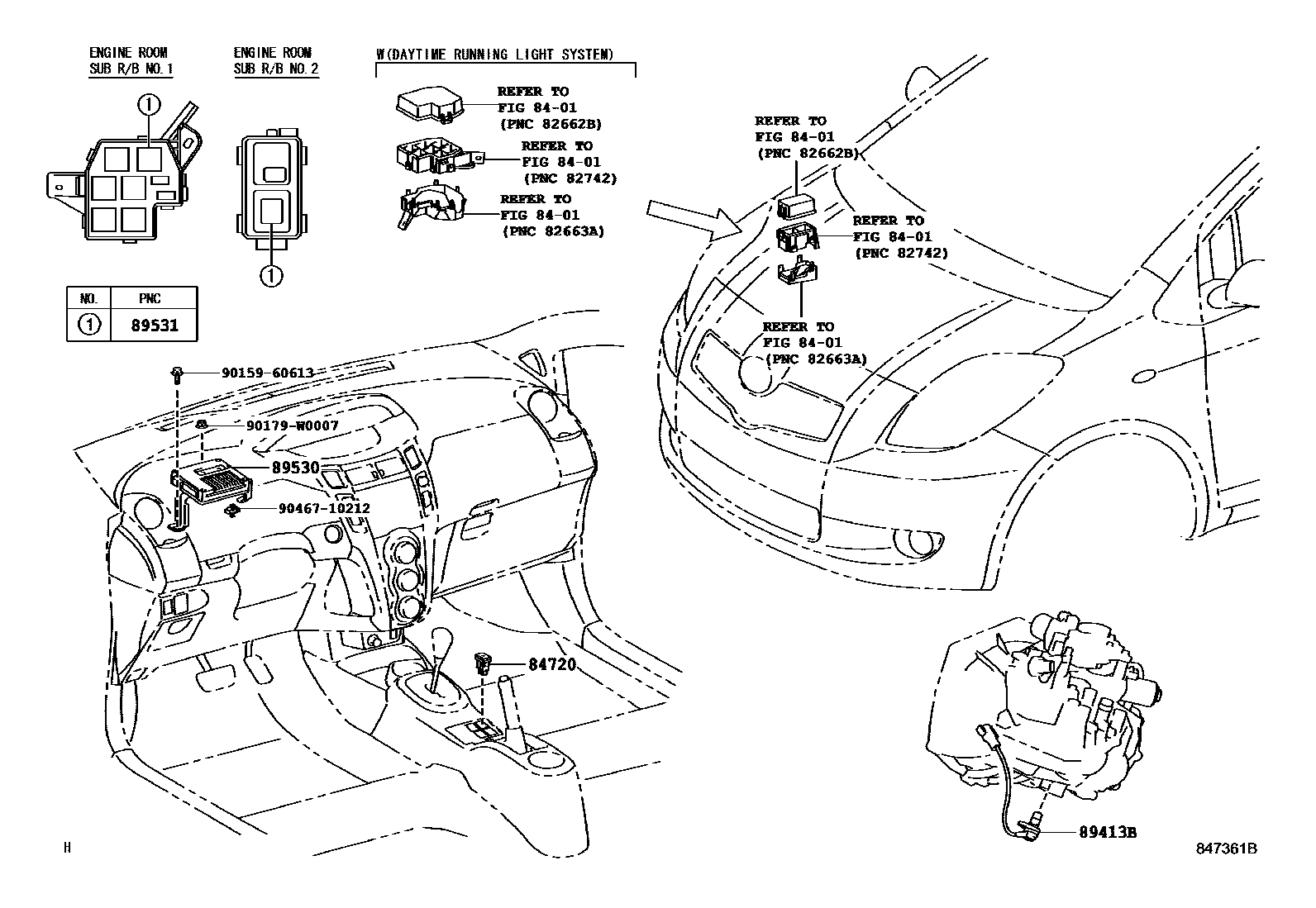

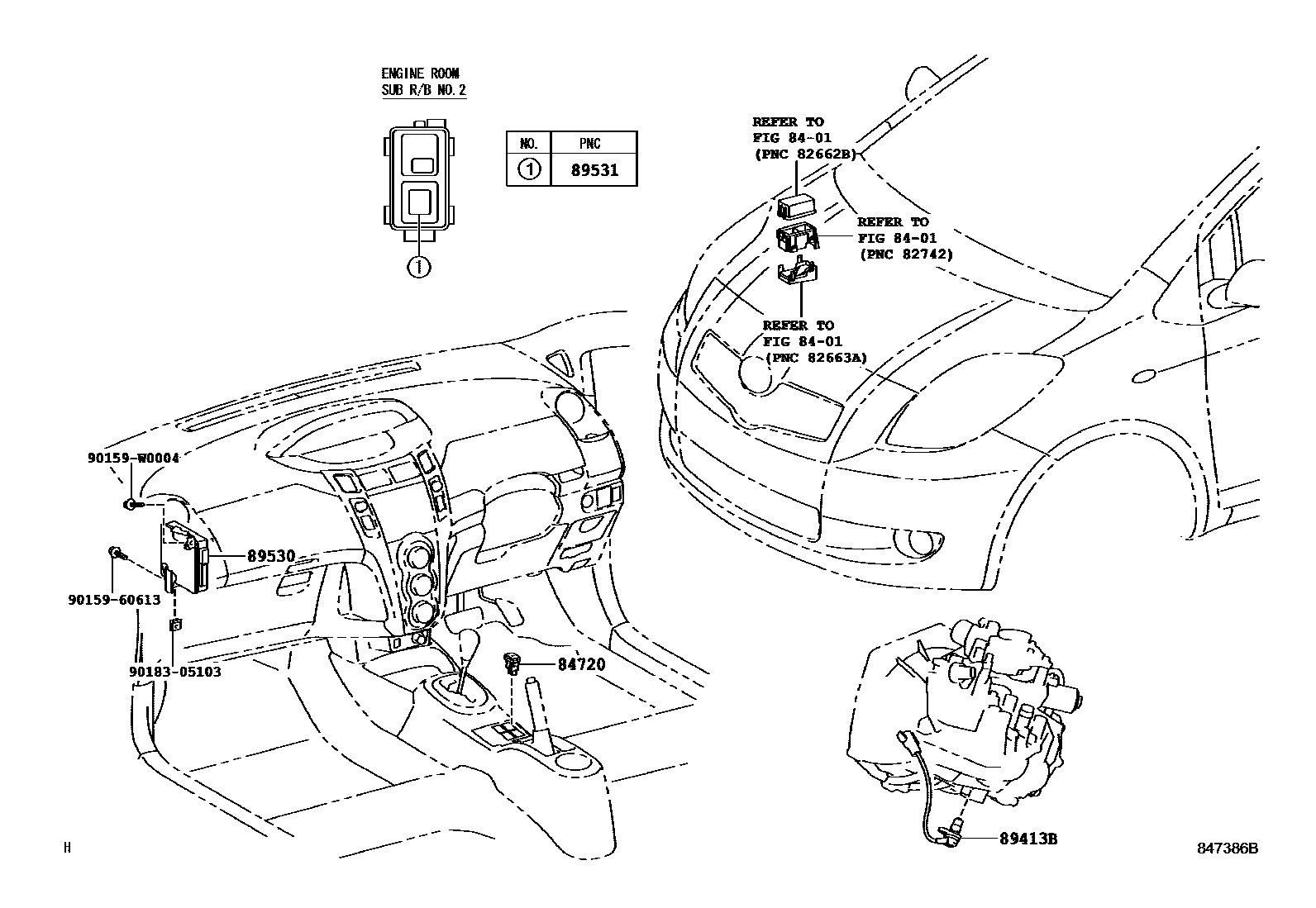

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 6 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84720 | Mode selection switch assembly | 84720-0D010 |
| 89413B | Transmission speed sensor | 89413-22010 · 89413-64010 · 89413-70010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89530 | Transmission control ECU assembly | 89530-52120 · 89530-52121 · 89530-52130 · 89530-52131 · 89530-52140 · 89530-52150 · 89530-52160 · 89530-52170 |
| 89531 | transmission control relay | 90080-87030 |
