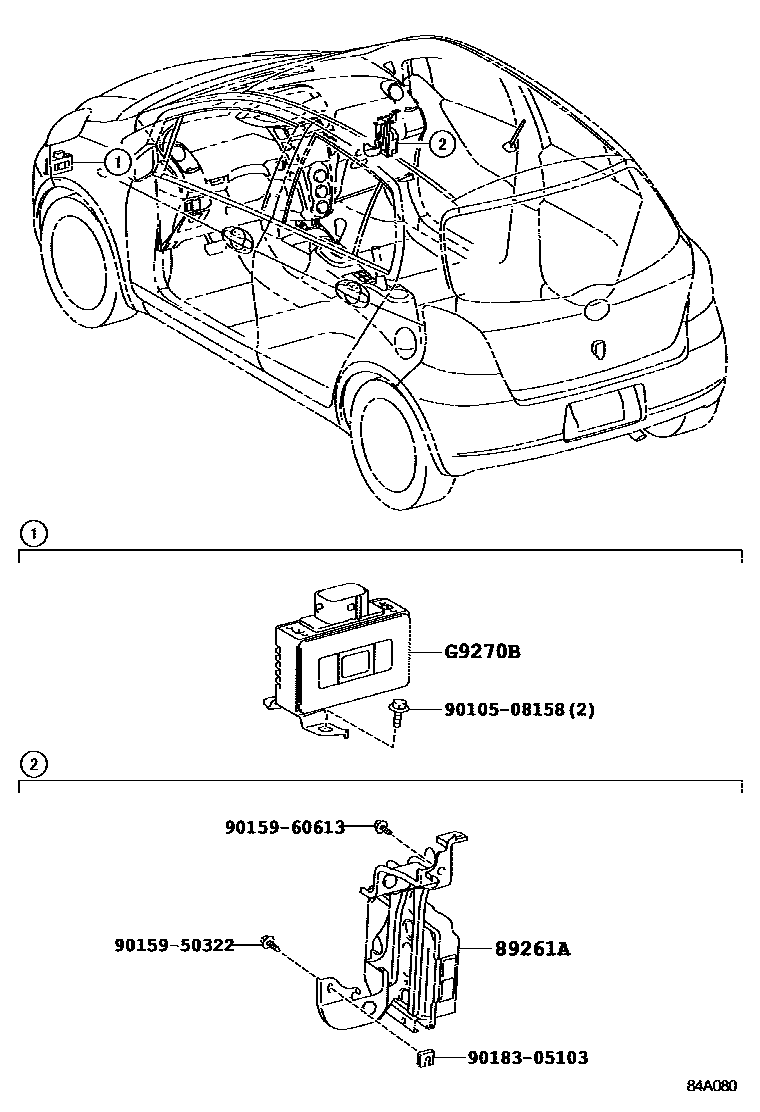

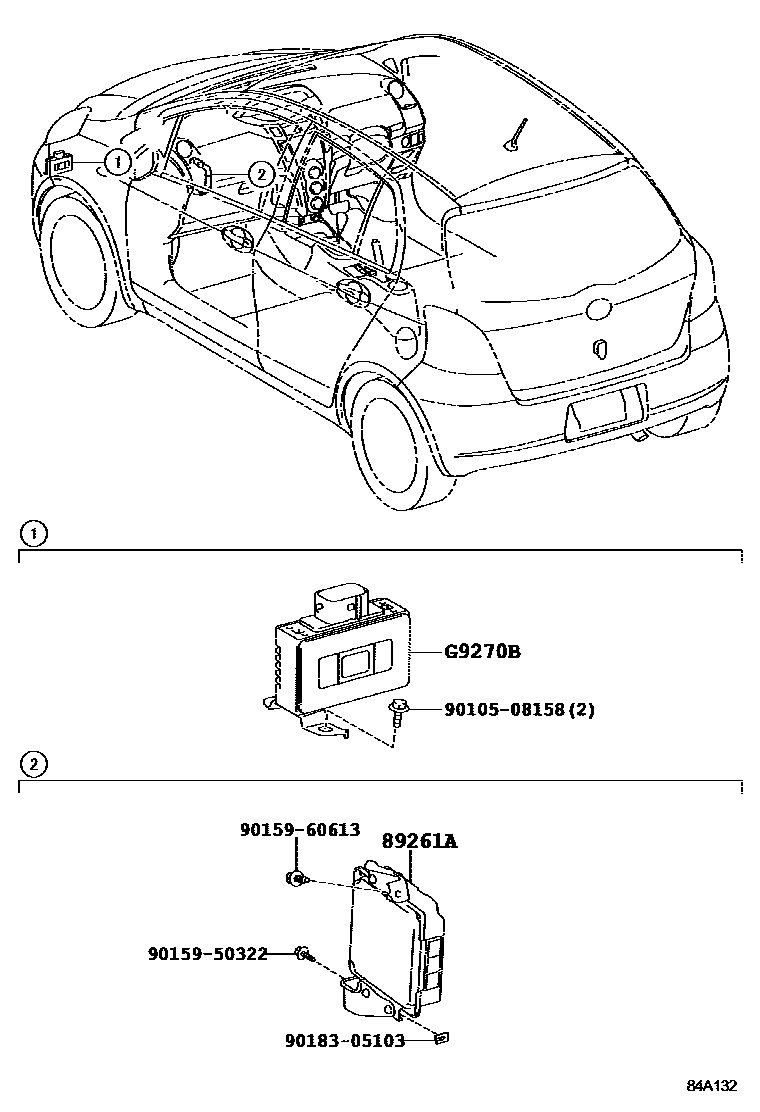

Toyota YARIS 电子控制系统 — Figure 8407
Toyota YARIS EPC diagram 8407, 电子控制系统, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89261A | Engine stop and start ECU | 89260-0D010 · 89260-0D020 |
| G9270B | Electronically controlled vehicle converter assembly | G92C0-52010 · G92C0-52011 · G92C0-52030 |
