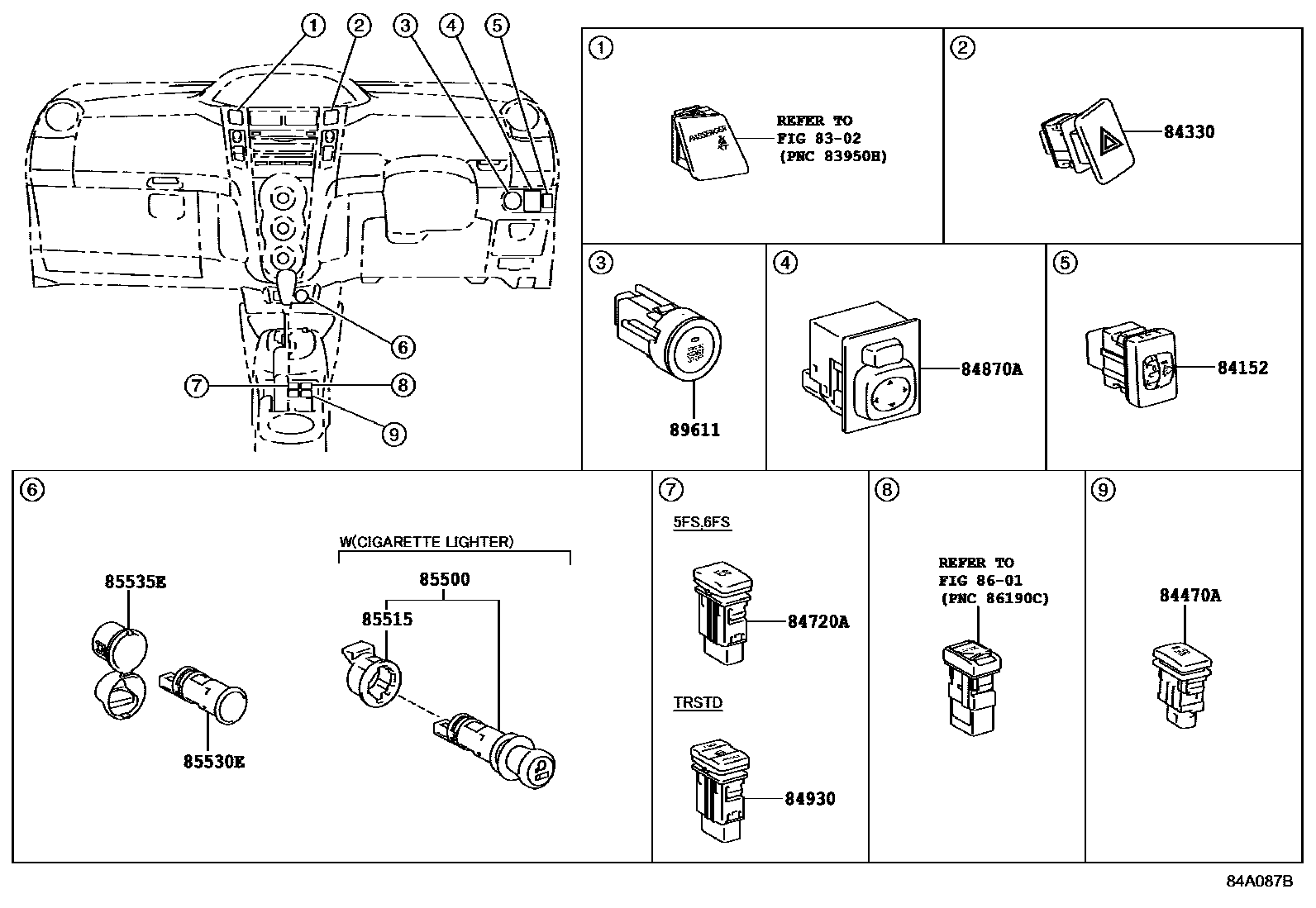

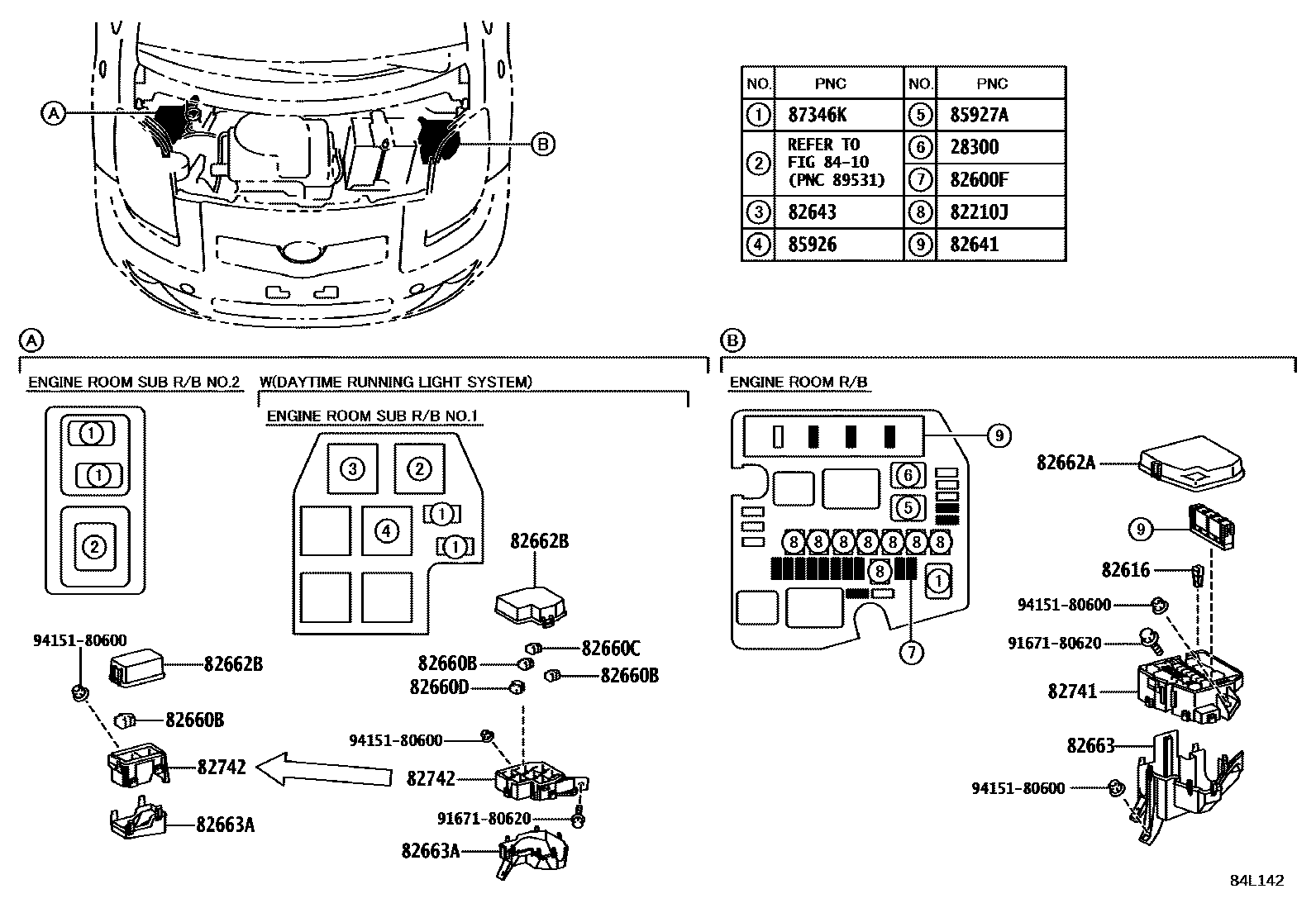

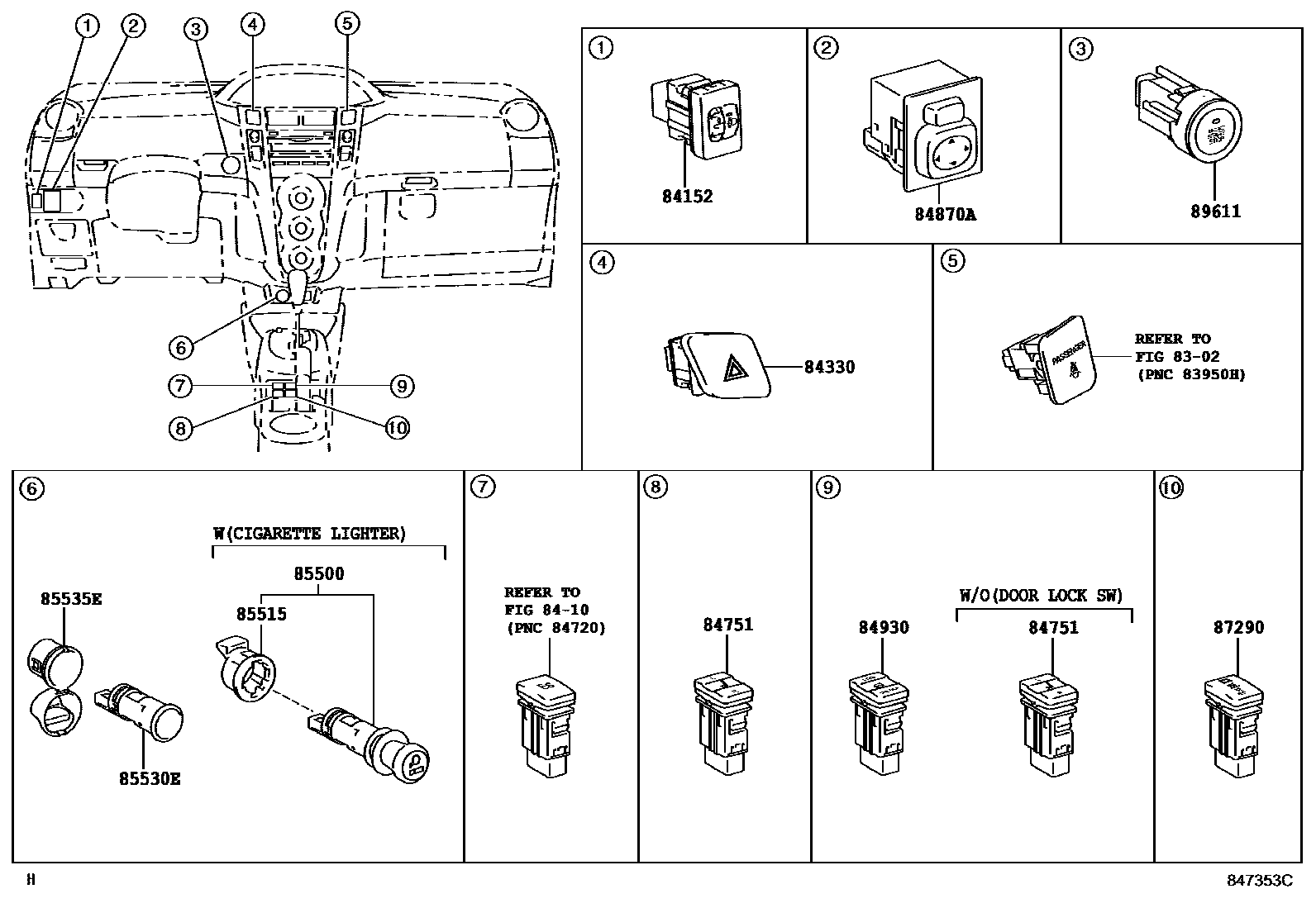

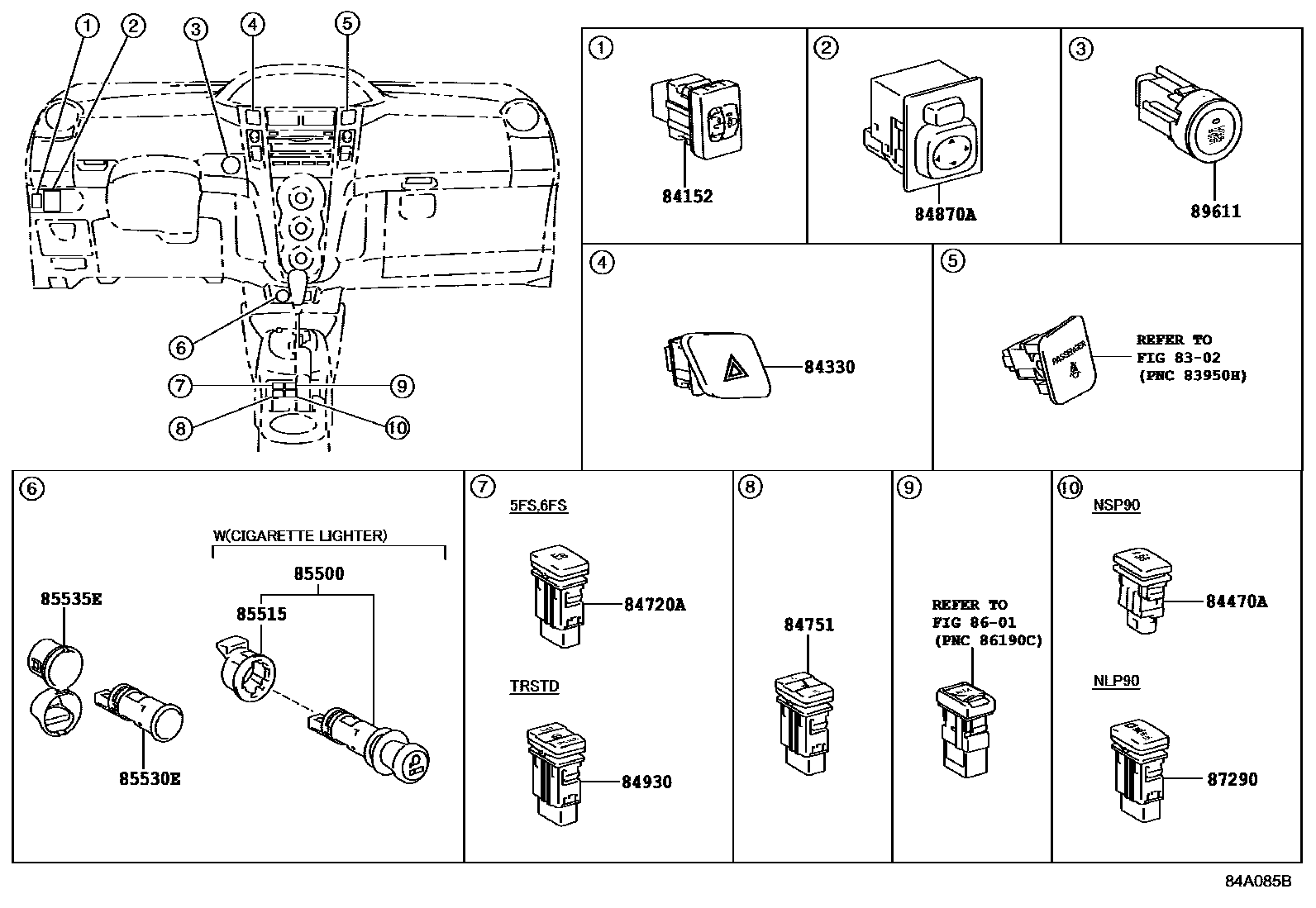

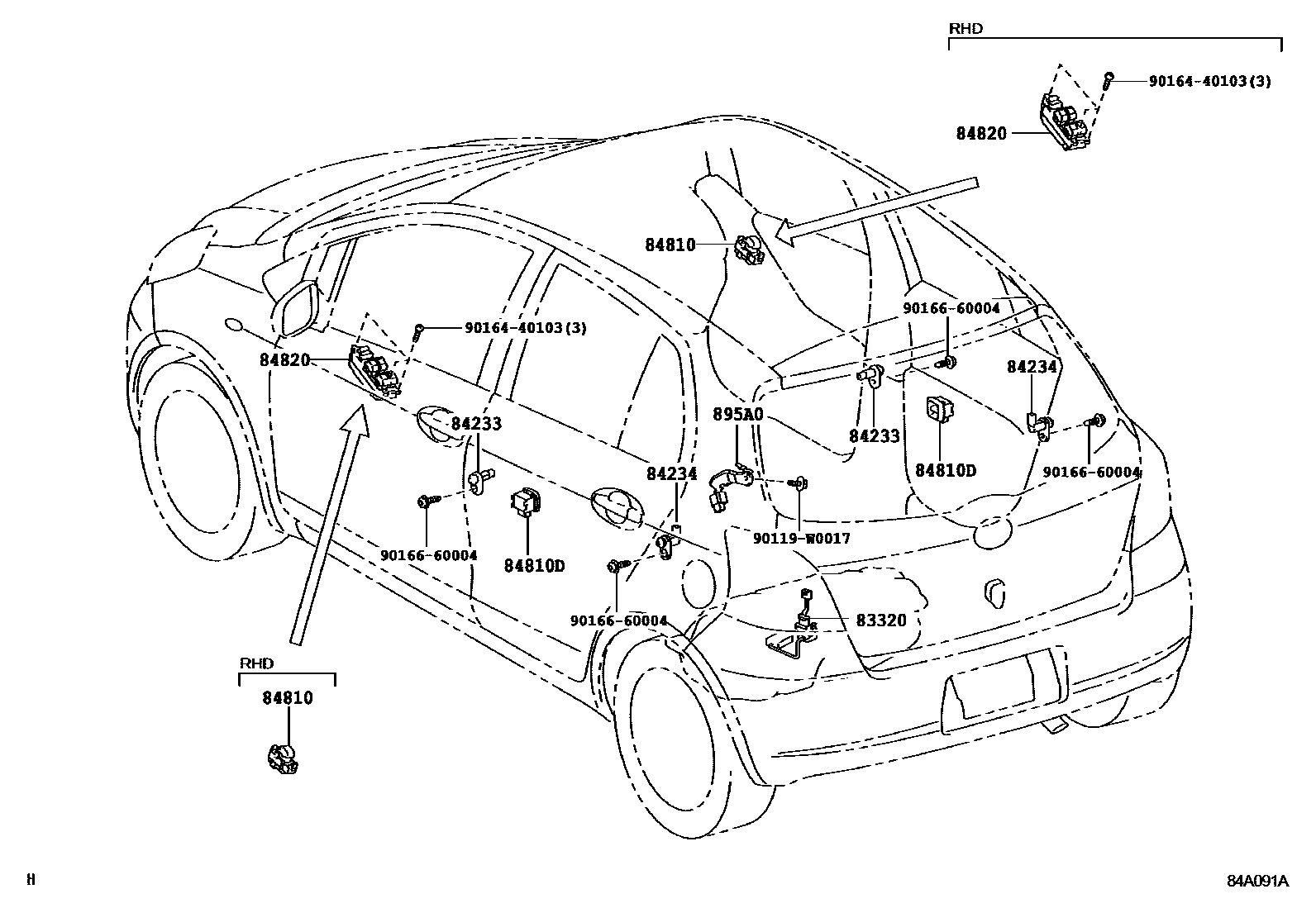

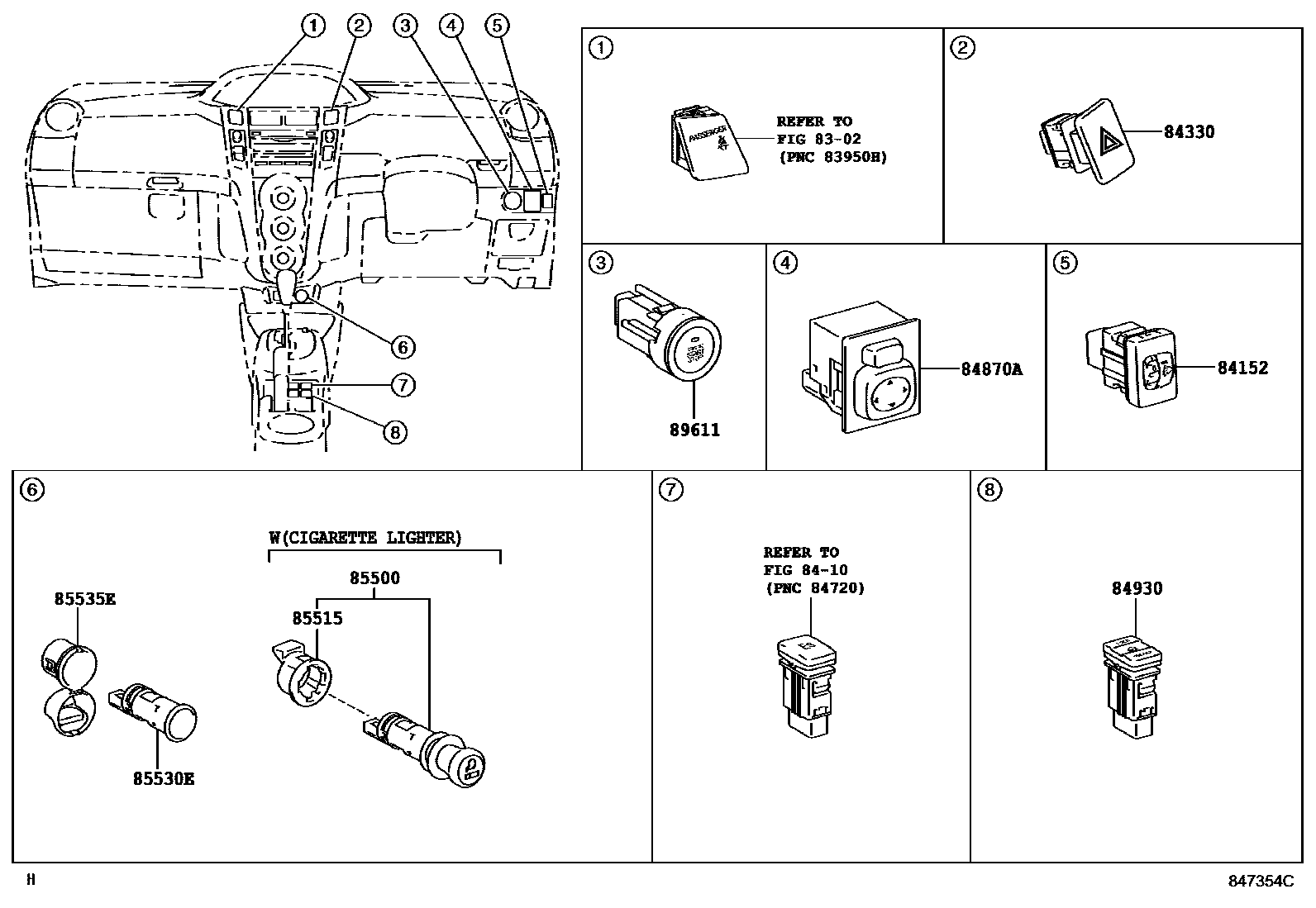

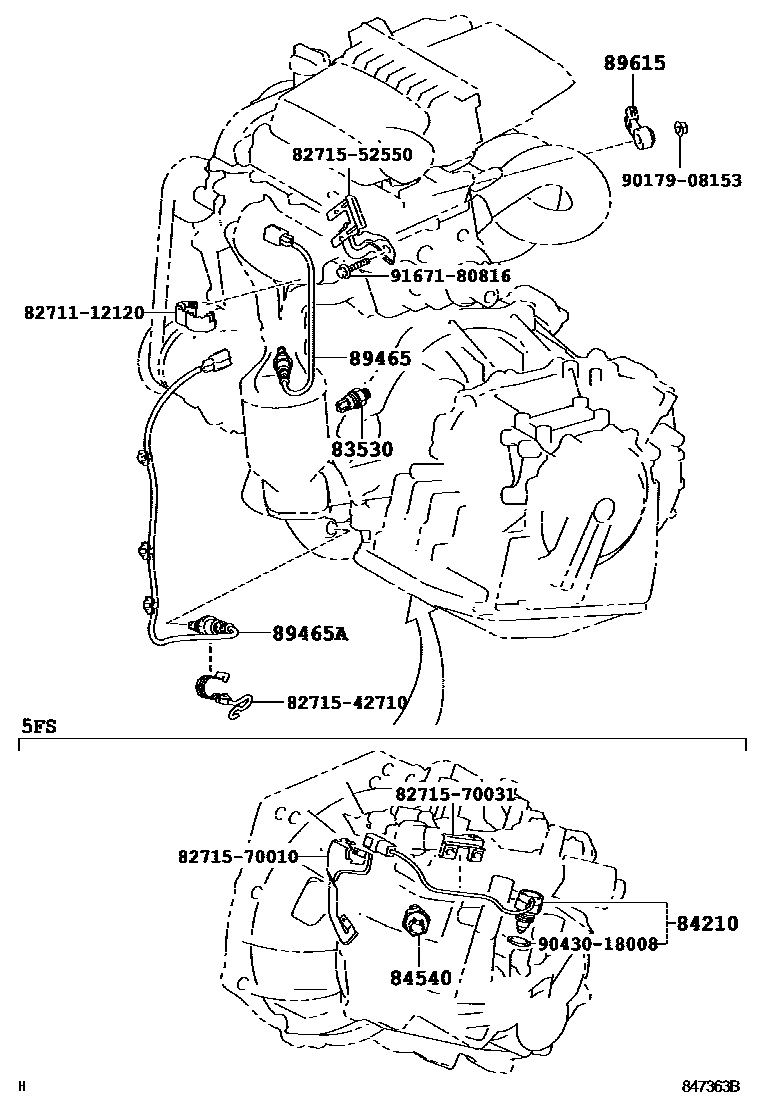

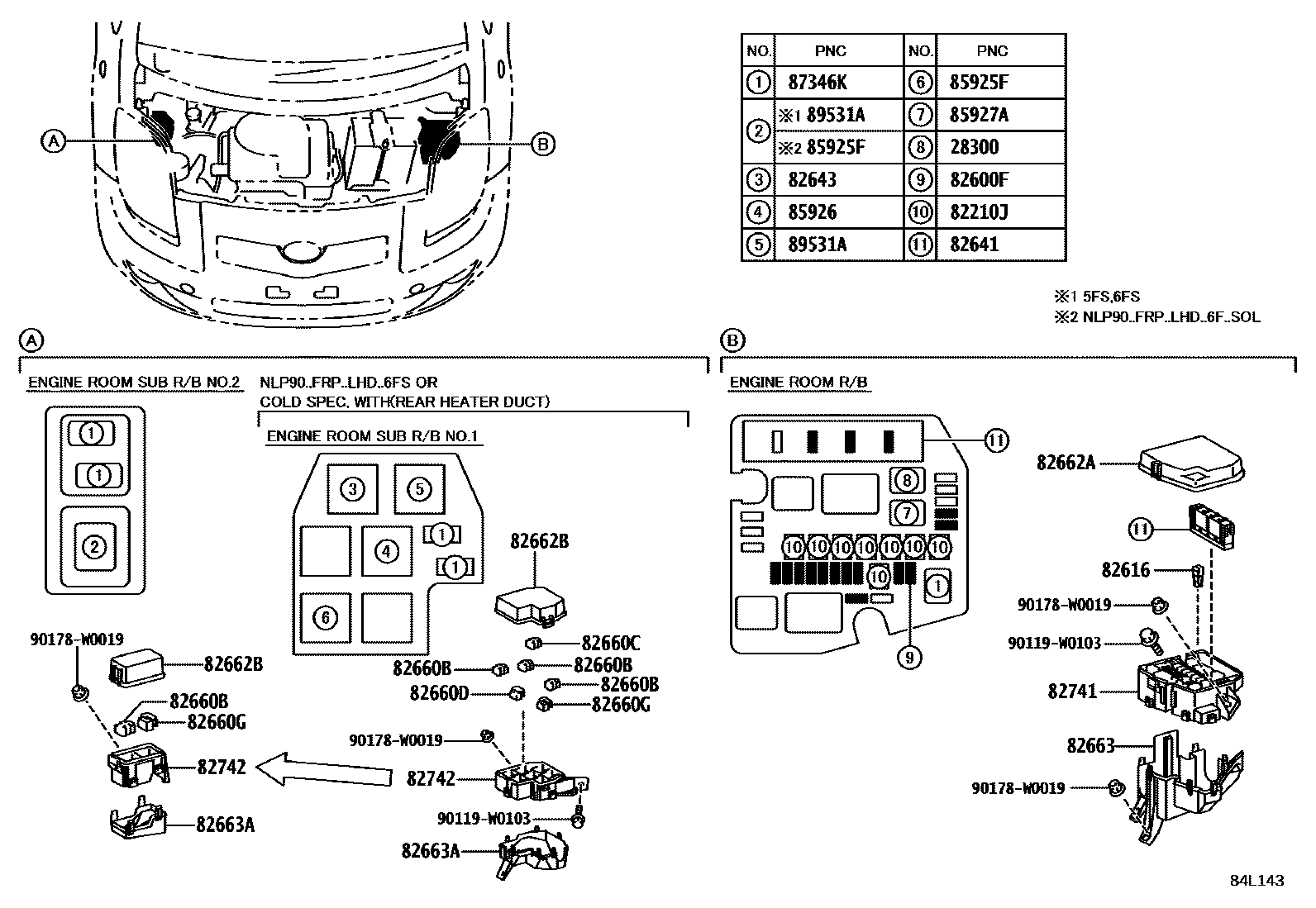

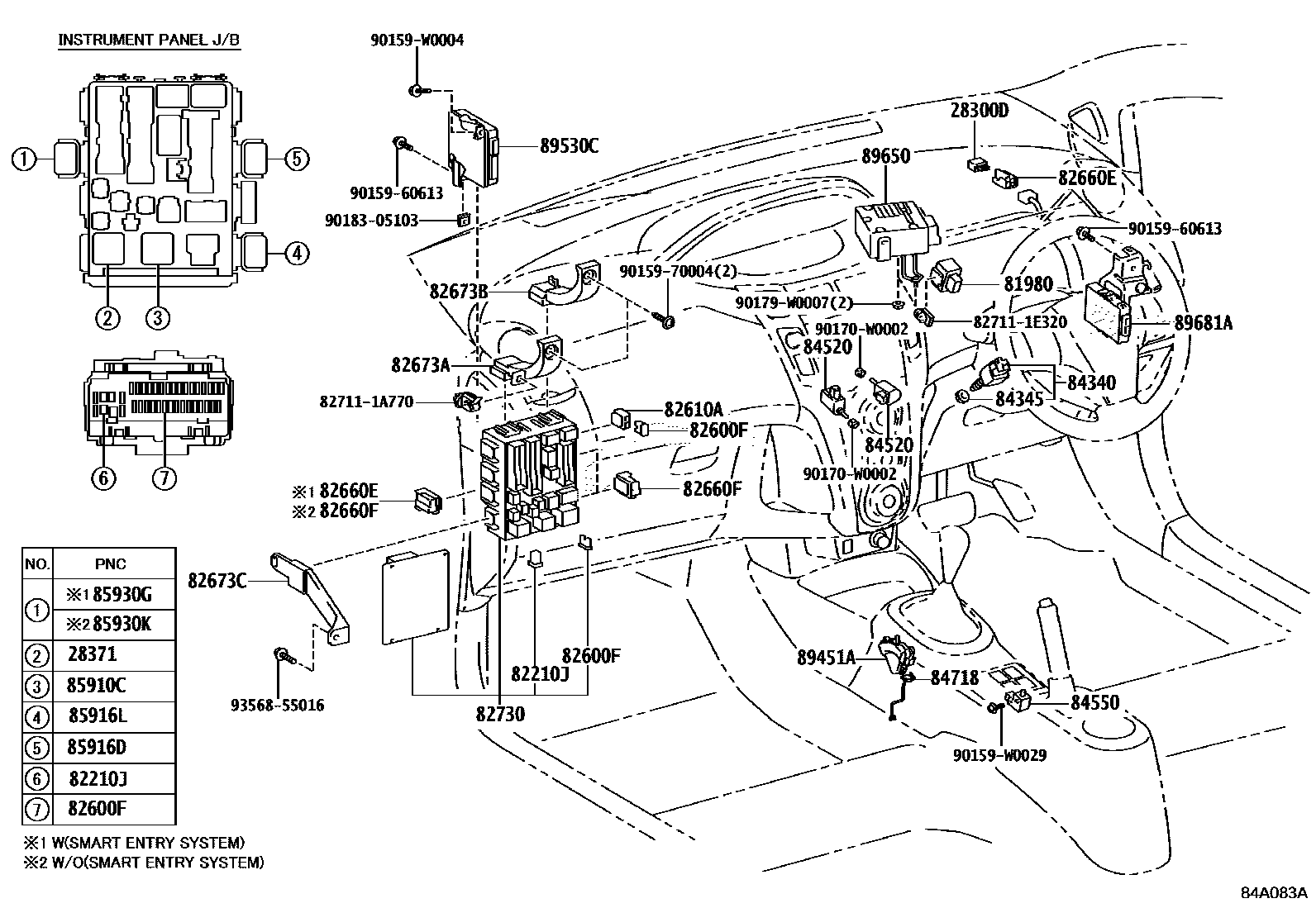

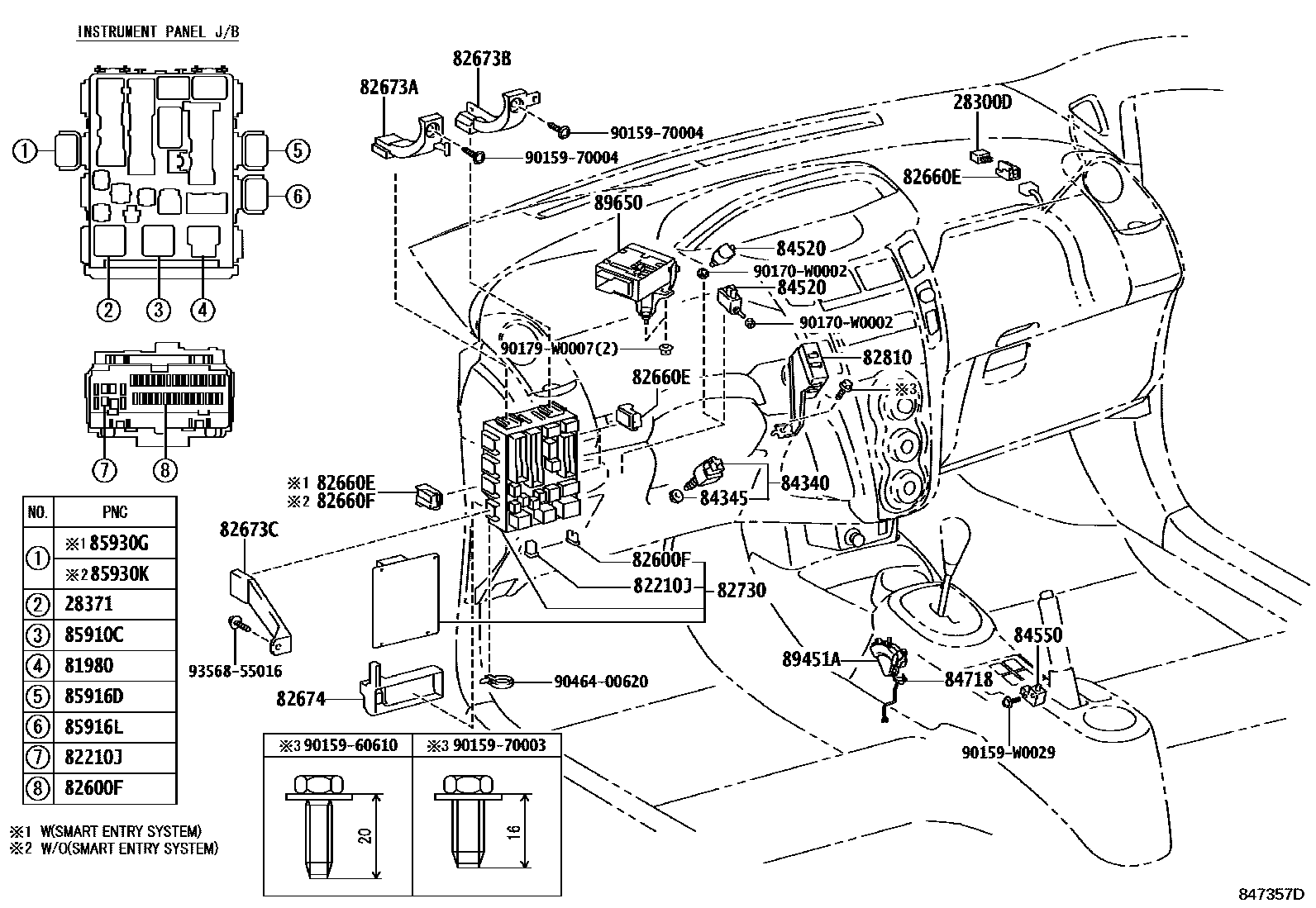

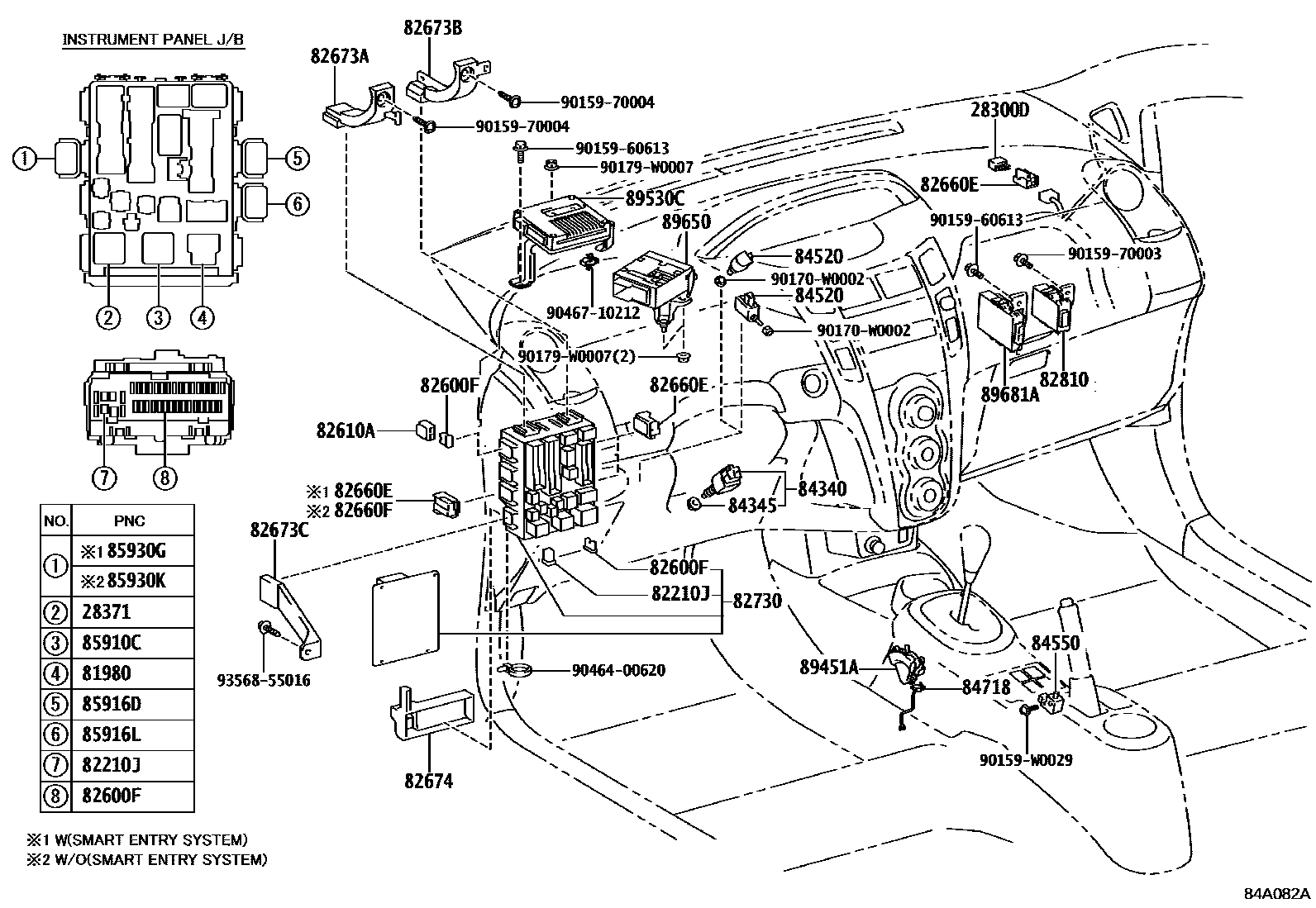

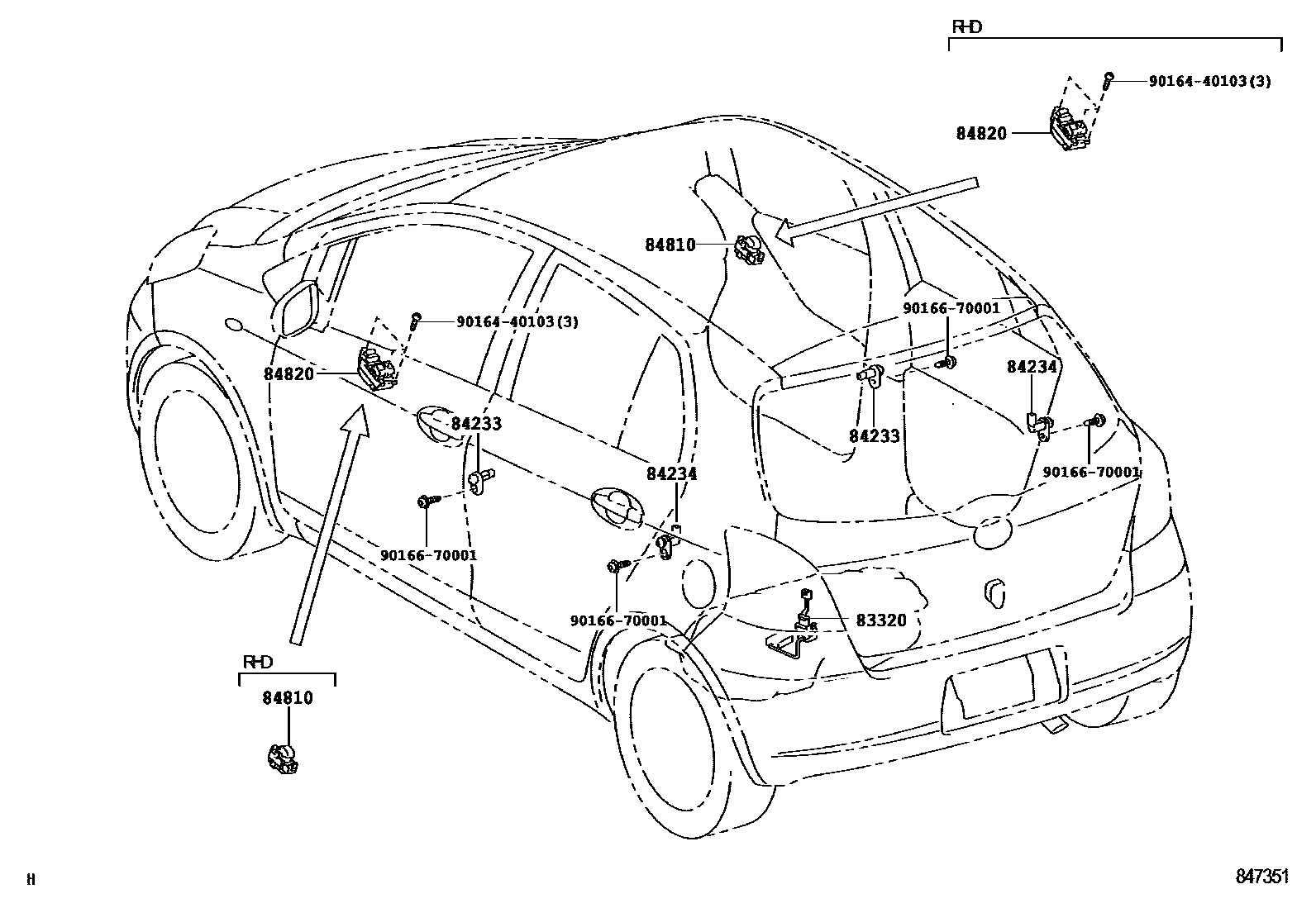

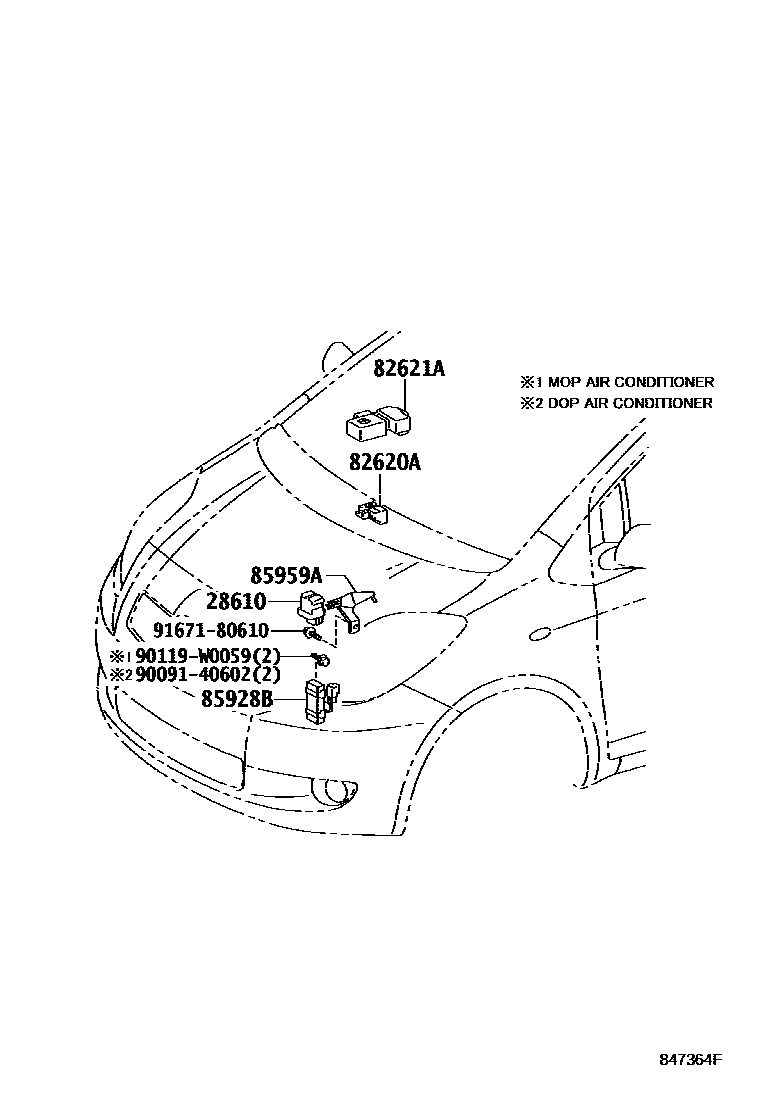

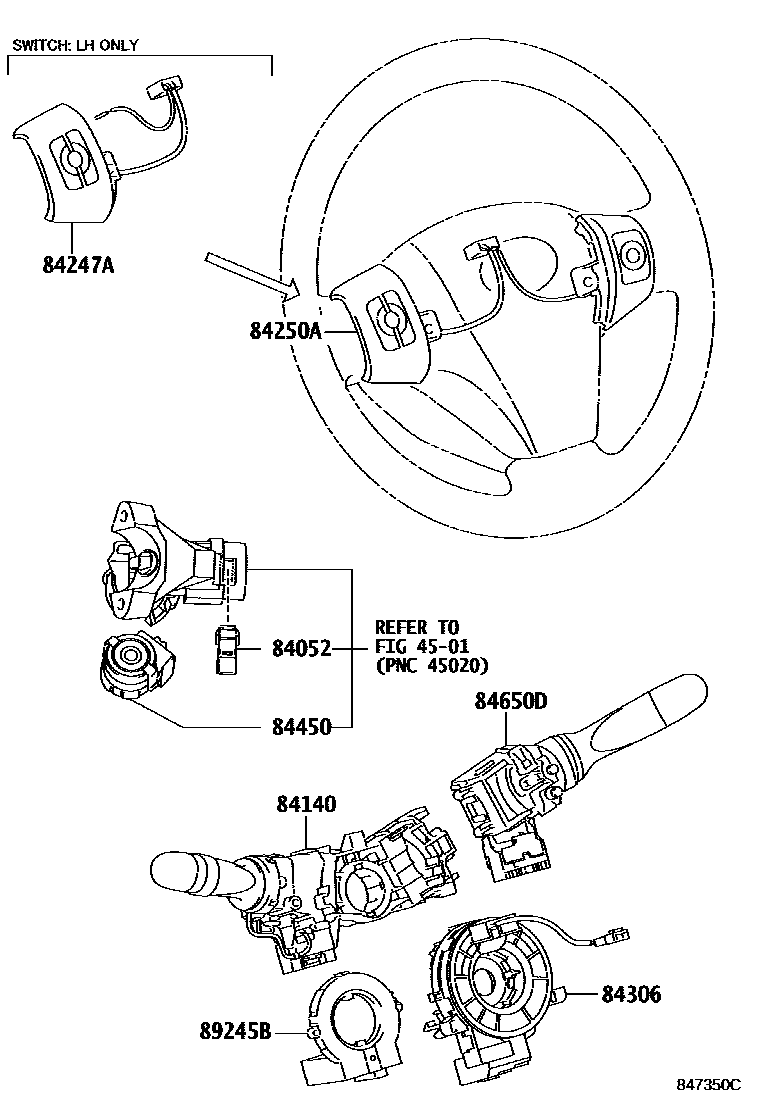

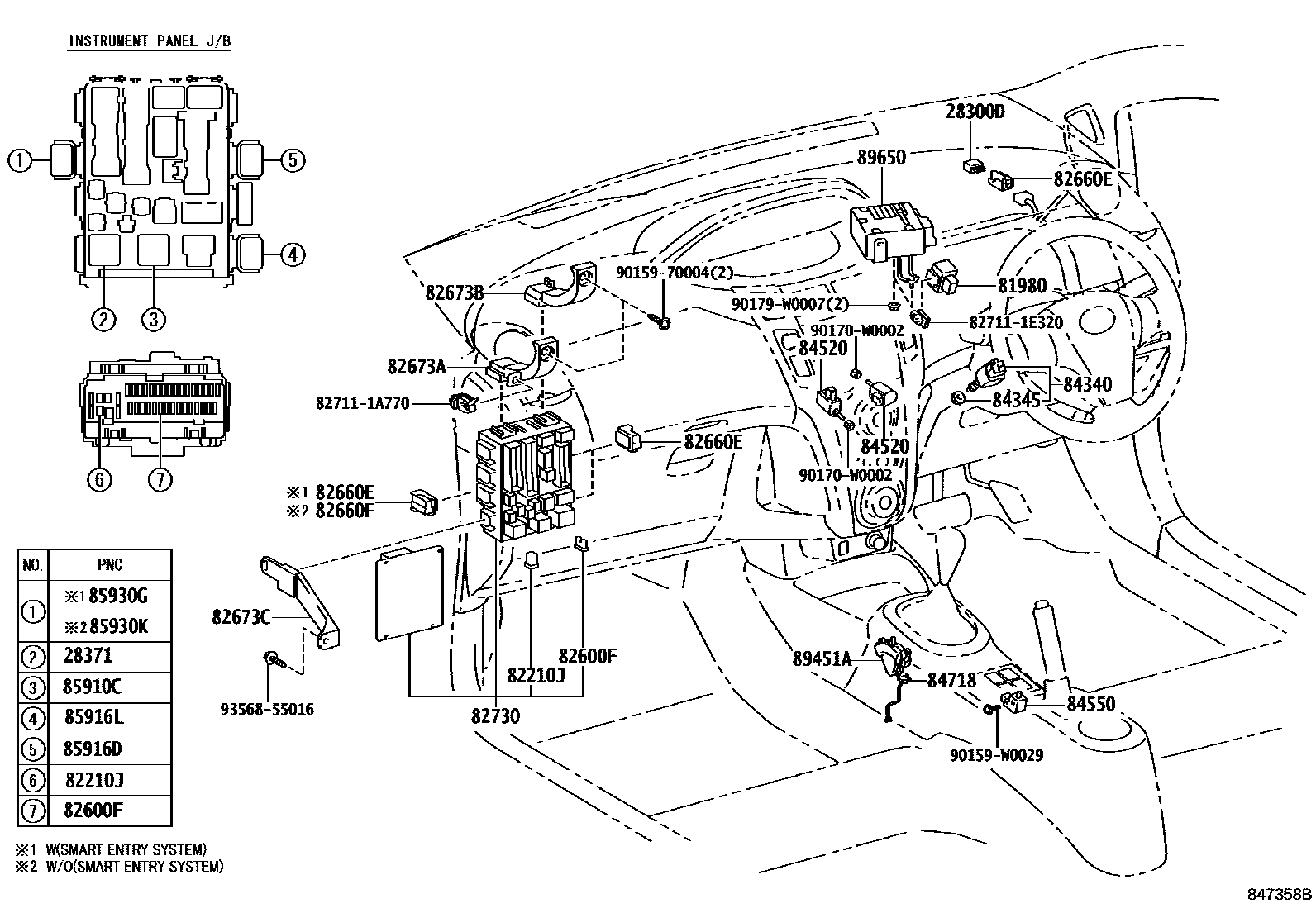

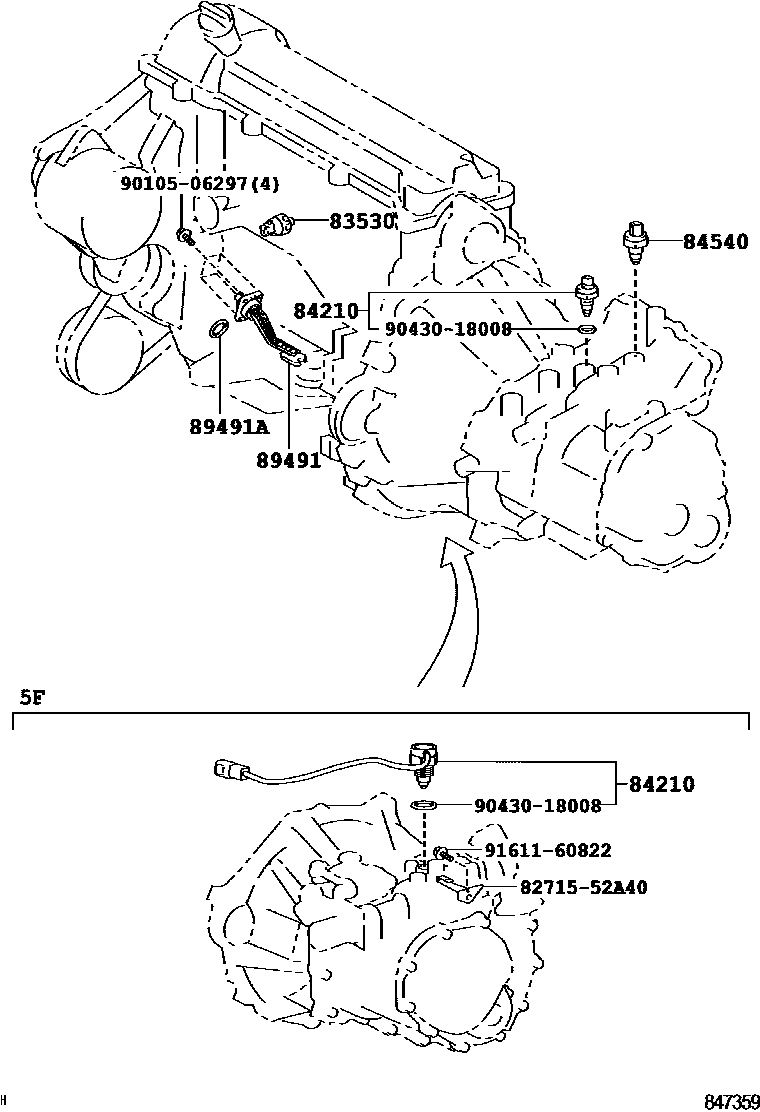

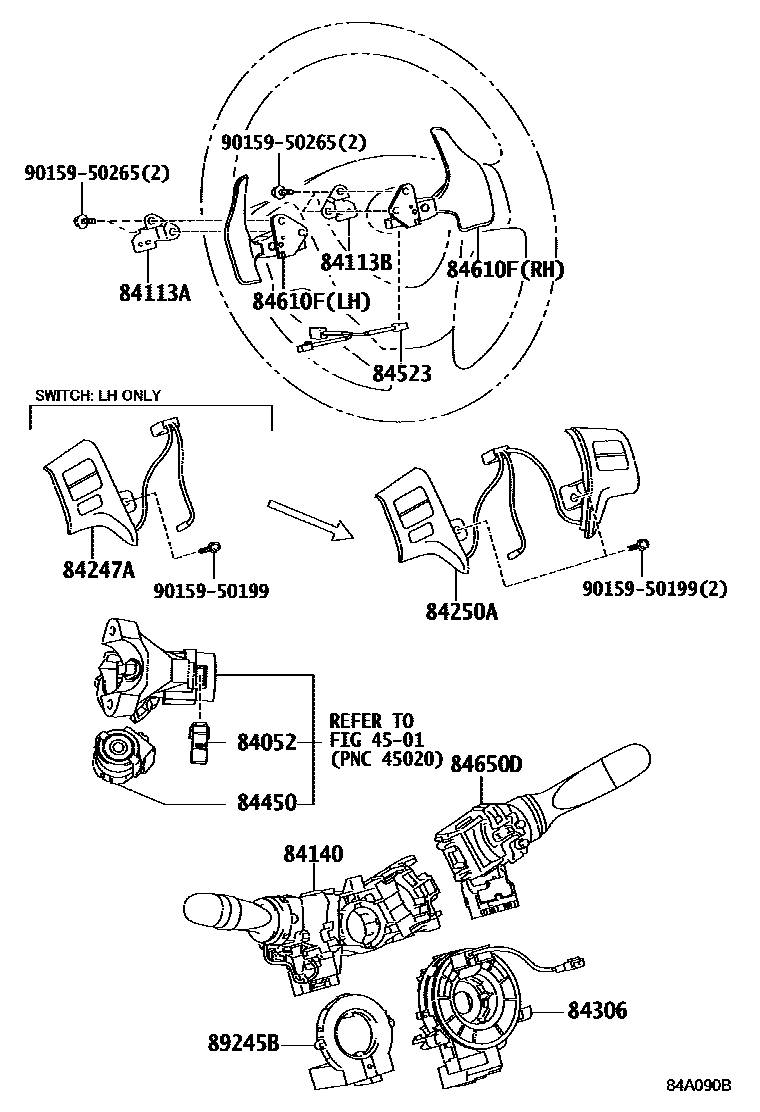

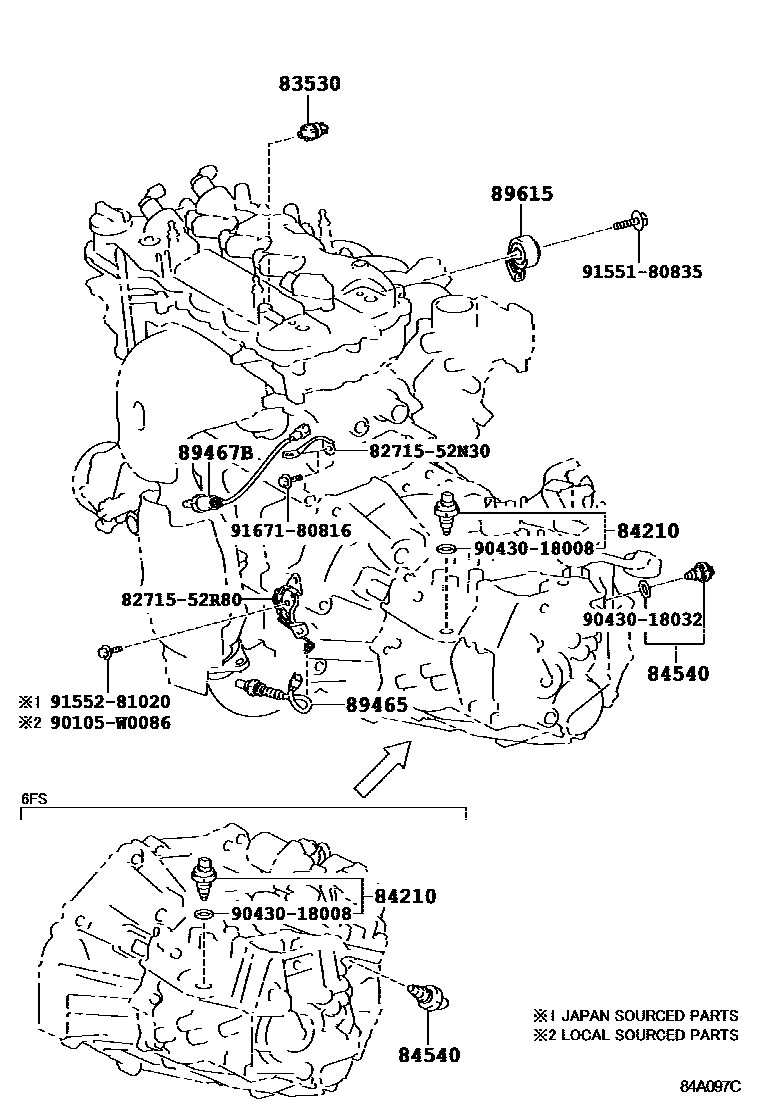

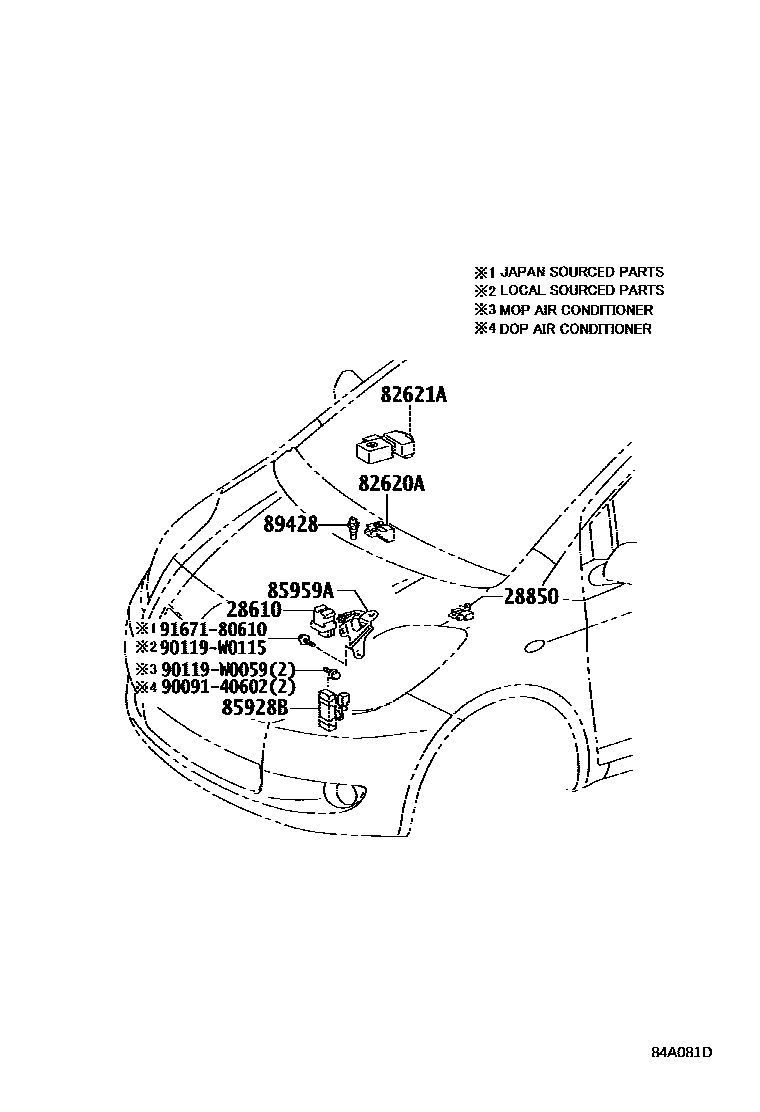

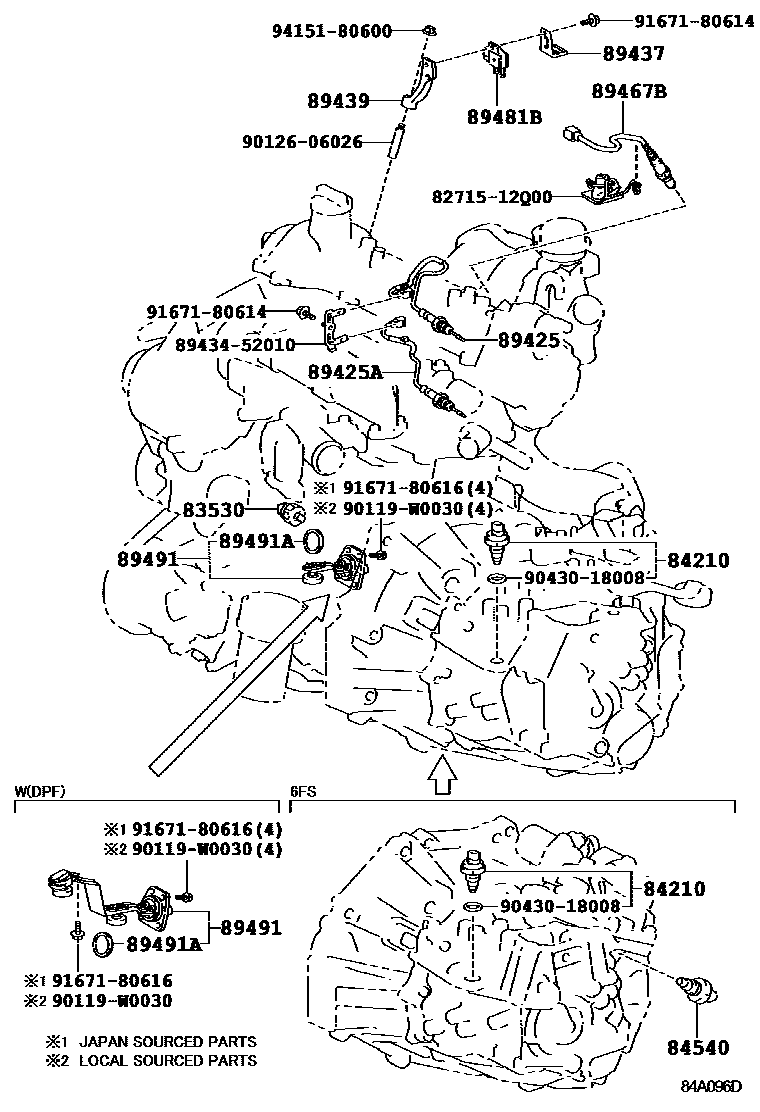

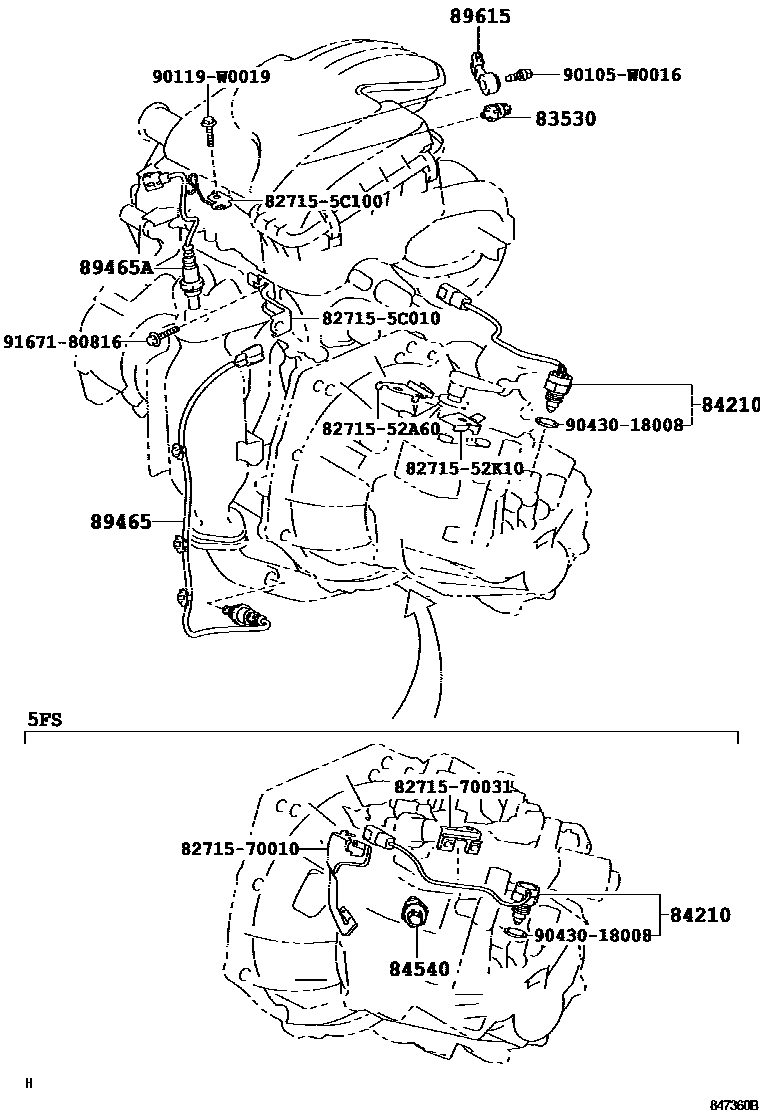

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 21 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 · 28300-47020 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90080-87030 · 90987-W2001 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28850 | Battery current sensor assembly | 28850-40020 |
| 81980 | Turn signal flasher relay assembly | 81980-0D010 · 81980-0D040 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82600F | Spare fuse | 90080-82050 · 90080-82051 · 90080-82052 · 90080-82053 · 90080-82054 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52050 · 82620-52060 · 82620-52070 · 82620-52080 |
| 82621A | Fuse cover | 82621-52120 · 82621-52130 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82643 | low beam relay | 90080-87031 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-26270 |
| 82660D | Relay assembly | 82660-52020 |
| 82660E | Relay assembly | 82660-52030 |
| 82660F | Relay assembly | 82660-52040 |
| 82660G | Relay assembly | 82660-52010 |
| 82662A | No. 1 relay box upper cover | 82662-52301 · 82662-52330 · 82662-52340 · 82662-52570 · 82662-52580 · 82662-52590 · 82662-52600 |
| 82662B | No. 2 relay box upper cover | 82662-52310 · 82662-52320 · 82662-52610 · 82662-52620 |
| 82663 | Relay box lower cover | 82663-0D020 |
| 82663A | No. 2 relay box lower cover | 82663-52060 · 82663-52070 |
| 82673A | Junction box bracket | 82673-52050 · 82673-52080 |
| 82673B | Junction box bracket | 82673-52060 · 82673-52090 |
| 82673C | Junction box bracket | 82673-52070 · 82673-52100 |
| 82674 | Junction box lower cover | 82674-46010 |
| 82730 | Instrument panel junction box assembly | 82730-0D310 · 82730-0D320 · 82730-0D330 · 82730-0D340 · 82730-0D341 · 82730-0D350 · 82730-0D351 · 82730-0D360 · 82730-0D361 · 82730-0D370 · 82730-0D371 · 82730-0D380 · 82730-0D390 · 82730-0D400 · 82730-0D401 · 82730-0D410 · 82730-0D411 · 82730-52291 · 82730-52341 · 82730-52511 · 82730-52521 · 82730-52541 · 82730-52551 · 82730-52591 · 82730-52601 · 82730-52740 · 82730-52750 · 82730-52760 · 82730-52770 · 82730-52780 |
| 82741 | Engine room relay box | 82741-0D030 · 82741-0D040 |
| 82742 | Engine room No. 2 relay box | 82741-52050 · 82741-52060 |
| 82810 | Driving light relay assembly | 82810-52050 · 82810-52060 |
| 83320 | Fuel gauge sensor assembly | 83320-0D050 · 83320-0D051 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84113A | No.1 switch bracket | 84113-0D010 |
| 84113B | No. 2 switch bracket | 84113-0D020 |
| 84140 | Headlight dimmer switch assembly | 84140-0D080 · 84140-0D081 · 84140-0D090 · 84140-0D091 |
| 84152 | Headlight beam height adjustment switch | 84152-0D030 · 84152-0D080 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52021 · 84210-52030 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0D040 |
| 84306 | Spiral cable sub-assembly | 84306-0D070 · 84306-0D090 |
| 84330 | Hazard warning signal switch assembly | 84332-0D010 · 84332-0D020 |
| 84340 | brake light switch assembly | 84340-09020 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84470A | Economic operation cancel switch assembly | 84470-0D010 · 84470-0D020 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-0F010 |
| 84540 | Neutral start switch assembly | 84540-17010 · 84540-70020 · 84545-12010 · 84545-20020 · 84545-20021 |
| 84550 | Parking brake switch assembly | 84550-0H010 |
| 84610F | Transmission shift switch assembly | 84610-0D010 · 84610-0D020 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-0D030 · 84652-0D031 |
| 84718 | Transmission shift master switch | 84718-52010 · 84718-52011 |
| 84720A | No. 1 mode selector switch assembly | 84720-0D010 · 84720-0D020 |
| 84751 | Seat heater switch | 84751-02030 · 84751-0D020 |
| 84810 | Electric window lift switch assembly | 84810-0D030 |
| 84820 | Electric window lift main switch assembly | 84820-02200 · 84820-02210 · 84820-02220 · 84820-02230 · 84820-0D090 · 84820-0D100 · 84820-0D190 · 84820-0D200 · 84820-0D210 · 84820-0D220 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0F010 |
| 84930 | Door control switch assembly | 84930-0D020 |
| 85500 | Cigarette lighter assembly | 85500-09020 · 85500-09080 |
| 85515 | Cigarette lighter frame bracket | 85515-0D010 |
| 85530E | No. 3 power socket assembly | 85530-0D020 |
| 85535E | No. 2 power outlet cover | 85535-52040 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85925F | No. 2 PTC heater relay | 90080-87030 |
| 85926 | Headlight dimmer relay | 90080-87030 |
| 85927A | Cooling fan relay No. 2 | 90080-87012 · 90080-87020 · 90987-04004 |
| 85927G | Air conditioning water pump relay | 90987-04010 |
| 85928B | Cooling fan resistor | 85928-52040 |
| 85930G | ACC relay | 90987-02027 |
| 85930K | No. 2 ACC relay | 90987-04004 |
| 85959A | Relay mounting parts | 85959-52050 · 85959-52070 |
| 87290 | Heater switch assembly | 87290-02020 · 87290-0D040 |
| 87346K | PTC heater relay | 90987-02027 |
| 89245B | steering sensor | 89245-52030 |
| 89425 | Exhaust gas temperature sensor | 89425-52010 · 89425-52011 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-52020 · 89425-52021 |
| 89428 | No. 2 temperature detection switch | 89428-12170 |
| 89437 | sensor cover | 89437-12110 |
| 89439 | Sensor holder | 89439-52010 |
| 89451A | shift lever position sensor | 89451-52020 · 89451-52021 · 89451-52030 · 89451-52031 |
| 89465 | oxygen sensor | 89465-0D110 · 89465-0D130 · 89465-52540 |
| 89465A | Oxygen sensor No. 2 | 89465-0D120 · 89465-0H010 |
| 89467B | air fuel ratio sensor | 89467-0D020 · 89467-12170 · 89467-52070 · 89467-52090 |
| 89481B | Differential pressure sensor | 89481-12050 |
| 89491 | Engine oil level sensor | 89491-12030 · 89491-52030 · 89491-52040 · 89491-52050 |
| 89491A | Engine oil level sensor gasket | 89493-60010 · 90430-36005 |
| 89530C | Transmission control ECU assembly | 89530-52220 · 89530-52221 · 89530-52230 · 89530-52231 · 89530-52240 · 89530-52241 · 89530-52250 · 89530-52251 · 89530-52260 · 89530-52261 · 89530-52270 · 89530-52271 · 89530-52280 · 89530-52281 · 89530-52360 · 89530-52370 · 89530-52380 · 89530-52390 |
| 89531A | transmission control relay | 90080-87030 |
| 895A0 | Brake light control relay assembly | 895A0-52011 |
| 89611 | push button start switch | 89611-02011 · 89611-0D010 |
| 89615 | knock control sensor | 89615-02020 · 89615-0H010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D091 · 89650-0D100 · 89650-0D110 · 89650-0D120 · 89650-0D160 · 89650-0D170 · 89650-0D180 · 89650-0D190 |
| 89681A | Power management control ECU | 89690-0D010 · 89690-0D020 |
