Toyota YARIS 后组合灯 — Figure 8111

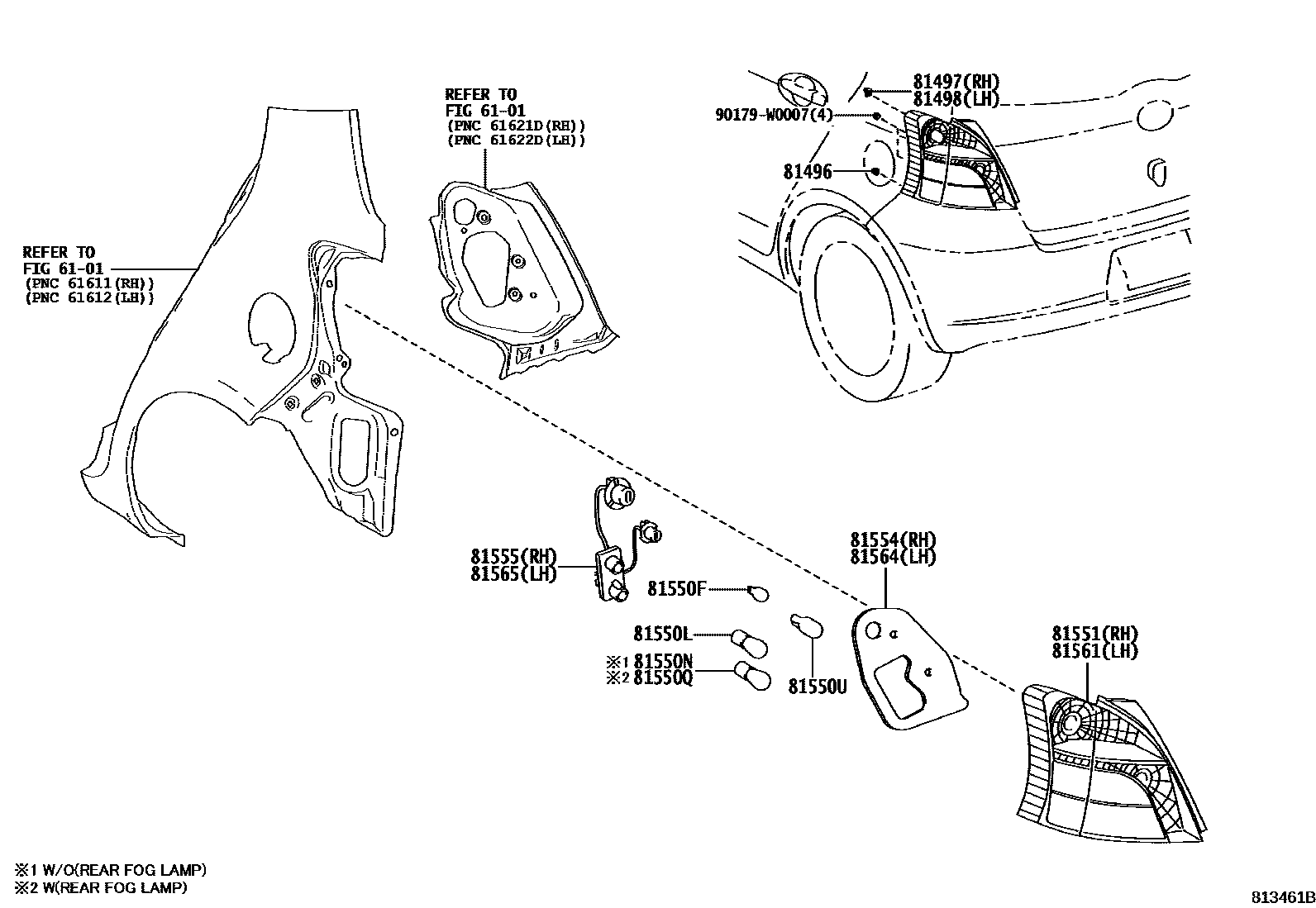

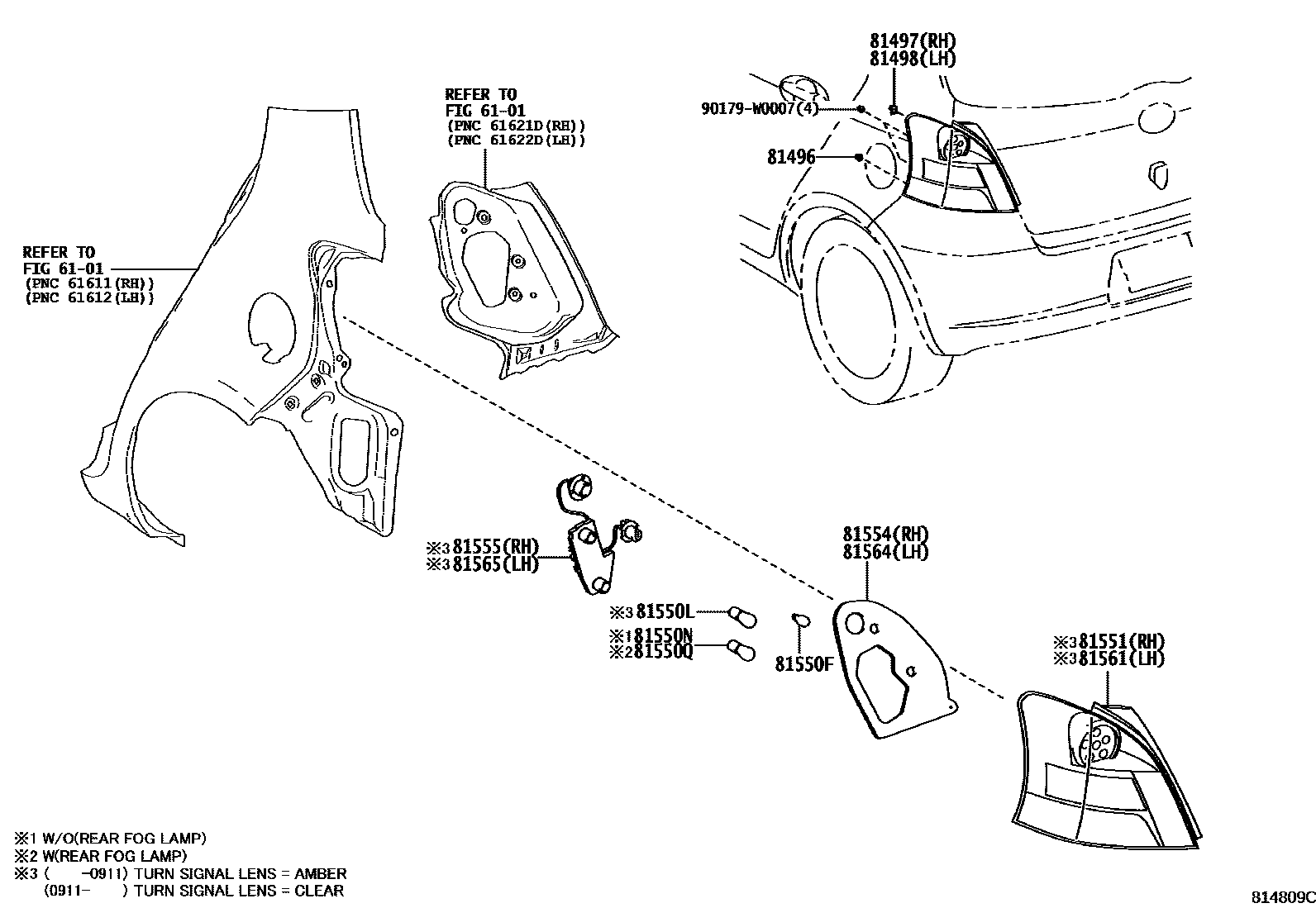

Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-52020 |
| 81498 | Left rear combination lamp cover | 81497-52020 |
| 81550F | tail light bulb | 90981-WB006 |
| 81550L | Rear turn signal light bulb | 90981-WC006 · 90981-WF005 |
| 81550N | reversing light bulb | 90981-WC006 |
| 81550Q | Rear fog light bulb No. 1 | 90981-WC006 |
| 81550U | brake light bulb | 90981-WC006 |
| 81551 | Right rear combination lamp shade | 81551-0D110 · 81551-0D120 · 81551-0D250 · 81551-0D251 · 81551-0D260 · 81551-0D261 |
| 81554 | Right rear combination lamp body gasket | 81554-0D110 · 81554-0D250 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D110 · 81555-0D120 · 81555-0D250 · 81555-0D251 · 81555-0D260 · 81555-0D261 |
| 81561 | Left rear combination lamp shade | 81561-0D110 · 81561-0D120 · 81561-0D250 · 81561-0D251 · 81561-0D260 · 81561-0D261 |
| 81564 | Left rear combination lamp body gasket | 81564-0D120 · 81564-0D250 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-0D110 · 81565-0D120 · 81565-0D250 · 81565-0D251 · 81565-0D260 · 81565-0D261 |
