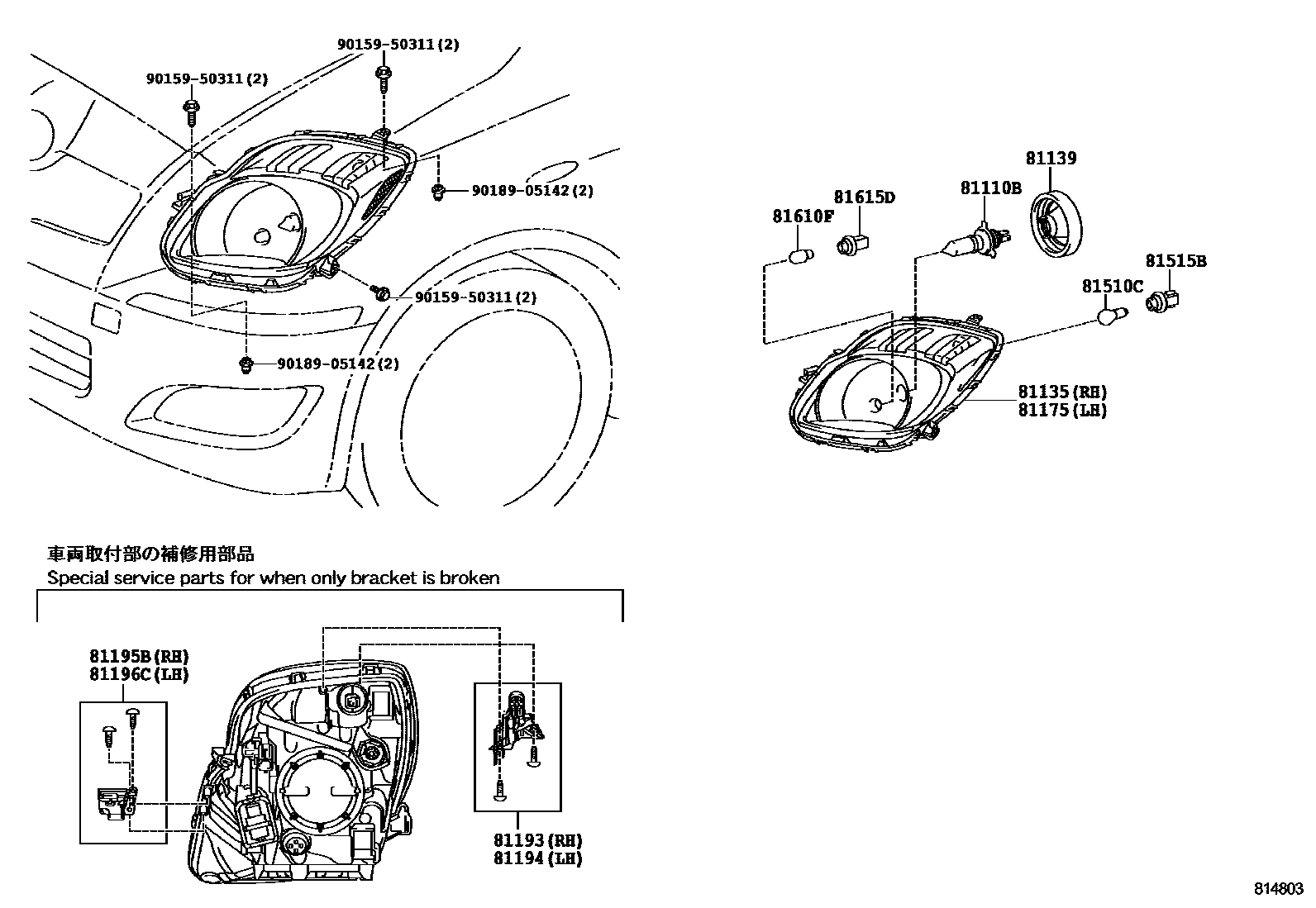

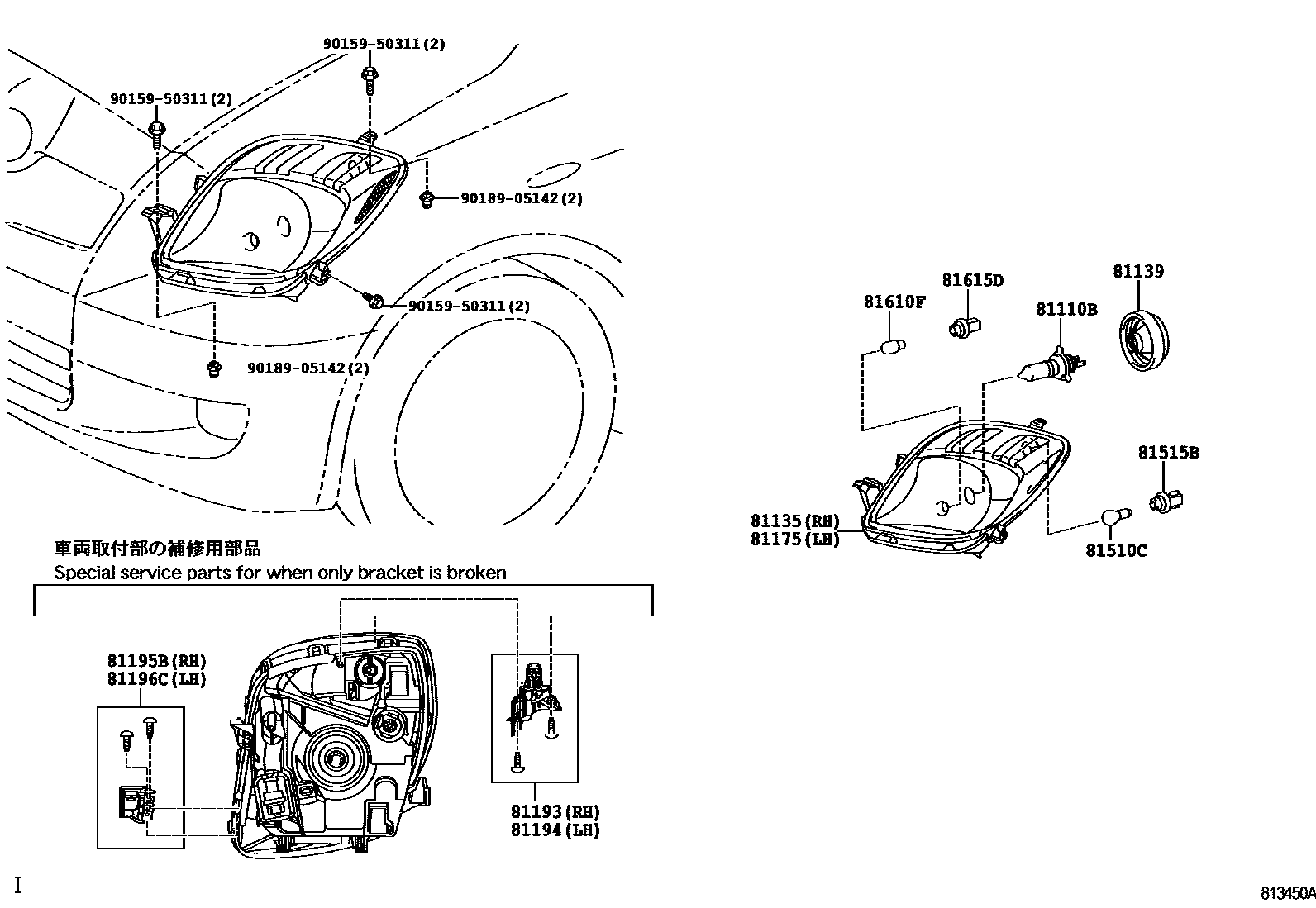

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81076 · 90080-81077 · 90080-81085 |
| 81135 | Right headlight assembly | 81130-0D120 · 81130-0D130 · 81130-0D330 · 81130-0D340 · 81130-0D350 · 81130-0D360 |
| 81139 | Headlight lamp holder cover | 81139-0D010 |
| 81175 | Left headlight assembly | 81170-0D120 · 81170-0D130 · 81170-0D330 · 81170-0D340 · 81170-0D350 · 81170-0D360 |
| 81193 | Right headlight upper protective ring | 81193-52080 |
| 81194 | Left headlight upper protective ring | 81194-52080 |
| 81195B | Right headlight lower right protection piece | 81195-52050 · 81195-52110 |
| 81196C | Left headlight lower left protection piece | 81196-52050 · 81196-52110 |
| 81510C | Bulb (for front turn signal lamp) | 90981-WF003 |
| 81515B | Front turn signal lamp holder | 90069-81052 |
| 81610F | Light bulb (for width indicator light) | 90981-WB003 |
| 81615D | Width light lamp holder | 81275-02070 |
