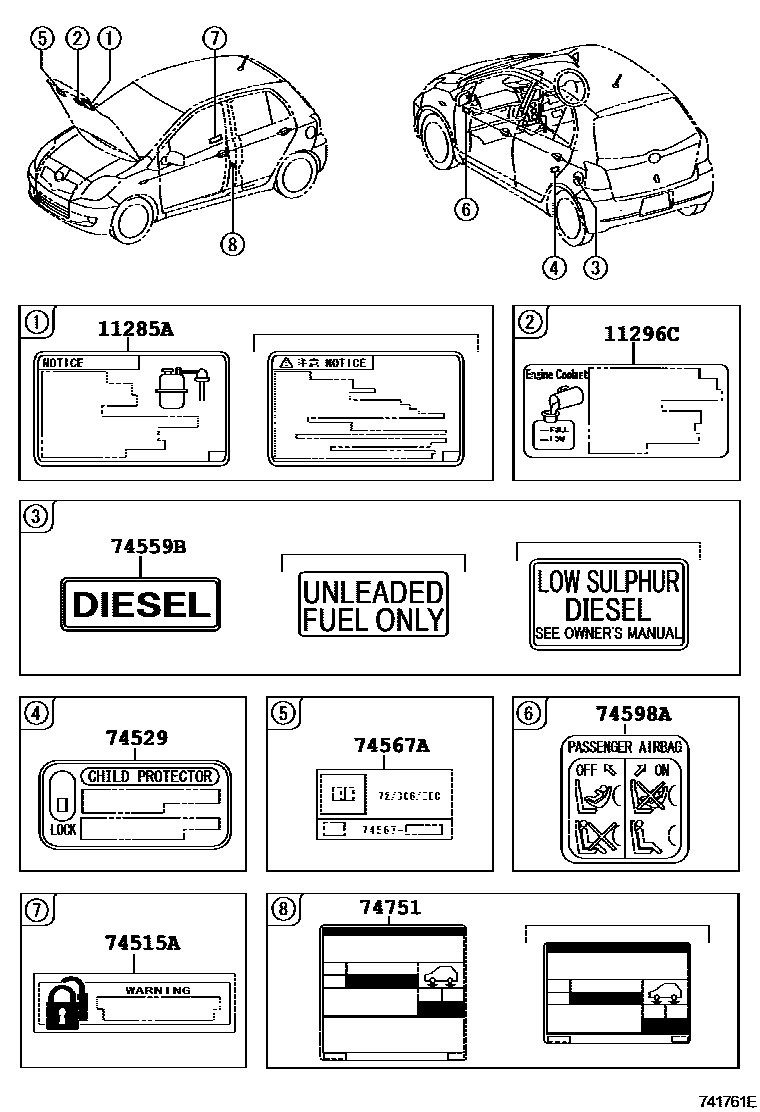

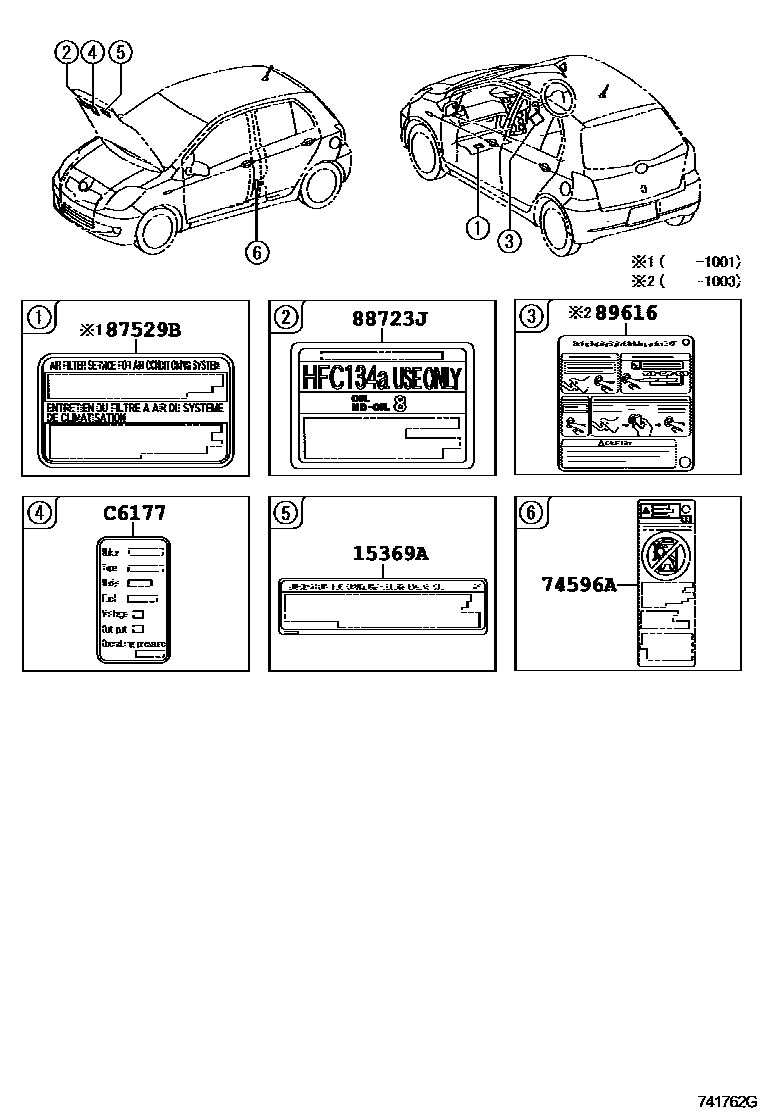

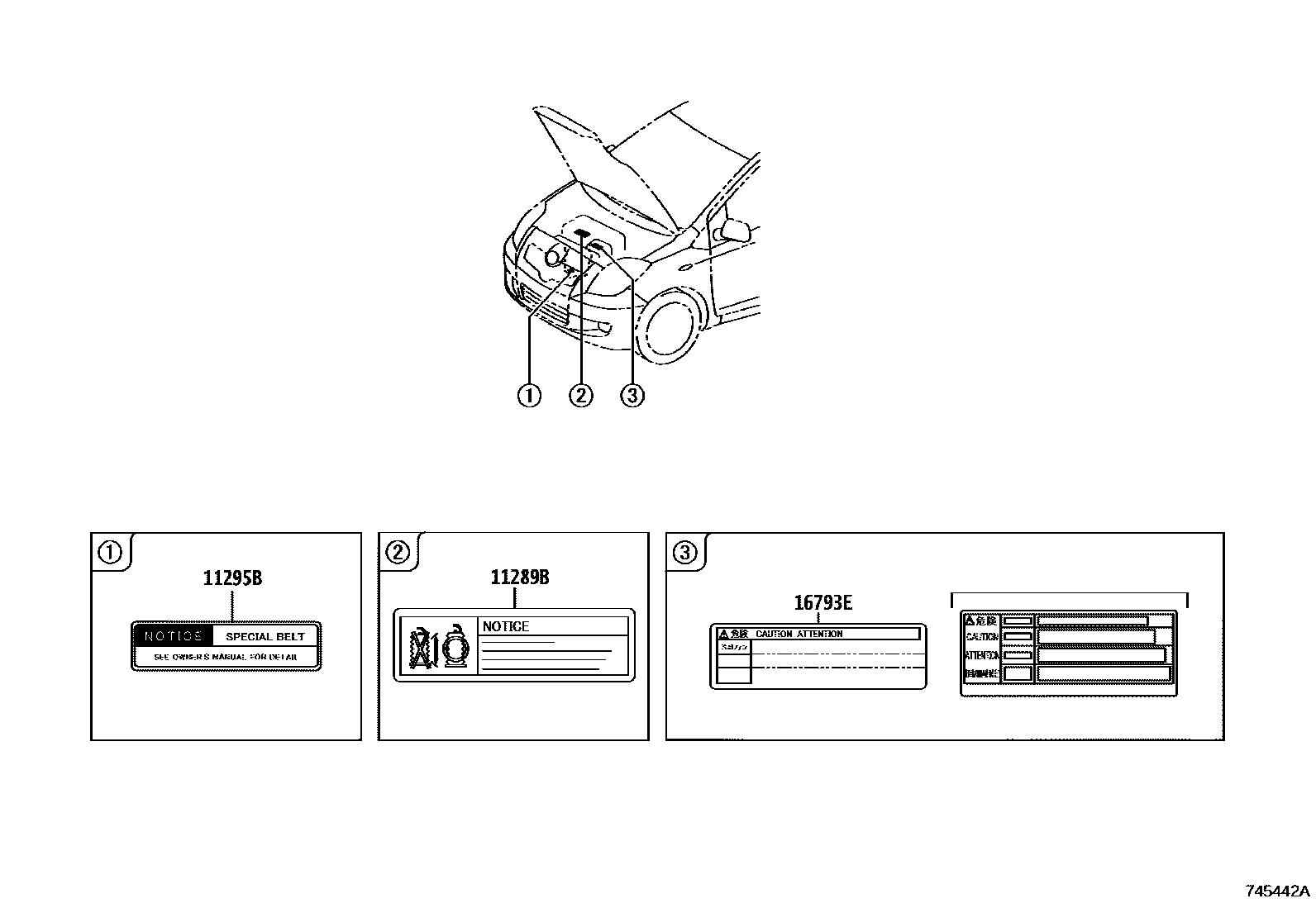

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33010 · 11285-33030 · 11285-33040 |
| 11289B | spark plug caution label | 11289-0Q010 · 11289-40010 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-33010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 15369A | Engine oil information label | 15369-0N010 · 15369-33010 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-31030 · 88723-20081 |
| 74515A | Anti-theft warning nameplate | 74515-0D010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-03010 |
| 74559B | fuel information label | 74559-02010 · 74559-05010 · 74559-20120 |
| 74567A | E.C.E approval number plate | 74567-25041 · 74567-26201 |
| 74596A | Side air bag warning label | 74596-02040 · 74596-30030 · 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-02020 |
| 74751 | tire pressure information label | 42661-0D050 · 42661-0D110 · 42661-0D120 · 42661-0D130 · 42661-0D140 · 42661-0D240 · 42661-0D350 · 42661-0D360 · 42661-0D370 |
| 87529B | Cabin filter information label | 87529-0D010 |
| 88723J | Cooler No. 2 maintenance warning label | 88733-0D030 |
| 89616 | Button start information label | 89616-52030 · 89616-52040 · 89616-52050 · 89616-52060 · 89616-52070 · 89616-52100 · 89616-53010 · 89616-53030 |
| C6177 | Heater Caution Label | C6177-05010 |
