Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

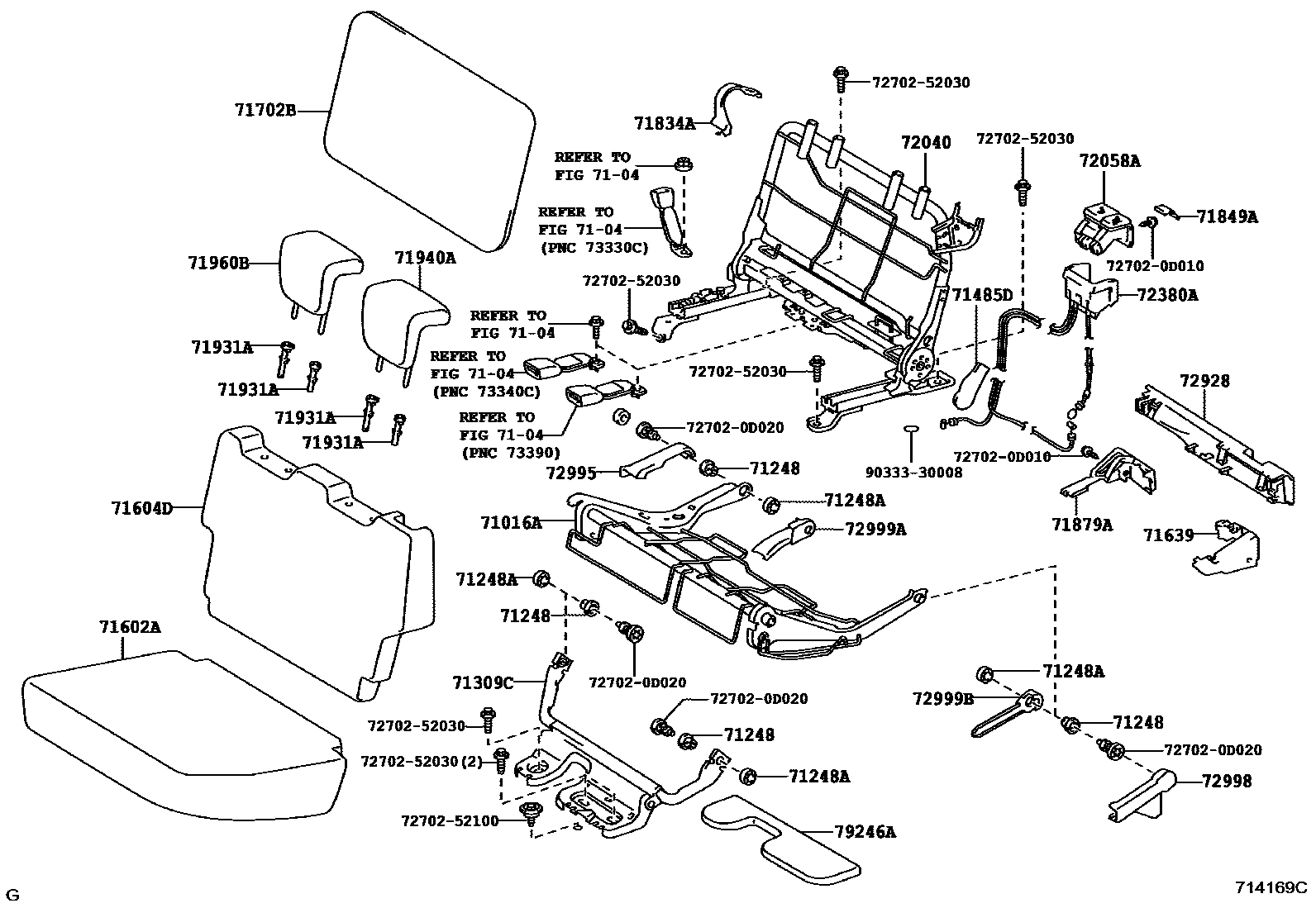

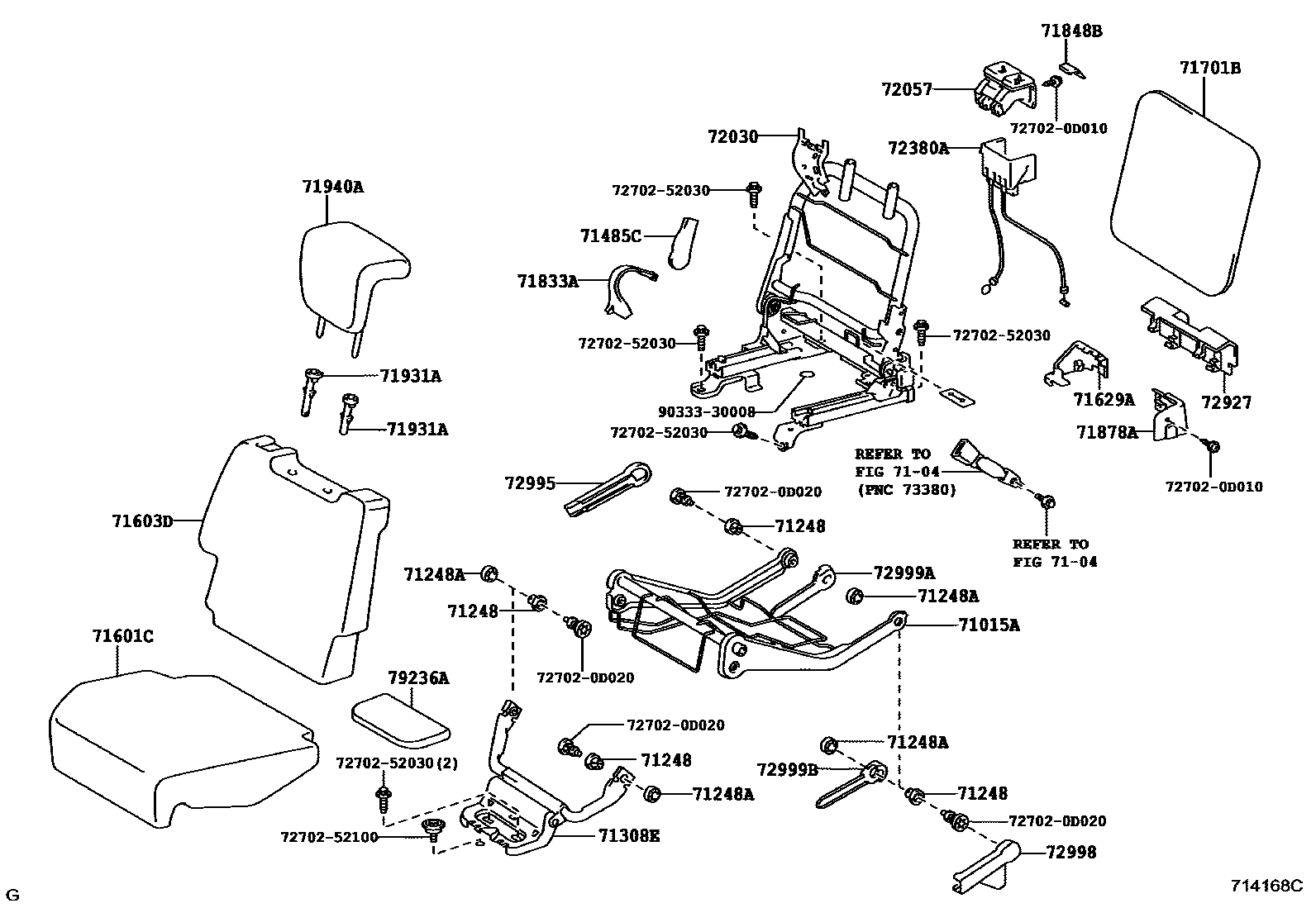

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-0D050 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-0D020 |
| 71248 | Rear seat No. 1 seat cushion hinge fixing | 71248-0D010 |
| 71248A | Rear seat No. 2 seat cushion hinge fixing | 71248-0D020 |
| 71308E | Rear right seat leg sub-assembly | 71308-0D010 |
| 71309C | Rear left seat rear support foot sub-assembly | 71309-0D010 |
| 71485C | Rear right seat hinge cover | 71485-0D010 |
| 71485D | Rear left seat hinge cover | 71485-0D010 |
| 71701B | Rear right seat back panel sub-assembly | 71701-0D010 |
| 71702B | Rear left seat back panel sub-assembly | 71702-0D010 |
| 71834A | Rear left seat back recliner cover No. 1 | 71834-0D010 |
| 72030 | Rear No. 1 seat adjuster assembly | 72030-0D040 |
| 72040 | Rear No. 2 seat adjuster assembly | 72030-0D050 |
| 72380A | No. 2 seat adjuster control cable assembly | 72380-0D010 · 72380-0D020 |
