Toyota YARIS 后门板和后门玻璃 — Figure 6705

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

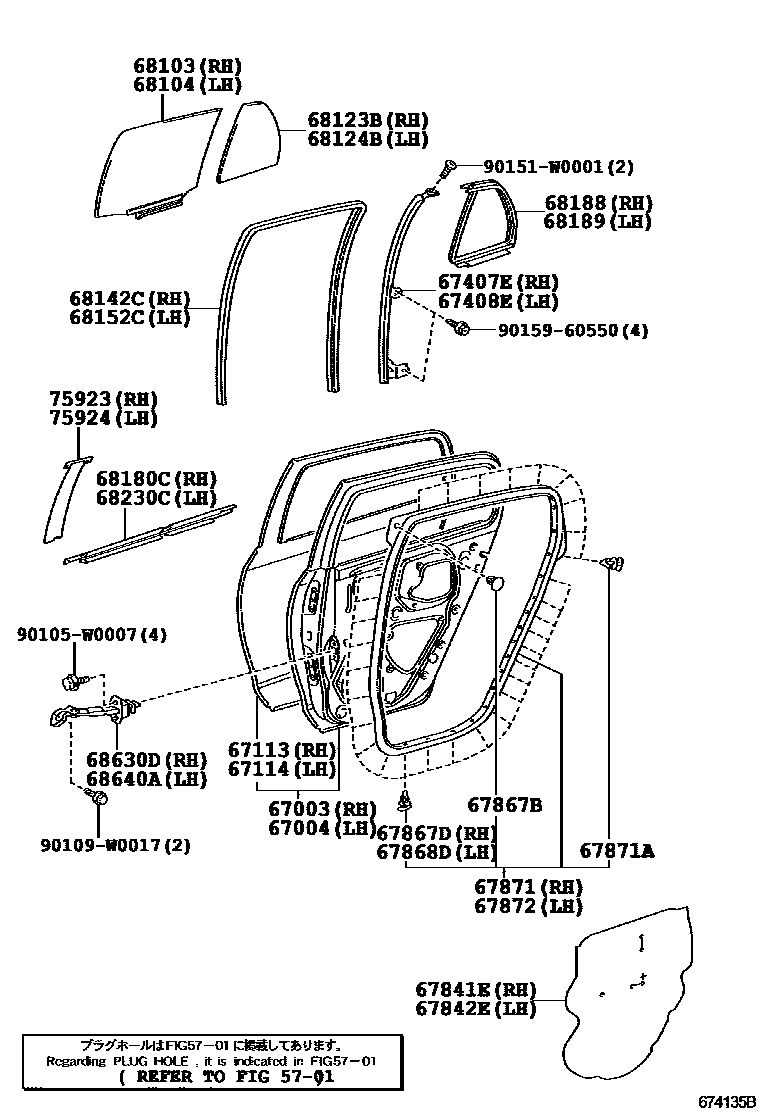

Toyota YARIS 后门板和后门玻璃 EPC diagram — 674135B
后门板和后门玻璃 — 674135B (200511 – 999999)

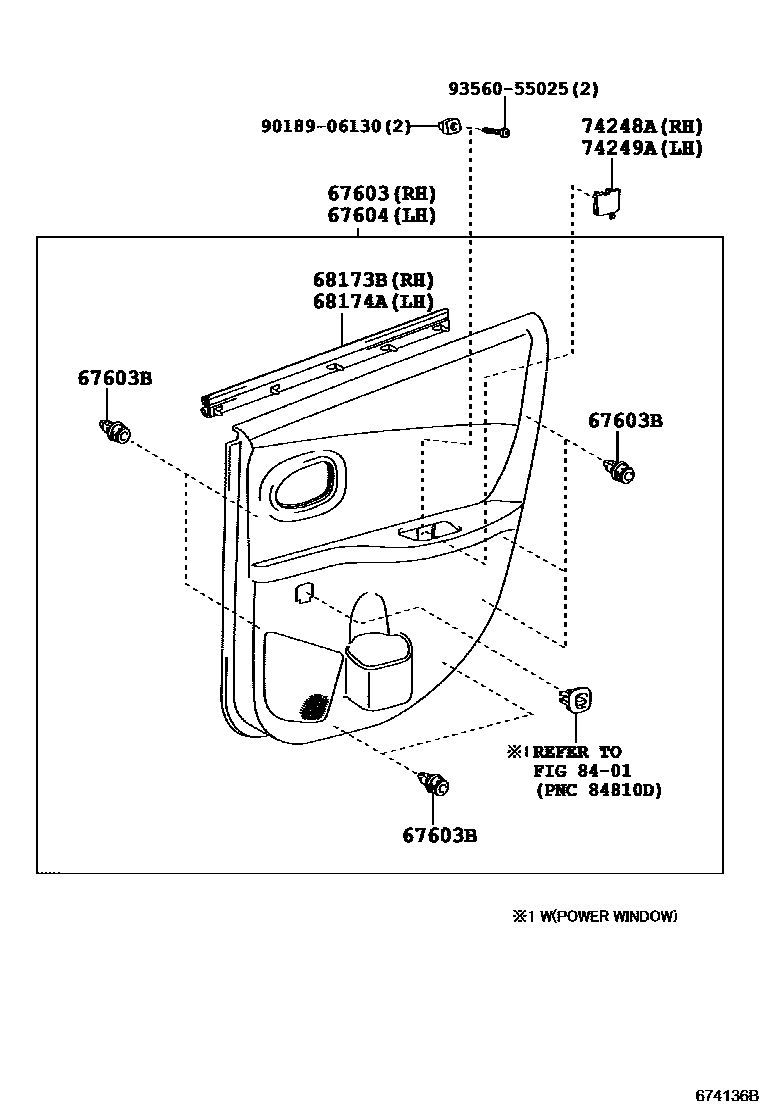

Toyota YARIS 后门板和后门玻璃 EPC diagram — 674136B
后门板和后门玻璃 — 674136B (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-0D110 · 67003-0D120
67004Left rear door panel sub-assembly67004-0D110 · 67004-0D120
67113Right rear door outer panel67113-52160
67114Left rear door outer panel67114-52160
67407ERight rear door window divider sub-assembly67407-52110
67408ELeft rear door window divider sub-assembly67408-52110
67603BCatch (for rear door trim panel)90467-09203
67841ERight rear door access hole cover67841-0D040 · 67841-0D050
67842ELeft rear door access hole cover67841-0D040 · 67841-0D050
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-0D040
67871AFixings (for rear door sealing strip)67867-52010 · 67867-52040
67872Left rear door sealing strip67872-0D050
68103Right rear door glass sub-assembly68130-0D070 · 68130-0D071 · 68130-0D150
68104Left rear door glass sub-assembly68140-0D070 · 68140-0D071 · 68140-0D150
68123BRight rear door corner window glass68123-0D050 · 68123-0D051 · 68123-0D130
68124BLeft rear door corner window glass68124-0D050 · 68124-0D051 · 68124-0D130
68142CRight rear door glass lift slot68142-0D050
68152CLeft rear door glass lift slot68152-0D050
68173BRight rear door glass inner sealing strip68173-52110
68174ALeft rear door glass inner sealing strip68174-52110
68180CRight rear door glass outer sealing strip assembly68180-0D050
68188Right rear door corner window seal68188-0D050
68189Left rear door corner window seal68189-0D050
68230CLeft rear door glass outer sealing strip assembly68230-0D050
68630DRight rear door opening limiter assembly68630-0D060
68640ALeft rear door opening limiter assembly68630-0D060
75923No. 2 right side light-shielding film75923-0D010
75924No. 2 left shading film75924-0D010
