Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 23 PNC and OE references.

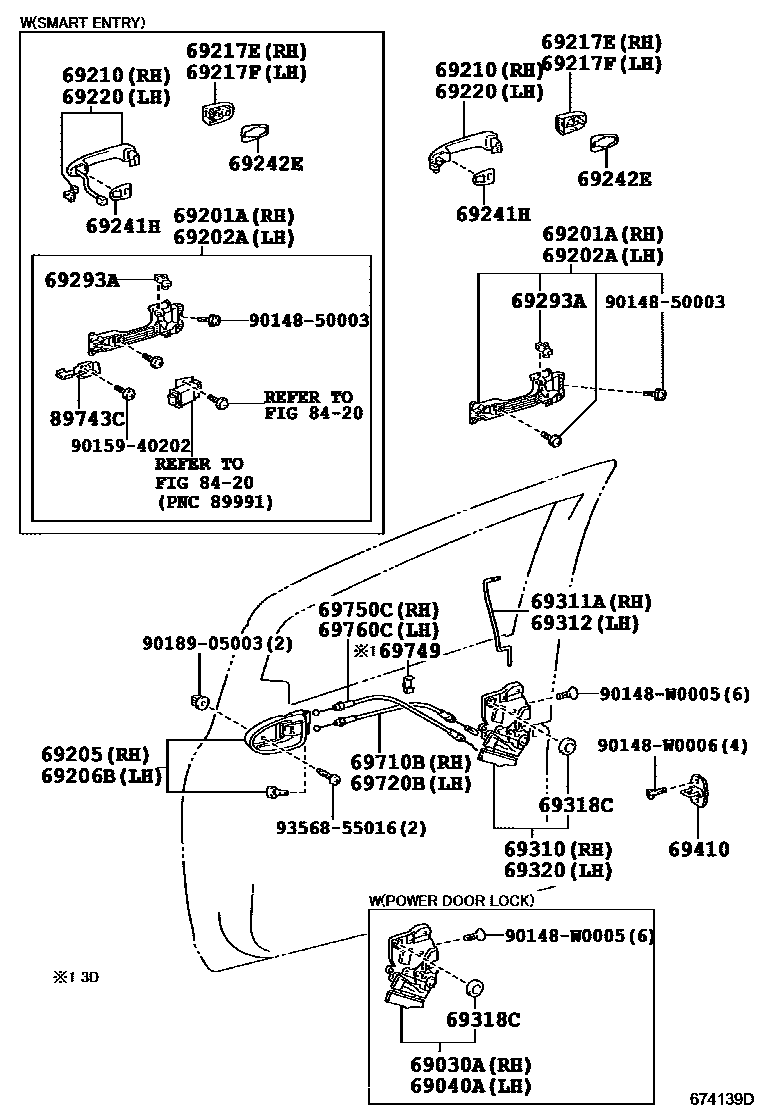

Toyota YARIS 前门锁和车门把手 EPC diagram — 674139D
前门锁和车门把手 — 674139D (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-0D120 · 69030-0D130 · 69030-0D140 · 69030-0D150 · 69030-0D340
69040ALeft front door door lock assembly with motor69040-0D070 · 69040-0D110 · 69040-0D120 · 69040-0D140 · 69040-0D350
69201ARight front door outer handle frame sub-assembly69201-0D010 · 69201-0D020 · 69201-0D030 · 69201-0D040
69202ALeft front door outer handle frame sub-assembly69202-0D010 · 69202-0D020
69210Right front door outer handle assembly69211-0D070 · 69211-0D901
69217ERight front door outer handle cover69217-0D040 · 69217-0D050 · 69217-0D903 · 69217-0D904
69217FLeft front door outer handle cover69217-0D040 · 69217-0D050 · 69217-0D903 · 69217-0D904
69220Left front door outer handle assembly69211-0D070 · 69211-0D901
69241HFront door exterior handle pad69241-0D020
69242EFront door rear outer handle pad69242-0D020 · 69242-52020
69293AFront door outer handle buckle69293-12030 · 69293-12040
69310Right front door lock assembly69310-0D070
69311ARight front door lock opening lever69311-0D030
69312Left front door lock opening lever69312-0D030
69318Cdoor lock harness seal69318-47010
69320Left front door lock assembly69320-0D070
69410Front door lock plate assembly69410-0D030
69710BRight front door lock remote control cable assembly69710-0D080 · 69710-0D090
69720BLeft front door lock remote control cable assembly69710-0D080 · 69710-0D090
69749Front door lock link clip69749-32040
69750CRight front door inner lock cable assembly69750-0D040 · 69750-0D050
69760CLeft front door inner lock cable assembly69750-0D040 · 69750-0D050
89743CElectronic key harness bracket89743-0D010 · 89743-0D020
