Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

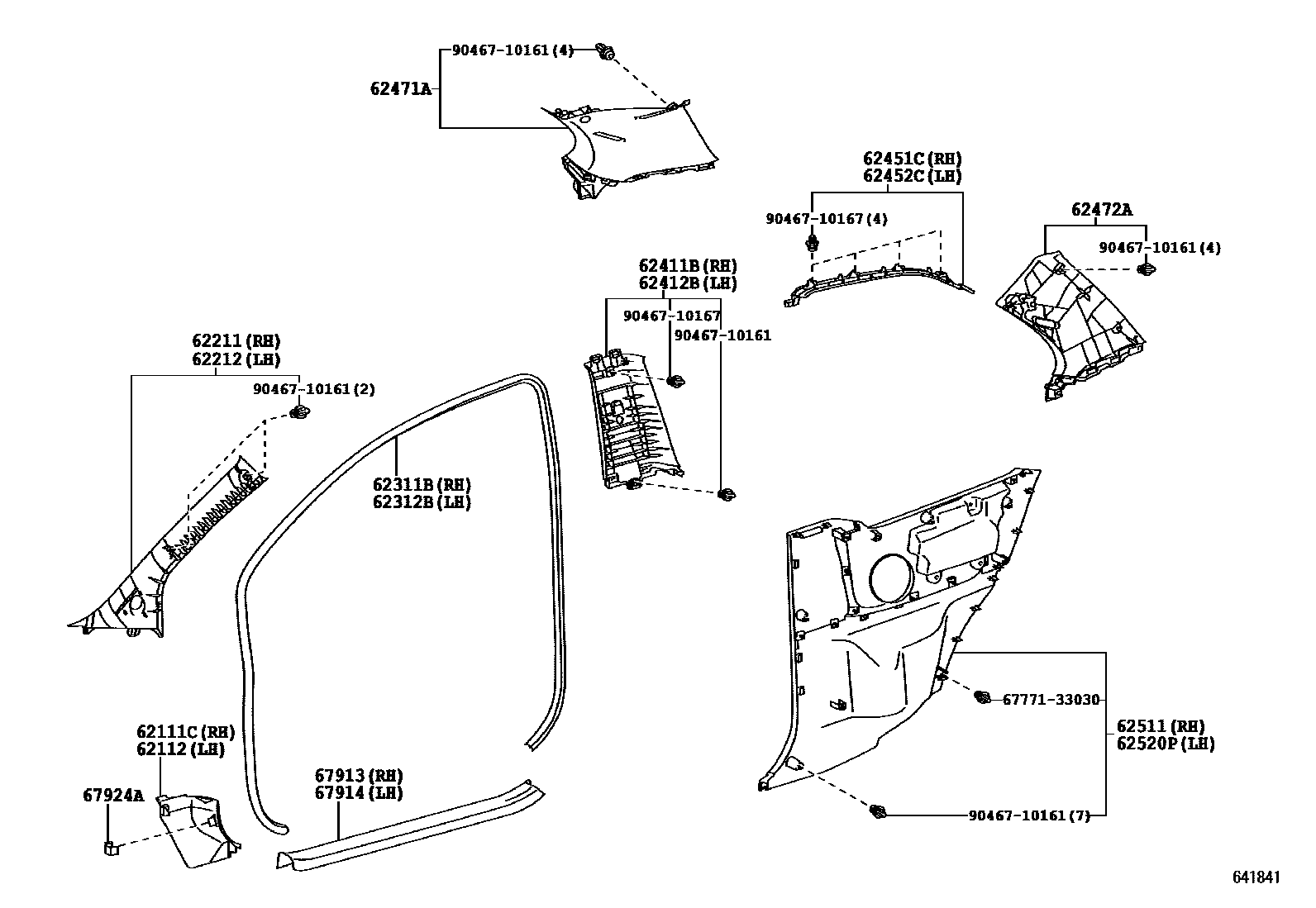

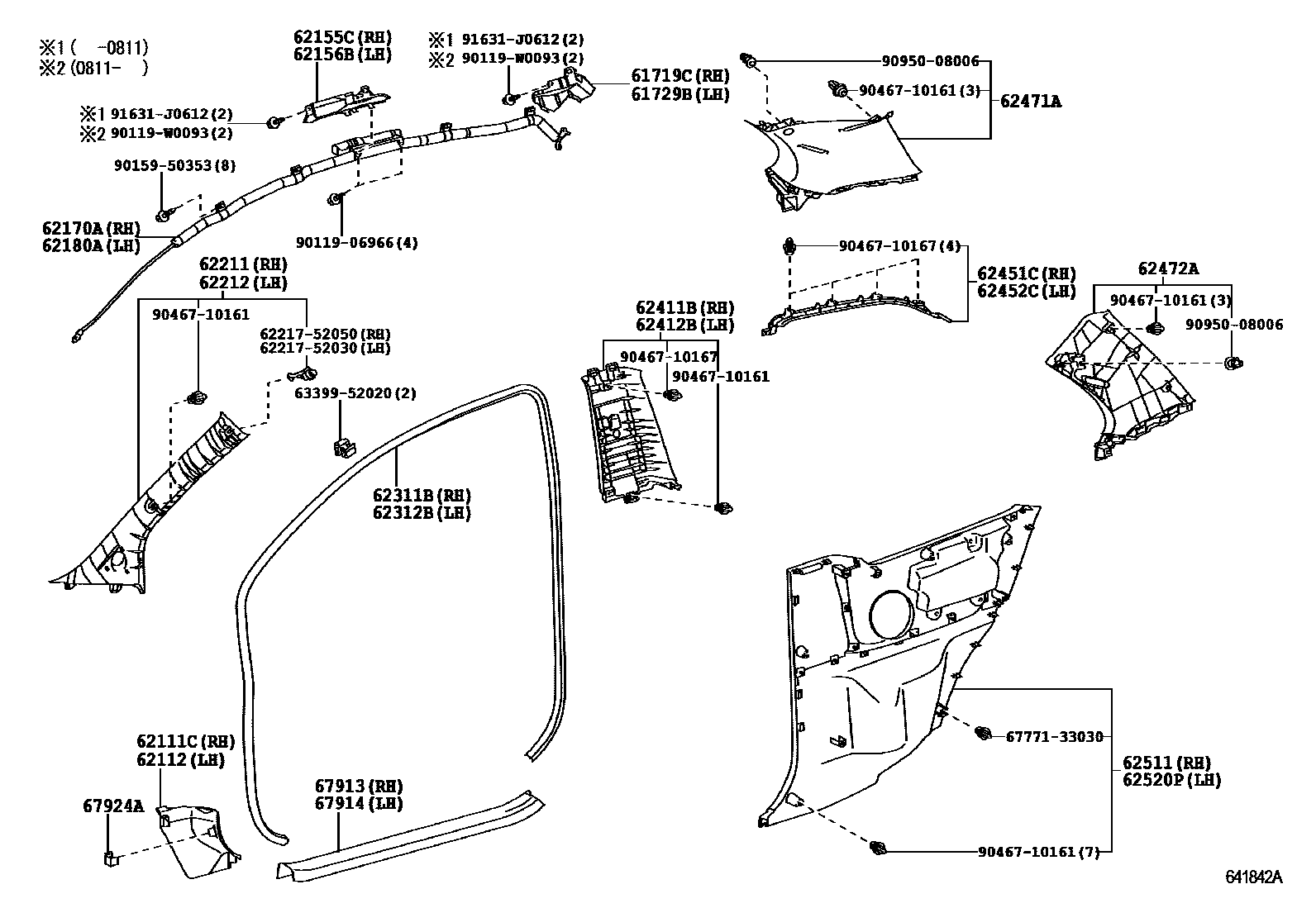

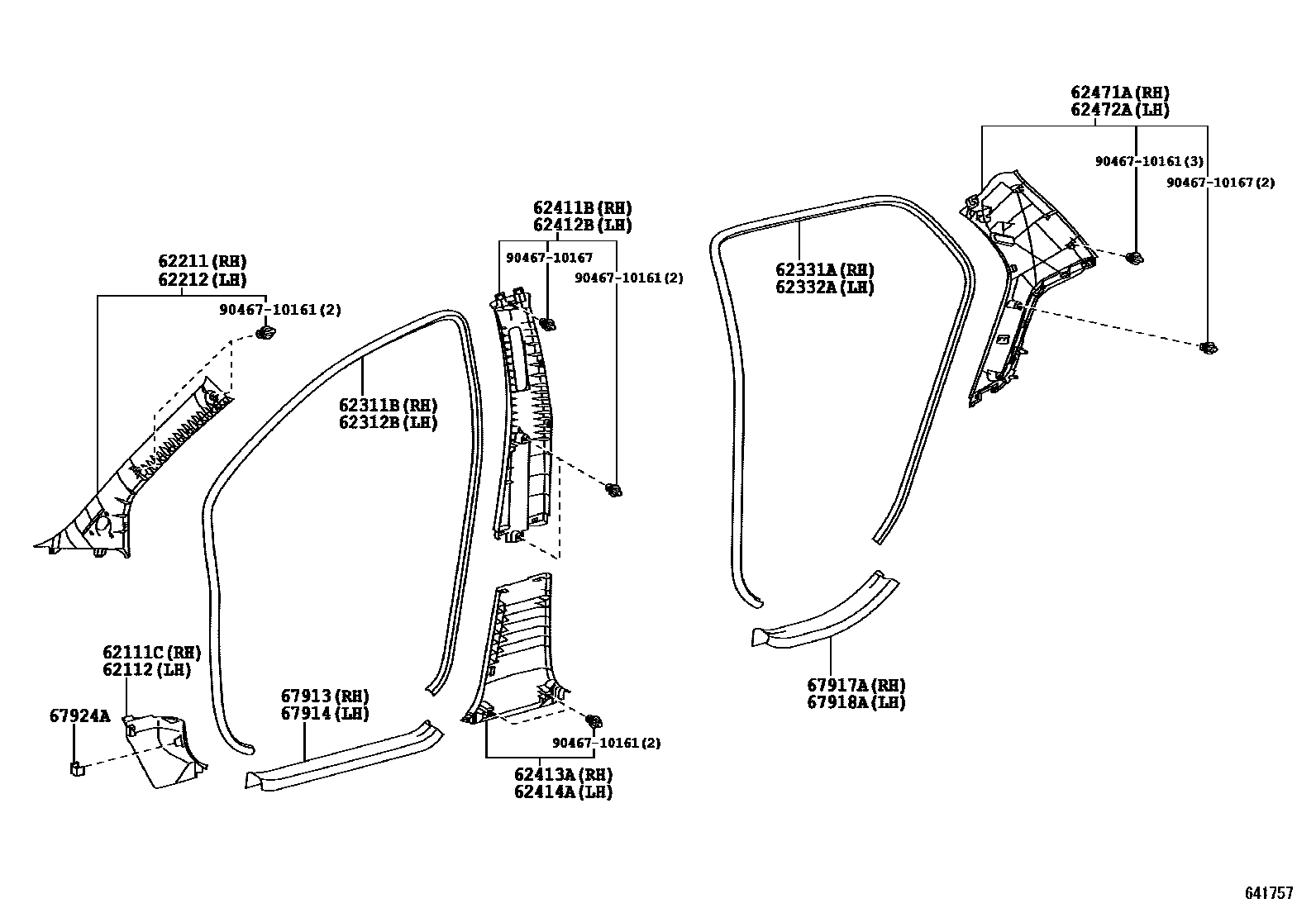

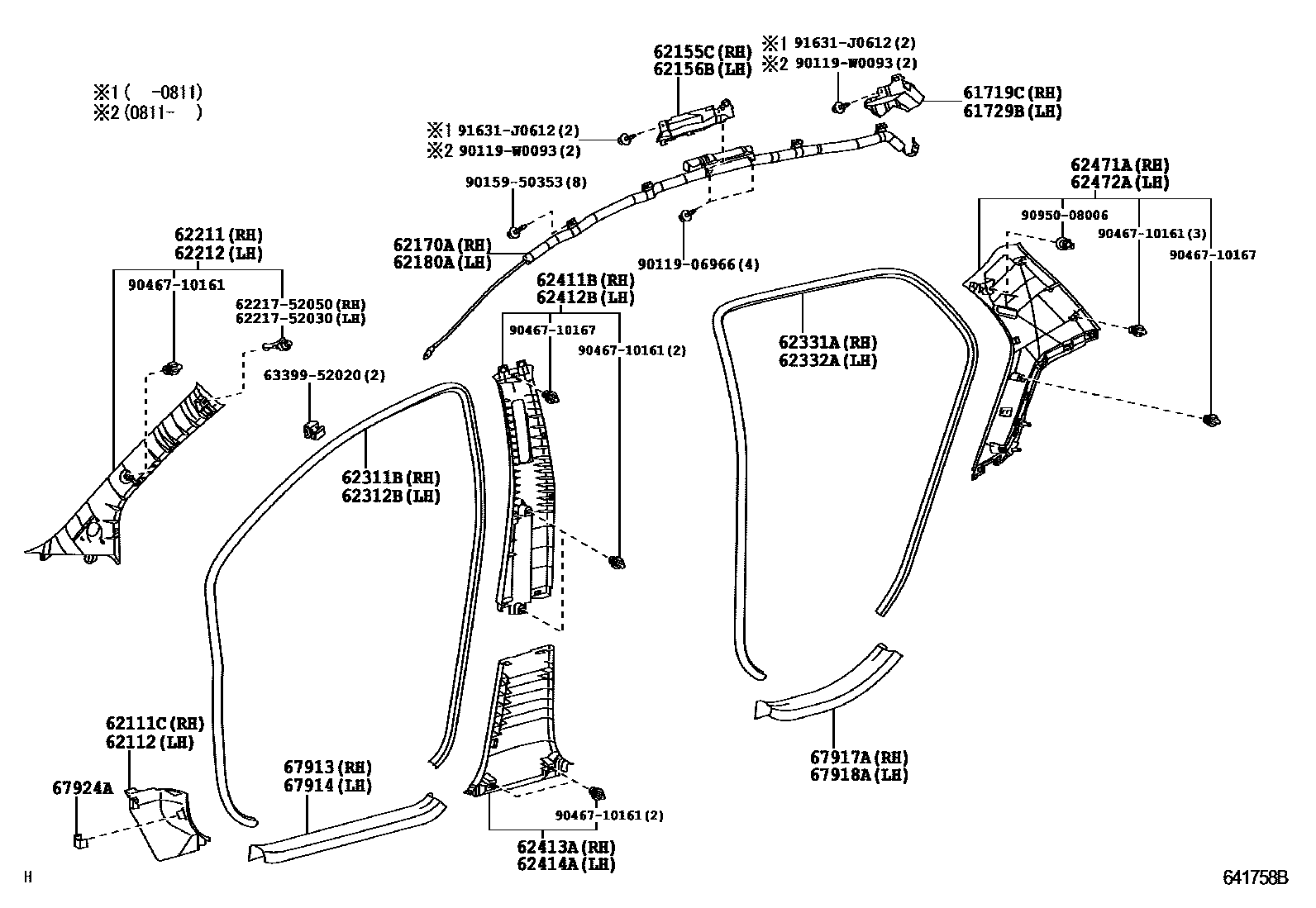

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61719C | Roof right side rail bracket | 61719-52020 · 61719-52030 |
| 61729B | Roof left side rail bracket | 61729-52030 · 61729-52040 |
| 62155C | Right curtain airbag bracket | 62155-52020 · 62155-52030 |
| 62156B | Left curtain airbag bracket | 62156-52050 · 62156-52060 |
| 62170A | Right curtain air bag assembly | 62170-0D010 · 62170-0D011 |
| 62180A | Left curtain air bag assembly | 62180-0D010 · 62180-0D011 |
| 67924A | Door No. 2 wear plate clip | 67924-52140 |
