Toyota YARIS 角窗 — Figure 6103

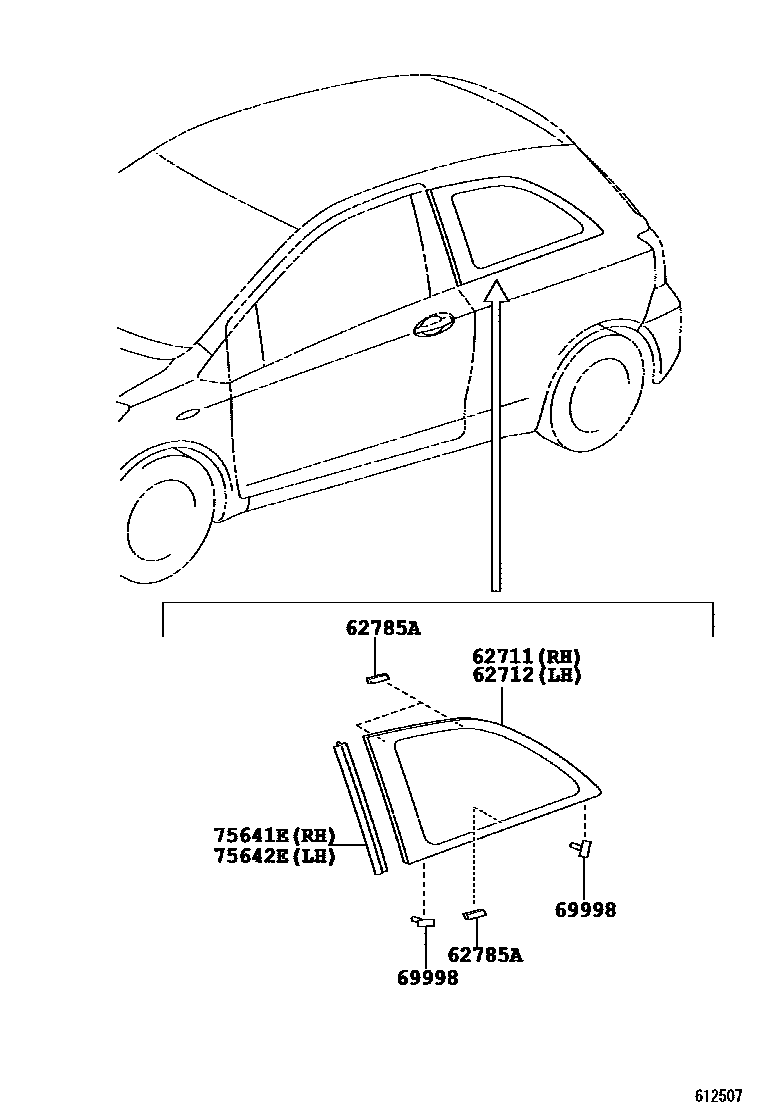

Toyota YARIS EPC diagram 6103, 角窗, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-0D020 · 62711-0D021 · 62711-0D030 |
| 62712 | Left corner window glass | 62712-0D020 · 62712-0D021 · 62712-0D030 |
| 62785A | Corner window glass spacer | 62785-16030 |
| 69998 | No. 1 corner window glass guide channel pin | 69998-52030 |
| 75641E | Right corner window protective strip | 75641-0D010 |
| 75642E | Left corner window protective strip | 75641-0D010 |
