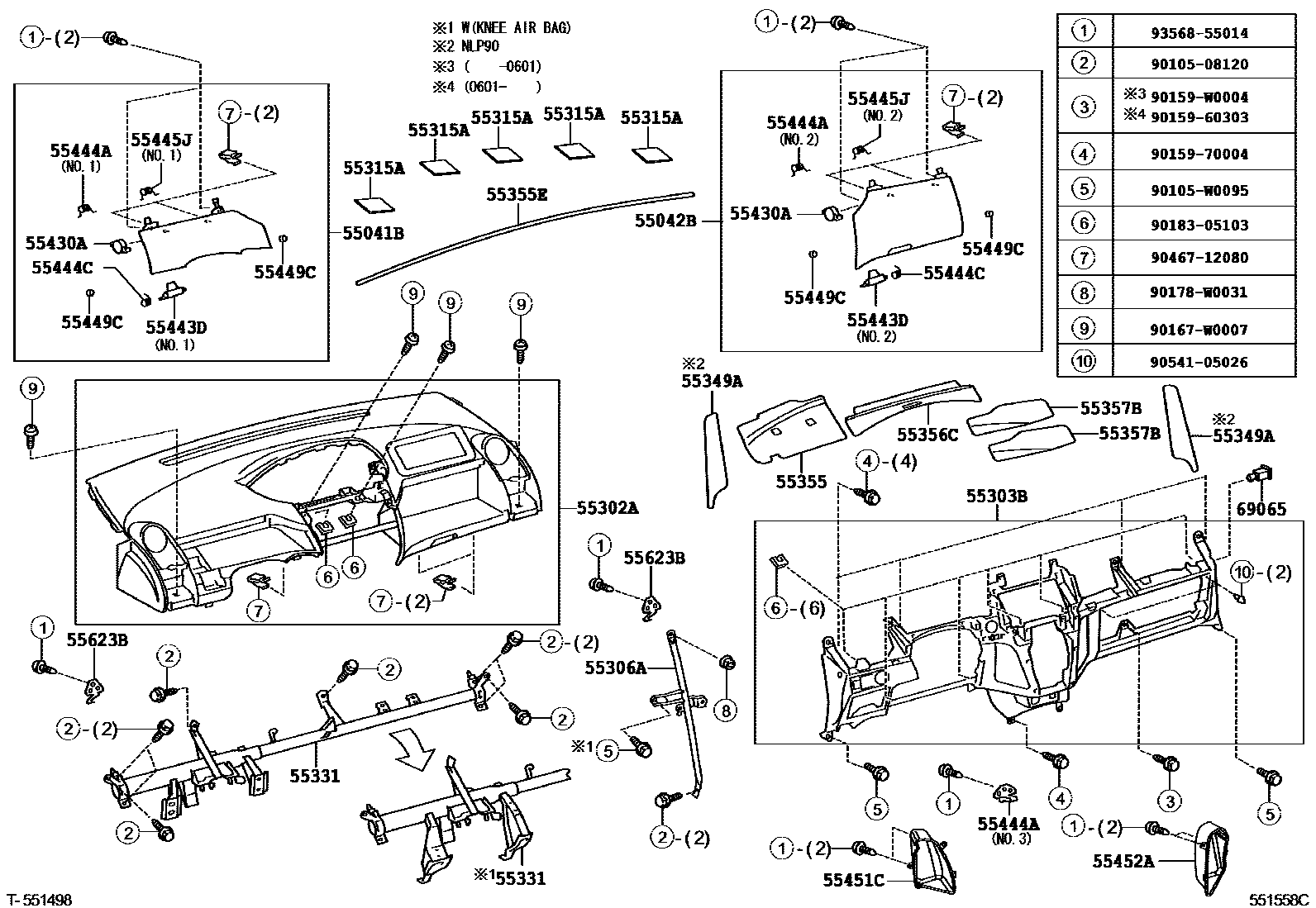

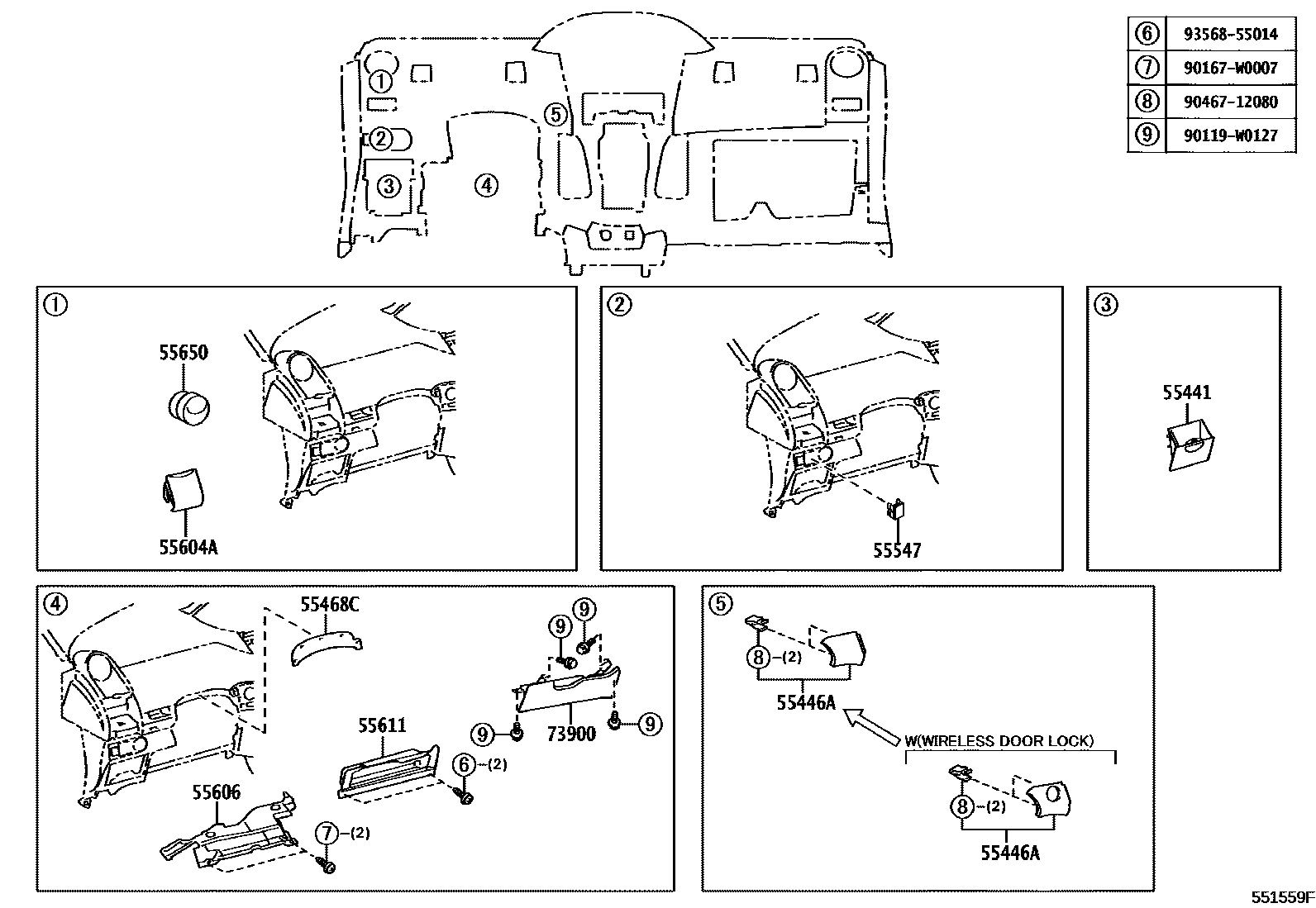

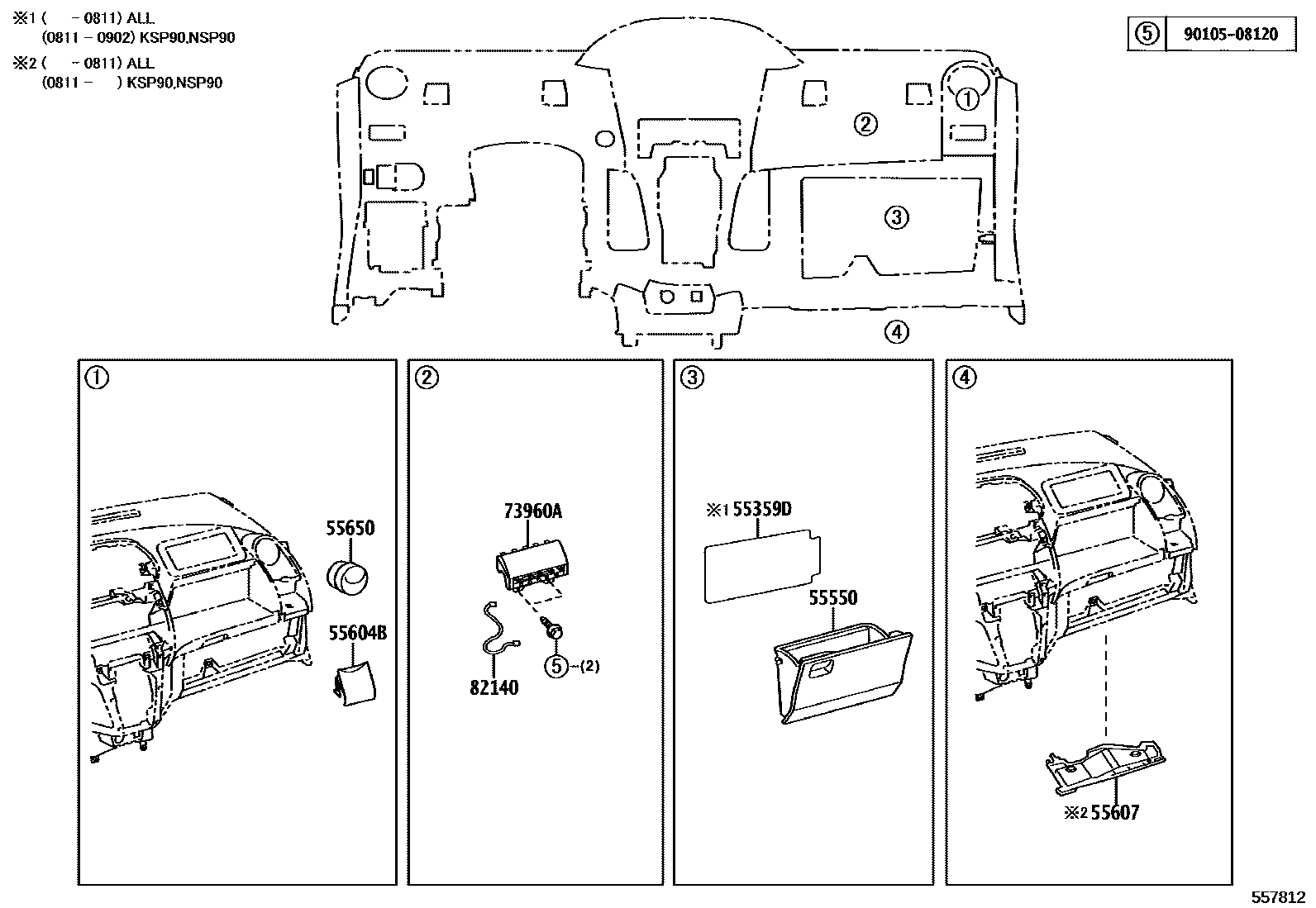

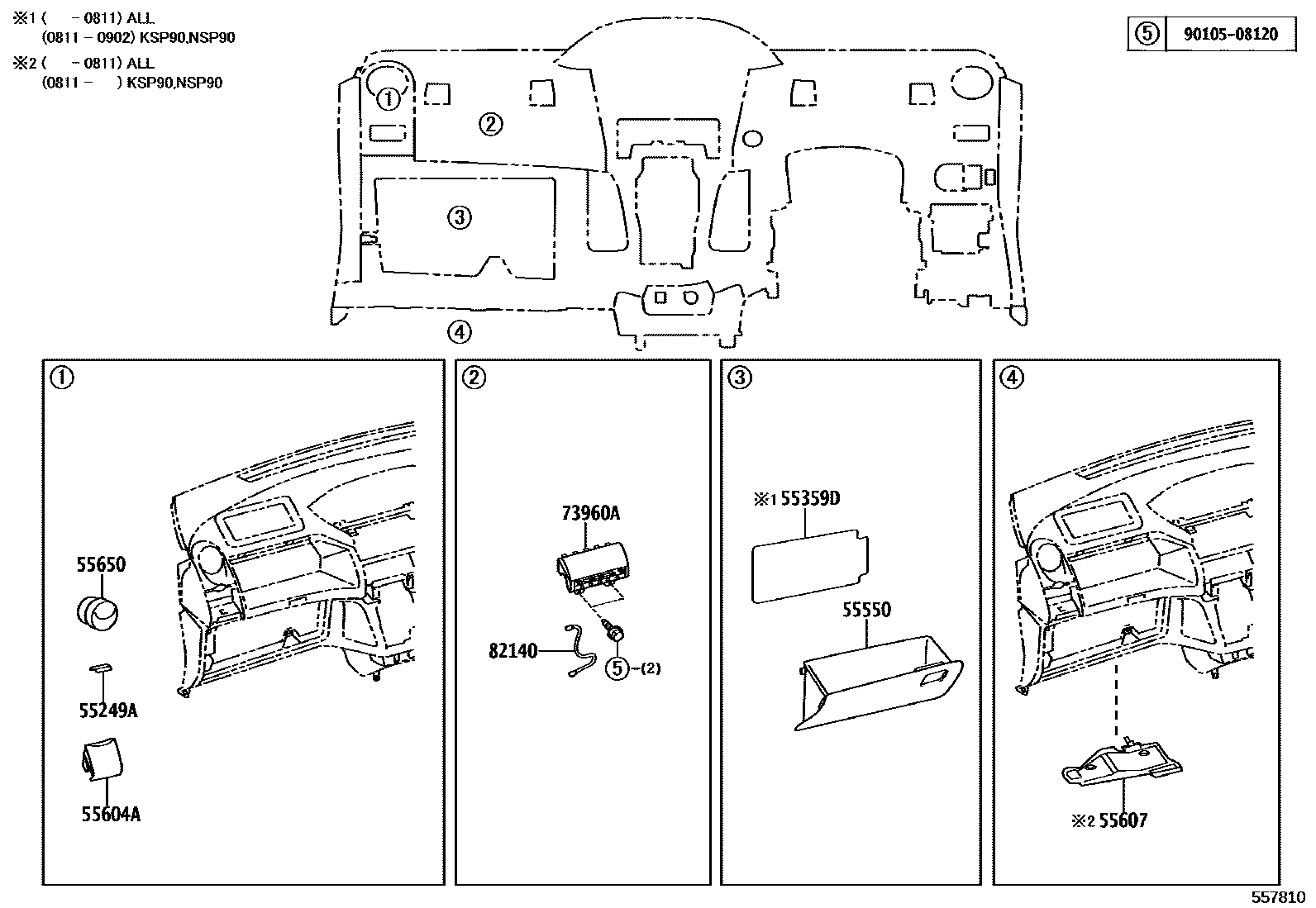

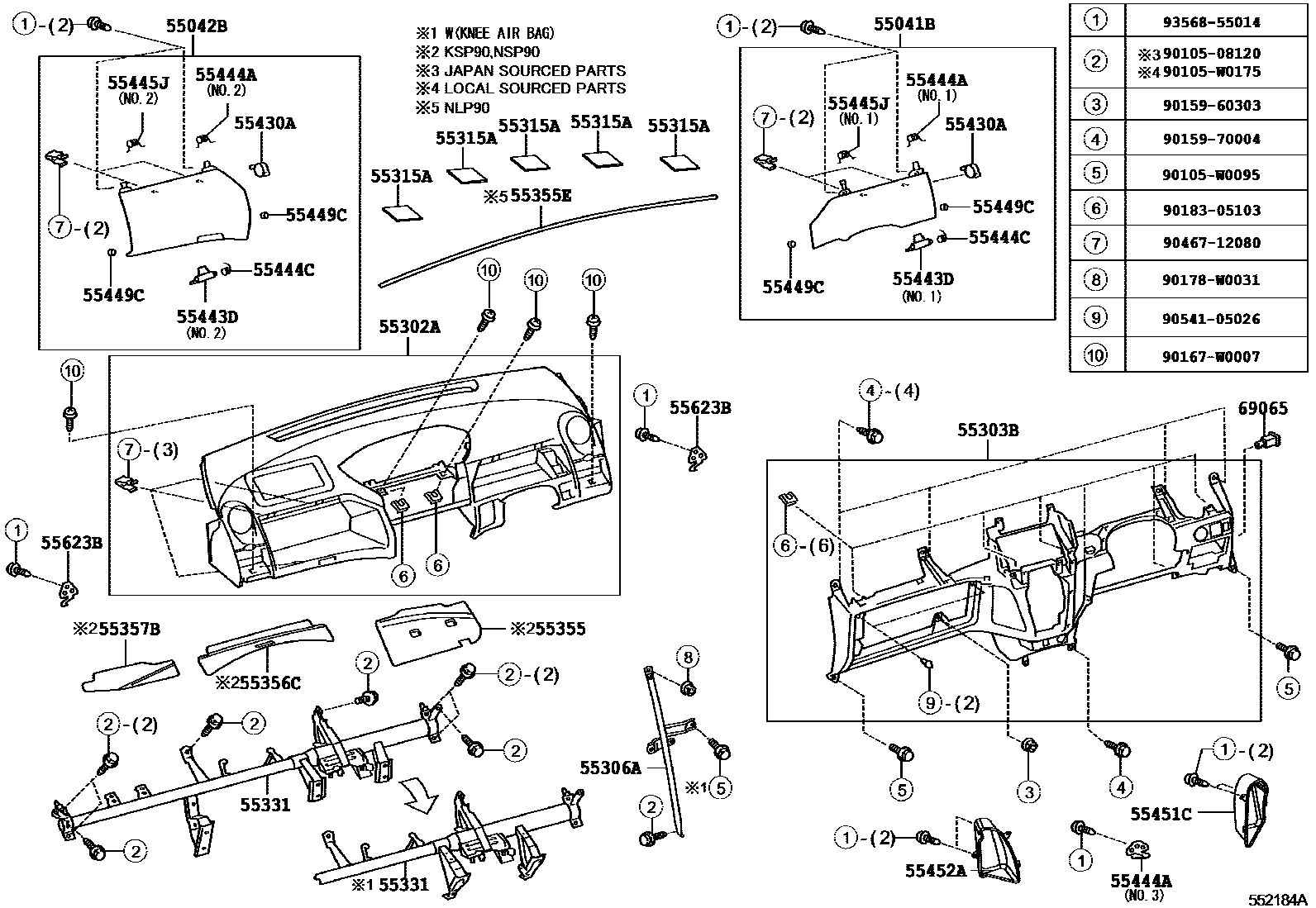

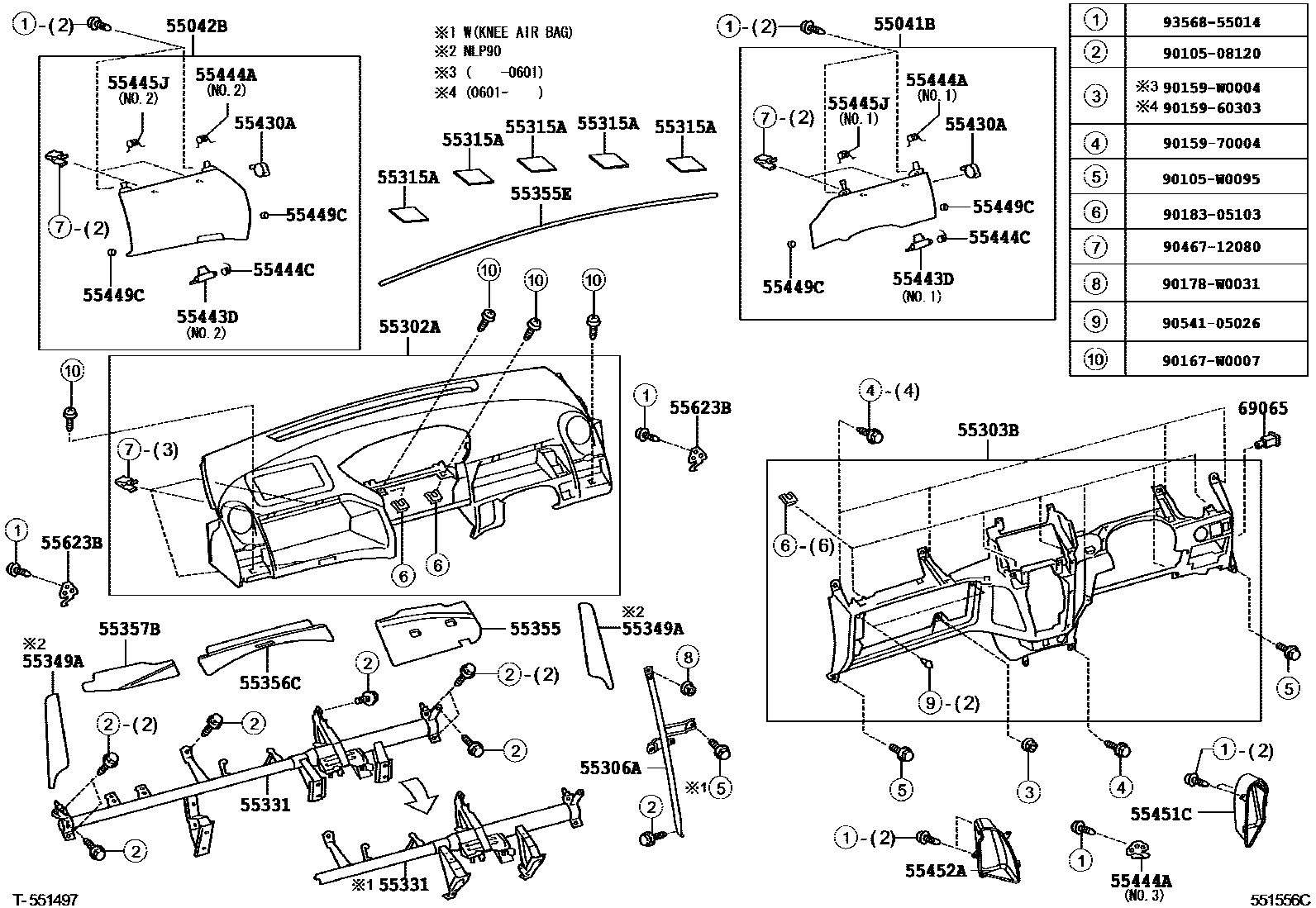

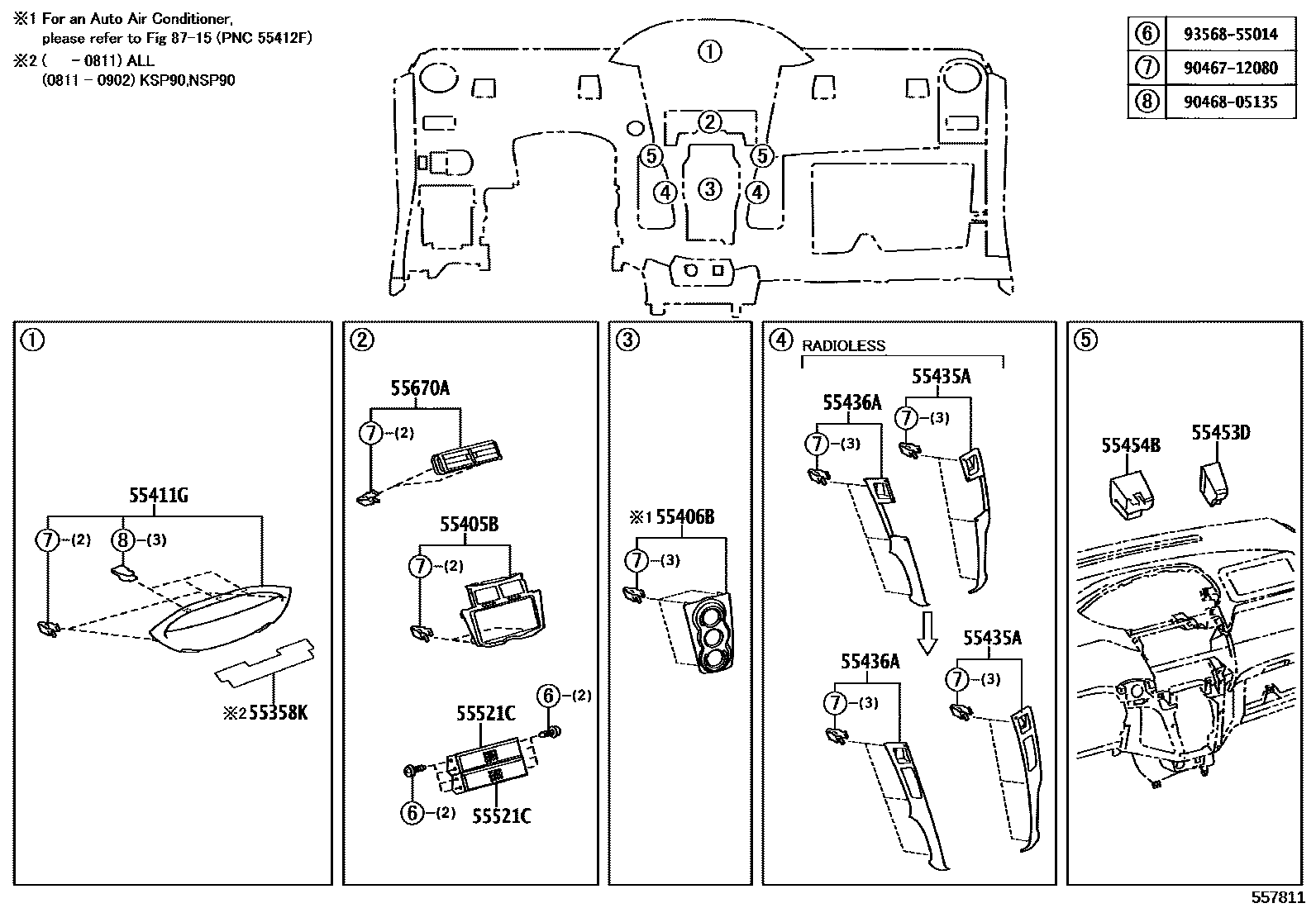

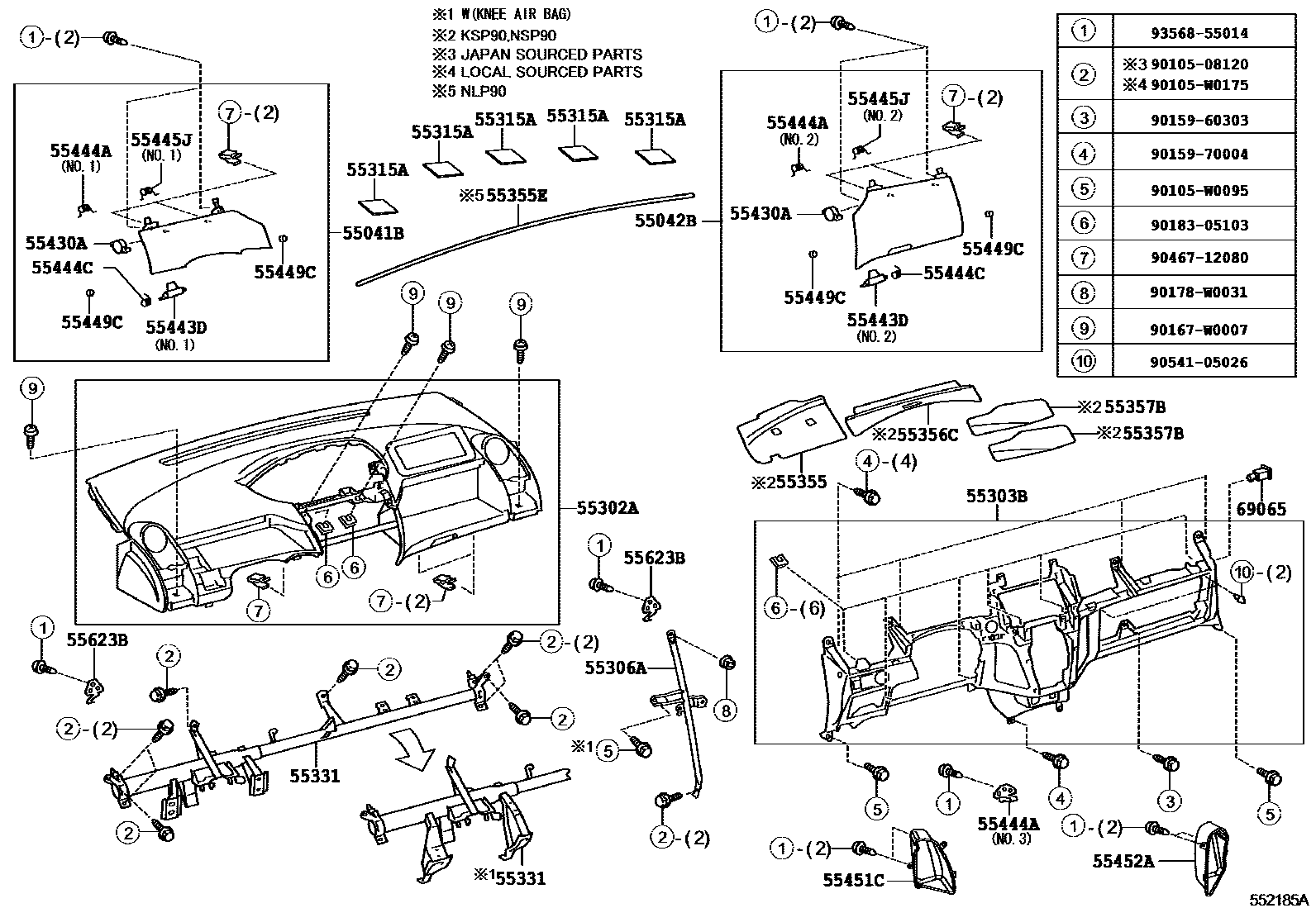

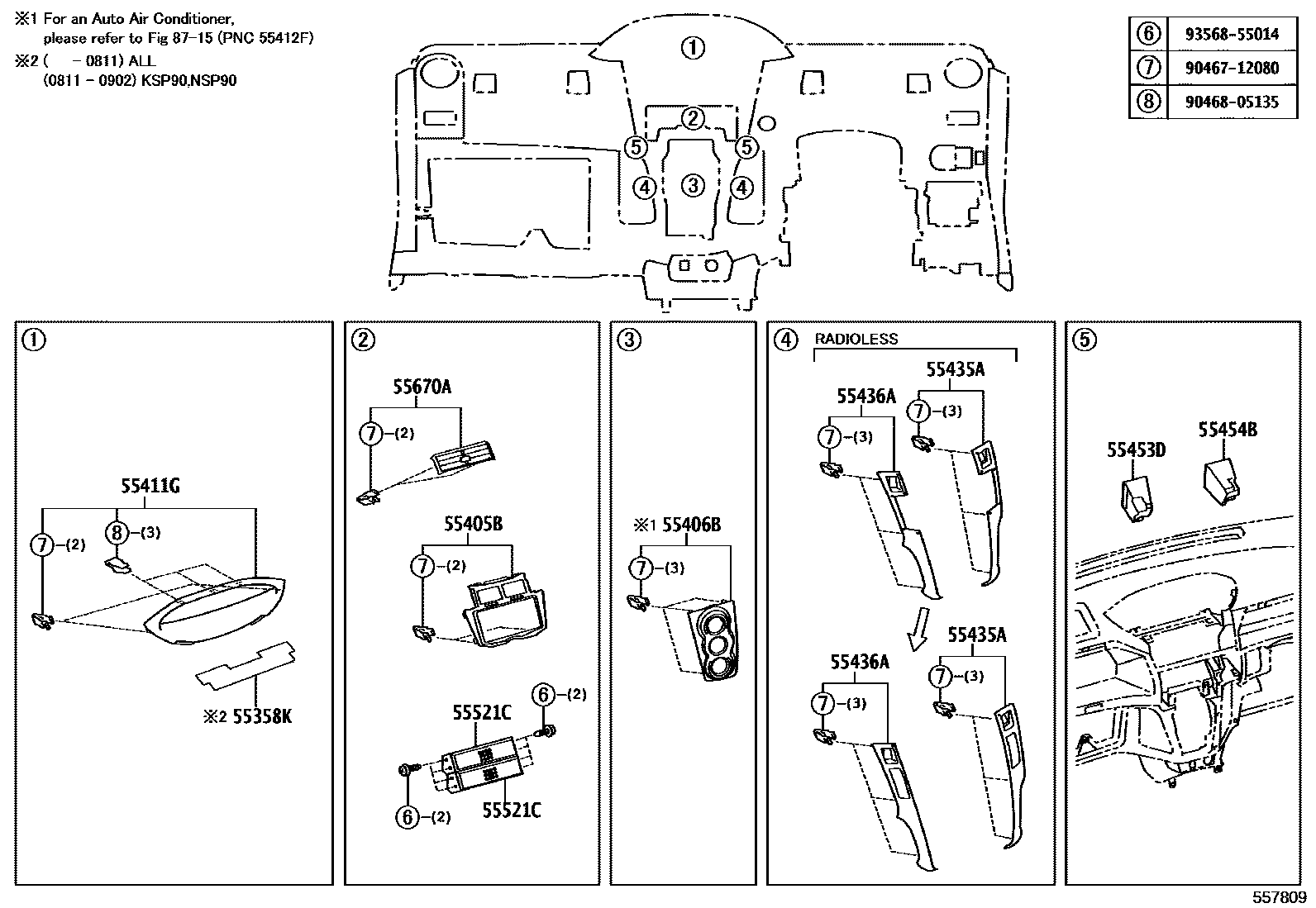

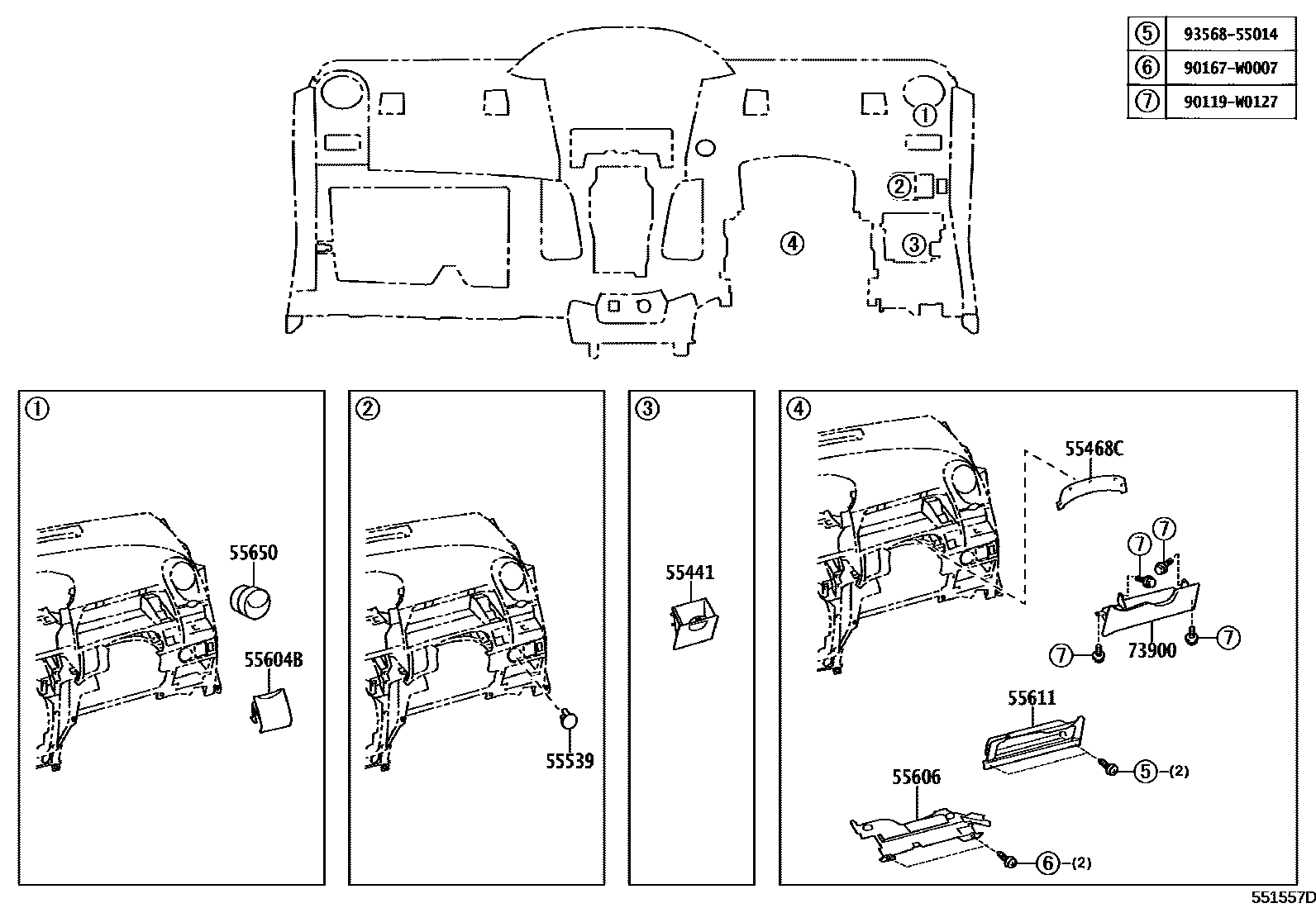

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 10 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55249A | front panel seal | 55249-52010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D070 · 55306-0D071 · 55306-0D080 · 55306-0D081 · 55306-0D090 · 55306-0D091 · 55306-0D100 · 55306-0D101 |
| 55315A | Instrument panel spacer No. 1 | 55315-05050 |
| 55331 | Dashboard reinforcement | 55330-0D170 · 55330-0D171 · 55330-0D172 · 55330-0D180 · 55330-0D181 · 55330-0D182 · 55330-0D190 · 55330-0D191 · 55330-0D192 · 55330-0D220 · 55330-0D221 · 55330-0D222 |
| 55349A | Dashboard cushion | 55349-0D080 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D040 · 55355-0D060 |
| 55355E | Dashboard cushion | 55355-0D030 · 55355-0D090 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D020 · 55356-0D070 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D040 · 55357-0D090 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0D050 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-0D050 |
| 55430A | Instrument cluster decorative panel damper assembly | 55430-52020 |
| 55444A | Dashboard storage box spring | 55444-0D120 · 55444-0D130 · 55444-0D170 |
| 55444C | Dashboard storage box spring | 55478-0D010 |
| 55445J | Dashboard storage box spring | 55445-0D070 · 55445-0D080 |
| 55449C | Dashboard No. 2 decorative panel cushion | 55449-28020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52050 · 55453-52060 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52040 · 55454-52050 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52010 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D010 · 55606-0D020 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D010 · 55607-0D020 · 55607-0D080 |
| 55623B | Dashboard cup holder spring | 55623-0D010 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-0D010 · 69065-52030 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D010 · 73960-0D012 |
| 82140 | Instrument panel wiring harness assembly | 82140-0D010 |
