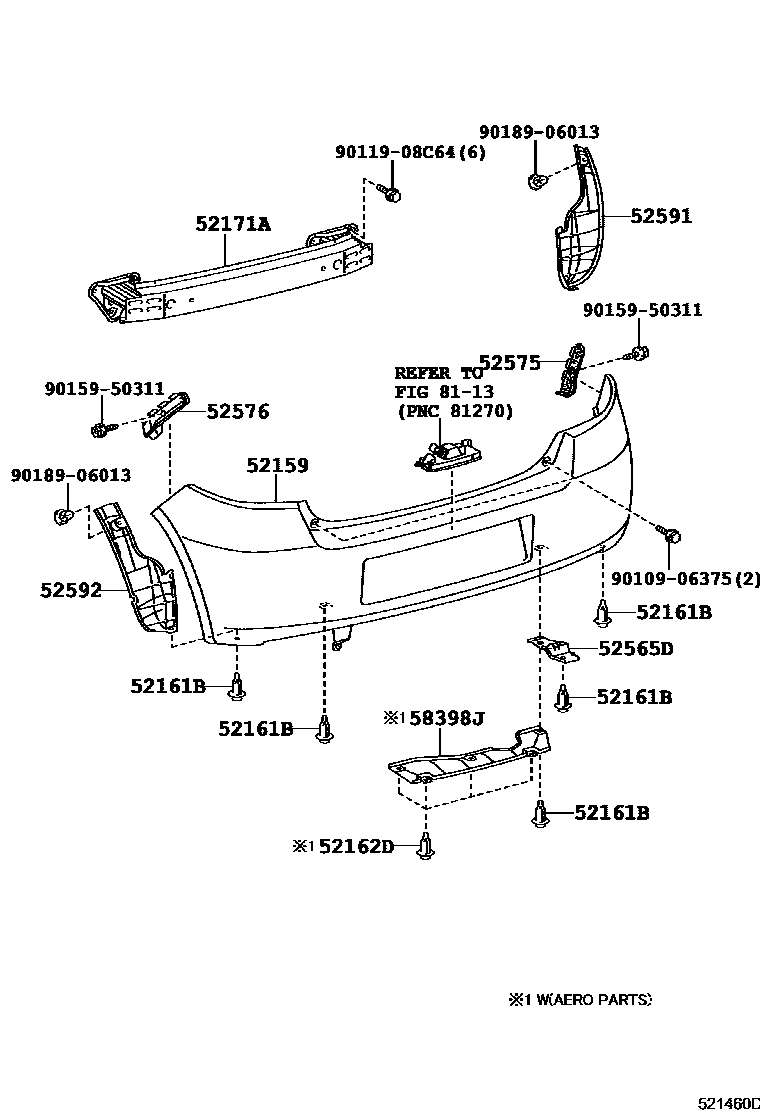

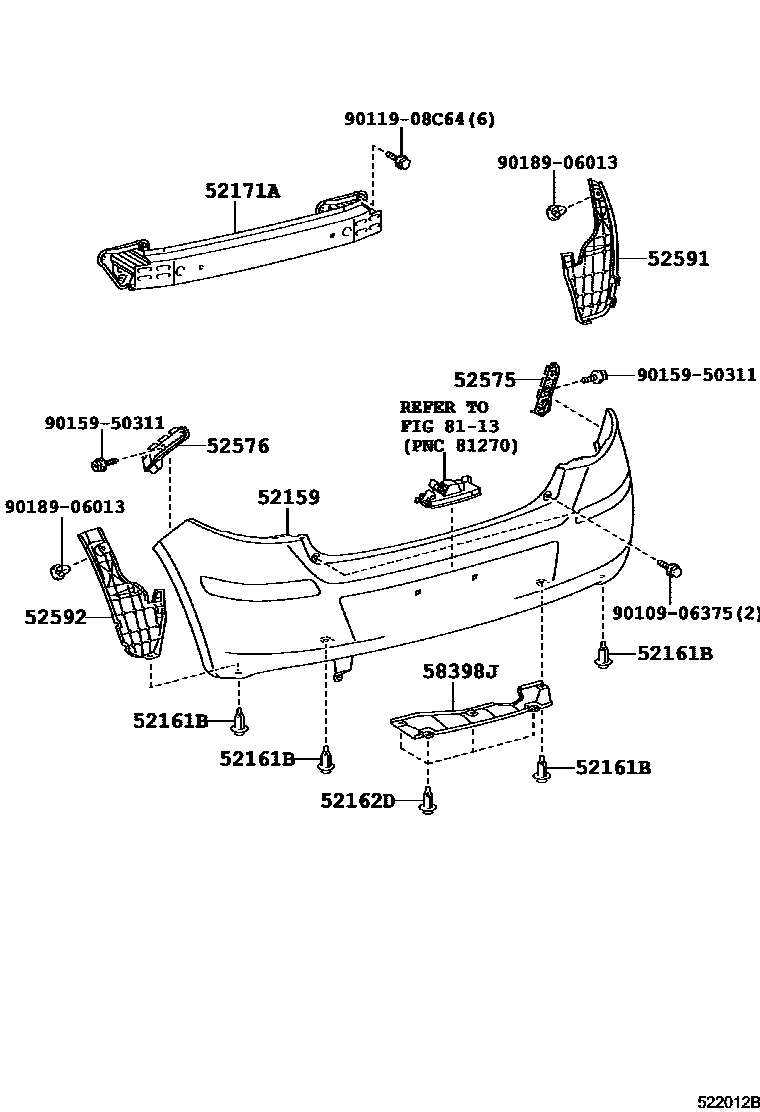

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0D976 · 52159-0D986 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-0D010 |
| 52565D | Rear bumper lower right fixing bracket | 52565-52030 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D030 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D030 |
| 52591 | Rear bumper right seal | 52591-52180 · 52591-52270 |
| 52592 | Rear bumper left seal | 52592-52170 · 52592-52270 |
| 58398J | No. 1 floor under cover | 58398-0D010 |
